LED Panel 120×60
- PRODUCT DETAIL
LED Panel 120×60 Features
GS LED Panel 120×60 used Aluminum 6063 frame and PMMA LGP with Philips free flicker driver, which total lamp up to 150lm/w.
The panel light has moisture-proof, rust-proof and anti-oxidation properties, and can display bright luster for a long time.
Its reflector enhances the reflective effect by concentrating the reflection principle.
The high-quality light guide plate adopts imported optical materials and advanced laser dot technology to make the light uniform and the light diffusion effect is good.
LED products are designed to last many years. Both the long term financial and environmental benefits of installing Integral LED panels are significant in terms of cost savings and energy efficiency.
For larger projects the savings are very substantial, however no matter what size the installation, savings will quickly exceed the difference in panel unit cost.
The high-quality LEDs used in our panels provides a lifetime of up to 50,000hrs, while delivering a better quality of light. An average daily use of 8 hours still gives you well beyond 15 years of use! In turn, this helps you save money with LEDs by not having to replace them as often.
LED Panel 120×60 without light spots
Led panel 120×60 high quality Pmma diffuser guide plate for long-lasting use, uniform brightness, anti-glare, super display advertising effectiveness.
Imported materials from Japan, total lamp quality guarantee 5 years.
LED Panel 120×60 use high quality Pmma diffuser guide plate

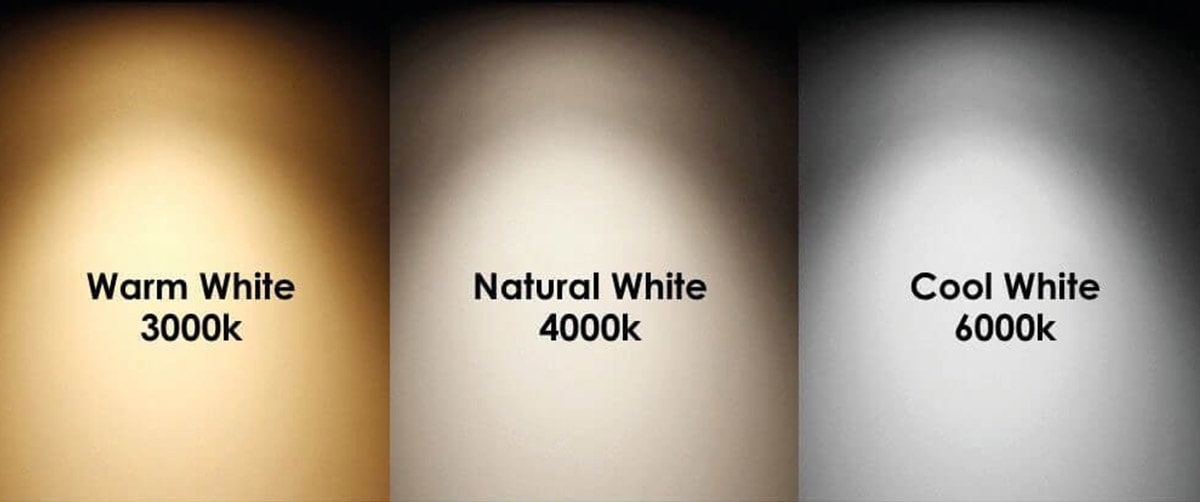

How do the flat led panel color temperature?
LED Panel 120×60 Specification
| Dimension(mm) | 1195x595x10 |
| LED Type | SMD2835 |
| Power Consumption | 50W / 72W |
| Luminous efficiency | 100lm/w 120lm/w 135lm/w 150lm/w |
| Input Voltage | AC220-240V |
| Heat sink | 6063 aluminum + optical PMMA |

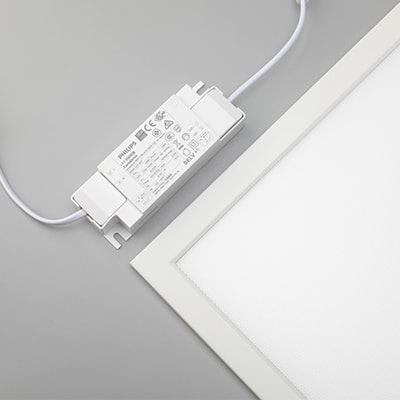

| Driver | Philips free flicker |
| CRI | >80 |
| UGR | <22 / <19 / <16 |
| Beam Angle | 110° |
| Power Factor | >0.9 |
| Working Voltage | DC36-42V |
| CCT | 3000K 4000K 6000K |
| Working Temperature | -40°C – + 50°C |
| Storage Temperature | -25°C – + 55°C |
| Installation | Embedded, Suspended, Surface mounted, Spring clip |
| IP Rating | IP20 |
| Warranty | 5 years |
Emergency box for option
In the event of a power failure, the emergency LED panel light will continue to provide some light in define areas such as escape routes for at least 1.5-3 hours. Local and national building regulations should be followed. Since LED panels use less power they are very suitable as emergency panels.
0-10V and DAli Dimmable for Options
If you require a dimming function we will offer you 0-10V and Dali dimmable driver for your options.
LED Panel 120×60 Applications
Our led panel 120×60 high energy efficiency with an energy saving of 88%, this implies a greater efficiency with respect to other panels.

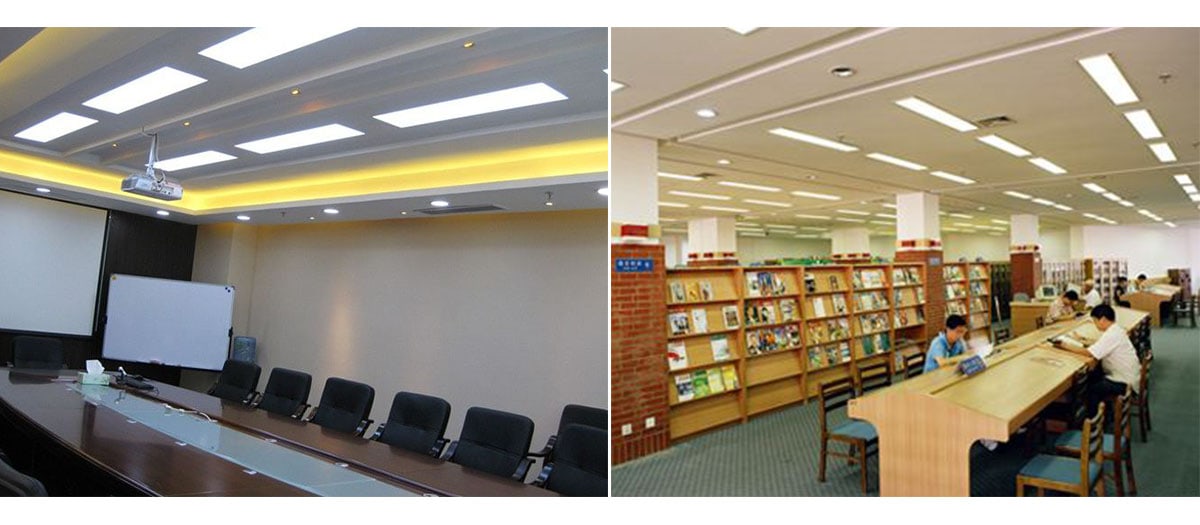

They have a widespread use in office lighting, library lighting, basement lighting, gym lighting, school lighting, hospital lighting, commercial lighting, home lighting and more!
In addition to the rectangular LED panels on this page, we also have square 300×300，600×600 LED panel light of 36W 40W in our assortment led panel light.
