LED Linear lighting – LL Series

GS LIGHT LED Linear lighting

- Provides Improved Visual Comfort • High CRI >80

- TUV CE non-flicker driver, PF>0.95

- Environmentally friendly, no mercury, No UV, No IR

- Input Voltage: 200-240V

- Beam angle 110°

- CRI>80

- 115lm/w and 130lm/w for option

- 1-10V Dimming,Microwave Sensor control Options

- Pendant and surface Mount for options

- Cover: Frosted or Clear

- 5 Year Warranty on complete fixture. (LED’s, Driver, & Housing)

SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL
GS LIGHT

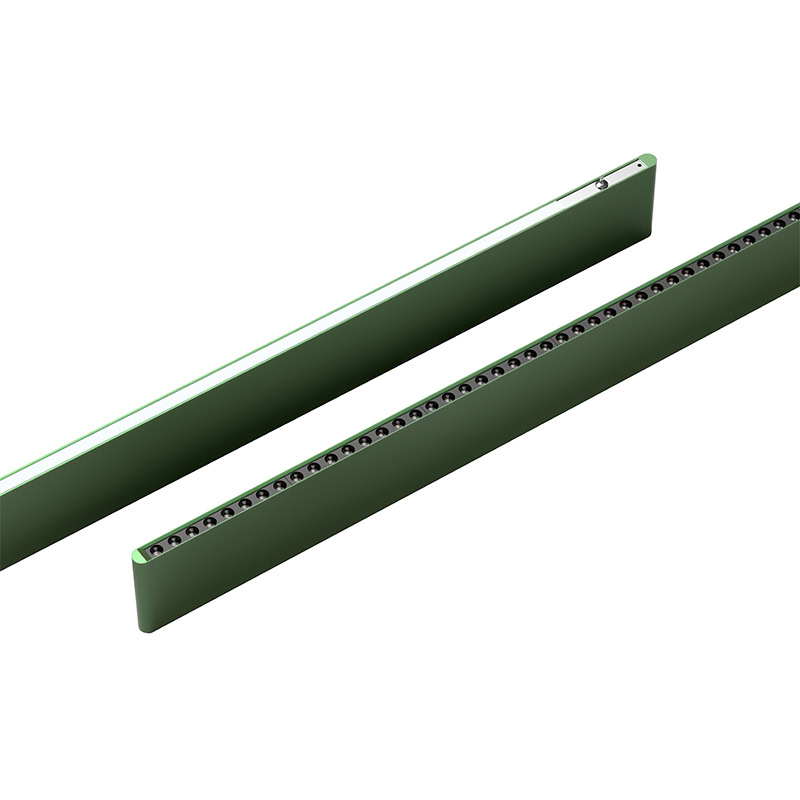

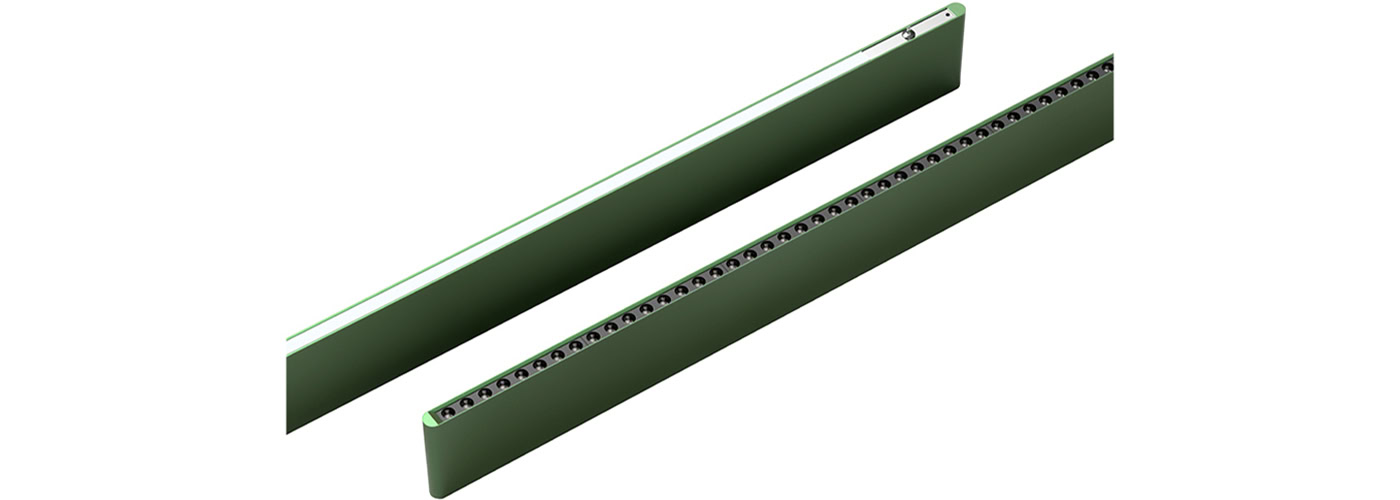

LED Linear Lighting Features

GS LIGHT `s LED Linear Lighting is an energy-saving, low maintenance alternative to traditional linear fluorescent lamps

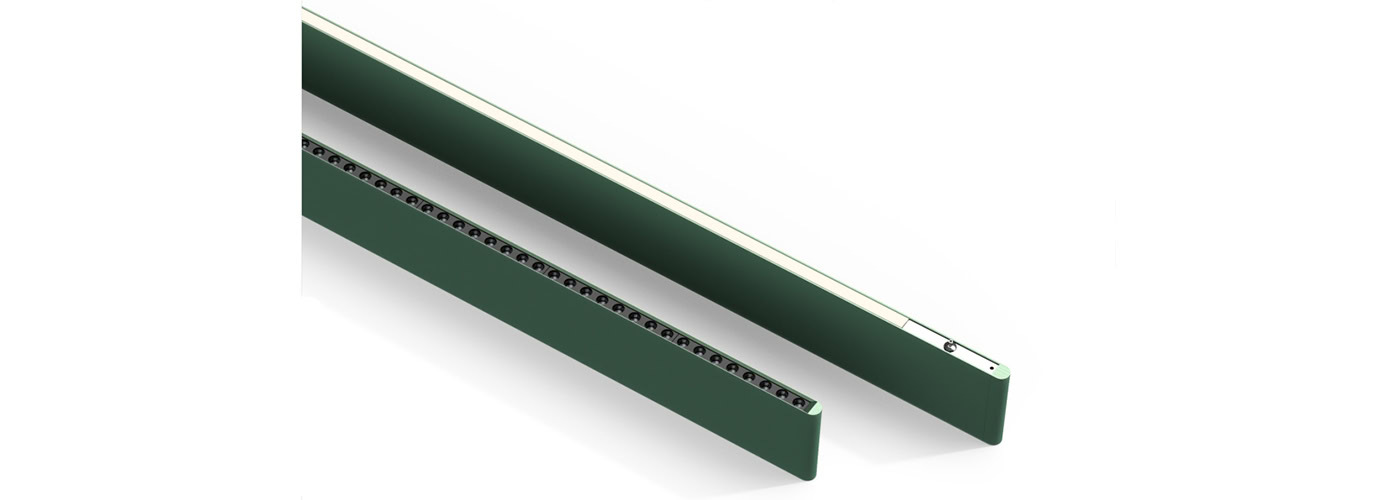

Ultra thin new design, Double line led on aluminum PCB, more brightness, low light decay, long life time

led linear lights

High Efficiency LED Linear Lights

Directional LEDs put light where it’s needed without reflectors to greatly increase efficiency.

we offer standards 120lm/w and higher luminous efficiency 140lm/w for optional .

gs light led linear lighting

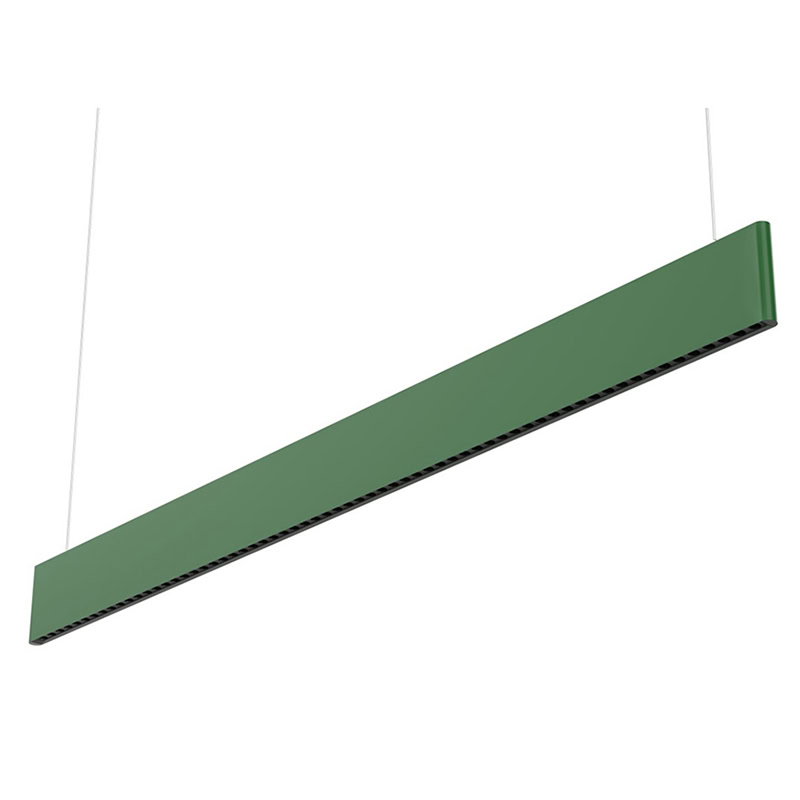

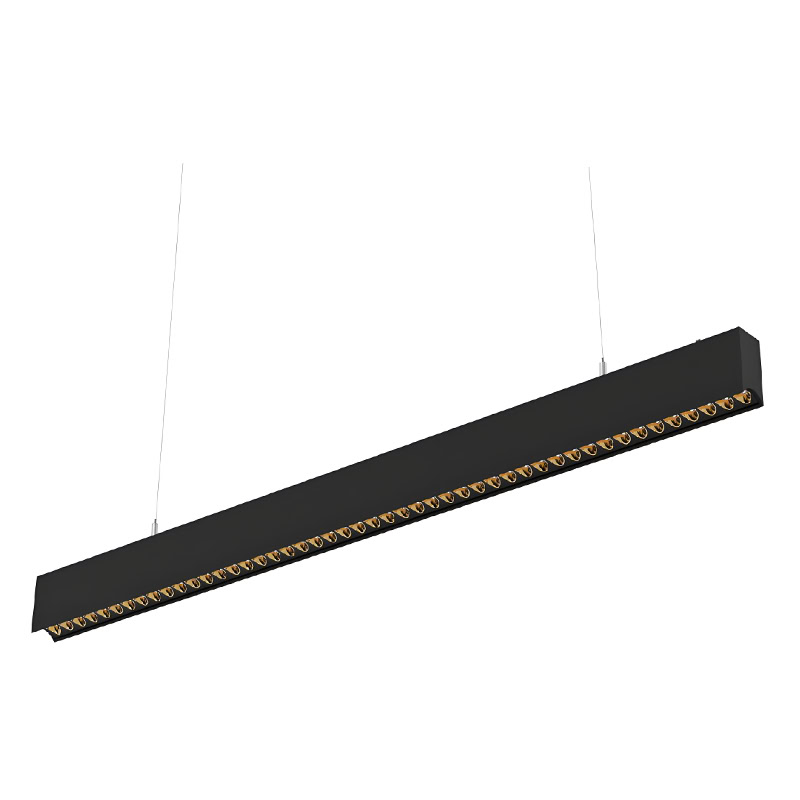

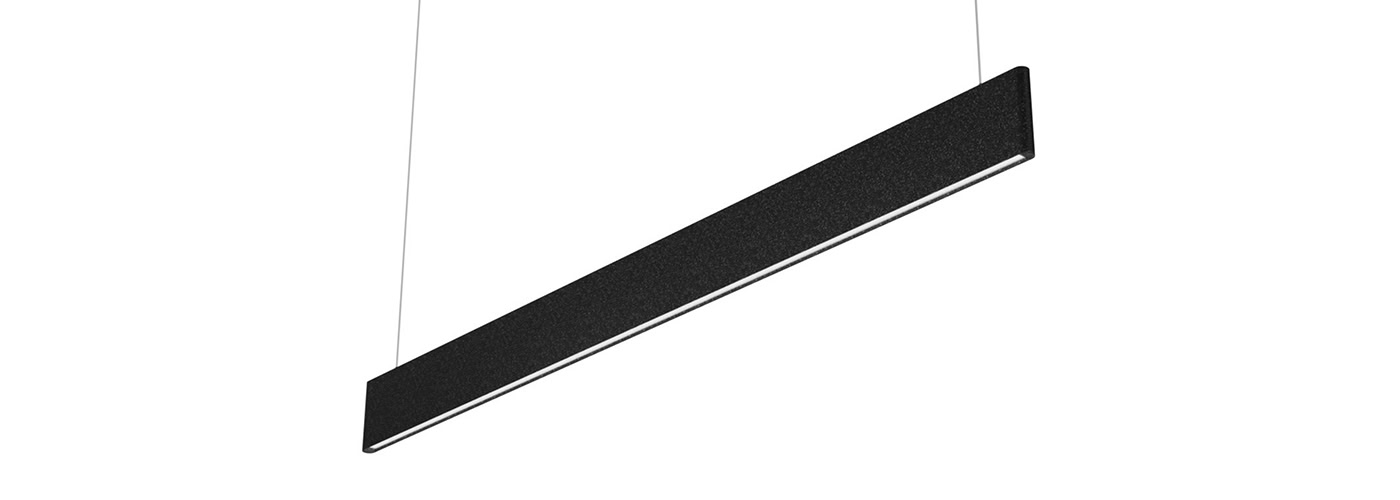

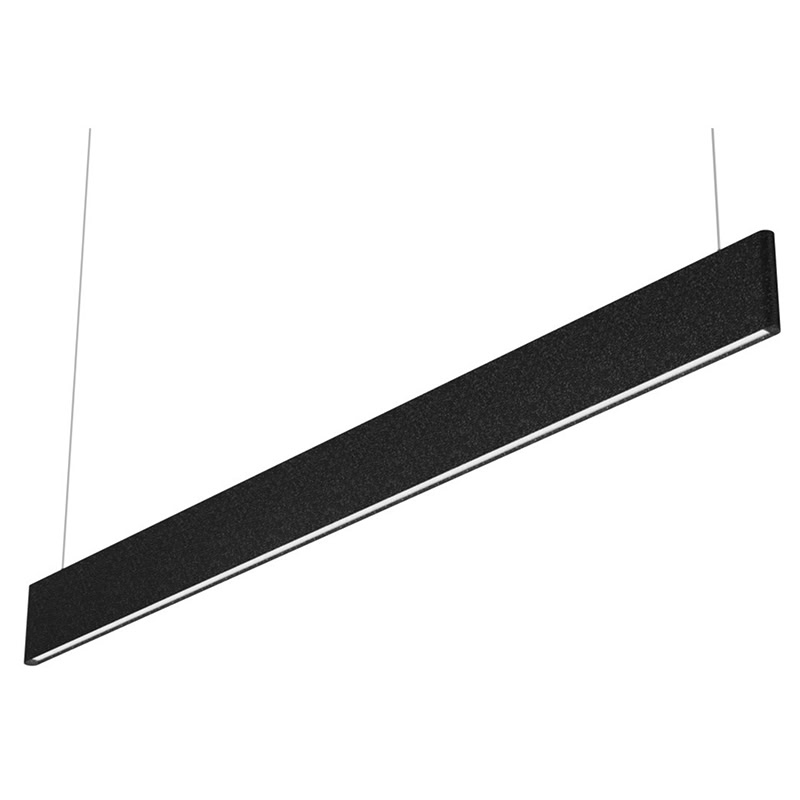

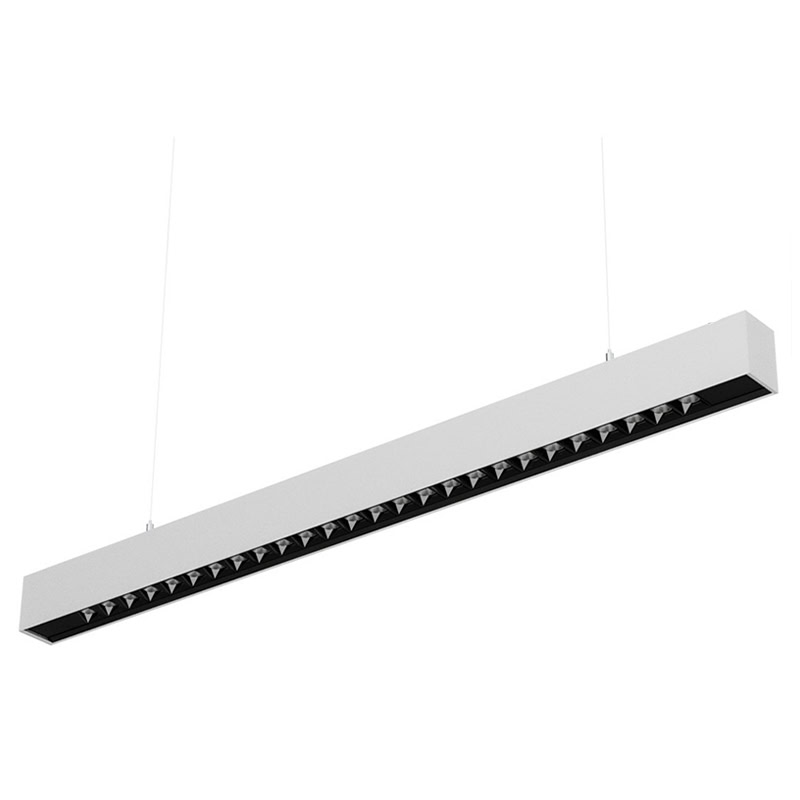

GS LIGHT Linear Pendant Lighting with Suspension Mount

Fixtures can be installed independently or connected structurally without limitation. Cable suspended or surface-mount.

led linear light suspension mount

Quick and Easy Linkable Connection

Linkable connected have Length 1.2M/1.5M for choice

gs light linear led lighting

GS LIGHT LED Linear Light Fixture Datasheet

datasheet

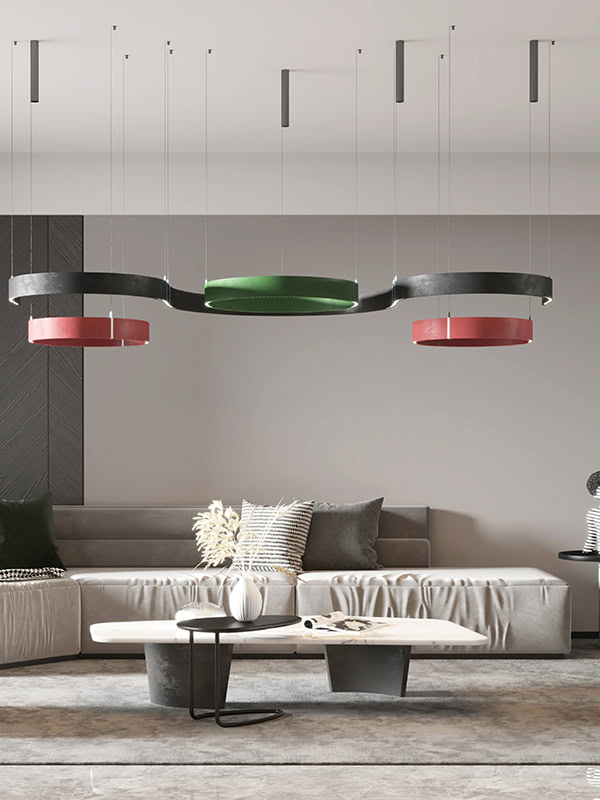

GS LIGHT Linear LED Lighting Application

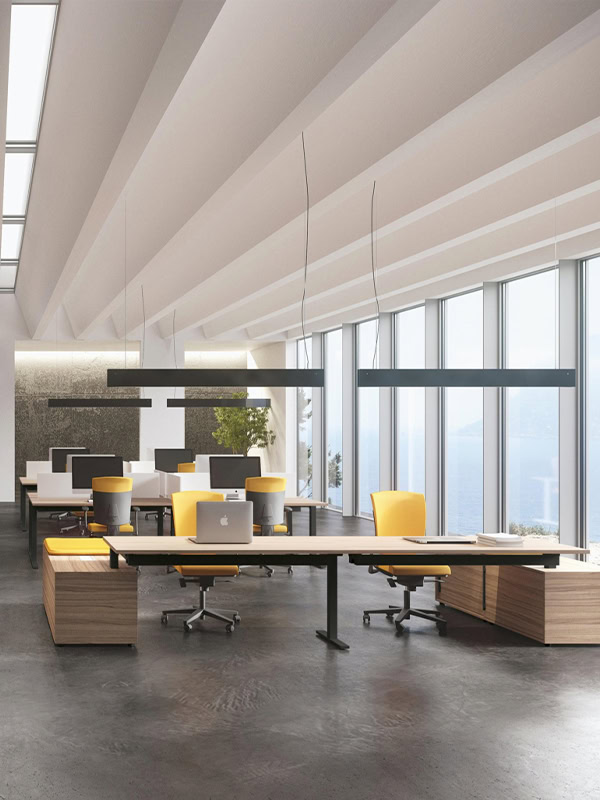

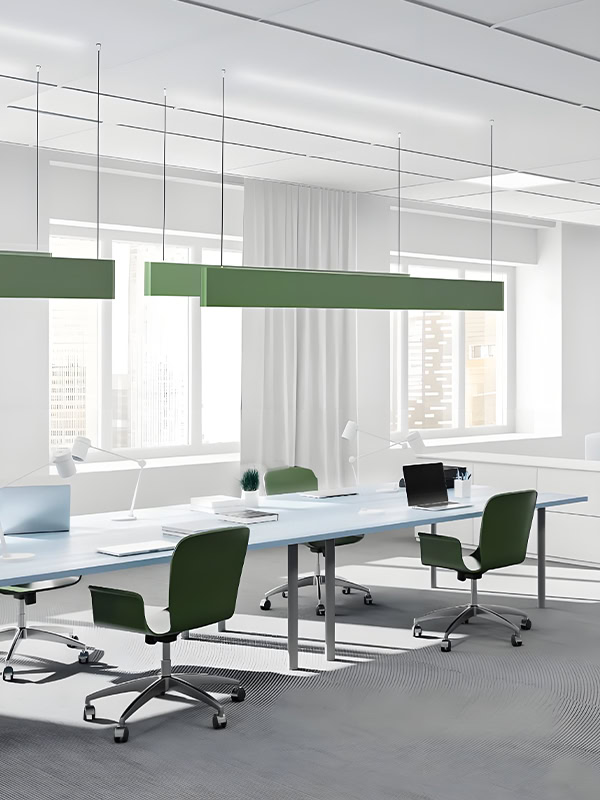

Application for Supermarket, Industry, Warehouse, Subway station, Commercial mall, Office, school, Gymnasium,

hospital, mansion, garages, workshops, storage rooms attic, sentry box etc. Below is our linear led lighting projects

linear led lighting projects

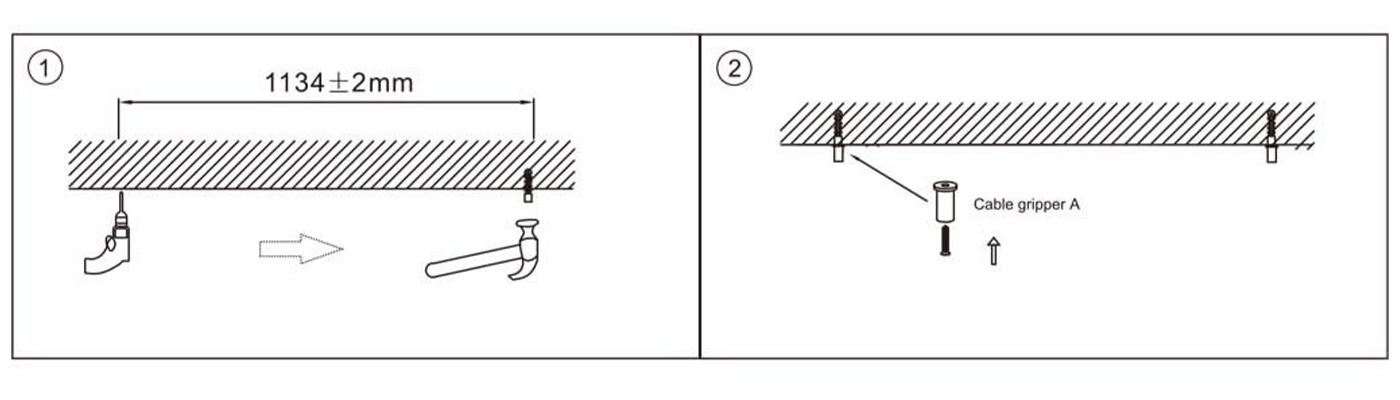

Suspended Linear LED Lighting Suspended Mount Guide

1. Drill two desired holes on the ceiling and then tap the plastic expansion tube into the hole.

2. Pass screw KA4*30 through cable gripper A, and then inserted into expansion tube.

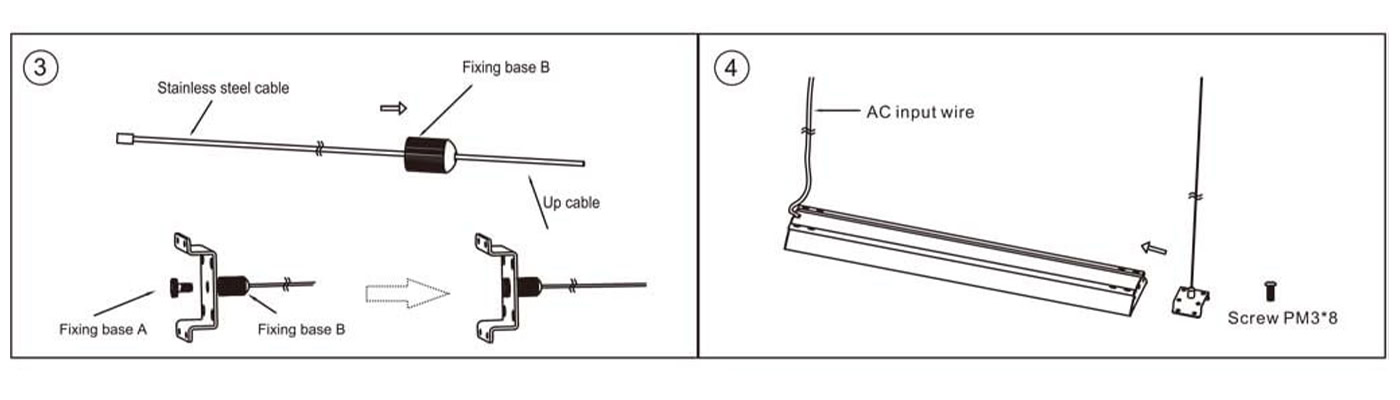

3. Pass the stainless steel cable through fixing base B. Let fixing base A through M mounting bracket and then twisted into fixing base B.
4. Insert the two M mounting bracket into the groove from the end without AC input wires. Twist the screw through the bracket holes to fixate with fixture.

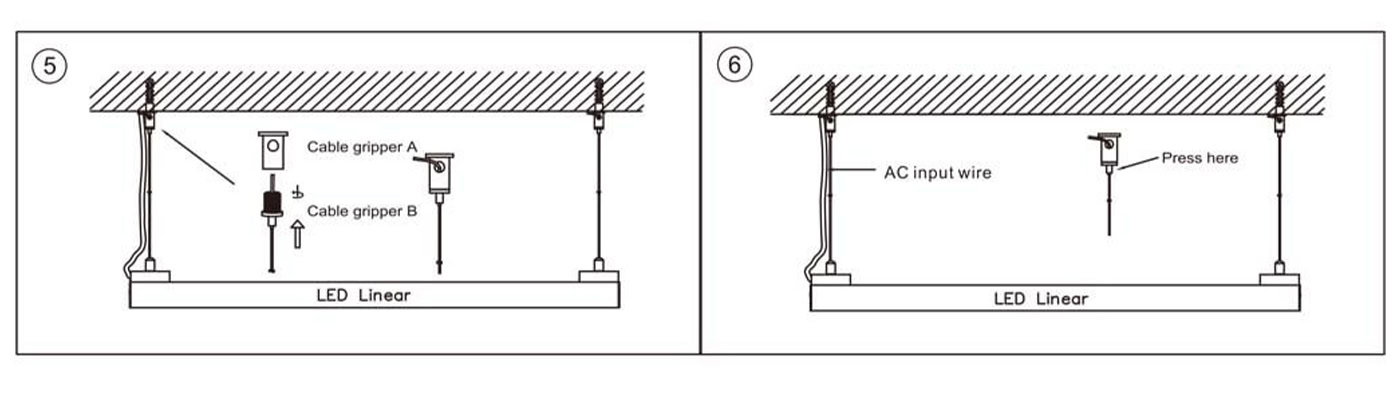

5. Twist cable gripper B into gripper A. Lead out the cable through the gripper A hole.
6. Connect L, N, GND wires from the fixture to the corresponding wires of the AC cord from the ceiling. Press the tip of the gripper to adjust cable’s length and level the fixture

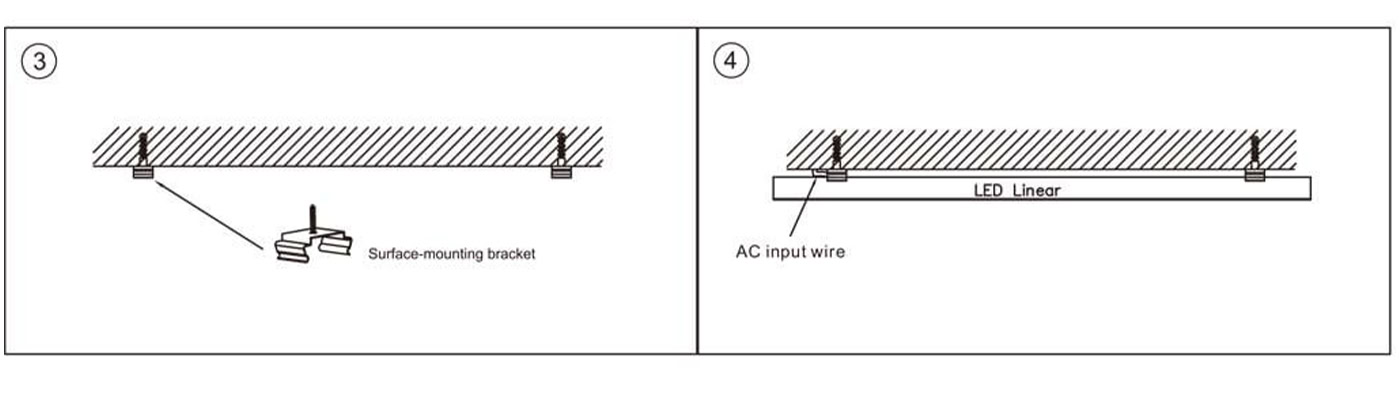

Linear LED Light Fixture Surface Mounted Guide

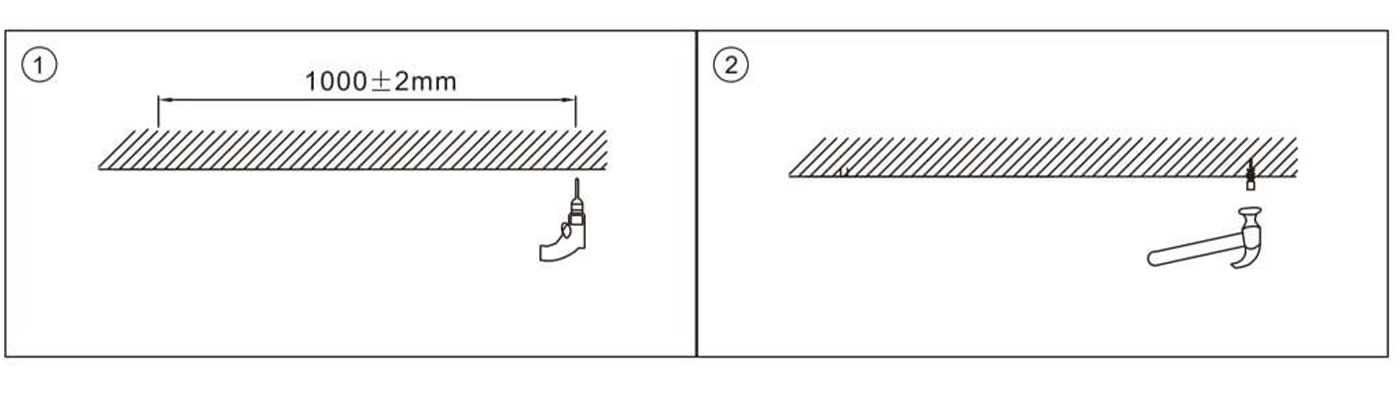

Drill two desired holes on the ceiling. The distance is 1000 mm for example.
2. Tap the plastic expansion tube into the hole

3. Pass through KA4*30 through surface-mounting bracket, and then inserted into expansion tube tightly.

4. Connect L, N, GND wires from the fixture to the corresponding wires of the AC cord from the ceiling Fixate the fixture to the surface-mounting bracket
