LED Linear Light

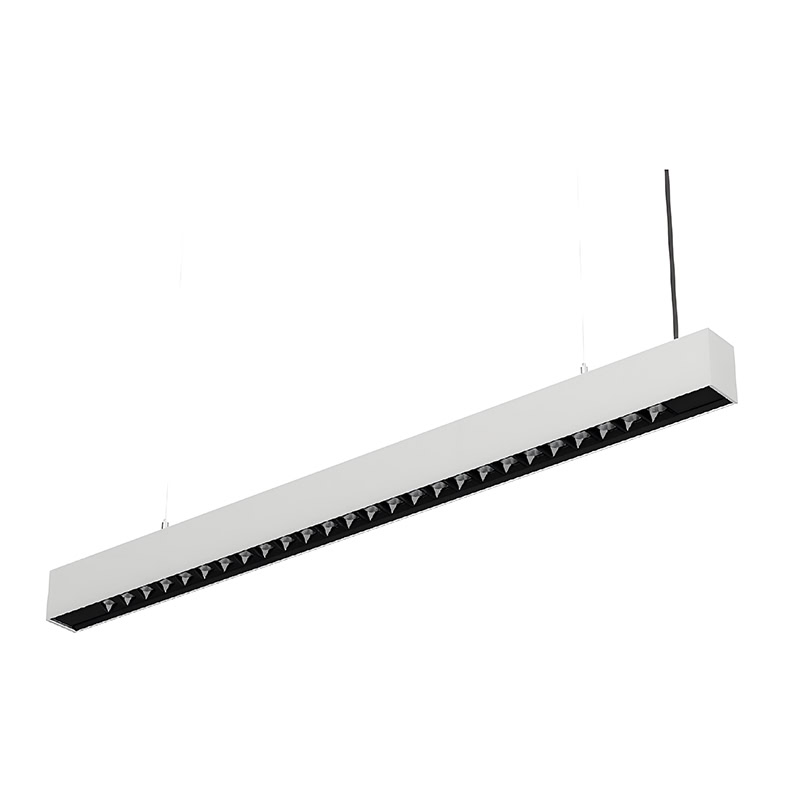

Led Linear light

- Efficiency: Up to 120lm/w
- High performance Philips or Nichia LED, CRI>80 CRI>90
- Unique illuminating freedom through 13 different optics
- LM79 and LM80 compliant
- Power supply: Integrated
- CCT: 3000K , 4000K , 5000K
- Installation: Pendant, surface-mounted, guide rail
- IP-rating: IP20

SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL
GS LIGHT

LED Linear Light Materials

GS LIGHT LED Linear light use Extruded aluminum, powder coated(sand white and sand black and sand grey) Precise,


Stand-alone luminaire: 608mm/1008mm/996mm/1194mm, deep light distribution for accurate illumination of ares from a light point height of 10m/32.8’

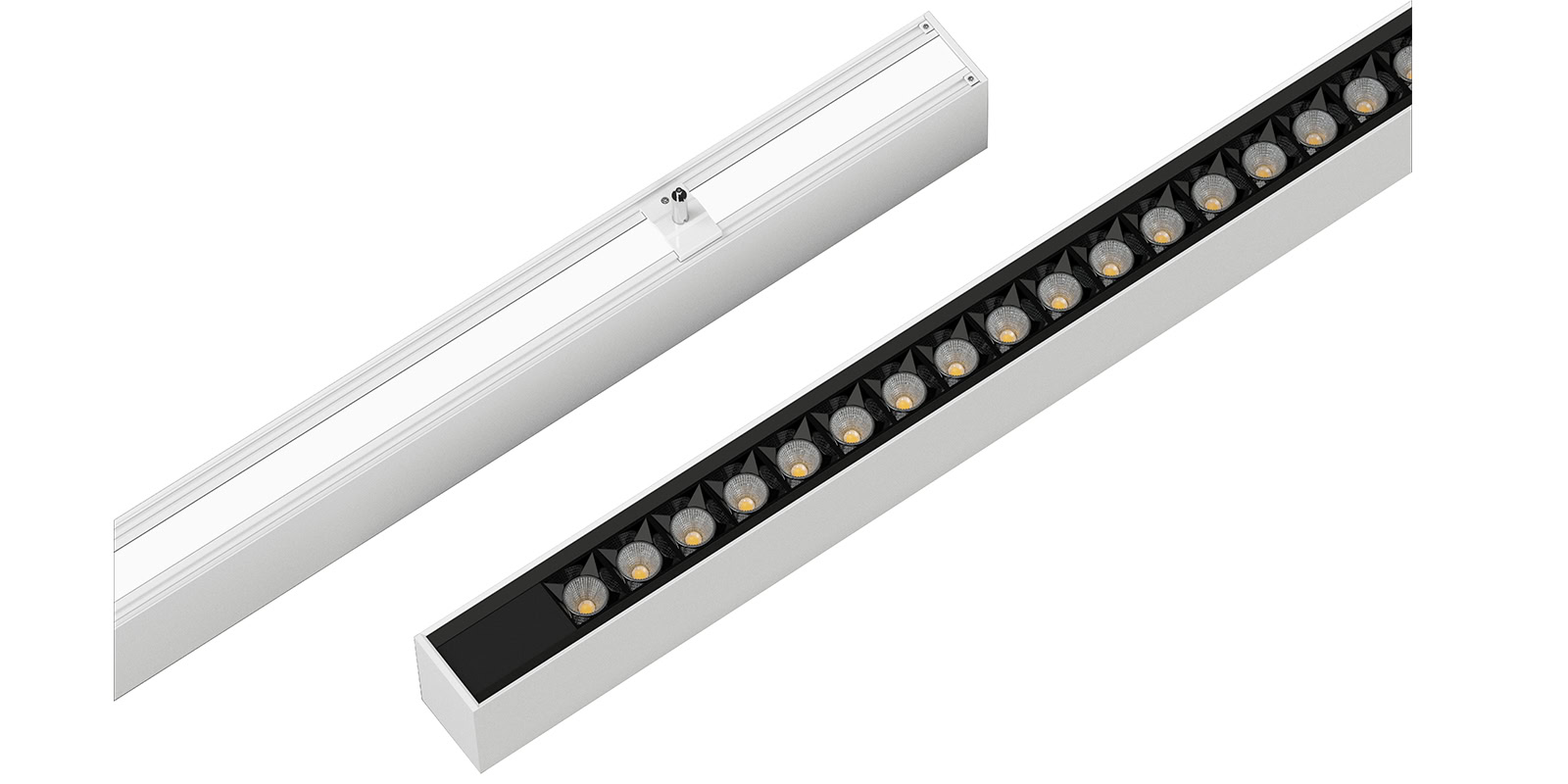

LED Linear Lights Optic

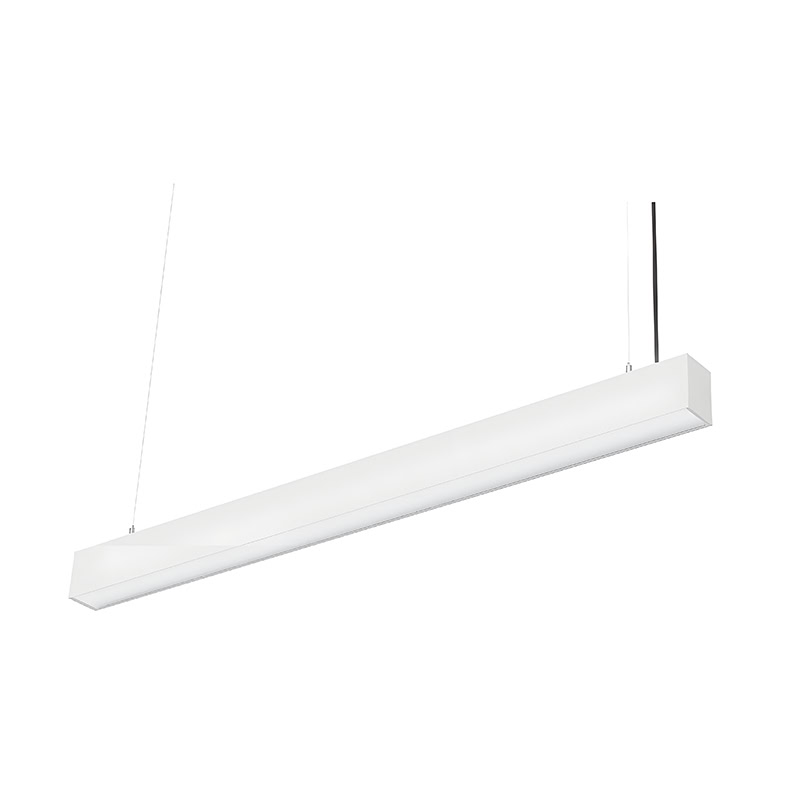

UGR<16 <13 through precision PC reflector and PMMA optic 30°
88% Optic efficiency

Life time: 50000 hours with a lumen maintenance of 20%(LM80)
Light line up to 40m*(131”) with one feed-in ;without light gap


Easy installation: free of choice pendant points throughout the entire length of the fixture Elegant and timeless design

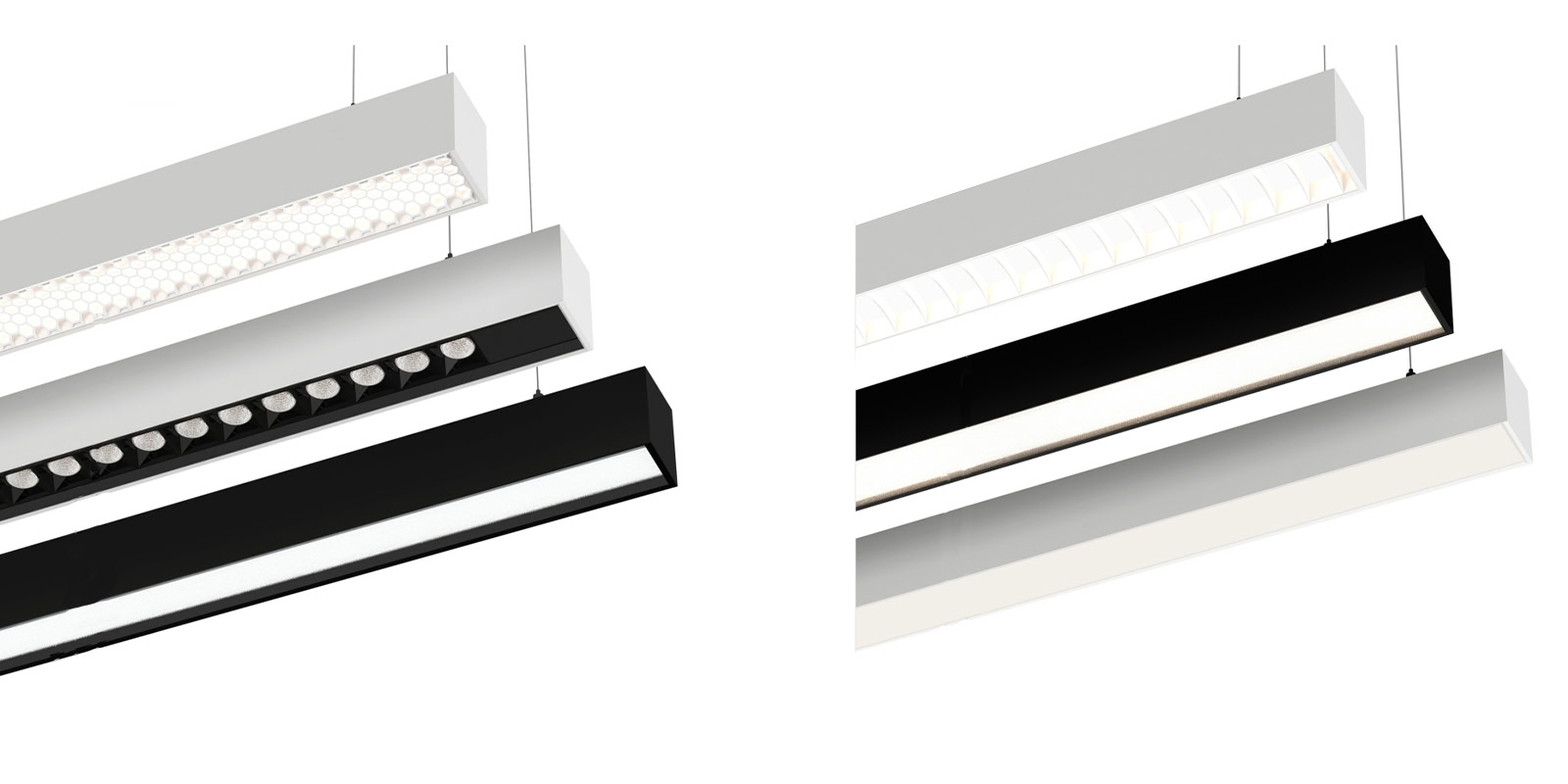

Pre-installed accessories(e.g. pendant mounting set,surface mounting set and track)

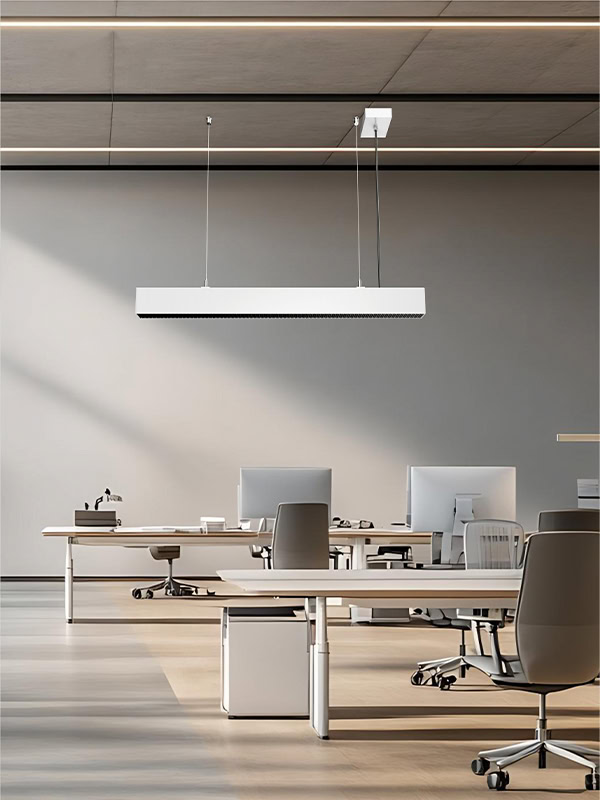

LED Linear Lights applications

Led linear light used Conference and lecture halls, industrial buildings, receptions, directional light, Shops, Libraries, Offices, Supermarket, Universities, Hospitals, Public buildings, Train stations, Kindergardens, Factory and high bay warehouse from a height of up to 10m/32.8

2×25° Symmetric narrow reflector

Very narrow, sym.light distribution for illuminating two vertical sufaces(wall shelf) with a homogeneous distribution of brightness with out a visible lamp

UGR<10, precise PC reflector and PMMA lens wall washer with 2*25° symmetric 88%Optic efficiency

60°Symmetric reflector optic

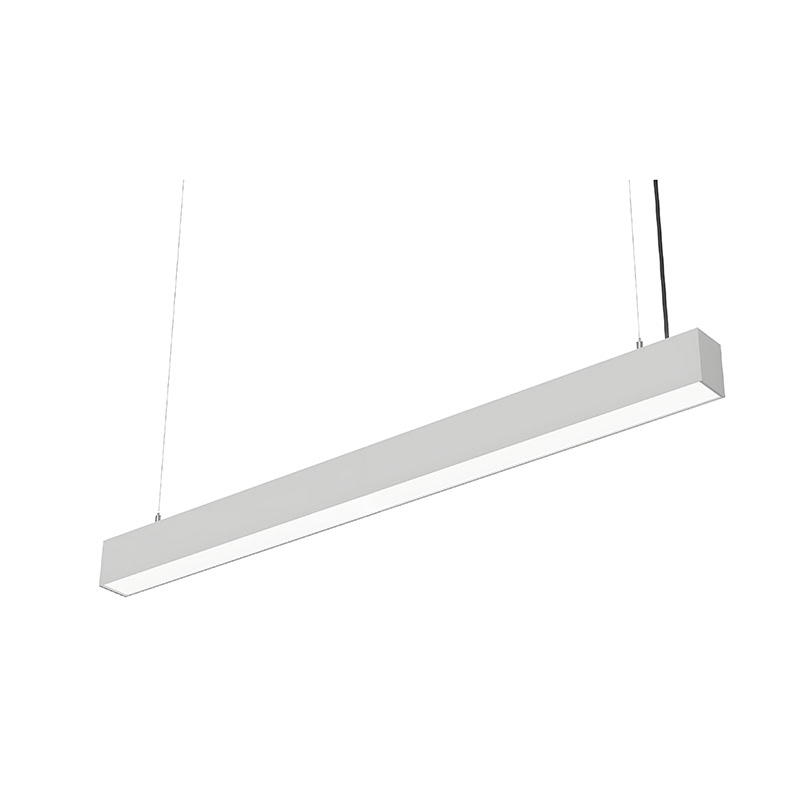

Wide and deep light distribution for precise and generous illumination of areas up to a light point height of 5.5m/18′

UGR<16 through precise PC reflector and PMMA lens washer with 60°symmetric

LED Linear light datasheet
