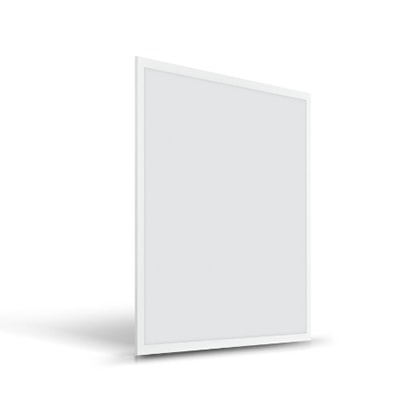

LED Panel 62×62
LED Panel 62x62 (620x620mm)
Power: 36W/40W
Size: 620X620x10mm
Luminous efficiency: 100lm/w,120lm/w, 130lm/w
CCT: 3000K/4000K/5000K/5700K
Driver: Philips Flicker Free
CRI:>80
Beam angle: 120°
Emergency: 60mins/90mins/180mins
Dimmable: 0-10V/DALI/ for options
IP Grade: IP20
Warranty: 5 years
Price Range: US$15-20
You can make an inquiry about this product.
Your e-mail will not be leaked.
- PRODUCT DETAIL
LED Panel light Product Benefits
LED Panel 62×62 (620x620mm) this size most use for Europe Germany market. featured with the minimum thickness 10cm, UGR<19, fire rating UL94V-2.
Square and slim flat led panel is not only provide bright illumination, but also helps you save more energy (up to 70 % compared to luminaires that use fluorescent lamps).
LED panel are the best replacement for traditional T5 and T8 fluorescent tube fixtures. being adopts Epistar high quality SMD led chip.
The light efficacy has 130lm/W, 120lm/W, 100lm/W between different configurations.
Intelligent Control of LED Panel Lights
GS LIGHT can provide customers with more cost-effective lighting solutions, DALI, ZigBee, motion sensor, microwave sensor, daylight harvest sensor and other dimming methods like 0-10V and DALI dimmable can all be customized.
PMMA Light Guide Plate with longer lifetime
You know most of panel light factories in order to save cost to use cheaper PS Light Guide Plate for the LED panel lights, but the PS materials easy turn yellowing after 1-2 years, so this way cann`t offer 5 years warranty for customers.
GS LIGHT only use PMMA Light guide plate with micro structure made of non-yellowing material for long lifetime, which total lamp can offer 5 years warranty.
Easy and quick installation and Low flicker light thanks to special electronic control gear

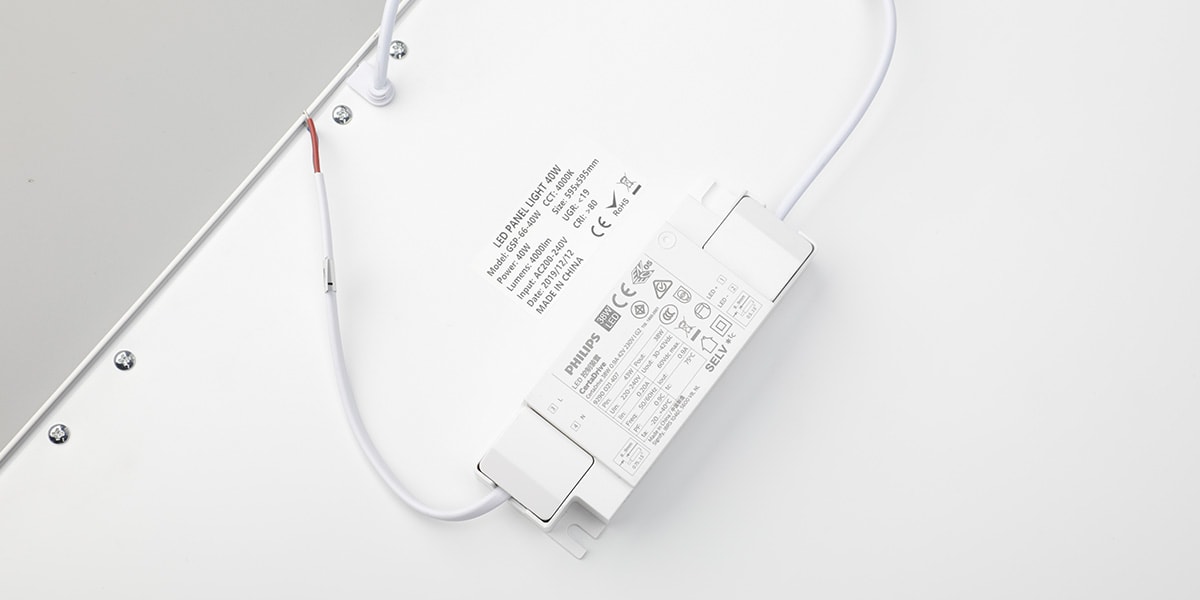

The LED Panel 62×62 with Philips Flicker free driver
Most modern light sources include an element of flicker, which can have serious health implications for all living things, and LED light sources are certainly no exception. epileptic seizures.
Long term exposure to imperceptible flicker can trigger serious ailments, such as headaches, eye strain, malaise, visual impairment and even epileptic seizures in a small number of cases.
For this reason, GS LIGHT only use Flicker Free driver, the brand from Philips and BOKE.

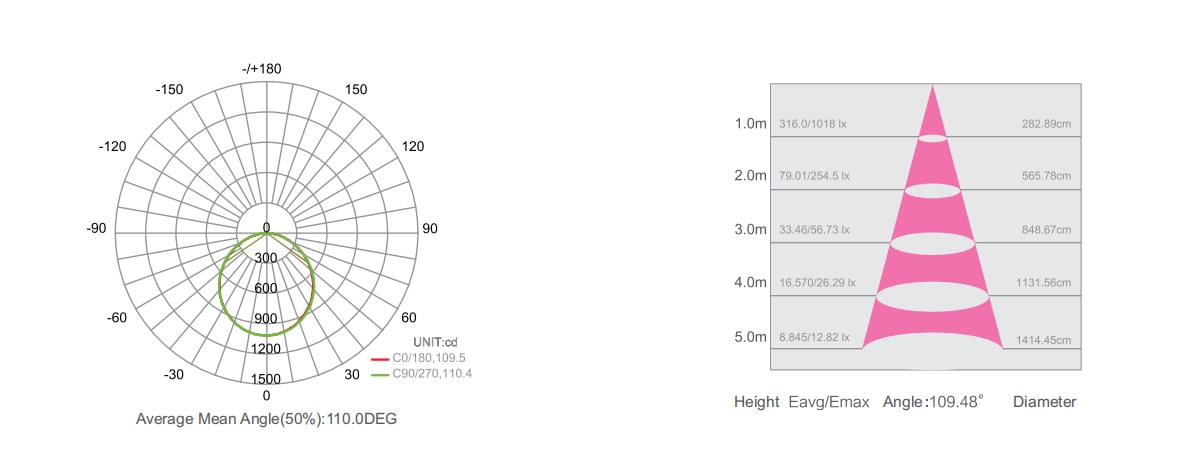

LED Panel light 620×620 mm Photometer test
LED Panel 62×62 Applications
The LED Panel lights Suitable for office, meeting room, school, hospital, shopping mall, indoor public places, etc.
The LED Panel 62×62 Specification
| Dimension(mm) | 620x620x10 |
| LED Type | SMD2835 |
| Power Consumption | 36w / 40w |
| Luminous efficiency | 100lm/w 120lm/w 135lm/w |
| Input Voltage | AC220-240V |
| Heat sink | 6063 aluminum + optical PMMA |
| Driver | Philips free flicker |
| CRI | >80 |
| UGR | <22 / <19 / <16 |
| Beam Angle | 110° |
| Power Factor | >0.9 |
| Working Voltage | DC36-42V |
| CCT | 2800-3200K 4000-4500K 6000-6500K |
| Working Temperature | -40°C – + 55°C |
| Storage Temperature | -25°C – + 55°C |
| Installation | Embedded, Suspended, Surface mounted, Spring clip |
| IP Rating | IP20 |
| Warranty | 5 years |
The LED Panel Light Accessories
GS LIGHT provide you stainless steel hanging wire, Aluminum frame, Spring clips for your all kinds of various installation
