LED Panel Backlit

LED Panel Backlit Features:

  • High efficiency up to 150lm/w
  • Low cost without LGP
  • Size: 600x600x32mm, 300x1200x32mm, 600x1200x32mm
  •  Luminous efficiency: 100lm/w, 120lm/w, 130lm/w, 150lm/w for option
  • CCT: 3000K/4000K/5000K/5700K
  • Driver: TUV driver, Philips Flicker Free driver for option
  • CRI:>80
  • Beam angle: 120°
  • Emergency back up: 60mins/90mins/180mins
  • Dimmable: 0-10V/DALI  for options
  • IP Grade: IP20
  • Warranty: 5 years
SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL

LED Panel Backlit benefits

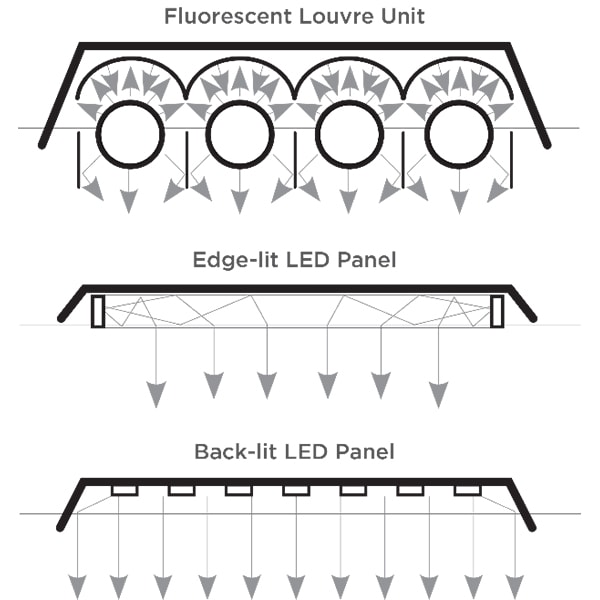

Different structure for the edge-lit, the back-lit more economical solution. LED panel Backlit light is with direct lighting design, which has higher lumen efficiency and perfect lighting performance.

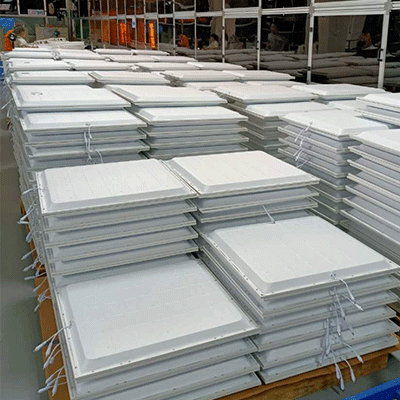

Backlit-led-panel-light


Moreover, since there is no light guide plate, it has advantages of less weight, lower cost and longer lifespan, instant start, no radiation, flicker free, no noise, no mercury and other material that is harmful to human body and environment.

LED Light Panel backlit High Luminous Efficacy

Short-lived tubes and ballasts and, of course, the dreaded flickering were reasons why fluorescents were disliked by office workers. Initial versions of the LED replacements offered only a marginal benefit in terms of luminous efficacy – 60 lm/W were swapped with 79 lm/W when the first edge-lit LED panel lights appeared.

Over time, each new generation of LED panels has delivered improved ratios of power to light. To the extent that Integral’s new up to 150 lm/W backlit led panel light.

Lower Cost more economical

Backlighting has proved the natural benefit of projecting light through less material. Edge-lit led panel light still retains a share of the market where unit costs are a higher priority than running costs, and where there is an aesthetic preference. However, the real saving is in the lower operational costs delivered by backlit led panels.

LED Panel Light Backlit Color Options

The light panel LEDs offer multiple color for options, warewhite 2700k, warm white 3000k, Nature White 4000K, Pure white 5700k, Cool white 6500k.

We also have Tunable white from 2700k to 6500k with Dial-up or Remote controller. RGB or RGBW adjustable available as well.

led panel light color options

0-10V and DALI Dimmable Options

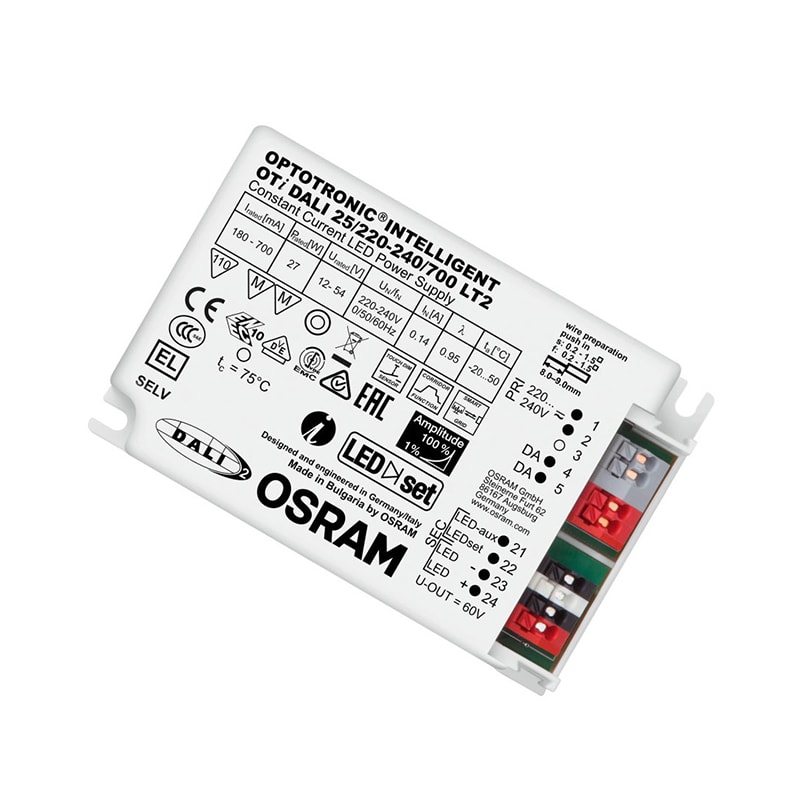

The dimmable driver we have strategic business partner Brand like OSRAM, Tridonic, and BOKE for Options, The Dali dimmable driver all from DALI 2 version.

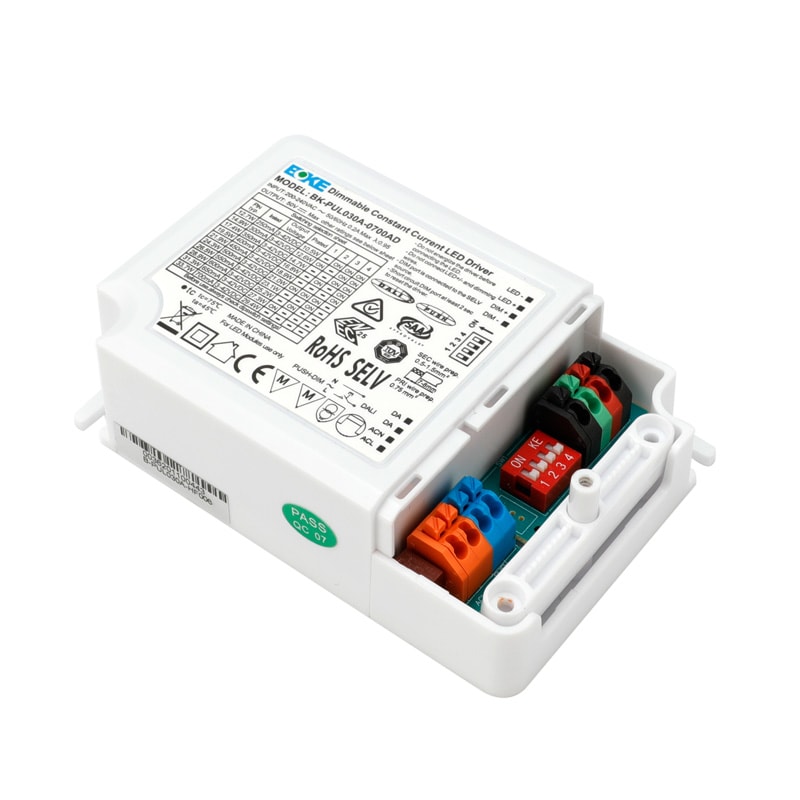

BOKE dali dimmable driver

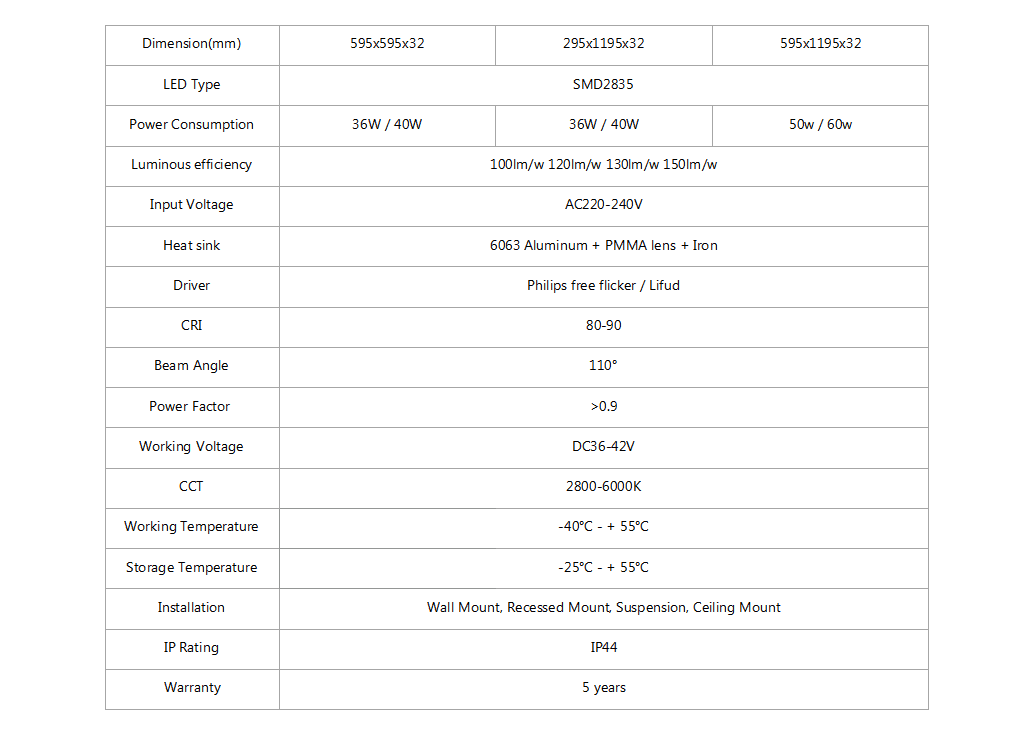

Back-lit LED Panel Datasheet

led panel backlit datasheet
