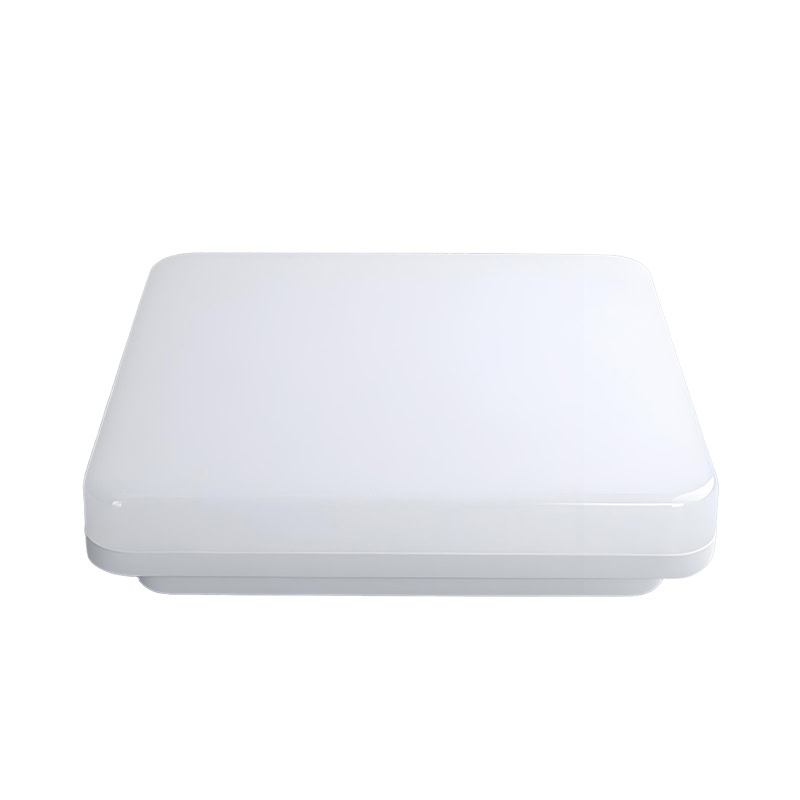

Square Bulkhead Light - SQ Series

Bulkhead light provide 220mm/280mm/330mm, 15W/24W/30W, black/white/gray colors for option.
IP65 suitable for outdoor use, aluminum housing and high light transmittance PC cover, 100lm/W light efficiency, CRI>80.

Features:

-ABS+ PC cover

-Wattage: 18W/24W/30W

-IP54, CRI>80

-Light efiiciency: 100lm/W

-AC200-240V

-Diameter: 220mm/280mm/330mm
-0-10V DlM/Triac Dim/DALI dimmable

-Emergency kits

-CREE/OSRAM LEDs

-Eaglerise/Tridonic free flicker drivers

-CCT: 3000K/4000K/5000K/6000K

-Warranty: 5Years

All Plastic Square Bulkhead Light Description

ABS and PC material with high hardness, good wear resistancem chemical corrosion resistance with low cost and high cost performance.

Customizable human body/radar sensors/emergency kits for option, 220mm, 280mm and 330mm, 18W/24W/30W, CRI>80, 120° beam angle.

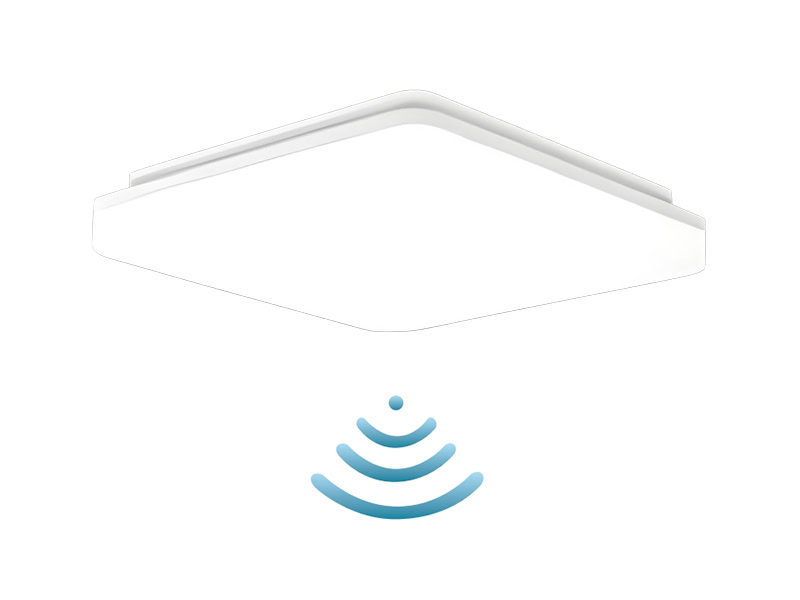

Intelligent Sensors And Dimming Ways Optional

Intelligent linkage of human body sensing and dimming, automatically adjust to the preset brightness when detecting personnel activity, and automatically dim or close when no one is present, realizing intelligent energy saving.

Whether it is induction function, dimming function, and the ordinary installation mode is completely the same, no additional wiring is required.

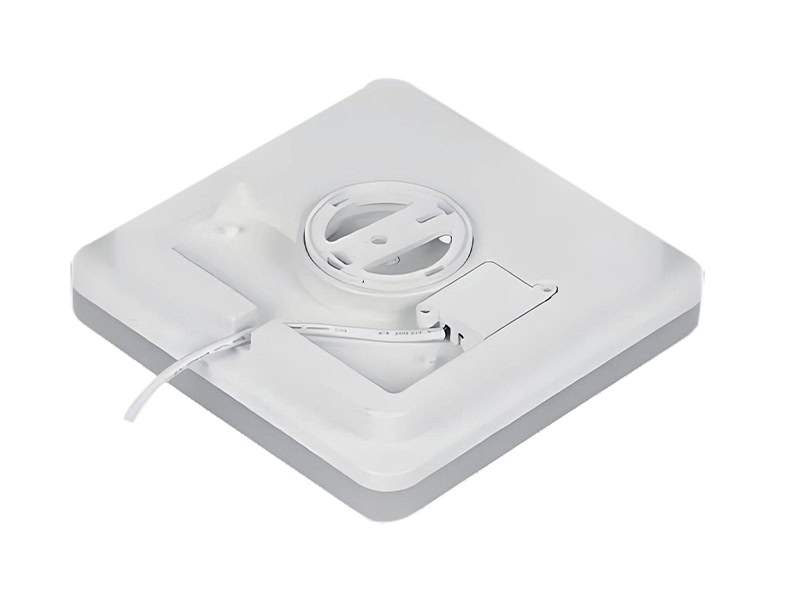

ABS Material Base Easily Installation Square Bulkhead Light

The classic square profile design, with high-strength ABS engineering plastic base, combines lightweight and durability. The installation process is extremely simple.
After positioning, use the knob on the back to fix it, rotate it to adjust it to the best Angle, and lock it with one key to complete the installation.

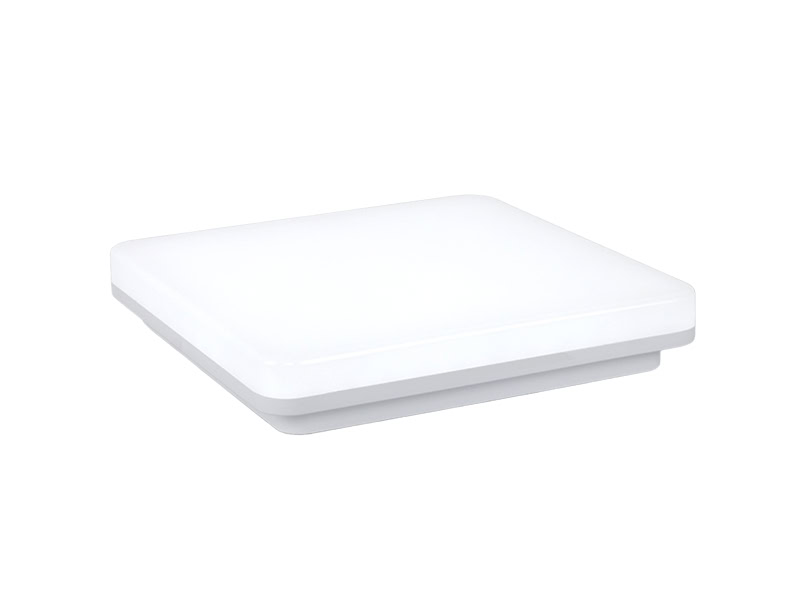

Square Bulkhead Light In Nature Enviroment

Record the appearance and lighting effect of the bulkhead lamp in the natural light environment with the most realistic lens.
Whether it is the delicate texture of the day, or the uniform light effect of the night, every detail can stand the test of the real scene.

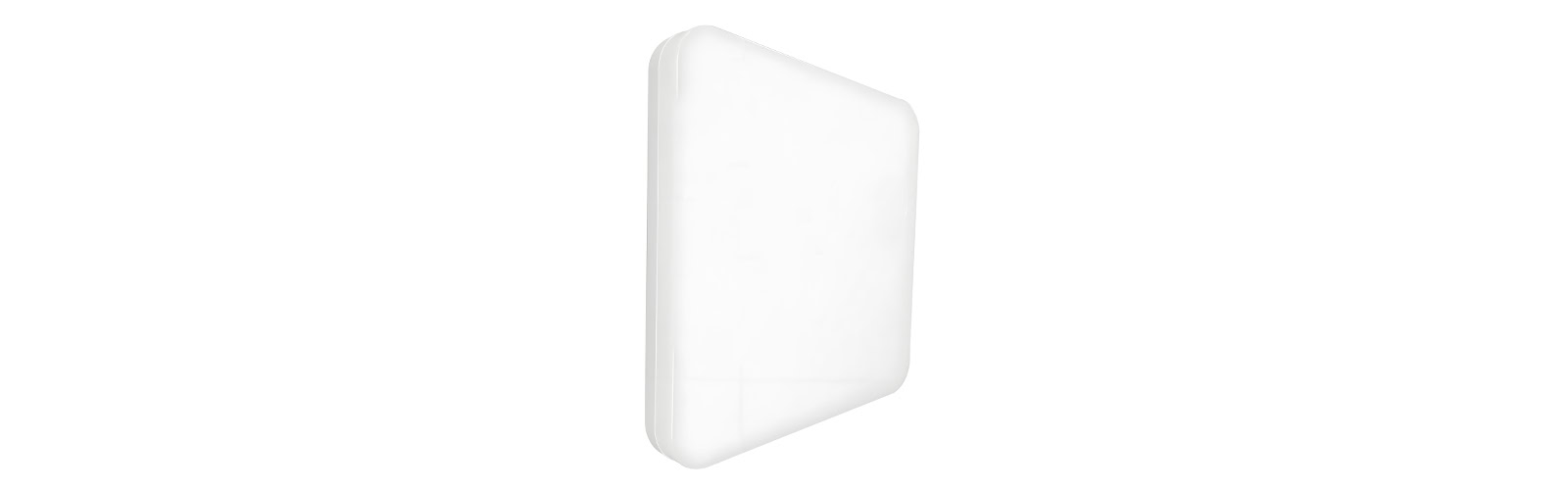

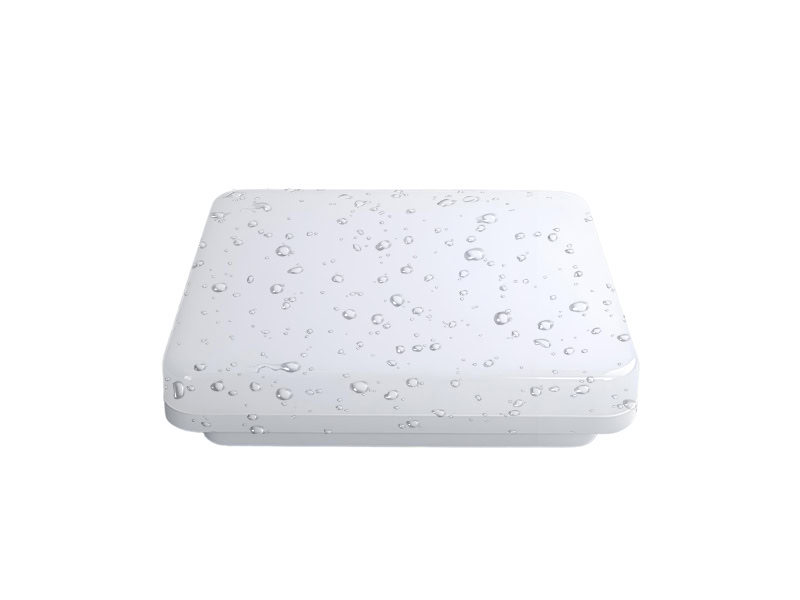

IP54 Square Bulkhead Light

Level 5 dust-proof: The precise structural design combined with sealing strips effectively blocks dust with a diameter of ≥1mm from entering, reducing the wear and tear of the lamp caused by dust accumulation and maintaining long-term stable light emission.
Level 4 water resistance: Multi-dimensional splash-proof design, it can handle daily rain splashes, equipment flushing and other scenarios with ease (such as outdoor terrace splashing, workshop equipment cleaning), and can be used with peace of mind in both indoor and outdoor damp environments.

Emergency Function Optional

The duration of emergency lighting can be precisely set through the built-in knob of the lamp or the matching control box.
Brightness level adjustment, balancing lighting and battery life, dual brightness mode switching, 100% brightness,50% brightness.
The brightness adjustment is linked with the battery life. For example, when a 90-minute battery life is selected, the system automatically recommends an energy-saving mode to ensure the optimal power distribution.

Datasheet Of Bulkhead Square Light

Model No.	GS-SQ220-18W	GS-SQ280-24W	GS-SQ330-30W
Power	18W	24W	30W
Material	ABS+PC
Beam angle	120°
Light efficiency	100lm/W
Driver Brand	Tridonic/Eaglerise/Osram/Philips
Voltage	AC200-240V
LEDs	SMD2835
PF	>0.95
LED Lifespan	>50000 Hours
IP	IP54
IK	IK10
CRI	>80
CCT	2700K/3000K/4000K/5000K/6000K
Colors	Black/White/Grey for option
Size	L220W220H50	L280W280H50	L330W330H50
Warranty	5 Years

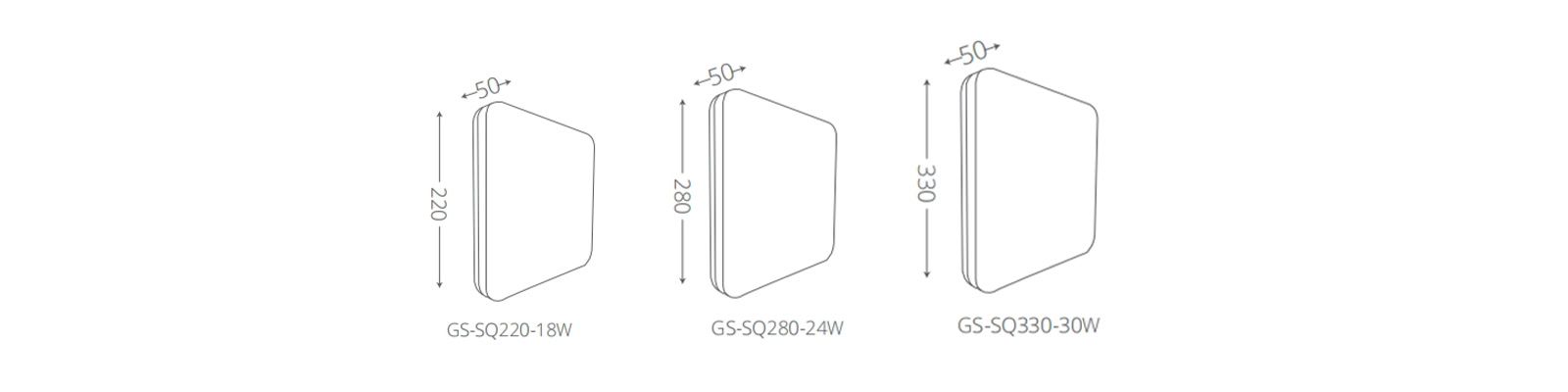

Size Of Square Bulkhead Lights

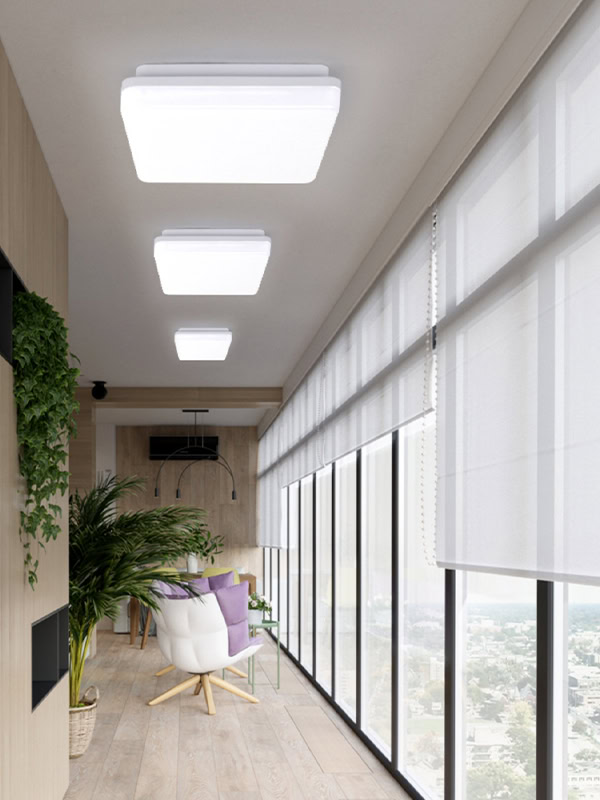

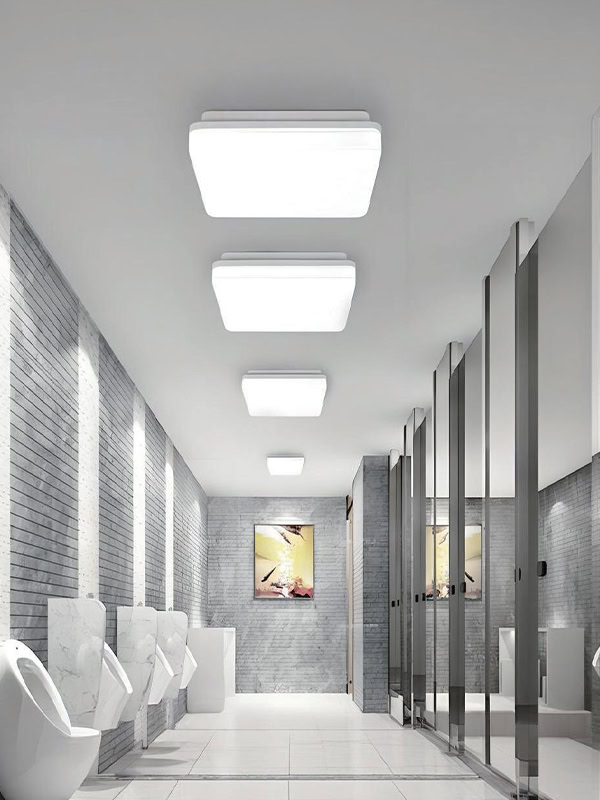

Wide Applications Of Square Bulkhead Lights

No stroboscopic, no radiation, and no flicker. uniform light is soft and for eye protection. Less power consumption, low heat, long life, more stable.

Suitable to be used in Stairways, garages, Offices, parking areas, Warehouses, factories, Pathways, gardens, building exteriors.

Frequently Asked Questions

Most frequent questions and answers

How many years warranty you provided?

We can provide 5 years warranty for the whole light body. And any questions about the light, you can ask us for help.

What driver you used in bulkhead light?

We use well-known brands, Tridonic, Philips, Eaglerise of power supply, to ensure stable and reliable power output, to ensure the safety and service life of lamps.

Can i get a sample?

We can provide customized samples for you, and if you have any adjustment, we can make for you.

Do you offer after-sales service for bulkhead lights?

We provide perfect after-sales service, including product warranty, technical support, return service, etc., to protect your rights and interests.
