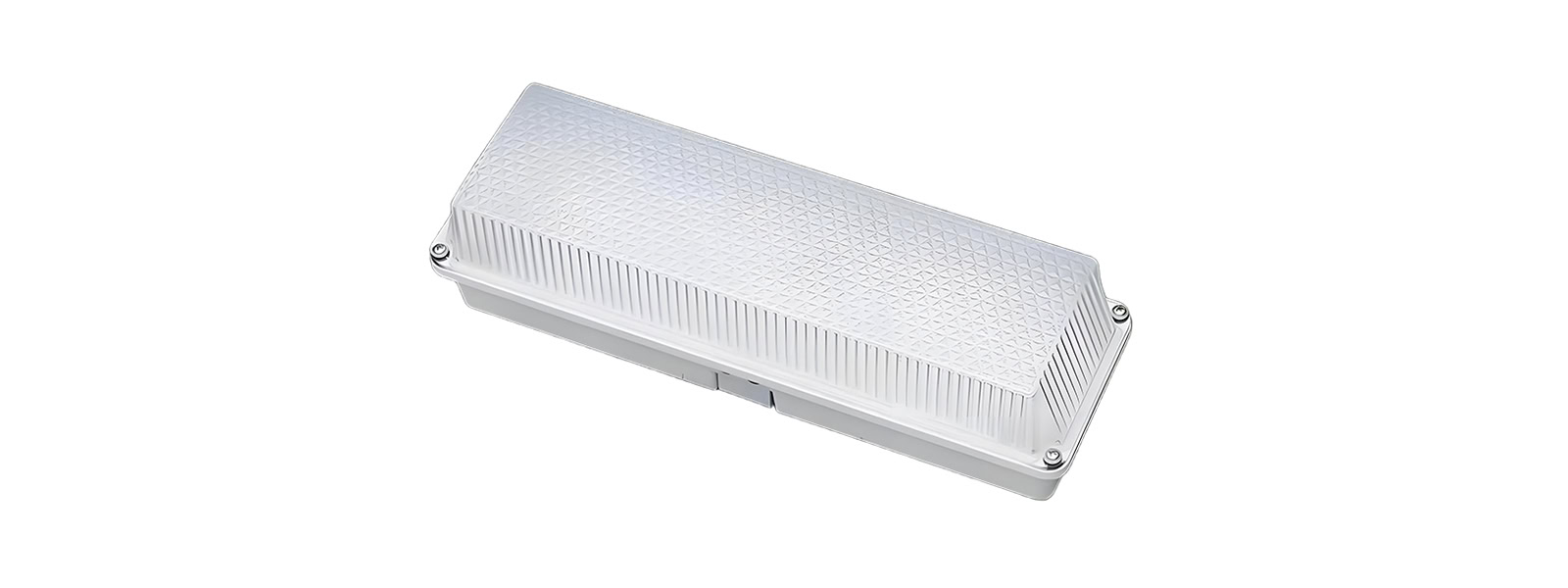

Square Bulkhead Light - SR Series

Square bulkhead light design is simple and flat, saving space. CRI>80, SDCM<3 steps.
IP65 waterproof grade, can meet the dust, water spray, to meet the needs of Marine/outdoor use.

Features:

-ABS+PC material

-Wattage: 18W/24W

-IP65, CRI>80

-Light efficiency: 100lm/W

-AC200-240V 50/60Hz

-Standard /0-10V DlM/Triac Dim/DALI dimmable

-CITIZEN /CREE/OSRAM/ LEDs

-TRIDONIC/PHILIPS/EAGLERISE drivers

-Emergency kits

-2700K/3000K/4000K/5000K/5700K

-Warranty: 5Years

Square Bulkhead Light Description

The square frame with PC high strength, excellent deformation resistance, suitable for the ship’s long-term vibration environment
And flat square structure with hard lines and sharp edges meets the needs of Marine/industrial equipment for simple and practical aesthetics.

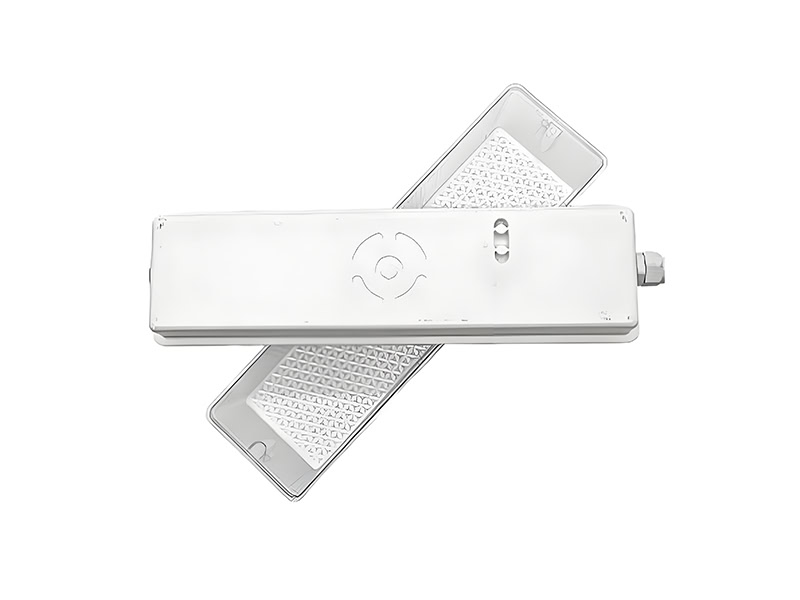

Advantages Using PC Material Housing

PC impact resistance is 250 times that of glass, ship vibration environment is still stable and reliable.
The light transmittance of the lampshade can reach 89%, which is close to the clarity of the glass, while spreading the light evenly to avoid glare.
Super impact resistance, even if hit by external force is not easy to break, suitable for ship vibration environment.

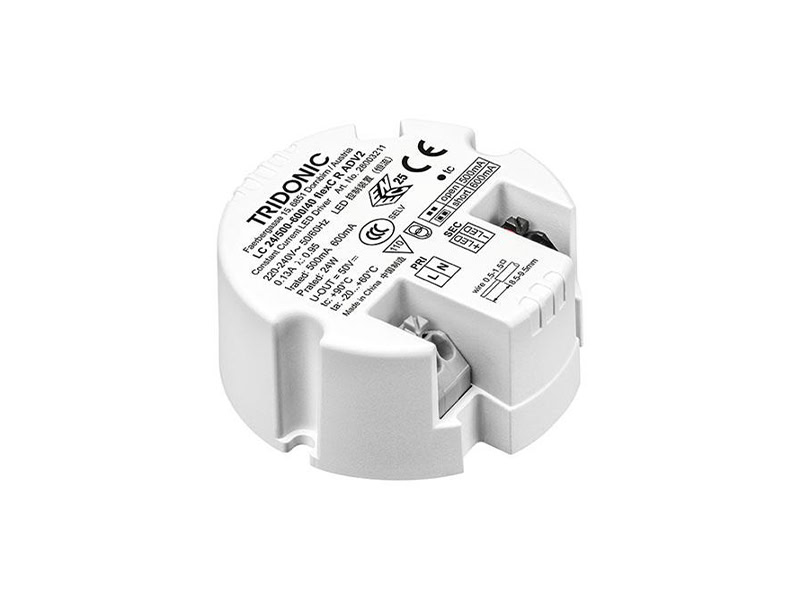

Drivers Used In Square Bulkhead Lights

Eaglerise, Tridonic international famous brand power supply to ensure efficient and stable operation. Support customization of other designated brand power supplies (Philips, Osram) to meet different project needs.

Compatible with 0-10V, DALI standard dimming protocol, easy access to intelligent lighting system. PWM, thyristor and other dimming modes can be selected to adapt to various application scenarios.

Sensors Optional Square Bulkhead Light

When the human body or object is detected to move, it is automatically lit, and the delay is closed after static (the time is adjustable, usually 15 seconds to 5 minutes).
Works only when required, saves up to 70% of power compared to steady lights, and especially for long-term lighting scenarios in Marine/industrial facilities.

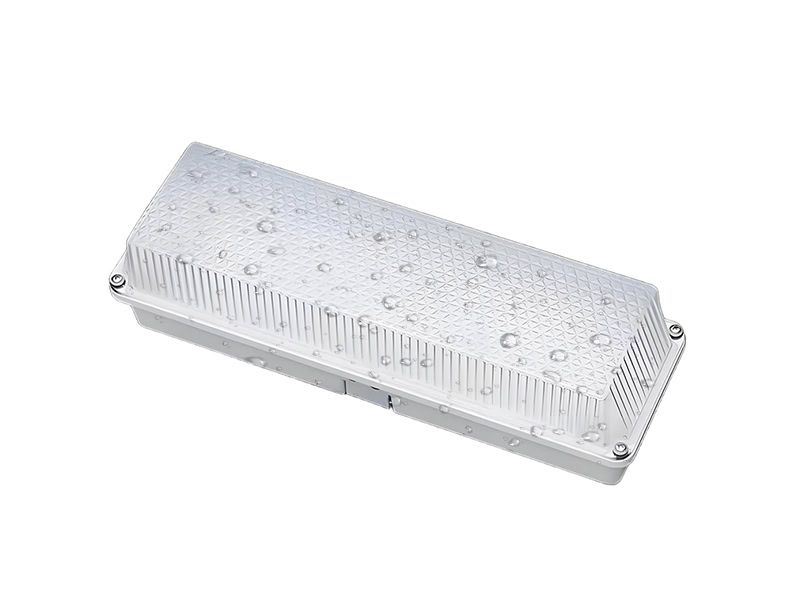

IP65 Square Bulkhead Light

Level 6 dust-proof: Seamless sealing structure completely blocks dust from entering, eliminating the risk of short circuits caused by dust accumulation.
Level 5 waterproofing: Multiple silicone rubber sealing rings + stainless steel fasteners, capable of withstanding strong water spray impacts (such as high-pressure water gun flushing), ensuring stable operation in humid environments.

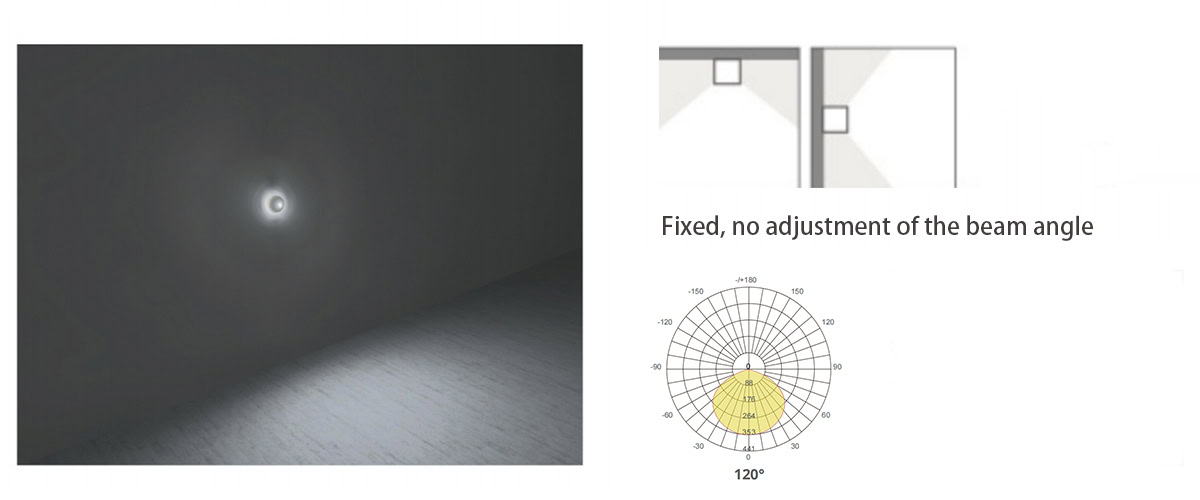

High Transmmitance Cover And Wide Beam Angle 120°

With PC high light transmittance (89%) + professional optical design, light gentle diffusion, eliminate harsh spots.

The 120 degree light Angle illuminates a larger space. In large places such as warehouses and factories, the number of lamps used can be reduced and the lighting cost can be reduced.

Square Bulkhead Light Specification

Model No.	GS-SR-18W	GS-SR-24W
Power	18W	24W
Material	ABS+PC
Beam angle	120°
Light efficiency	100lm/W
Driver Brand	Philips/Tridonic/Eaglerise
Voltage	AC200-240V DC24V
LEDs	CITIZEN/CREE/OSRAM
PF	>0.95
LED Lifespan	>50000 Hours
IP	IP65
IK	IK10
CRI	>90
CCT	2700K/3000K/4000K/5000K/6000K
Size	L360W110H91
Warranty	5 Years

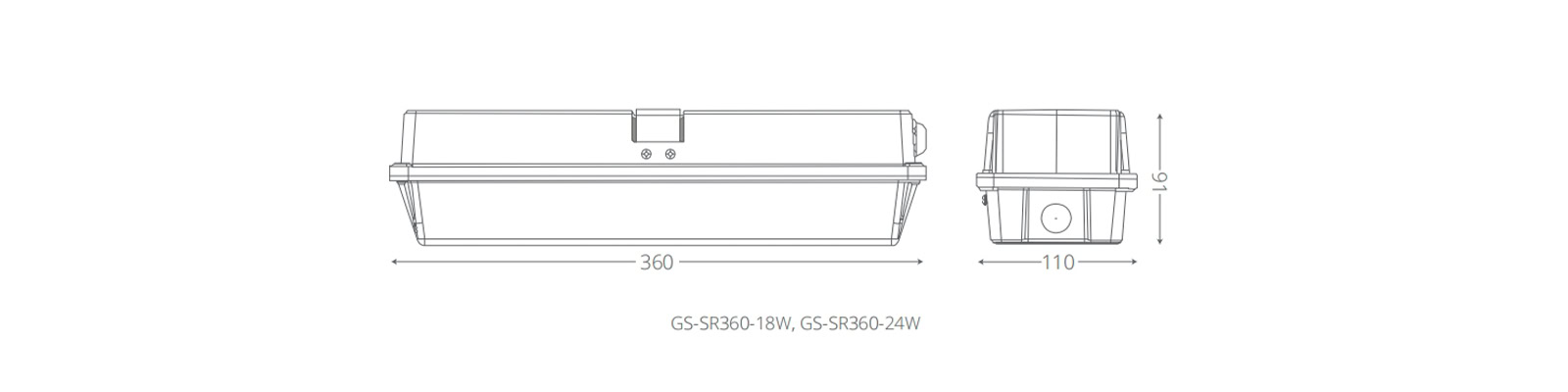

Size of Square Bulkhead Light

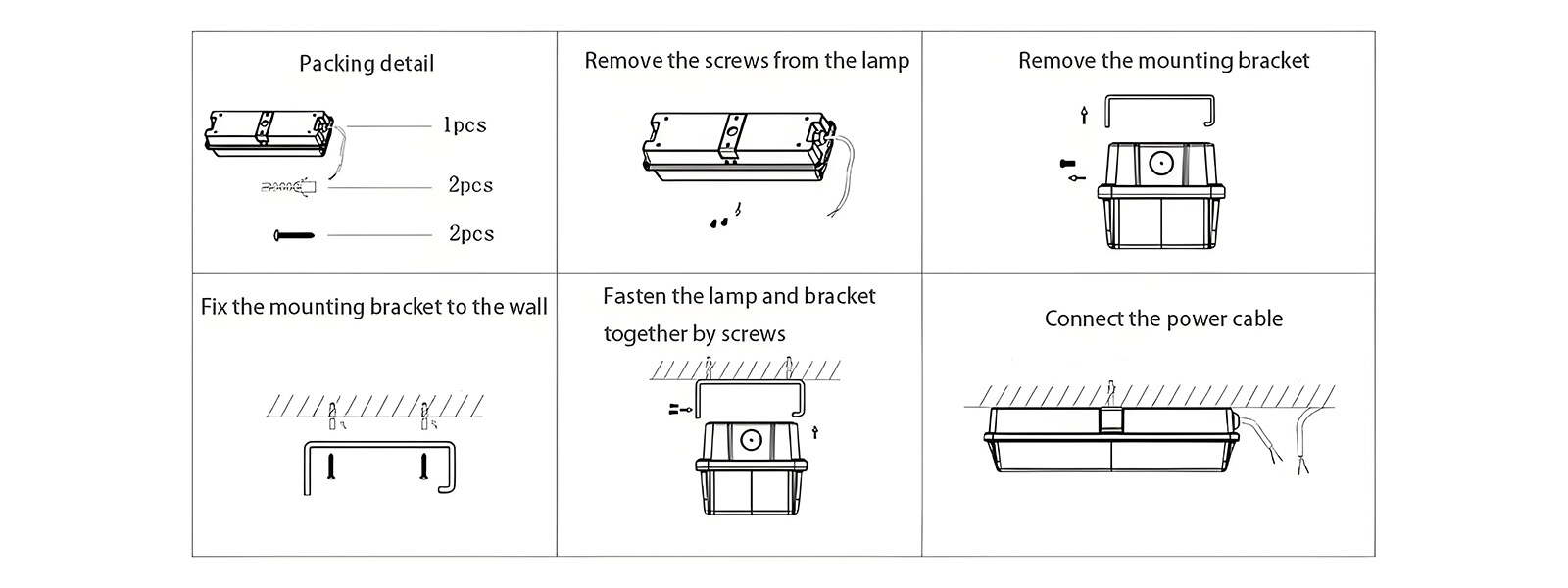

Easily Install Process In Applications

Easy to install simple, no complex tools, provide streamlined guidance to you.

This installation process uses standardized operating specifications, and each technical step is accurately guided by decomposed diagrams.

Frequently Asked Questions

Most frequent questions and answers

How many years warranty the lights have?

Provide 5 years warranty for the whole light body.

What driver you used in square bulkhead light?

Lights use well-known brands, Tridonic, Eaglerise of power supply, to ensure stable and reliable power output.

Can i get a sample?

Can provide customized samples for you, and if you have any adjustment, we can make for you.

Do you offer after-sales service for your track lights?

Perfect after-sales service, including product warranty, technical support, return service, etc., to protect your rights and interests.
