Round led bulkhead – RD Series

Home

Products

Outdoor LED Lights

LED Bulk Head Lights

Round led bulkhead – RD Series

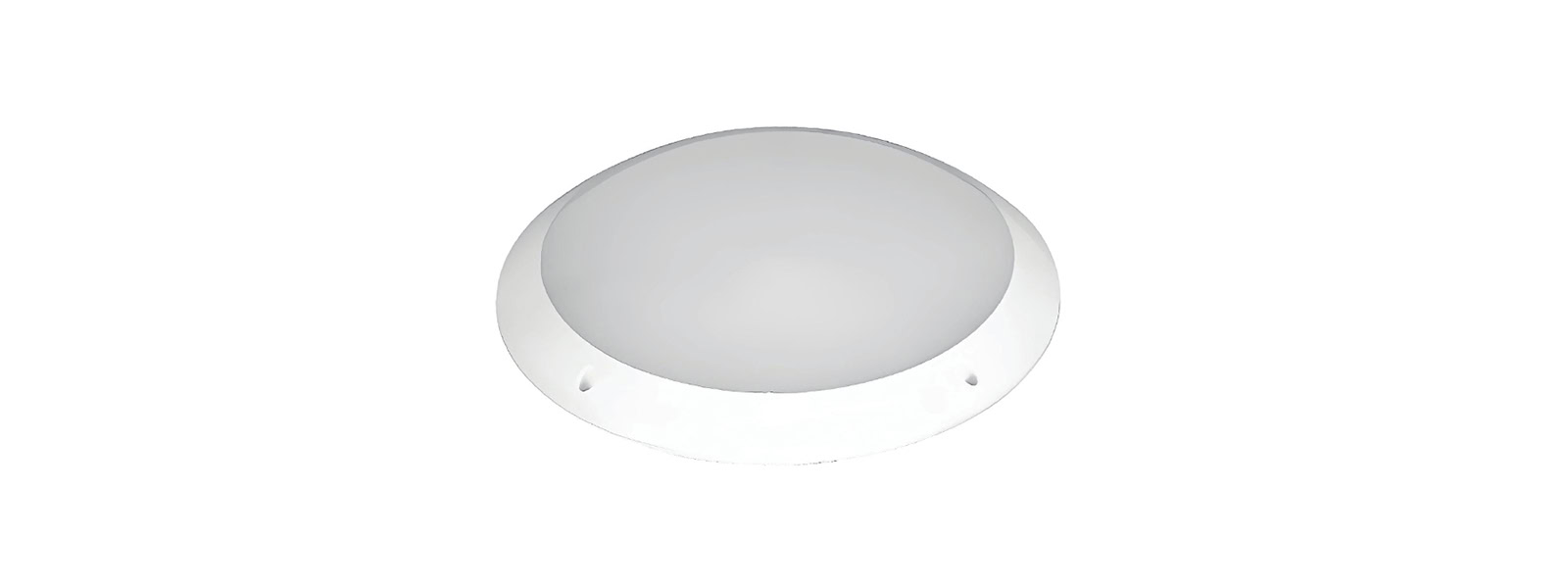

Round LED Bulkhead - RD Series

Round LED bulkhead light customizable human body/radar ensor/emergency kits for option, 270mm and 330mm, 15W/24W, CRI>80, 120° beam angle.

ABS and PC material with high hardness, good wear resistancem chemical corrosion resistance. With low cost and high cost performance.

Features:

-ABS+ PC cover

-Wattage: 15W/24W

-IP65, CRI>80

-Light efiiciency: 100lm/W

-AC200-240V

-Diameter: 270mm/330mm
-0-10V DlM/Triac Dim/DALI dimmable

-Emergency kits

-Eaglerise/Tridonic free flicker drivers

-CCT: 2700K/3000K/4000K/5000K/6000K

-Warranty: 5Years

All Plastic Round LED Bulkhead Light Details

Simple appearance designs create perfect effects, these can easily match any scene needs. Black/Grey/White housing colors available.

Ultraviolet resistance, suitable for outdoor or long-term exposure to sunlight. Low cost, high cost performance.

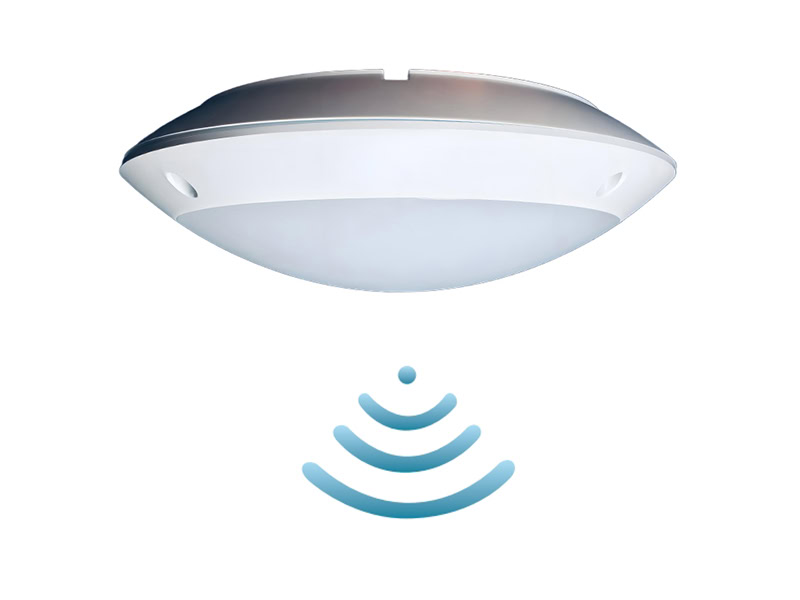

Round LED Bulkhead Sensors Function Optional

Round led bulkhead has an addable intelligent sensing function that combines advanced infrared and human sensing technology.
When someone is near, the human body sensor quickly captures the signal, the light immediately lights up, the person leaves the sensing range, the light automatically turns off, which is energy-saving and environmentally friendly, and also extends the service life.

Efficient Heat Dissipation Design

Our bulkhead lights feature flame-retardant plastic housings, providing superior electrical insulation compared to metal enclosures, making them ideal for damp or flammable environments such as marine vessels and chemical plants.

The integrated 3D convection heat dissipation design maximizes surface area, ensuring efficient thermal management and enhanced performance.

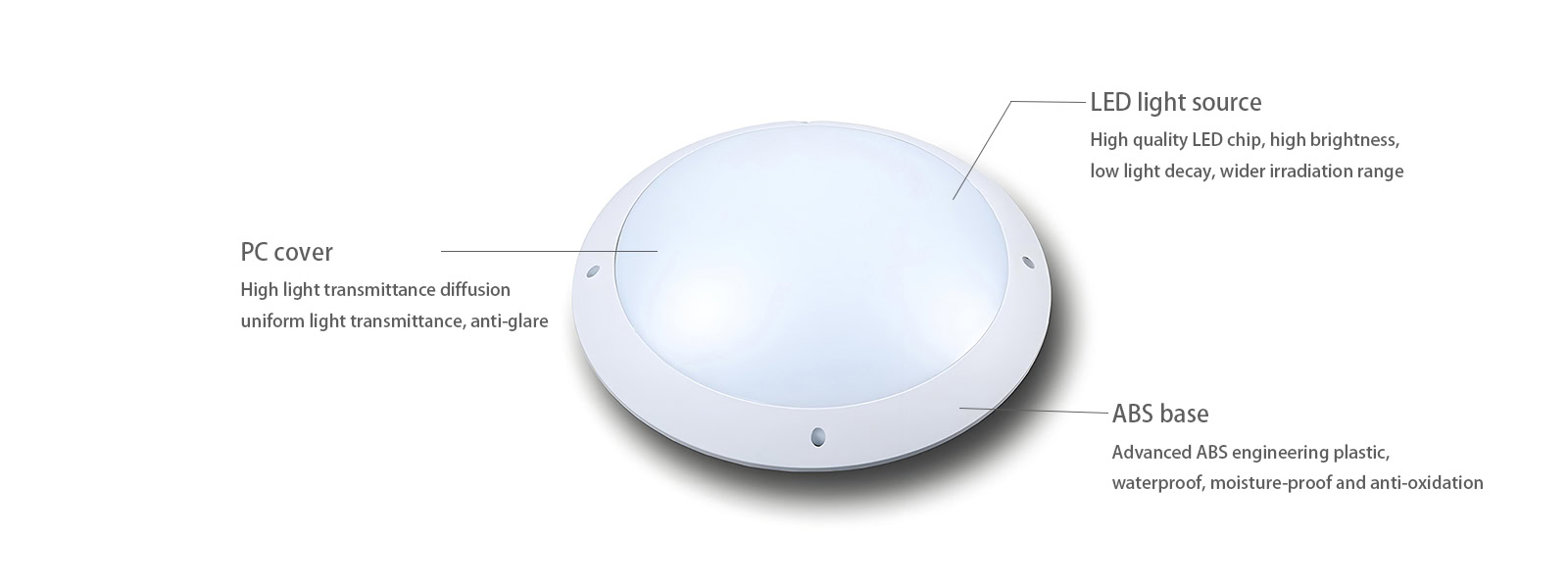

Materials Used In Round LED Bulkhead Lights

PC cover has high transmittance diffusion, anti-glare uniform light effect.
With advanced ABS engineering plastic, waterproof and moisture-proof and anti-oxidation.

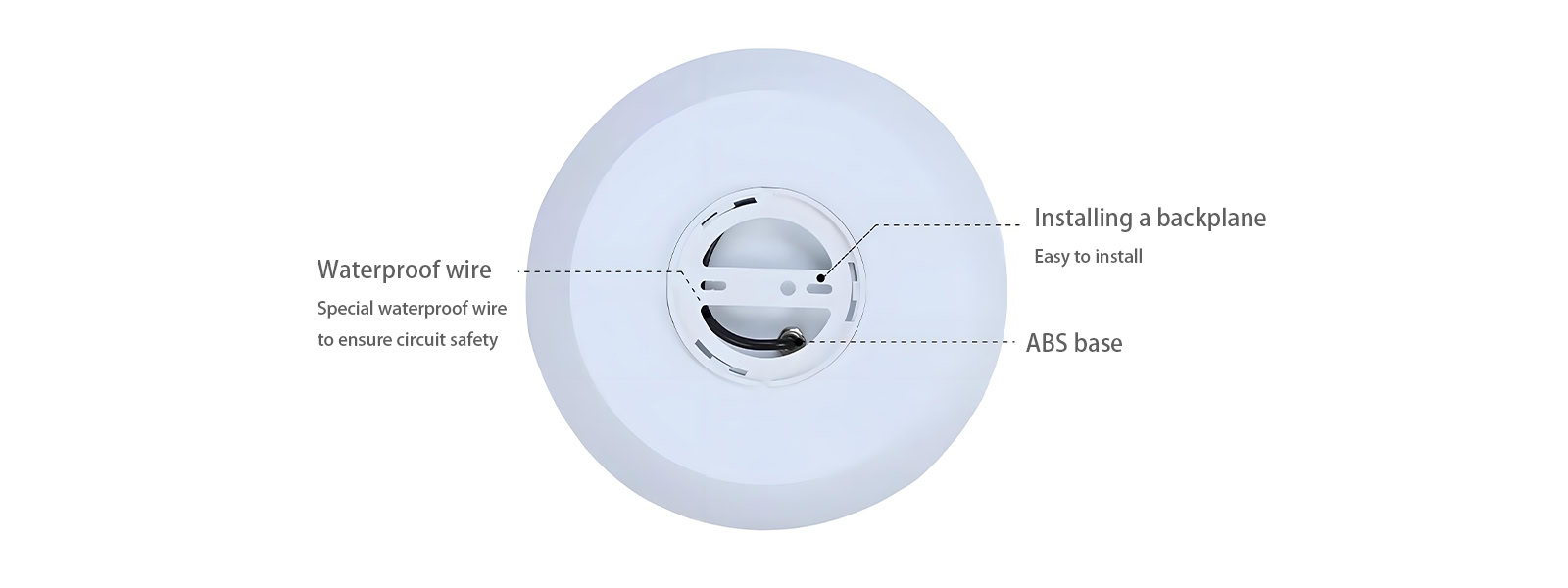

Waterproof Wire And Installation Design

The special waterproof wire to ensure circuit safety, and backplane design to easy installation.

Its unique back fixing knob structure enables “two-step” quick installation. The innovative simple installation design greatly improves the construction efficiency.

Datasheet Of Outdoor LED Bulkhead Light

Model No.	GS-RD275-15W	GS-RD330-24W
Power	15W	24W
Material	ABS+PC
Beam angle	120°
Light efficiency	100lm/W
Driver Brand	Tridonic/Eaglerise/Osram/Philips
Voltage	AC200-240V
PF	>0.95
LED Lifespan	>50000 Hours
IP	IP65
IK	IK10
CRI	>80
CCT	2700K/3000K/4000K/5000K/6000K
Colors	Black/White/Grey for option
Size	Φ270*90	Φ330*90
Warranty	5 Years

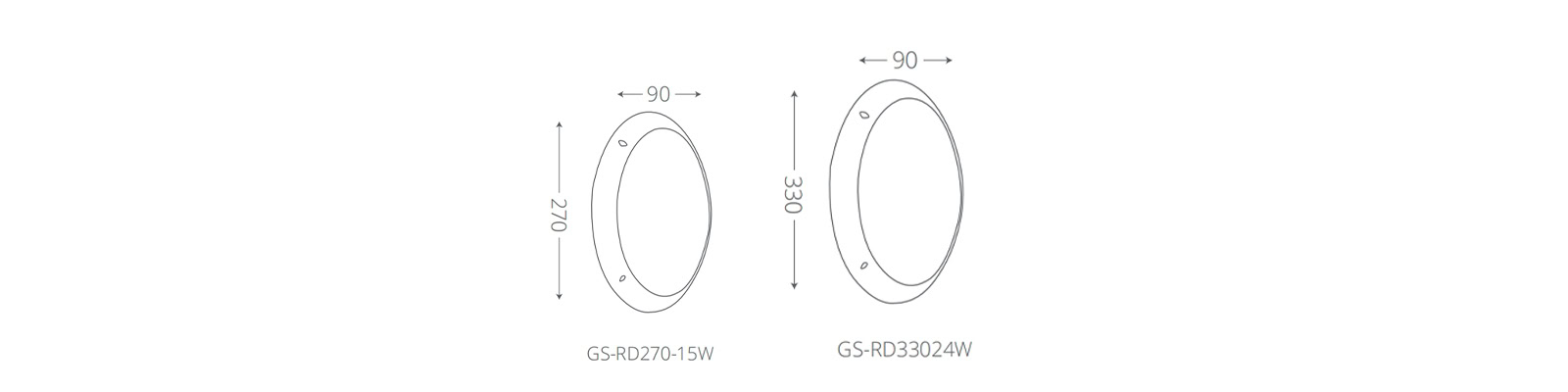

Size Of Round LED Bulkhead Light

Wide Applications Of Round Bulkhead Lights

Bulkhead lights suitable for a wide range of applications, including stairways, garages, offices, parking areas, warehouses, factories, pathways, gardens, and building exteriors.

Their robust design and reliable performance make them particularly well-suited for demanding environments such as marine settings, chemical plants..

Frequently Asked Questions

Most frequent questions and answers

How many years warranty you provided?

Provide 5 years warranty for the whole light body. And any questions about the light, you can ask us for help.

What driver you used in bulkhead light?

The lights use well-known brands, Tridonic, Philips, Eaglerise of power supply, to ensure stable and reliable power output, to ensure the safety and service life of lamps.

Can i get a sample?

We can provide customized samples for you, and if you have any adjustment, we can make for you.

Do you offer after-sales service for bulkhead lights?

Yes, Perfect after-sales service, including product warranty, technical support, return service, etc., to protect your rights and interests.
