Oval Bulkhead Light - NA Series A Model

Oval bulkhead light provide 220mm/280mm, 12W/18W, 4 models, black/white/gray colors for option.
IP65 suitable for outdoor use, aluminum housing and high light transmittance PC cover, 120lm/W light efficiency, CRI>90.

Features:

-Aluminum housing, PC cover

-Wattage: 12/18W

-IP65, CRI>90

-Light efiiciency: 120lm/W

-AC200-240V 50/60Hz

-Diameter: 220mm/280mm
-0-10V Dim/Triac Dim/DALI Dim

-Emergency kits

-CREE/OSRAM LEDs

-Eaglerise/Tridonic free flicker drivers

-CCT: 3000K/4000K/5000K/6000K

-A/B/C/D models for option

-Warranty: 5Years

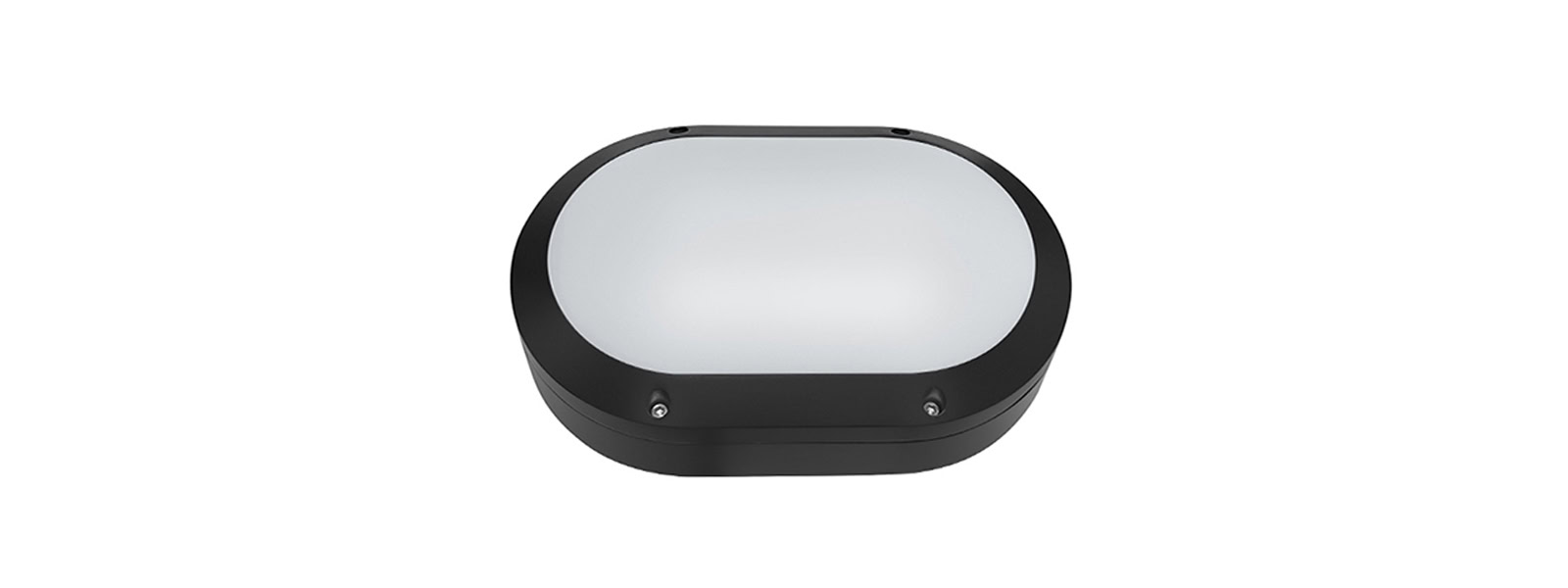

Oval LED Bulkhead Light

LED bulkhead light use of high-quality ADC12 aluminum alloy, durable, exquisite structure. IP65 waterproof grade.

Suitable for outdoor usage, 316 stainless steel screws to prevent corrosion. Beam angle is 105 degree, using high efficient SMD2835 LEDs.

Drivers Used In Square Bulkhead Lights

Eaglerise, Tridonic international famous brand power supply to ensure efficient and stable operation. Support customization of other designated brand power supplies (Philips, Osram) to meet different project needs.

Compatible with 0-10V, DALI standard dimming protocol, easy access to intelligent lighting system. PWM, thyristor and other dimming modes can be selected to adapt to various application scenarios.

Sensors Optional Square Bulkhead Light

When the human body or object is detected to move, it is automatically lit, and the delay is closed after static (the time is adjustable, usually 15 seconds to 5 minutes).
Works only when required, saves up to 70% of power compared to steady lights, and especially for long-term lighting scenarios in Marine/industrial facilities.

Oval Bulkhead 120° Comfortable Light Effect

Uniform light reduces visual fatigue, suitable for long working hours or night traffic

Simulate natural light diffusion, easily cover the bulkhead, corridor and other narrow Spaces, eliminating edge shadows.

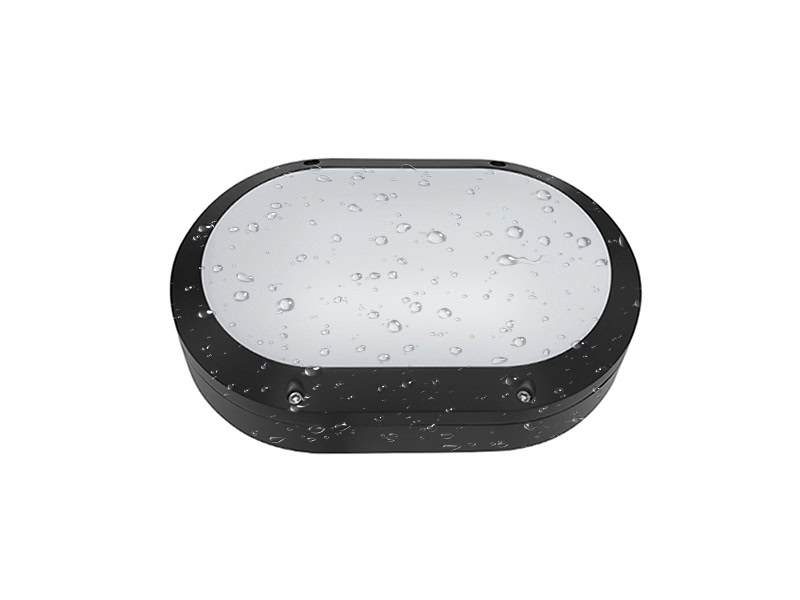

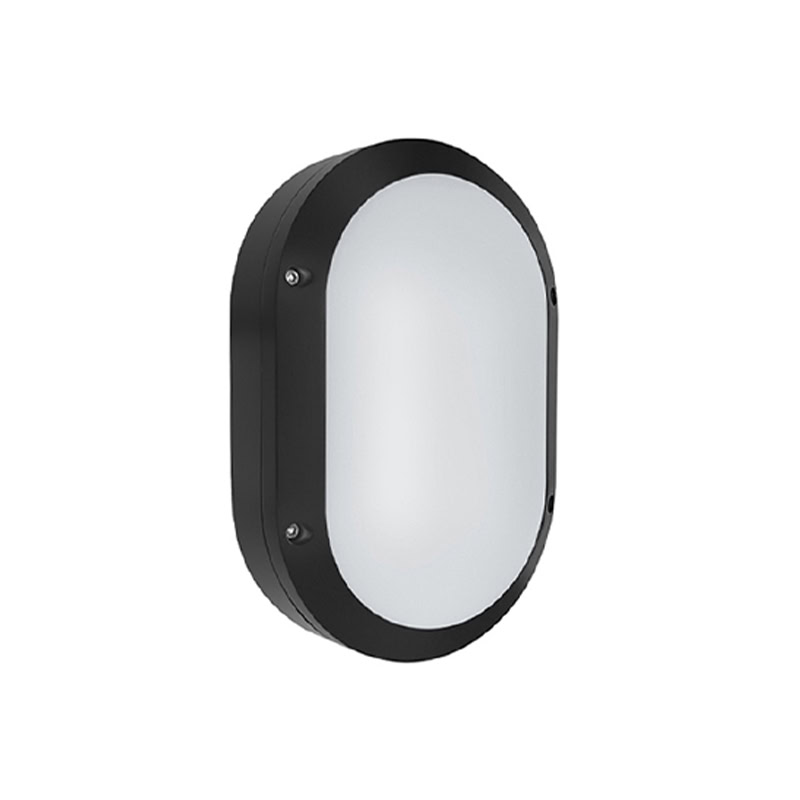

IP65 Oval Bulkhead Light

Level 6 dust-proof: Seamless sealing structure completely blocks dust from entering, eliminating the risk of short circuits caused by dust accumulation.
Level 5 waterproofing: Multiple silicone rubber sealing rings + stainless steel fasteners, capable of withstanding strong water spray impacts (such as high-pressure water gun flushing), ensuring stable operation in humid environments.

Optional Emergency Power Supply

The lamps can be optionally equipped with high-precision current sensors to monitor the status of the main power supply in real time.
Once a power failure signal is detected, the emergency mode will be automatically activated within 0.5 seconds, completely eliminating the dark and blank period, and fully ensuring the safety of personnel and the continuity of operations.
The main power supply and the emergency power supply adopt an independent circuit control design, effectively avoiding mutual interference and ensuring the stable operation of the emergency mode.
Even if the main circuit malfunctions, the emergency lighting function can still work normally without being affected.

Datasheet Of Oval Bulkhead Light

Model No.	GS-NA-220-A	GS-NA-280-A
Power	12W	18W
Material	Aluminum+PC
Beam angle	120°
Light efficiency	120lm/W
Driver Brand	Philips/Tridonic/Osram/Eaglerise
Voltage	AC200-240V DC24V
LEDs	CITIZEN/CREE/OSRAM
PF	>0.95
LED Lifespan	>50000 Hours
IP	IP65
IK	IK10
CRI	>90
CCT	3000K/4000K/5000K/6000K
Size	Φ22013358	Φ28018586
Warranty	5 Years

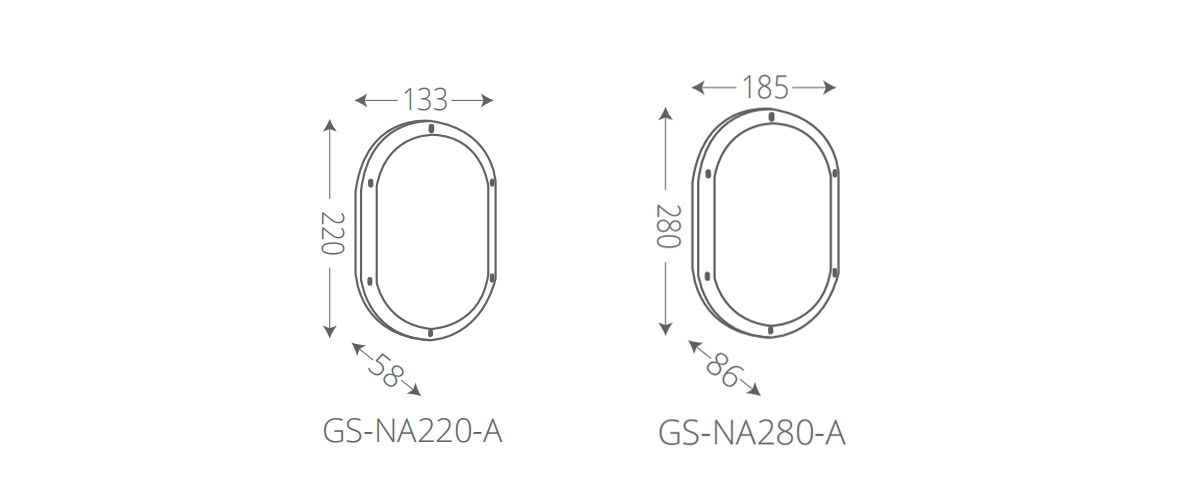

Sizes Of Oval LED Bulk head Light

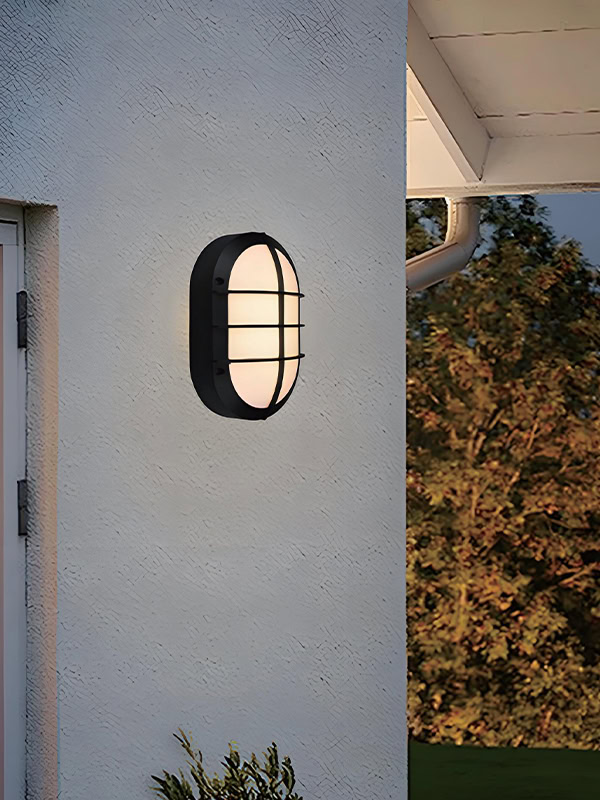

Widely Application Of LED Oval Bulkhead Light

Simple design, fashion and warm, with modern lighting characteristics, they never go out of date. And it works well in most scenarios.

Suitable to be used in Stairways, garages, Offices, parking areas, Warehouses, factories, Pathways, gardens, building exteriors.

Frequently Asked Questions

Most frequent questions and answers

How many years warranty you provided?

We can provide 5 years warranty for the whole light body.

What driver you used in bulkhead light?

We use well-known brands, Tridonic, Philips, Osram of power supply, to ensure stable and reliable power output, to ensure the safety and service life of lamps.

Can i get a sample?

We can provide customized samples for you, and if you have any adjustment, we can make for you.

Do you offer after-sales service for bulkhead lights?

We provide perfect after-sales service, including product warranty, technical support, return service, etc., to protect your rights and interests.
