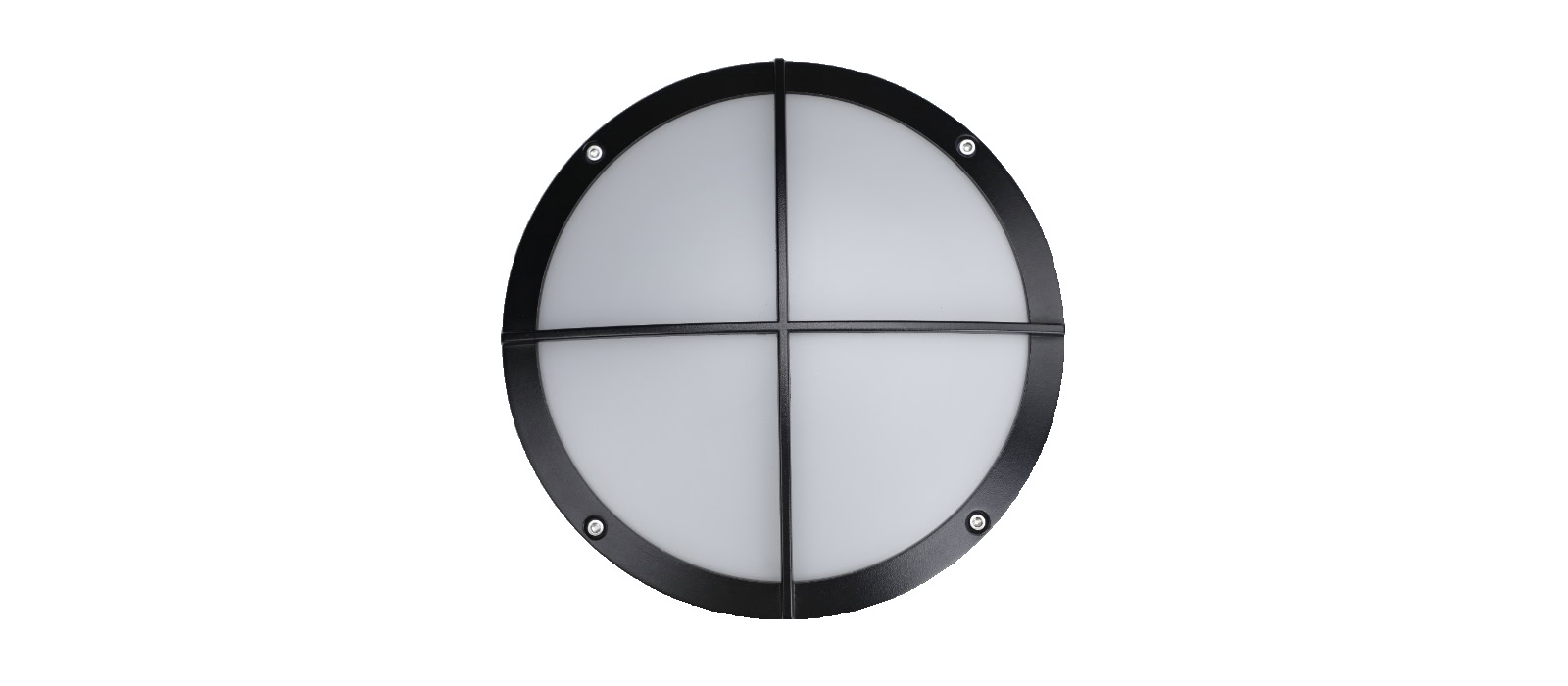

Outdoor Bulkhead Light - RA Series C Model

Outdoor bulkhead light provide 220mm/275mm/350mm, 12W/18W/30W, black/white/gray colors for option.
Milky white PC cover, high impact resistance, IK10 approval, Die-casting aluminum lamp body excellent heat dissipation.

Features:

-Aluminum housing, PC cover

-Wattage: 12/18/30W

-IP65, CRI>90

-Light efiiciency: 120lm/W

-AC200-240V 50/60Hz

-Diameter: 220mm/275mm/350mm
-0-10V DlM/Triac Dim/DALI dimmable

-Emergency kits

-Eaglerise/Tridonic free flicker drivers

-CCT: 3000K/4000K/5000K/6000K

-A/B/C/D models for option

-Warranty: 5Years

Outdoor LED Bulkhead Light Description

Made of high-quality 6063 aluminum alloy and treated with anodic oxidation, it is anti-oxidation and corrosion-resistant.
It does not change color or form after long-term use and is suitable for harsh environments such as high humidity and high salt spray

Microwave Sensors For Outdoor Bulkhead Light

Microwave sensor 10% or 25% dimming for option.

The detection range (e.g. 3 to 8 meters) and sensitivity can be adjusted to avoid false triggering

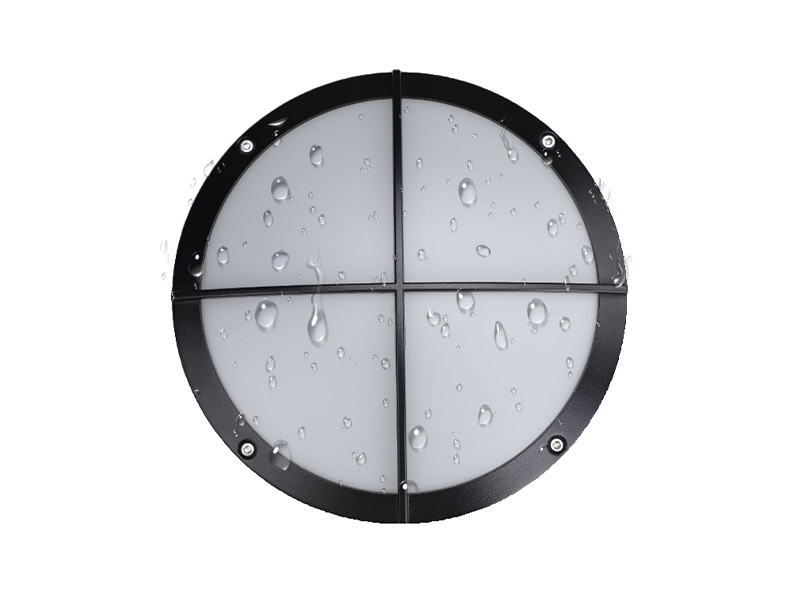

IP65 All-round Protection Outdoor Bulkhead

The completely sealed design prevents dust from entering the interior of the lamp body, making it suitable for factory and storage environments with a lot of dust.
High-strength silicone rubber sealing ring + structural waterproofing, can resist high-pressure water spray, suitable for damp places such as tunnels and docks.

Emergency Power Supply Optional

It is equipped with a high-precision current sensor to monitor the main power supply status in real time. Once a power-off signal is detected, the emergency mode will be automatically activated within 0.5 seconds.
Eliminate the dark and blank period to ensure personnel safety and operational continuity.
The main power supply and the emergency power supply are independently controlled by circuits to avoid mutual interference and ensure the stable operation of the emergency mode. Even if the main circuit fails, it will not affect the emergency lighting function.

UV Anti-ultraviolet Coating PC Material

PC material, with a light transmittance of ≥90%, and it also features a UV anti-ultraviolet coating, ensuring no yellowing even after long-term exposure to the sun.
Its impact resistance is 200 times that of ordinary glass. Even if it is accidentally broken, it will not produce sharp fragments, making it safe and reliable.
The shell structure optimizes the heat dissipation groove, effectively reducing the LED light attenuation and having a lifespan of over 50,000 hours.

Uniform Light Coverage Wide 105° Beam Angle

With precision optical design, the beam angle is up to 105°, and the light naturally diffuses to avoid dazzling light gathering.
A wide range of bulkhead and aisle areas are covered to reduce the number of installations and save energy and efficiency.

Datasheet Of Round Outdoor Bulkhead Light

Model No.	GS-RA-220-C	GS-RA-275-C
Power	12W	18W
Material	Aluminum+PC
Beam angle	105°
Light efficiency	120lm/W
Driver Brand	Philips/Tridonic/Osram/Eaglerise
Voltage	AC200-240V DC24V
LEDs	CITIZEN/CREE/OSRAM
PF	>0.95
LED Lifespan	>50000 Hours
IP	IP65
IK	IK10
CRI	>90
CCT	3000K/4000K/5000K/6000K
Size	Φ220*75	Φ275*85
Warranty	5 Years

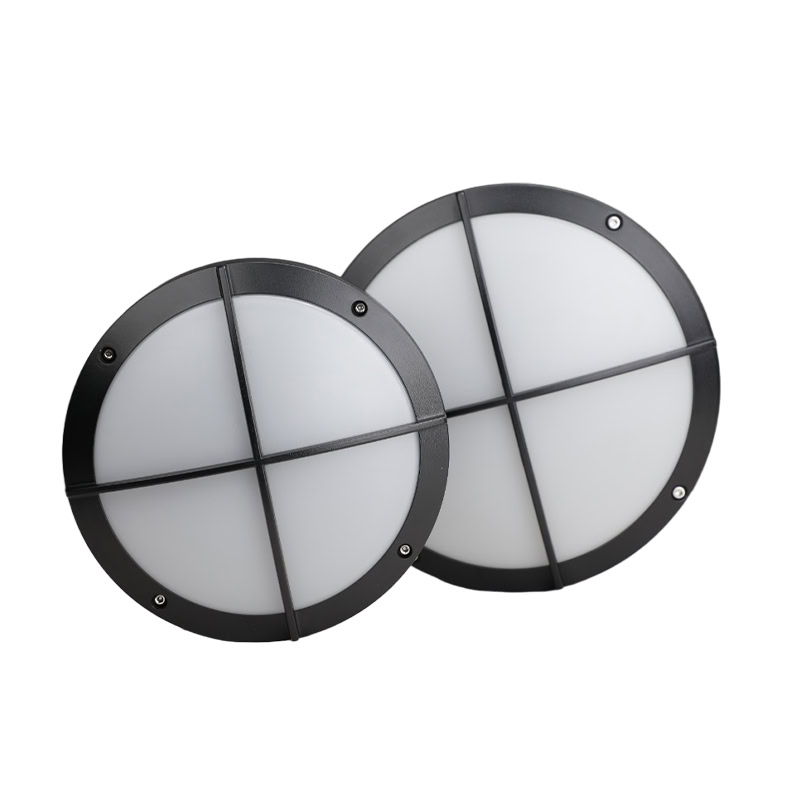

Sizes Of LED Bulk head Light

Widely Application Of LED Bulk head Lights

A wide range of application scenarios, transportation hubs: subway platforms, airport corridors.
Industrial field: petrochemical plants, cold chain warehouses. Commercial Spaces: shopping mall Windows, hotel stairwells.

Frequently Asked Questions

Most frequent questions and answers

How many years warranty you provided?

We can provide 5 years warranty for the whole light body. And any questions about the light, you can ask us for help.

What driver you used in bulkhead light?

We use well-known brands, Tridonic, Philips, Osram of power supply, to ensure stable and reliable power output, to ensure the safety and service life of lamps.

Can i get a sample?

We can provide customized samples for you, and if you have any adjustment, we can make for you.

Do you offer after-sales service for bulkhead lights?

We provide perfect after-sales service, including product warranty, technical support, return service, etc., to protect your rights and interests.
