IP65 Bulkhead Light – RA Series B Model

Home

Products

Outdoor LED Lights

LED Bulk Head Lights

IP65 Bulkhead Light – RA Series B Model

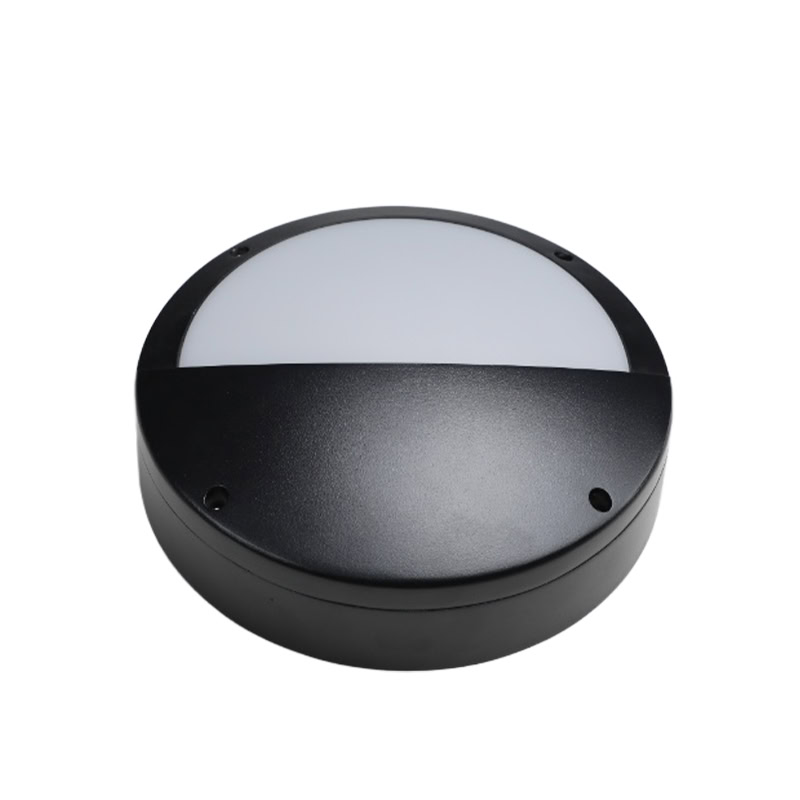

IP65 Bulkhead Light - RA Series B Model

IP65 Bulkhead light provide 220mm/275mm/350mm, 12W/18W/30W, black/white/gray colors for option.
IP65 suitable for outdoor use, aluminum housing and high light transmittance PC cover, 120lm/W light efficiency, CRI>90.

Features:

-Aluminum housing, PC cover

-Wattage: 12/18/30W

-IP65, CRI>90

-Light efiiciency: 120lm/W

-AC200-240V 50/60Hz

-Diameter: 220mm/275mm/350mm
-0-10V DlM/Triac Dim/DALI dimmable

-Emergency kits

-Eaglerise/Tridonic free flicker drivers

-CCT: 3000K/4000K/5000K/6000K

-A/B/C/D models for option

-Warranty: 5Years

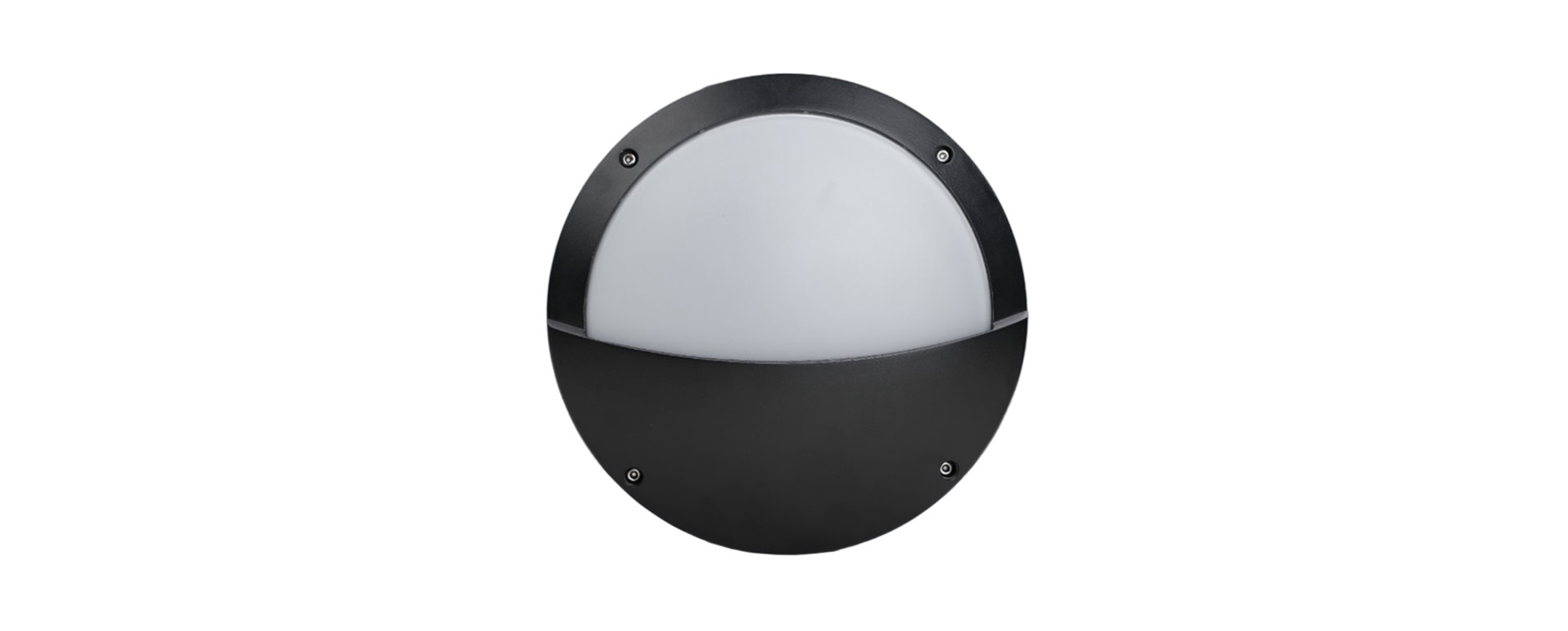

LED IP65 Bulkhead Light Description

High-quality aluminum alloy shell, lightweight and corrosion-resistant;
It is equipped with a high-transparency PC mask, which is impact-resistant, anti-aging and suitable for various indoor and outdoor environments.

Microwave Sensors For Outdoor Round Bulk head Light

Optional microwave sensing is available to automatically sense human movement,
achieving “lights on when people come and lights off when people leave”, enhancing energy conservation and convenience.

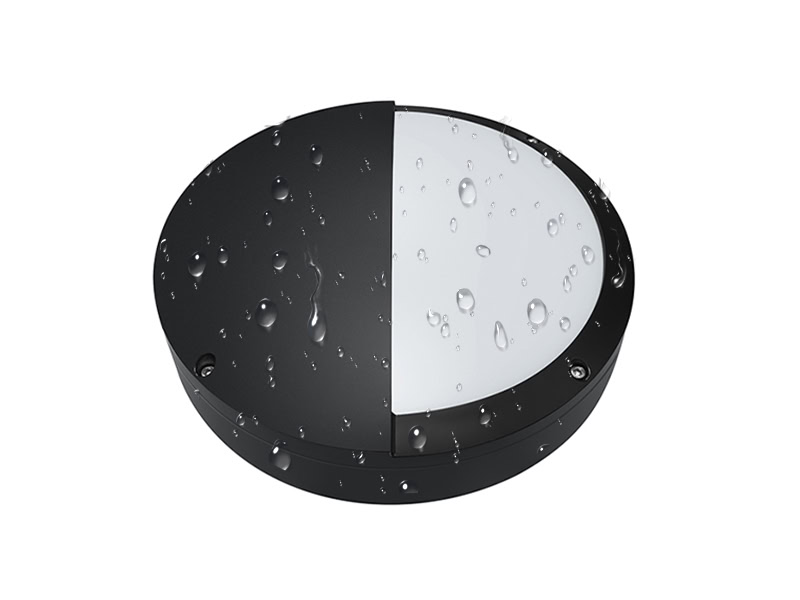

IP65 Bulkhead Light All-round Protection

The completely sealed design prevents dust from entering the interior of the lamp body, making it suitable for factory and storage environments with a lot of dust.
High-strength silicone rubber sealing ring + structural waterproofing, can resist high-pressure water spray, suitable for damp places such as tunnels and docks.

Emergency Power Supply Optional

It is equipped with a high-precision current sensor to monitor the main power supply status in real time. Once a power-off signal is detected, the emergency mode will be automatically activated within 0.5 seconds.
Eliminate the dark and blank period to ensure personnel safety and operational continuity.
The main power supply and the emergency power supply are independently controlled by circuits to avoid mutual interference and ensure the stable operation of the emergency mode. Even if the main circuit fails, it will not affect the emergency lighting function.

Uniform Light Coverage Wide 105° Beam Angle

With precision optical design, the beam angle is up to 105°, and the light naturally diffuses to avoid dazzling light gathering.
A wide range of bulkhead and aisle areas are covered to reduce the number of installations and save energy and efficiency.

Datasheet Of IP65 Bulkhead Light

Model No.	GS-RA-220-B	GS-RA-275-B	GS-RA-350-B
Power	12W	18W	30W
Material	Aluminum+PC
Beam angle	105°
Light efficiency	120lm/W
Driver Brand	Philips/Tridonic/Osram/Eaglerise
Voltage	AC200-240V DC24V
LEDs	CITIZEN/CREE/OSRAM
PF	>0.95
LED Lifespan	>50000 Hours
IP	IP65
IK	IK10
CRI	>90
CCT	3000K/4000K/5000K/6000K
Size	Φ220*75	Φ275*82	Φ350*112
Warranty	5 Years

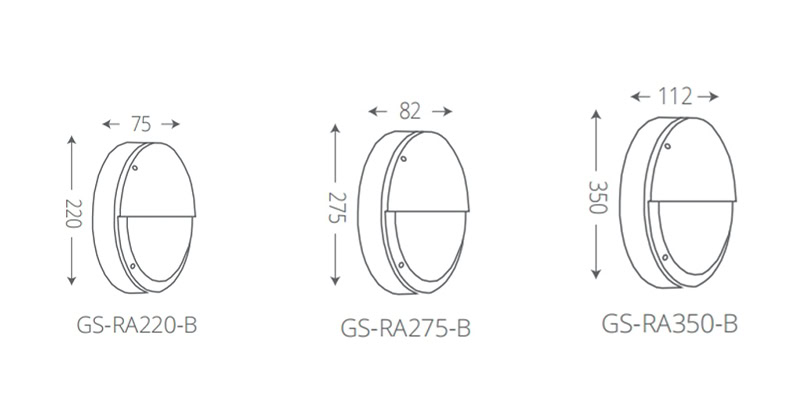

Sizes Of IP65 Bulkhead Lights

Widely Application Of LED Bulk Head Lights

No stroboscopic, no radiation, and no flicker. uniform light is soft and for eye protection. Less power consumption, low heat, long life, more stable.

Suitable to be used in Stairways, garages, Offices, parking areas, Warehouses, factories, Pathways, gardens, building exteriors.

Frequently Asked Questions

Most frequent questions and answers

How many years warranty you provided?

We can provide 5 years warranty for the whole light body. And any questions about the light, you can ask us for help.

What driver you used in bulkhead light?

We use well-known brands, Tridonic, Philips, Osram of power supply, to ensure stable and reliable power output, to ensure the safety and service life of lamps.

Can i get a sample?

We can provide customized samples for you, and if you have any adjustment, we can make for you.

Do you offer after-sales service for bulkhead lights?

We provide perfect after-sales service, including product warranty, technical support, return service, etc., to protect your rights and interests.
