Bulkhead Wall Light – RE Series

Home

Products

Outdoor LED Lights

LED Bulk Head Lights

Bulkhead Wall Light – RE Series

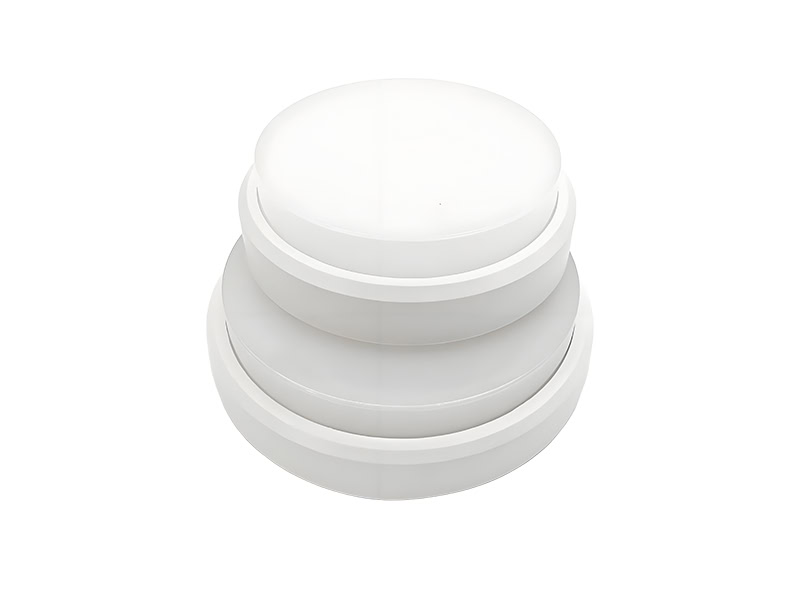

Bulkhead Wall Light - RE Series

Bulkhead wall light with ABS and PC material, IP65 waterproof grade. 120° beam angle.

Simple appearance, suitable for home, industrial, commercial scenes. ABS+PC housing, impact resistant, corrosion resistant, lightweight

Features:

-Wattage: 12/15W

-IP65, CRI>80

-Light efiiciency: 100lm/W

-AC200-240V, CRI>80

-ABS+PC housing
-Standard /0-1 0V DlM/Triac Dim/DALI dimmable

-CITIZEN /CREE/OSRAM/ LEDs

-TRIDONIC/PHILIPS/EAGLERISE drivers

-2700K/3000K/4000K/5000K/6000K

-Warranty: 5 Years

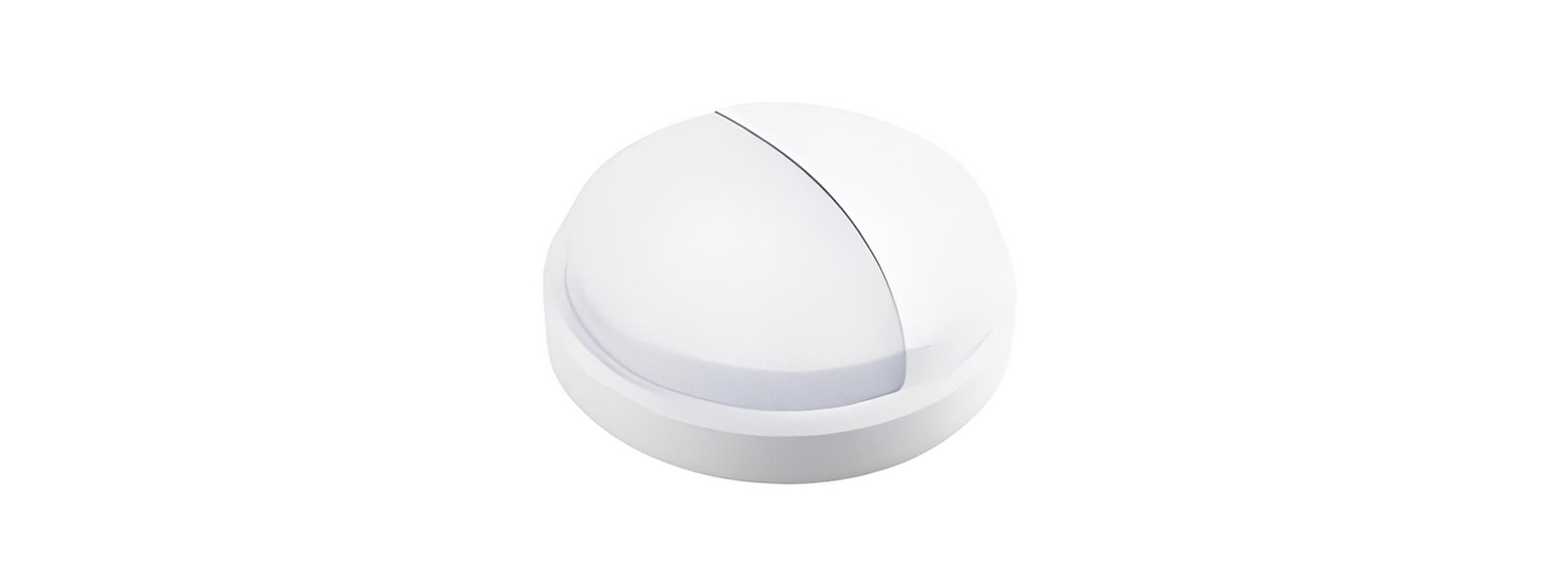

All Plastic Bulkhead Wall Light Description

ABS and PC material with high hardness, good wear resistancem chemical corrosion resistance with low cost and high cost performance.

Customizable human body/radar ensor/emergency kits for option, 175mm and 210mm, 12W/15W, CRI>80, 120° beam angle.

Simple Design Matching All Spaces Bulkhead Wall Light

Using modern minimalist design concept, minimalist line design, low-key and generous, does not destroy the beauty of the space.

Whether it is a modern home, industrial plant, or commercial premises, it can be perfectly integrated to provide uniform and comfortable lighting effects

High Quality Driver Brand And Emergency Optional

Use the premium brands such as Eaglerise/Philips/Tridonic drive power supply, ensure the efficient conversion, low energy consumption, long life, global voltage adapter.
Specific brand power supplies (such as Osram) can be selected according to customer needs to meet special projects or certification requirements. Overvoltage, overcurrent, short circuit triple protection to avoid damage due to voltage fluctuations.

All Plastic Bulkhead Wall Light Description

Surface special coating treatment, long-term outdoor use, no yellowing, no cracking, to maintain long-term transparent.
ABS engineering plastics have excellent structural rigidity and strong deformation resistance to ensure long-term installation of lamps without deformation.

The combination of PC mask and ABS base creates a robust structure with high light transmission, impact resistance and durability, ensuring stable operation in a variety of harsh environments

CCT Optional To Meet Different Needs

Support three color temperature adjustment to meet the lighting needs of different scenes:

– 3000K warm white light: warm and comfortable, suitable for bedrooms, restaurants, hotel corridors.
– 4000K Natural light: bright and clear, suitable for office, kitchen, shopping malls.
– 6000K cold white light: bright and refreshing, suitable for warehouse, garage, outdoor lighting.

Users can choose freely according to the actual use environment to achieve the best light efficiency.

Intelligent Induction Control For Sensoring

High precision human sensing: detection Angle 120°, sensing distance 5-8 meters (adjustable). Low light control (triggered only in dark environments) to avoid false light during the day.

Microwave radar induction optional, can penetrate non-metal materials (such as glass, wood), suitable for special installation environment.
Delay off: automatic delay after people leave (10-30 minutes adjustable) off, energy saving.

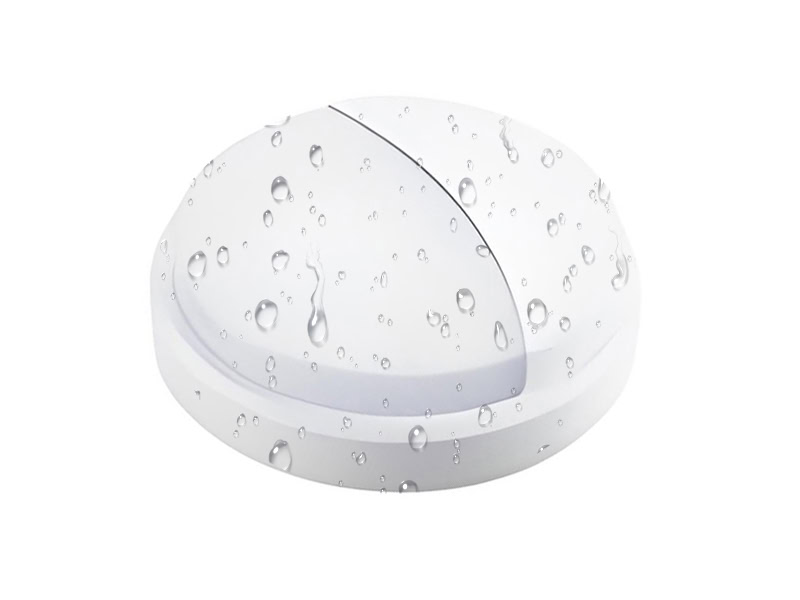

Dustproof and waterproof with IP65 rating

All-scenario adaptation, IP65-level dust and water resistance, fearless of harsh environments.

It meets the requirements of high humidity and high salt spray in maritime environments and can be installed in the corridors, decks and machine rooms of ship cabins, replacing traditional halogen lamps. It saves energy by over 70% and has a maintenance-free cycle of up to 5 years.

Effectively deal with the humid air during the rainy season, prevent condensation and short circuits inside the lamps, provide continuous and stable lighting for underground Spaces, and reduce safety hazards caused by malfunctions.

Datasheet Of Bulkhead Wall Light

Model No.	GS-RE170-A	GS-RE210-A	GS-RE170-B	GS-RE210-B
Power	12W	15W	12W	15W
Material	ABS+PC
Beam angle	120°
Light efficiency	100lm/W
Driver Brand	Tridonic/Eaglerise/Osram/Philips
Voltage	AC200-240V
LEDs	CITIZEN/CREE/OSRAM
PF	>0.95
LED Lifespan	>50000 Hours
IP	IP65
IK	IK10
CRI	>80
CCT	3000K/4000K/5000K/6000K
Colors	Black/White/Grey for option
Size	Φ175*H55	Φ210*H55	Φ175*H55	Φ210*H55
Warranty	5 Years

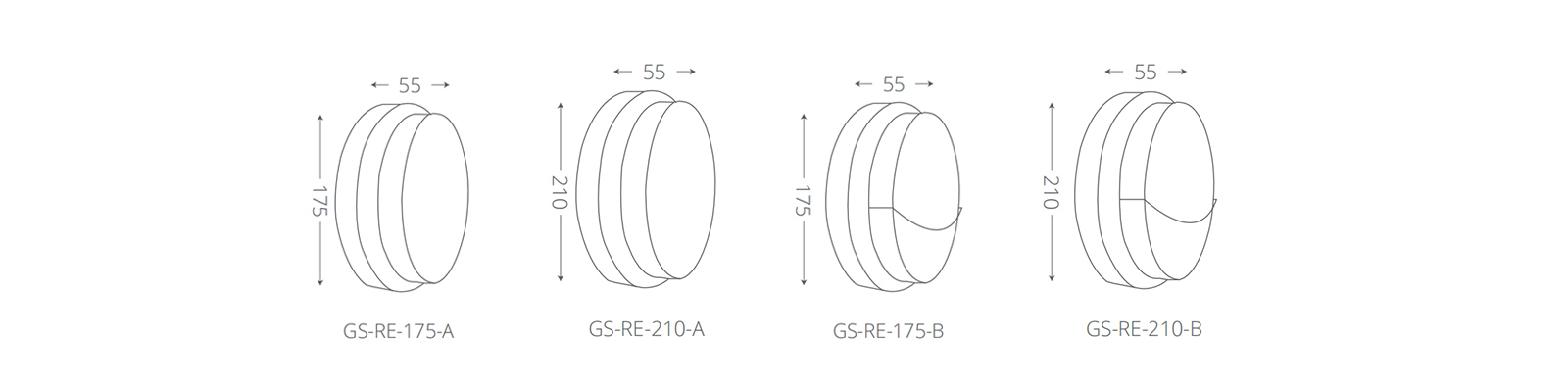

Sizes Of Bulkhead Wall Light

Provide 2 sizes and 2 models for option, black/grey/white 3 colors for option.

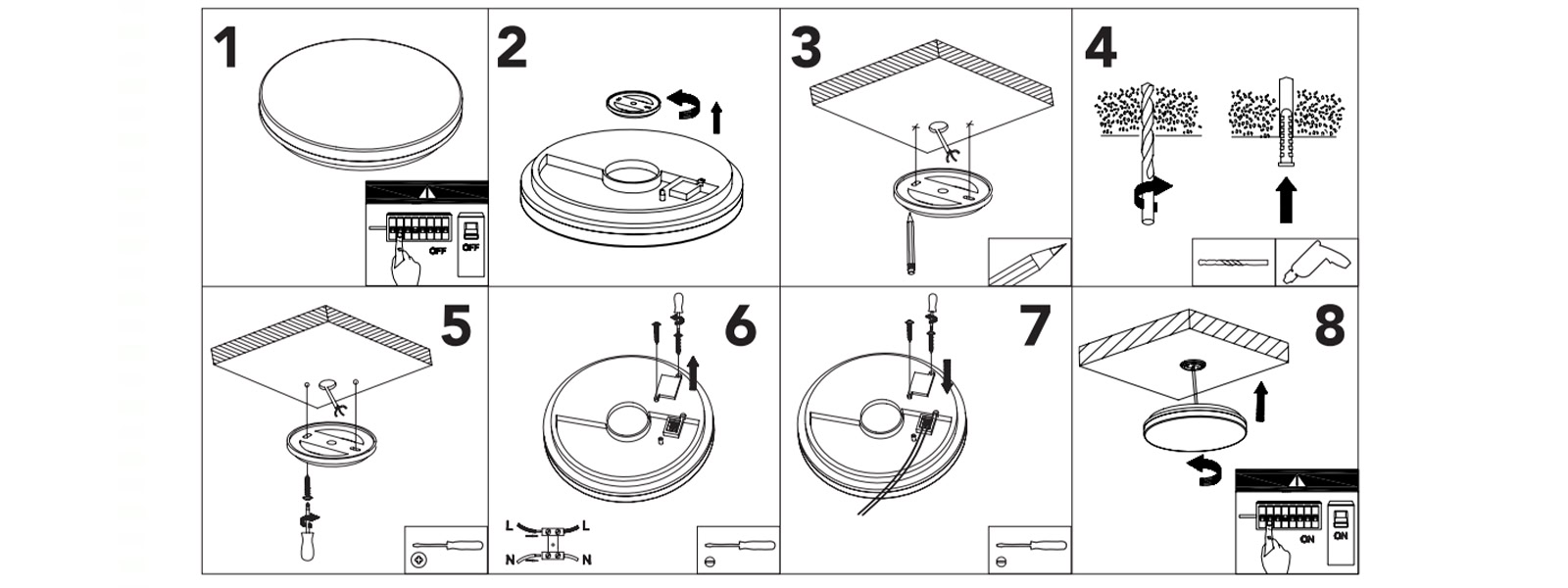

Easily Installation Process In Applications

Easy to install simple, no complex tools, provide streamlined guidance to you.

This installation process uses standardized operating specifications, and each technical step is accurately guided by decomposed diagrams.

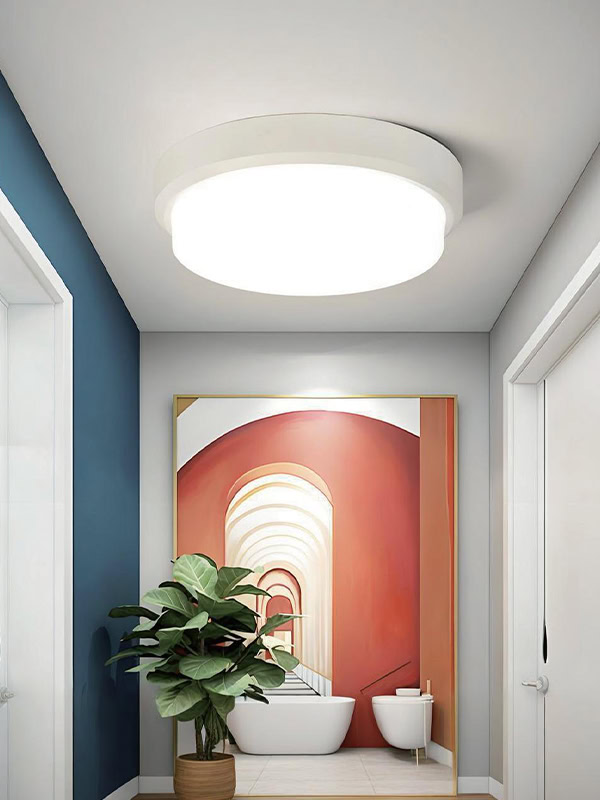

Widely Applications Of Bulkhead Wall Light

No stroboscopic, no radiation, and no flicker. uniform light is soft and for eye protection. Less power consumption, low heat, long life, more stable.

Suitable to be used in Stairways, garages, Offices, parking areas, Warehouses, factories, Pathways, gardens, building exteriors.

Frequently Asked Questions

Most frequent questions and answers

How many years warranty you provided?

We can provide 5 years warranty for the whole light body. And any questions about the light, you can ask us for help.

What driver you used in bulkhead light?

We use well-known brands, Tridonic, Philips, Eaglerise of power supply, to ensure stable and reliable power output, to ensure the safety and service life of lamps.

Can i get a sample?

We can provide customized samples for you, and if you have any adjustment, we can make for you.

Do you offer after-sales service for bulkhead lights?

We provide perfect after-sales service, including product warranty, technical support, return service, etc., to protect your rights and interests.
