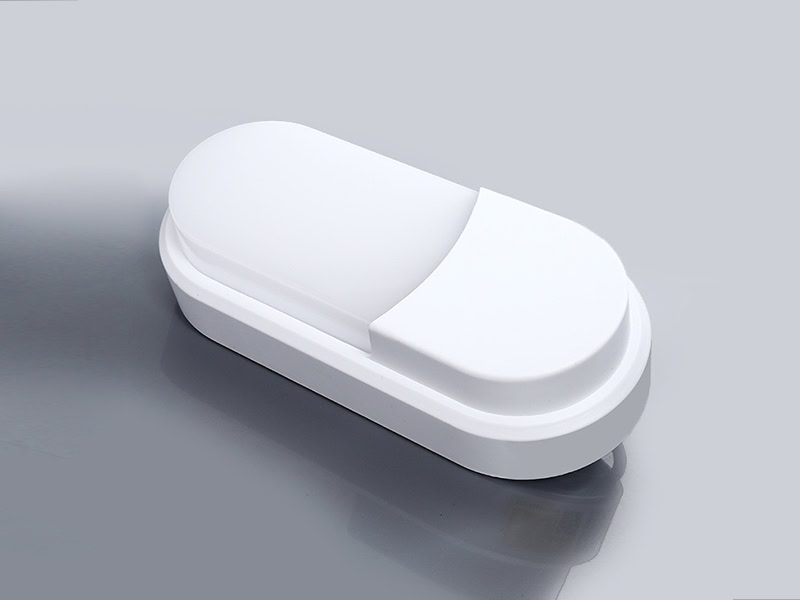

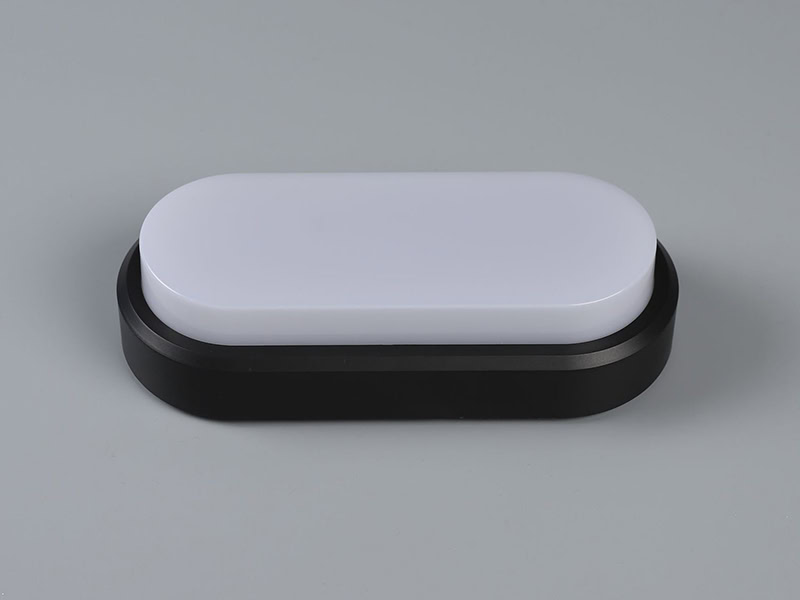

Bulkhead Light Ceiling - SP Series

Bulkhead light ceiling provide 195mm/225mm, 12W/15W, 2 models, black/white/gray colors for option.
IP65 suitable for outdoor use, ABS base and high light transmittance PC cover, 120lm/W light efficiency, CRI>80.

Features:

-ABS+ PC cover

-Wattage: 12W/15W

-IP65, CRI>80

-Light efiiciency: 100lm/W

-AC200-240V

-Diameter: 195mm/225mm
-0-10V DlM/Triac Dim/DALI dimmable

-Emergency kits

-Eaglerise/Tridonic free flicker drivers

-CCT: 2700K/3000K/4000K/5000K/6000K

-Warranty: 5Years

All Plastic Bulkhead Light Ceiling Description

All plastic oval bulkhead material PC and ABS are resistant to high temperature and suitable for long time use.

Customizable human body/radar sensor/emergency kits for option, 195mm and 225mm, 12W/15W, CRI>80, 120° beam angle.

Sensors Function Optional For Usage

This bulkhead light has an addable intelligent sensing function that combines advanced infrared and human sensing technology.
When someone is near, the human body sensor quickly captures the signal, the light immediately lights up, the person leaves the sensing range, the light automatically turns off, which is energy-saving and environmentally friendly, and also extends the service life of the lamp.

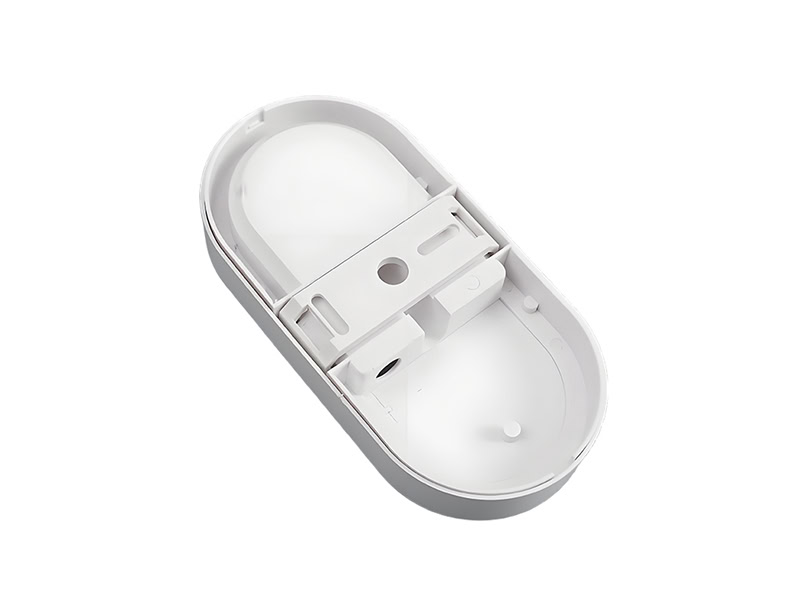

ABS Material Used In Bulkhead Light Ceiling

ABS material has excellent corrosion resistance. High impact resistance, even in the daily use or installation process of accidental collision, can withstand the impact without breaking or damage, to ensure a long service life.
Ideal for use in wet and corrosive environments, it is a reliable choice from industrial sites to outdoor installations that often face harsh conditions.

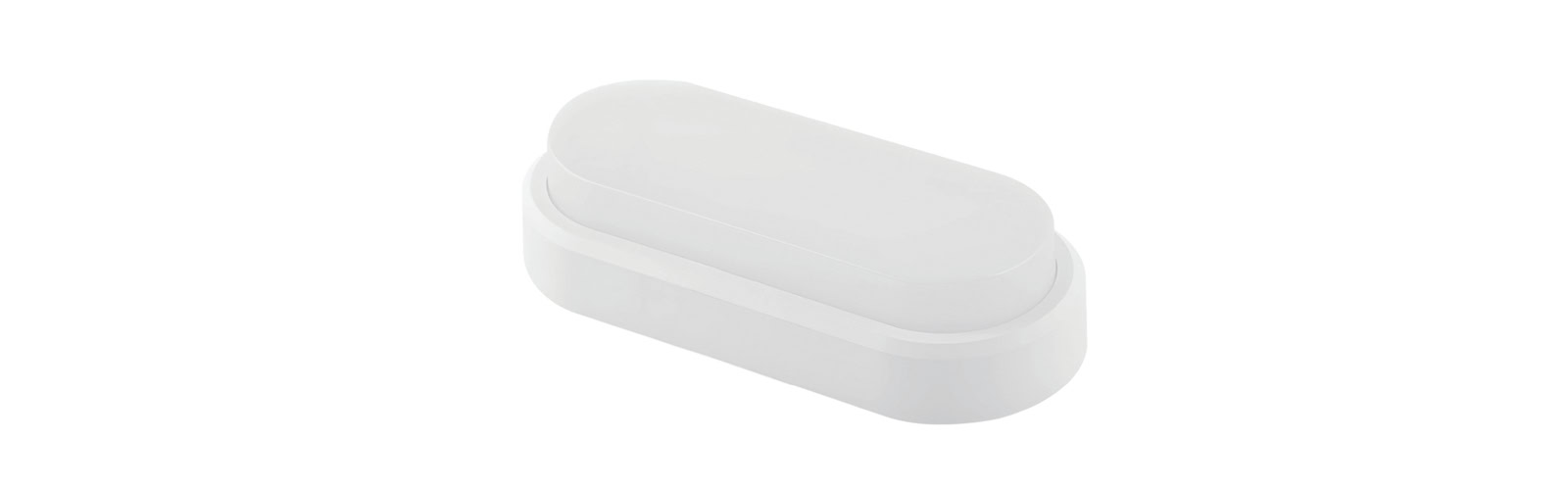

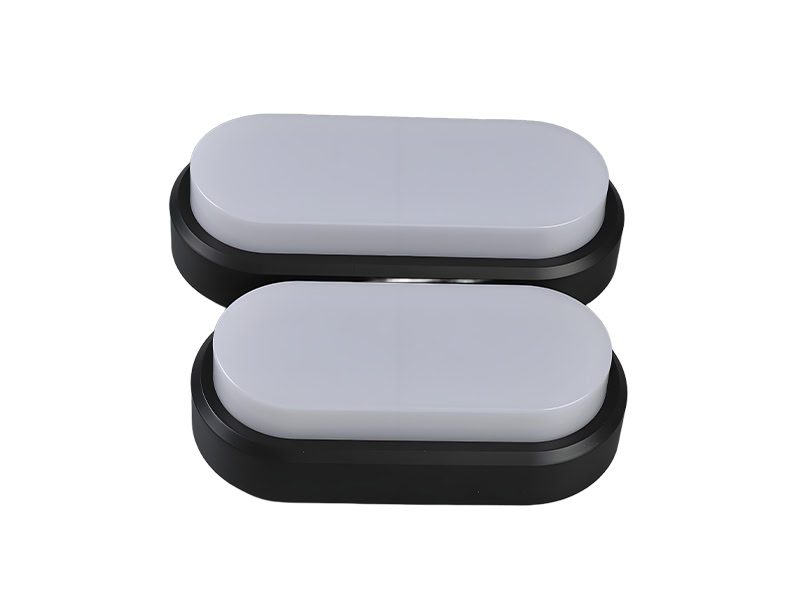

Bulkhead Ceiling Lights Models Selected

Two colors black and white for option, and have 2 models housing appearance and sizes optional.

We offer a variety of options, you can choose the most suitable products according to your needs.

Lightweight And Easily Installation

The product is lightweight, easy to operate, and greatly simplifies the installation process.
The installation process simply involves attaching it directly to the wall, eliminating the need for complex mounting systems or heavy tools.
Its smooth and natural lines are especially suitable for various scenes, even in areas with limited space.

Drivers Of LED Bulkhead Light Ceiling

Our power supplies are available under Eaglerise, tridonic, Osram brands, and can also be customized to the brand you want.
Products have a wide variety of dimming methods for you to choose. 0-10V,DALI, Traic dimming modes are supported.
You can choose the required method according to the requirements of different scenarios to provide users with a more intelligent and personalized user experience.

Emergency Function Optional

The duration of emergency lighting can be precisely set through the built-in knob of the lamp or the matching control box.
Brightness level adjustment, balancing lighting and battery life, dual brightness mode switching, 100% brightness,50% brightness.
The brightness adjustment is linked with the battery life. For example, when a 90-minute battery life is selected, the system automatically recommends an energy-saving mode to ensure the optimal power distribution.

Datasheet Of Bulkhead Light Ceiling

Model No.	GS-SP195-A	GS-SP225-A	GS-SP195-B	GS-SQ225-B
Power	12W	15W	12W	15W
Material	ABS+PC
Beam angle	120°
Light efficiency	100lm/W
Driver Brand	Tridonic/Eaglerise/Osram/Philips
Voltage	AC200-240V
LEDs	SMD2835
PF	>0.95
LED Lifespan	>50000 Hours
IP	IP65
IK	IK10
CRI	>80
CCT	2700K/3000K/4000K/5000K/6000K
Colors	Black/White/Grey for option
Size	L195W98H55	L225W100H55	L195W98H55	L225W100H55
Warranty	5 Years

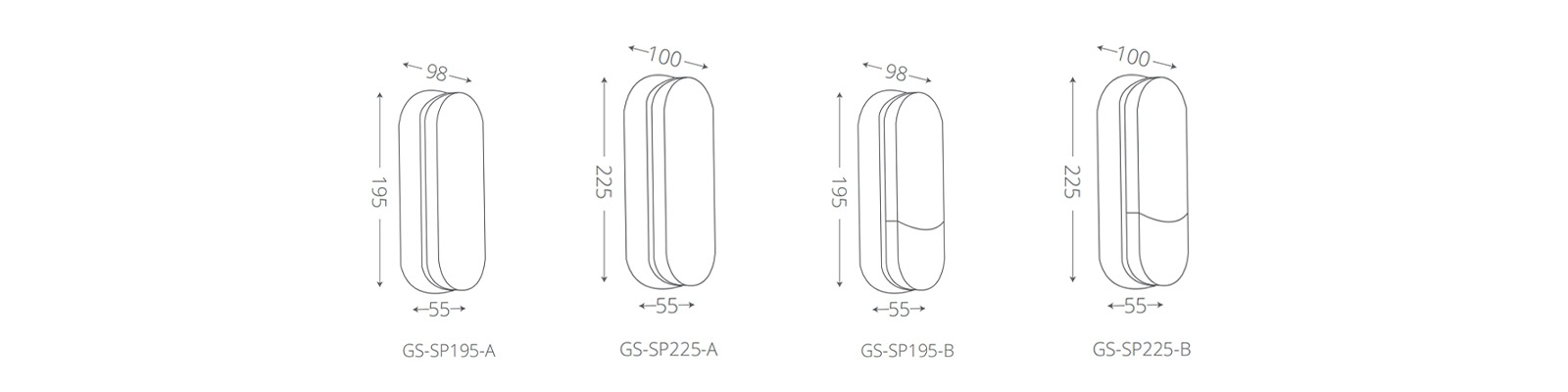

Size Of Ceiling Bulkhead Light

Wide Applications Of Ceiling Bulkhead Lights

No stroboscopic, no radiation, and no flicker. uniform light is soft and for eye protection. Less power consumption, low heat, long life, more stable.

Suitable to be used in Stairways, garages, Offices, parking areas, Warehouses, factories, Pathways, gardens, building exteriors.

Frequently Asked Questions

Most frequent questions and answers

How many years warranty you provided?

Provide 5 years warranty for the whole light body.

What driver you used in bulkhead light?

The lights use well-known brands, Tridonic, Philips, Eaglerise of power supply, to ensure stable and reliable power output, to ensure the safety and service life of lamps.

Can i get a sample?

We can provide customized samples for you, and if you have any adjustment, we can make for you.

Do you offer after-sales service for bulkhead lights?

Yes, Perfect after-sales service, including product warranty, technical support, return service, etc., to protect your rights and interests.
