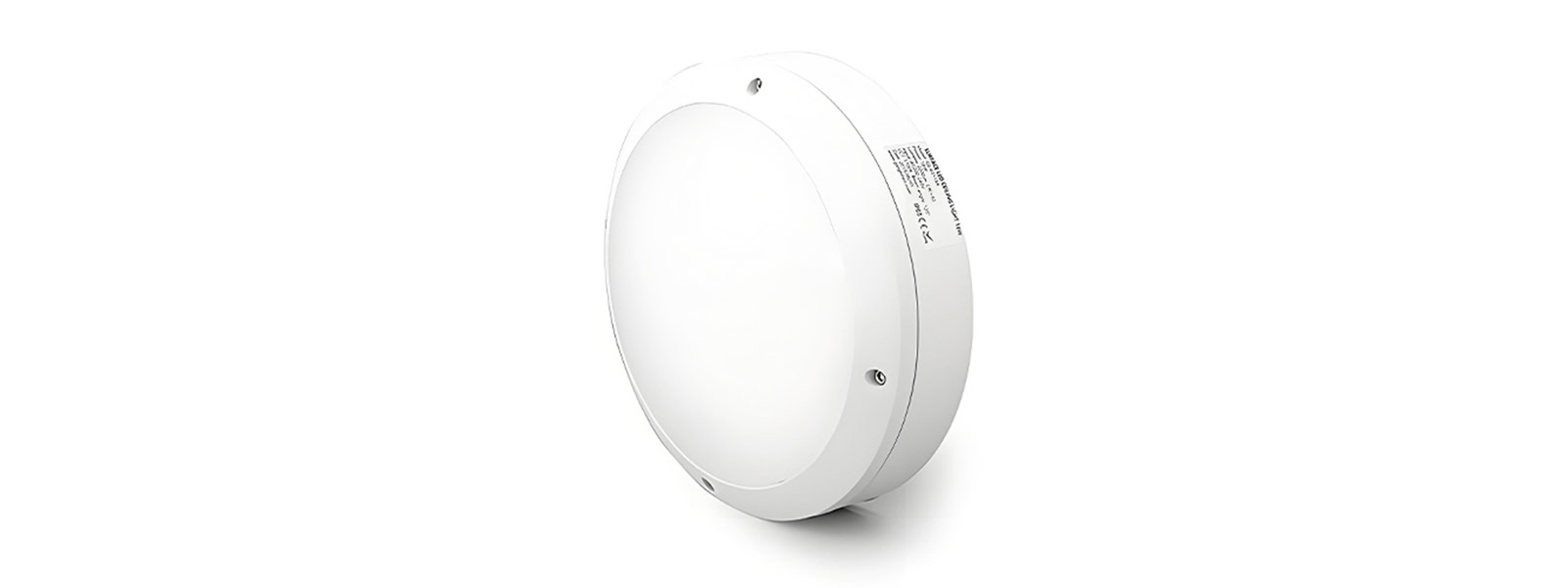

Bulkhead Light - RA Series A Model

Bulkhead light provide 220mm/275mm/350mm, 12W/18W/30W, black/white/gray colors for option.
IP65 suitable for outdoor use, aluminum housing and high light transmittance PC cover, 120lm/W light efficiency, CRI>90.

Features:

-Aluminum housing, PC cover

-Wattage: 12/18/30W

-IP65, CRI>90

-Light efiiciency: 120lm/W

-AC200-240V 50/60Hz

-Diameter: 220mm/275mm/350mm
-0-10V DlM/Triac Dim/DALI dimmable

-Emergency kits

-Eaglerise/Tridonic free flicker drivers

-CCT: 3000K/4000K/5000K/6000K

-A/B/C/D models for option

-Warranty: 5Years

Round LED Bulkhead Light Description

Milky white PC cover, high impact resistance, IK10 approval, Die-casting aluminum lamp body excellent heat dissipation.

Microwave sensor 10% or 25% dimming for option. IP65 waterproof, dustproof for indoor and outdoor lighting

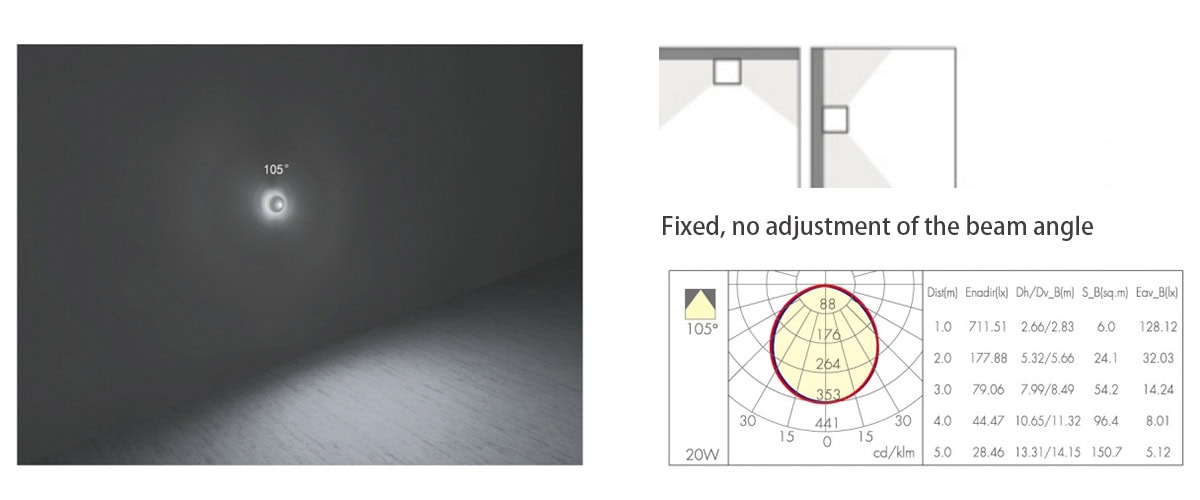

Uniform Light Coverage Wide 105° Beam Angle

With precision optical design, the beam angle is up to 105°, and the light naturally diffuses to avoid dazzling light gathering.
A wide range of bulkhead and aisle areas are covered to reduce the number of installations and save energy and efficiency.

Microwave Sensors For Outdoor Round Bulk head Light

Microwave sensor 10% or 25% dimming for option.

The detection range (e.g. 3 to 8 meters) and sensitivity can be adjusted to avoid false triggering

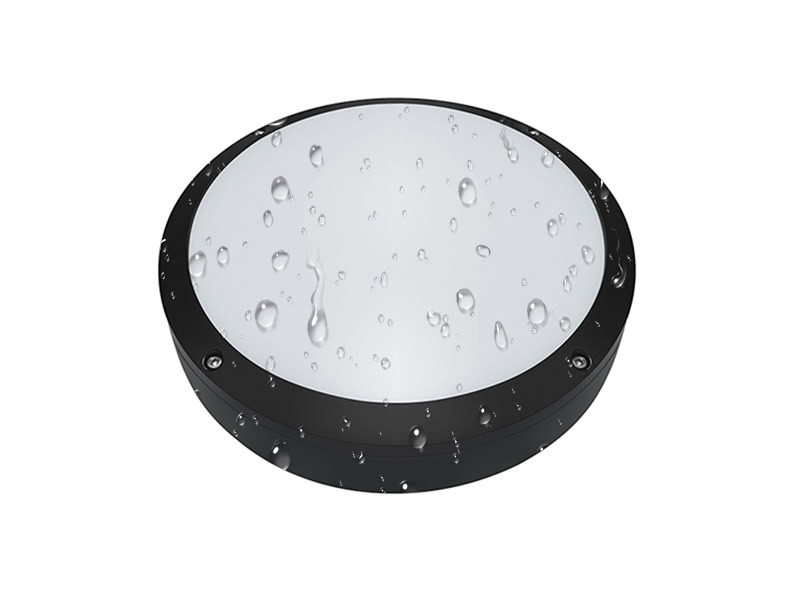

IP65 Waterproof Grade Round Bulkhead Light

Level 6 dust-proof: Seamless sealing structure completely blocks dust from entering, eliminating the risk of short circuits caused by dust accumulation.
Level 5 waterproofing: Multiple silicone rubber sealing rings + stainless steel fasteners, capable of withstanding strong water spray impacts (such as high-pressure water gun flushing), ensuring stable operation in humid environments.
It adopts a marine-grade aluminum alloy shell, and its surface is treated with a three-layer anti-corrosion spraying process (anodizing + powder coating + electroplating), which is resistant to salt spray corrosion and suitable for high-corrosion scenarios such as coastal ship cabins and chemical workshops.

Emergency Power Supply Optional

When the main power supply is interrupted, the lamp body immediately switches to the emergency mode.
The duration of emergency lighting can be flexibly set according to the demand (such as 30/60/90 minutes, etc.) to adapt to the needs of different scenarios.
Supports brightness adjustment in emergency mode, which not only meets basic lighting requirements but also optimizes battery life.

Datasheet Of Round Bulk head Light

Model No.	GS-RA-220-A	GS-RA-275-A	GS-RA-350-A
Power	12W	18W	30W
Material	Aluminum+PC
Beam angle	105°
Light efficiency	120lm/W
Driver Brand	Philips/Tridonic/Osram/Eaglerise
Voltage	AC200-240V DC24V
LEDs	CITIZEN/CREE/OSRAM
PF	>0.95
LED Lifespan	>50000 Hours
IP	IP65
IK	IK10
CRI	>90
CCT	3000K/4000K/5000K/6000K
Size	Φ220*72	Φ275*75	Φ350*107
Warranty	5 Years

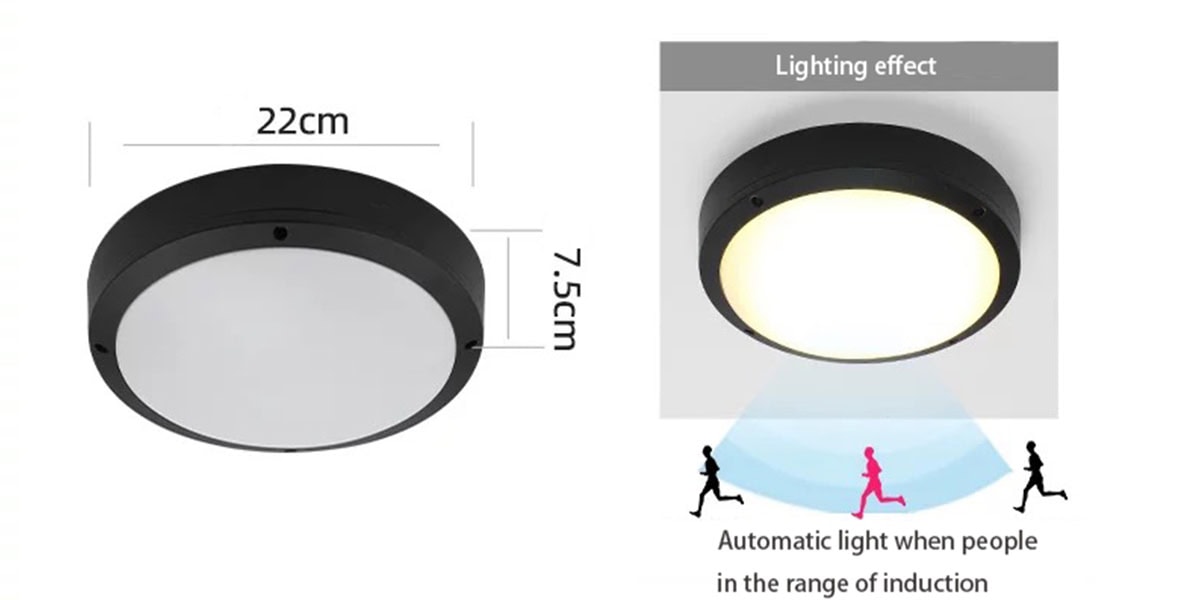

Sizes Of LED Bulk head

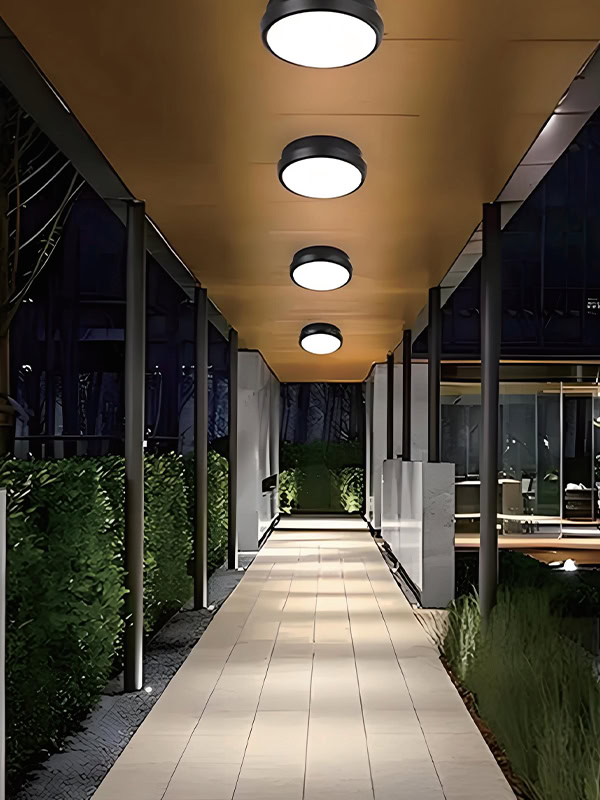

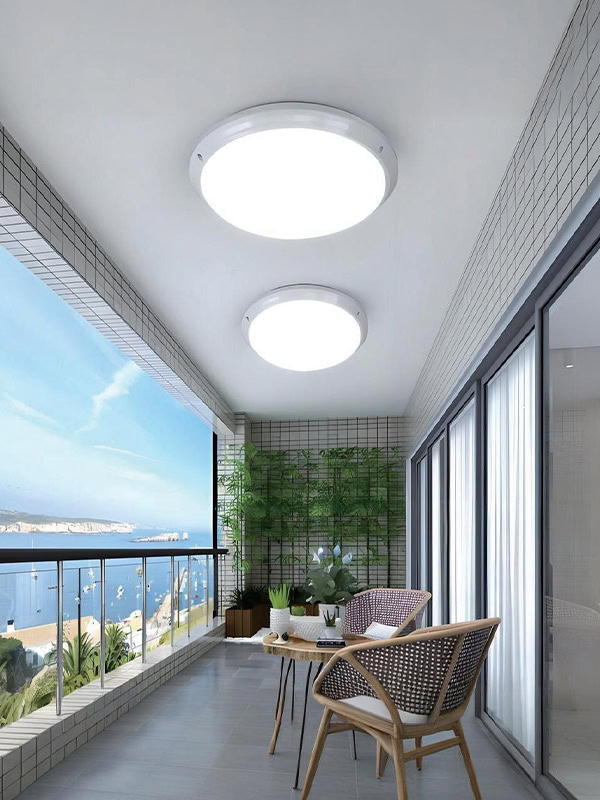

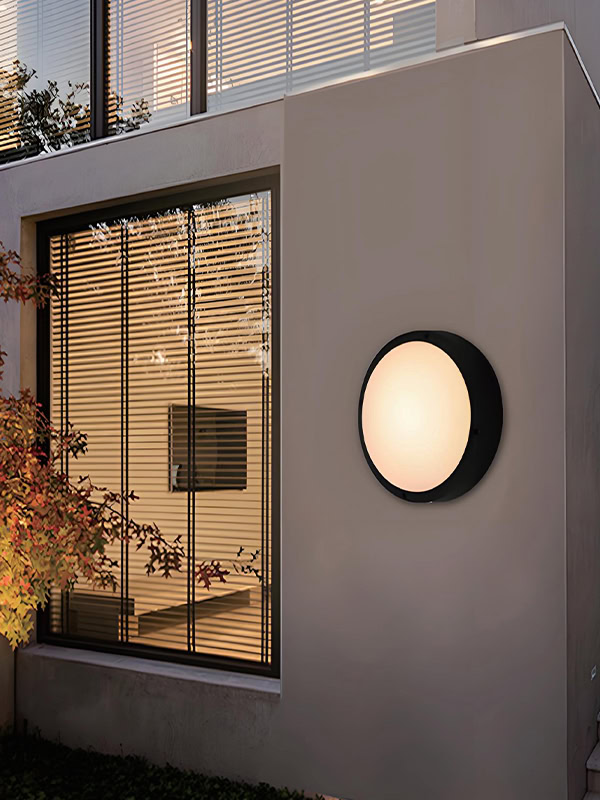

Widely Application Of LED Bulk head Lights

No stroboscopic, no radiation, and no flicker. uniform light is soft and for eye protection. Less power consumption, low heat, long life, more stable.

Suitable to be used in Stairways, garages, Offices, parking areas, Warehouses, factories, Pathways, gardens, building exteriors.

Frequently Asked Questions

Most frequent questions and answers

How many years warranty you provided?

We can provide 5 years warranty for the whole light body. And any questions about the light, you can ask us for help.

What driver you used in bulkhead light?

We use well-known brands, Tridonic, Philips, Osram of power supply, to ensure stable and reliable power output, to ensure the safety and service life of lamps.

Can i get a sample?

We can provide customized samples for you, and if you have any adjustment, we can make for you.

Do you offer after-sales service for bulkhead lights?

We provide perfect after-sales service, including product warranty, technical support, return service, etc., to protect your rights and interests.
