Bulk Head Lighting – RA Series D Model

Home

Products

Outdoor LED Lights

LED Bulk Head Lights

Bulk Head Lighting – RA Series D Model

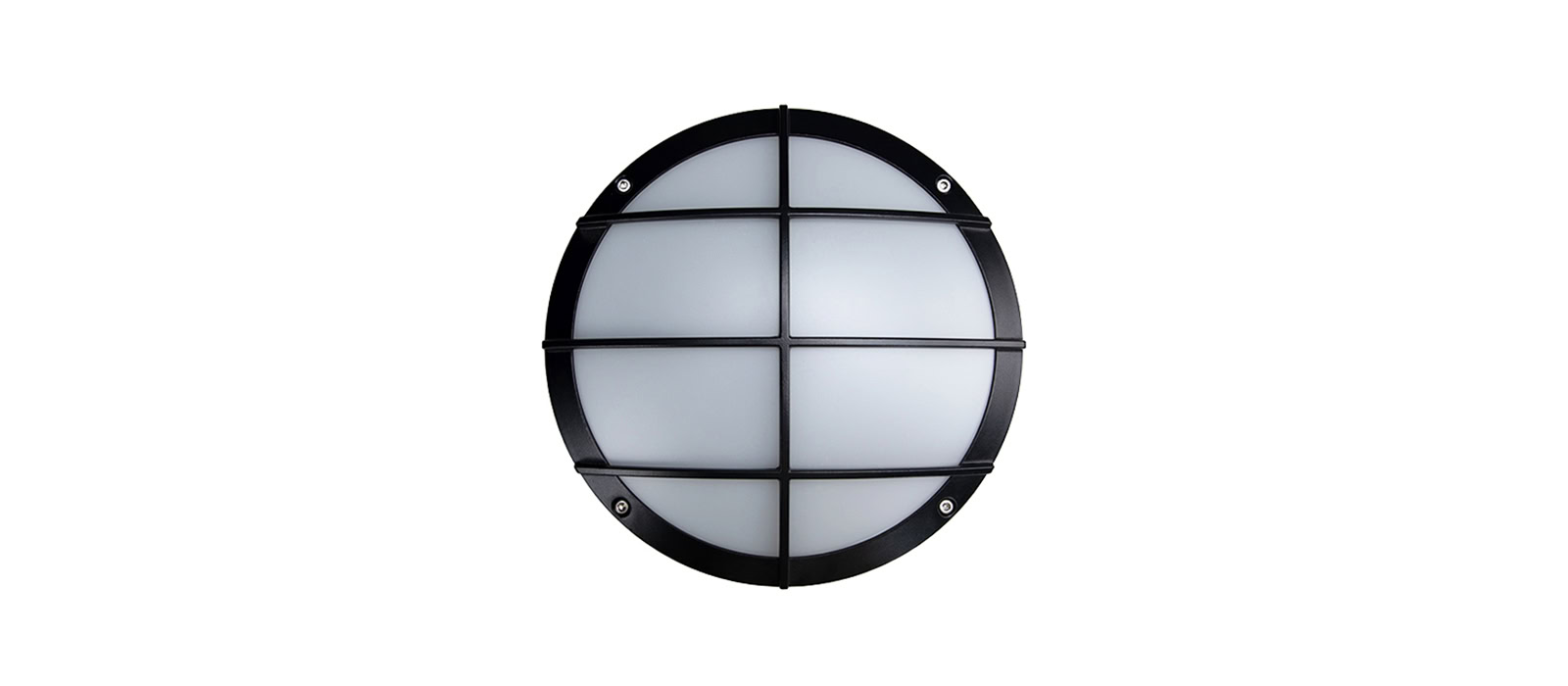

Bulk Head Lighting - RA Series D Model

Bulk head lighting provide 220mm/275mm, 12W/18W, black/white/gray colors for option.
IP65 suitable for outdoor use, aluminum housing and high light transmittance PC cover, 120lm/W light efficiency, CRI>90.

Features:

-Aluminum housing, PC cover

-Wattage: 12/18W

-IP65, CRI>90

-Light efiiciency: 120lm/W

-AC200-240V 50/60Hz

-Diameter: 220mm/275mm
-0-10V DlM/Triac Dim/DALI dimmable

-Emergency kits

-Eaglerise/Tridonic free flicker drivers

-CCT: 3000K/4000K/5000K/6000K

-Warranty: 5Years

Bulk Head Lighting Description

Milky white PC cover, high impact resistance, IK10 approval, Die-casting aluminum lamp body excellent heat dissipation.

Microwave sensor 10% or 25% dimming for option. IP65 waterproof, dustproof for indoor and outdoor lighting

High Quality Driver Brand Optional

Use the premium brands such as Eaglerise/Philips/Tridonic drive power supply, ensure the efficient conversion, low energy consumption, long life, global voltage adapter.
Specific brand power supplies (such as Osram) can be selected according to customer needs to meet special projects or certification requirements. Overvoltage, overcurrent, short circuit triple protection to avoid damage due to voltage fluctuations.

Intelligent Induction Control For Sensoring

Supports microwave sensing technology, with a detection distance of 8-12 meters (adjustable), a coverage Angle of 120°, and the ability to penetrate non-metallic obstacles. It is more sensitive than infrared sensing.
The delayed shutdown and brightness adjustment functions automatically reduce the brightness to 10% when no one is around, providing more thorough energy conservation.

Uniform Light Coverage Wide 105° Beam Angle

With precision optical design, the beam angle is up to 105°, and the light naturally diffuses to avoid dazzling light gathering.
A wide range of bulkhead and aisle areas are covered to reduce the number of installations and save energy and efficiency.

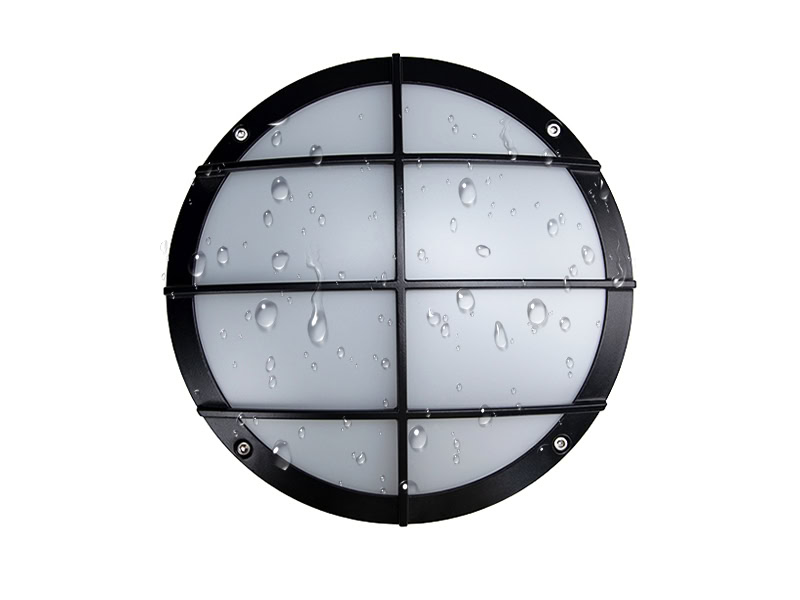

IP65 Waterproof Grade Bulk Head Light

All-scenario adaptation, IP65 waterproof and dustproof grade fearless in harsh environments.
It meets the requirements of high humidity and high salt spray in maritime environments and can be installed in the corridors, decks and machine rooms of ship cabins, replacing traditional halogen lamps. It saves energy by more than 70% and has a maintenance-free cycle of up to 5 years.
Effectively deal with the humid air during the rainy season, prevent condensation and short circuits inside the lamps, provide continuous and stable lighting for underground Spaces, and reduce safety hazards caused by malfunctions

Emergency Power Supply Optional

It is equipped with a high-precision current sensor to monitor the main power supply status in real time. Once a power-off signal is detected, the emergency mode will be automatically activated within 0.5 seconds.
Eliminate the dark and blank period to ensure personnel safety and operational continuity.
The main power supply and the emergency power supply are independently controlled by circuits to avoid mutual interference and ensure the stable operation of the emergency mode. Even if the main circuit fails, it will not affect the emergency lighting function.

Datasheet Of Round Bulk Head Light

Model No.	GS-RA-220-D	GS-RA-275-D
Power	12W	18W
Material	Aluminum+PC
Beam angle	105°
Light efficiency	120lm/W
Driver Brand	Philips/Tridonic/Osram/Eaglerise
Voltage	AC200-240V DC24V
LEDs	CITIZEN/CREE/OSRAM
PF	>0.95
LED Lifespan	>50000 Hours
IP	IP65
IK	IK10
CRI	>90
CCT	3000K/4000K/5000K/6000K
Size	Φ220*75	Φ275*85
Warranty	5 Years

Sizes Of LED Bulk Head Lighting

Widely Application Of LED Bulk Head Lights

No stroboscopic, no radiation, and no flicker. uniform light is soft and for eye protection. Less power consumption, low heat, long life, more stable.

Suitable to be used in Stairways, garages, Offices, parking areas, Warehouses, factories, Pathways, gardens, building exteriors.

Frequently Asked Questions

Most frequent questions and answers

How many years warranty you provided?

We can provide 5 years warranty for the whole light body. And any questions about the light, you can ask us for help.

What driver you used in bulkhead light?

We use well-known brands, Tridonic, Philips, Osram of power supply, to ensure stable and reliable power output, to ensure the safety and service life of lamps.

Can i get a sample?

We can provide customized samples for you, and if you have any adjustment, we can make for you.

Do you offer after-sales service for bulkhead lights?

We provide perfect after-sales service, including product warranty, technical support, return service, etc., to protect your rights and interests.
