UGR LED Panel Light

UGR panel light is adopting efficient LED technology, it is a energy-saving and high brightness LED tri-proof lighting with aluminum heat sinks,
It has excellent heat dissipation function. 50000hours lifespan. UGR＜16，customizable high power, It is suitable for office space, medical facilities,retail stores.

Features:

-Aluminum frame, PC lens

-Wattage: 36W/40W
-UGR<16

-IP20, IK10, CRI>80

-Light efiiciency: 160lm/W

-AC200-240V

-Size: 595x595x27mm
-0-10V Dim/DALI Dim

-Emergency kits/microwave sensor

-OSRAM/Samsung LEDs

-Eaglerise/Tridonic/Philips free flicker drivers

-CCT: 3000K/4000K/5000K/6000K

-Warranty: 5Years

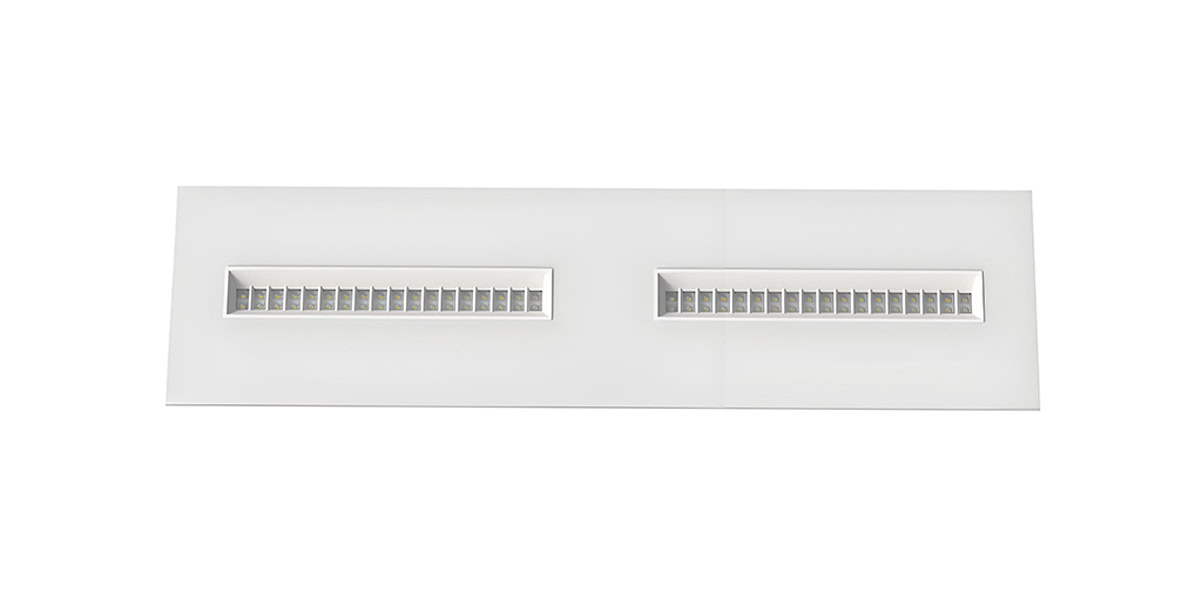

UGR<16 LED Panel Light

The aluminum part has excellent heat dissipation performance and can quickly dissipate the heat generated by the operation of the lamp.
PC material, with its high light transmittance, impact resistance and good weather resistance, provides clear and bright light output for lamps.

Drivers Brands Of LED Panel Light

We offer Philips, Eaglerise and Tridonic for option. Also, we can use other brand if you want.
The use of power supplies from well-known big brands ensures the stability and service life of the lamps during use

Replaceable Lens Module For Option

The module lens is replaceable and offers the option of 2, 3, or 4 modules for combination.

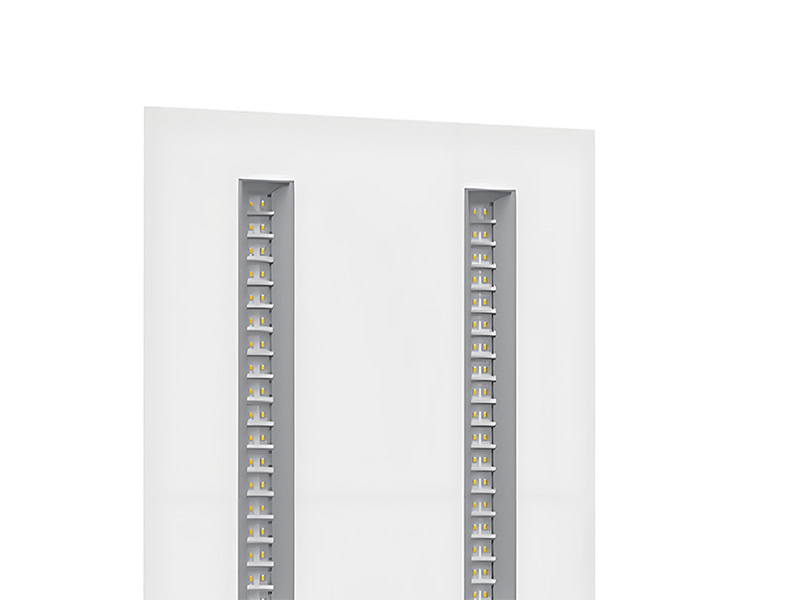

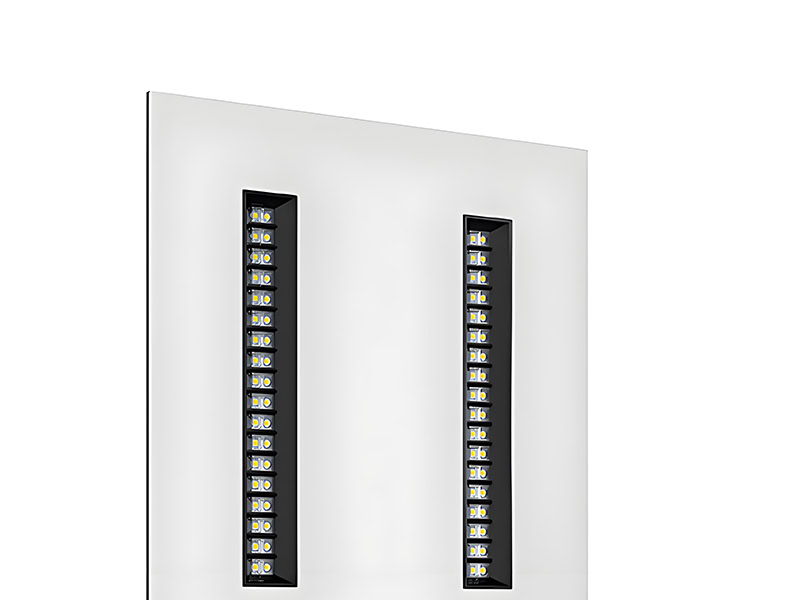

The color of the lamp cup is black and white. You can flexibly combine them according to the size of the space and lighting needs to create a personalized lighting effect.

Intelligent Control of UGR LED Panel Light

We offer a rich variety of intelligent dimming options, including DALI dimming, 0-10V dimming, as well as intelligent sensing dimming methods such as motion sensors, microwave sensors, and daylight collection sensors, fully meeting the unique needs of various application scenarios.

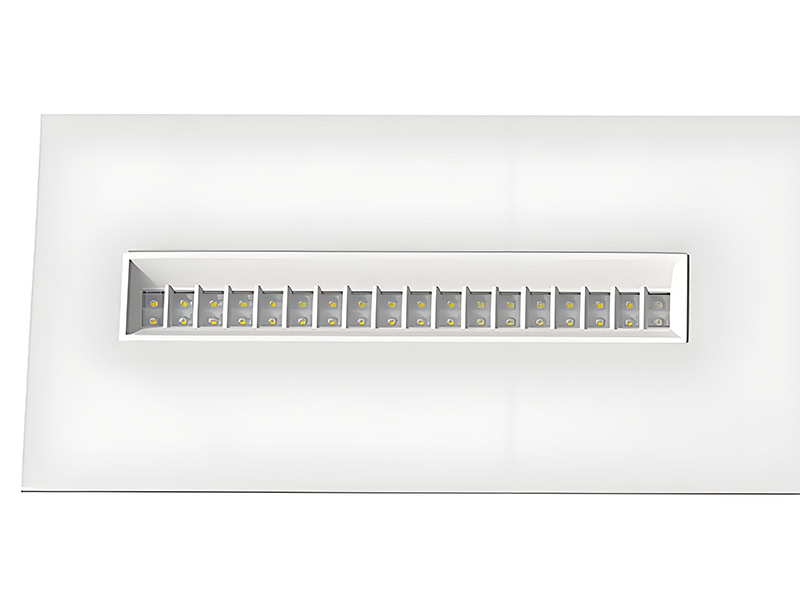

High Efficiency Light Source

We use light source from Samsung/ OSRAM brand.
CRI>80, SDCM<3 steps, and the light efficiency is up to 160lm/W.

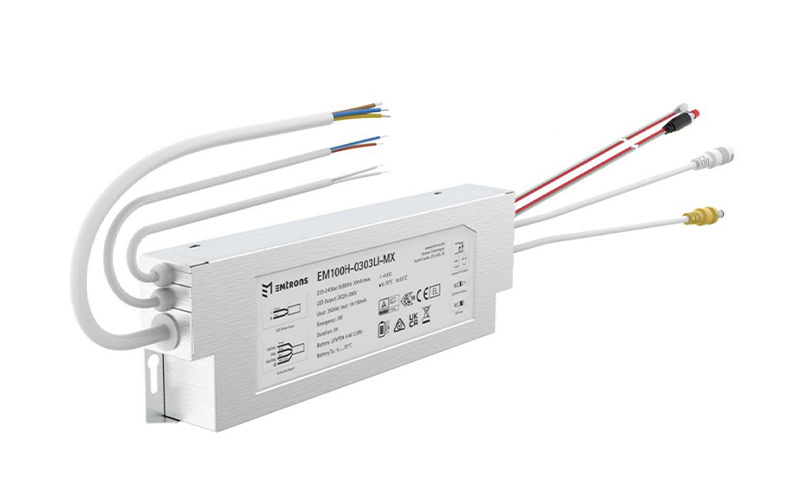

Emergency Power Modules For Option

Support the flexible installation of emergency power modules.
providing a dual solution of “constant lighting + emergency backup” and handle sudden power outages.

Datasheet Of LED Panel Light

Model No.	GS-M312-2T
Power	36W/40W
Material	6063 aluminum + PMMA
Beam angle	120°
Light efficiency	160lm/W
Driver Brand	Philips/Tridonic/Eaglerise
Voltage	AC200-240V
LEDs	Samsung/OSRAM
PF	>0.95
LED Lifespan	>50000 Hours
IP	IP20
IK	IK10
CRI	>80
CCT	3000K/4000K/5000K/6000K/6500K
Size	295119527
Warranty	5 Years

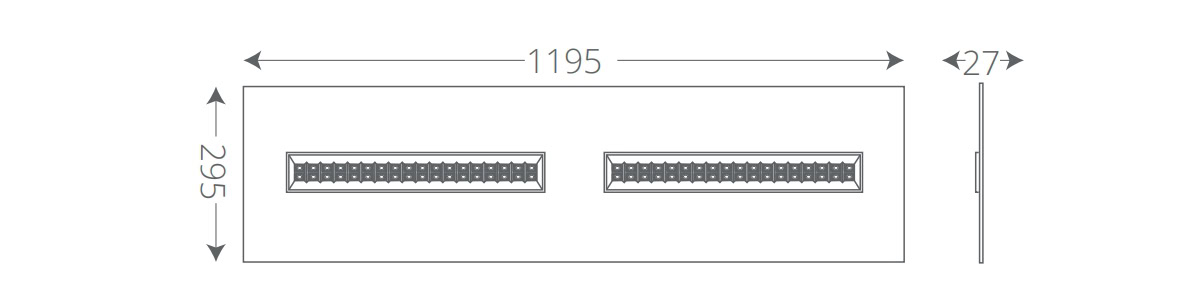

Size Of UGR LED Panel Light

Professional Light Distribution 120 Degree

The 120-degree professional light distribution curve and side light technology are carefully designed to ensure uniform, soft and scientifically distributed light.
The 120-degree wide Angle allows light to fully cover the space, with no dark areas or glare, creating a comfortable lighting environment.

Accessories For LED UGR Panel Light

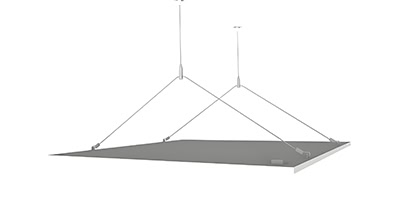

Hanging wires

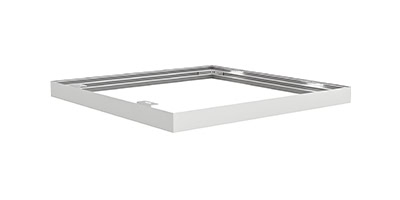

Aluminum frame

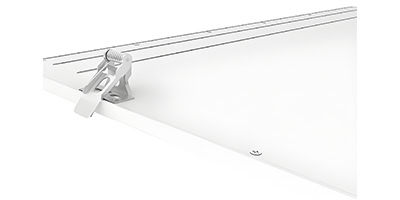

Spring clip

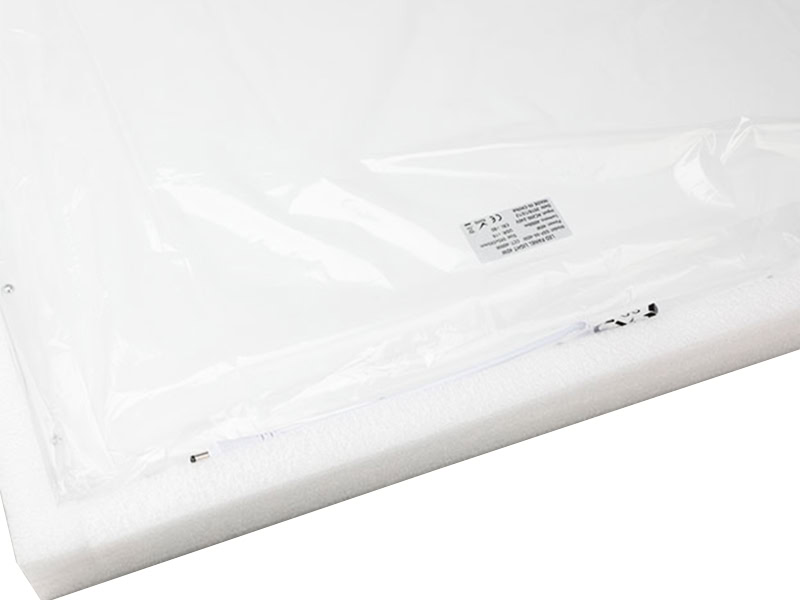

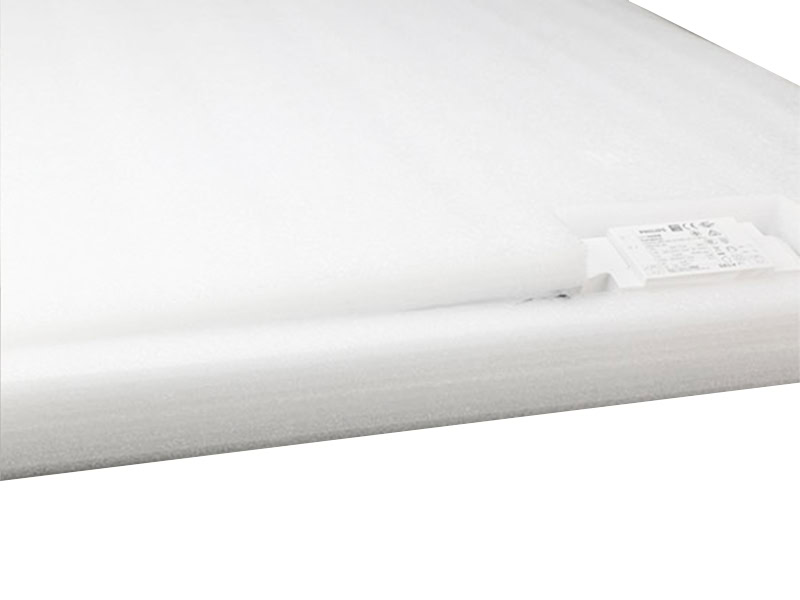

Pearl Cotton Packaging Process

The 120× 30-sized LED panel light adopts the full-sheet pearl cotton full wrapping packaging process.
Its independent bubble structure can effectively absorb the impact force during transportation, providing 360° three-dimensional protection against possible risks such as vibration and collision during transportation.

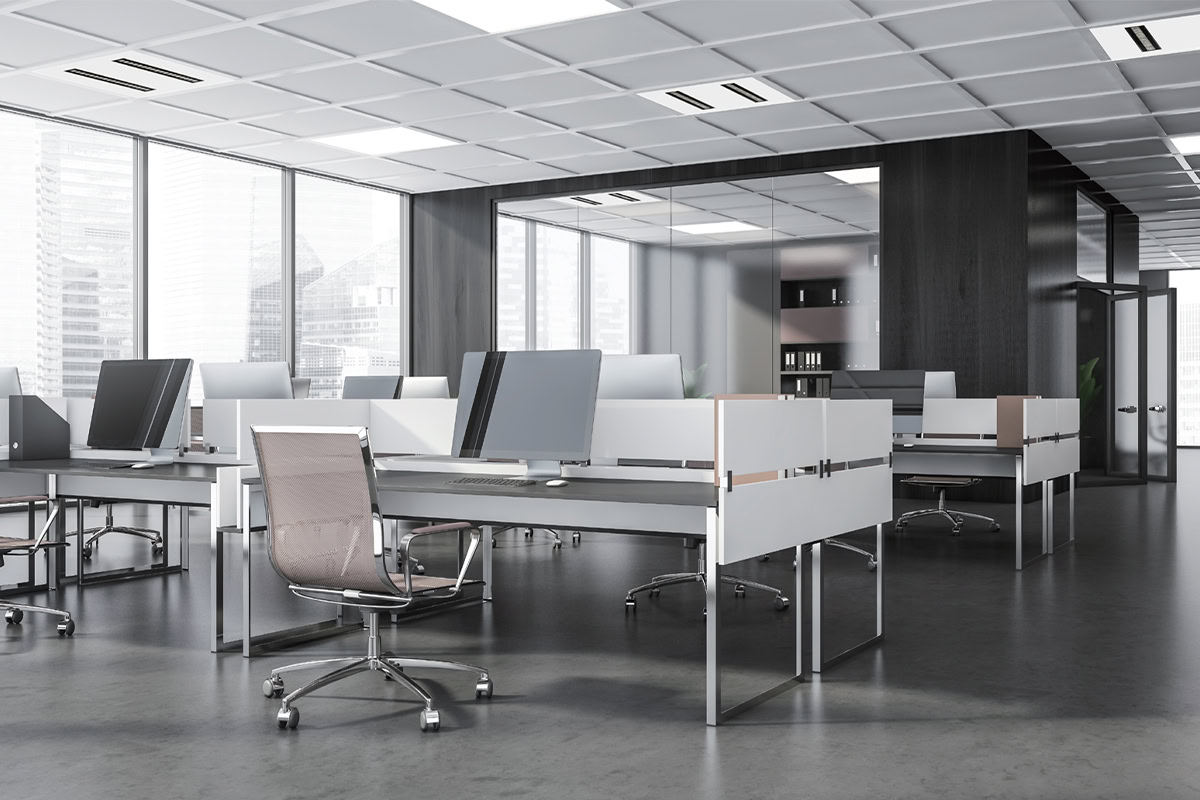

Applicable Scenarios Of UGR LED Panel Light

It is applicable to various places. In the office, provide bright and comfortable lighting to enhance work efficiency; In medical facilities, precise light output meets the lighting requirements for professional operations such as surgeries and diagnoses. In retail venues and stores, high color rendering and sufficient brightness perfectly display the details and colors of goods, attracting customers and promoting sales.

Frequently Asked Questions

Most frequent questions and answers

How many years warranty you provided for ugr led panel?

We can provide 5 years warranty for the whole light body.

What driver you used in panel light?

We use well-known brands, Tridonic, Philips, eaglerise of power supply.

What is the brand of light source?

Samsung/OSRAM brand and the light efficiency of panel can reach 160lm/W.

Do you offer after-sales service for led panel lights?

We provide perfect after-sales service, including product warranty, technical support, return service, etc., to protect your rights and interests.
