Surface Panel Light- 300x1200

Surface panel light, with their outstanding performance and innovative design, have become the ideal choice for modern lighting.

Different structure for the edge-lit, the back-lit more economical solution. LED panel Backlit light is with direct lighting design, which has higher lumen efficiency and perfect lighting performance

Features:

-Aluminum frame, PMMA diffusion plate, steel sheet

-Wattage: 40W
-UGR<19

-IP20, CRI>80

-Light efiiciency: 100lm/W, 120lm/W, 130lm/W, 150lm/W

-AC200-240V 50/60Hz

-Size: 300x1200mm
-0-10V Dim/DALI Dim

-Emergency kits/microwave sensor

-OSRAM/Samsung LEDs

-Eaglerise/Tridonic/Philips free flicker drivers

-CCT: 2700K/3000K/4000K/5000K/6000K/6500K

-Warranty: 5Years

LED Surface Panel Light

32mm Thickness, without LGP, PMMA Lens, Philips free flicker driver, UGR<19, DALI dimmable for option.

No flicker, less weight, no radiation, no mercury, 2700K-6500K adjustable, Excellent heat dissipation structure UGR<19 or CRI>90 available and optional.

Surface Panel Light With High Luminous Efficacy Up To 150lm/W

We use light source from Samsung/ OSRAM brand.
CRI>80, SDCM<3 steps, and the light efficiency can choose from 100lm/W, 120lm/W, 130lm/W, and 150lm/W.

Emergency Power Modules Optional

To meet the demands of diverse scenarios, our backlit panel lights support seamless installation of emergency power modules, building an all-weather lighting safety net.
The built-in emergency power module can achieve an emergency lighting battery life of ≥90 minutes.

Intelligent Control of Surface Panel Light

We offer a rich variety of intelligent dimming options, including DALI dimming, 0-10V dimming, as well as intelligent sensing dimming methods such as motion sensors, microwave sensors, and daylight collection sensors, fully meeting the unique needs of various application scenarios.

Accessories For LED Surface Panel Light

Hanging wires

Aluminum frame

Spring clip

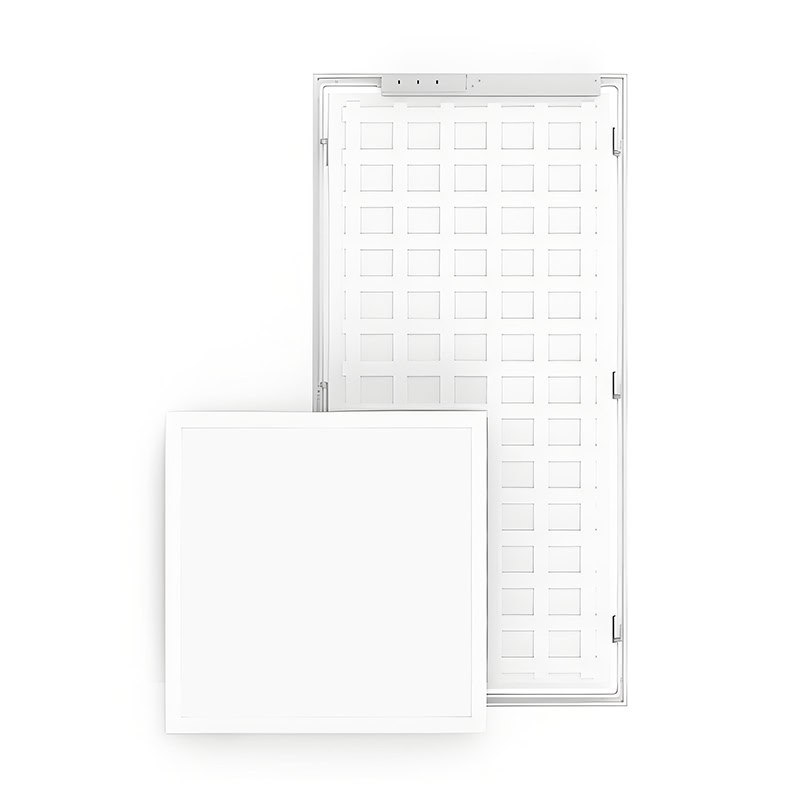

Backlit Panel Light With High Efficiency And Cost-effectiveness

Our backlit panel light innovatively adopts a structure without a light guide plate, and the overall weight of the machine is reduced by more than 40% compared with the traditional panel light with a light guide plate.
Thanks to the streamlined light guide plate assembly, it is priced lower than similar products in the market, providing you with high-quality lighting with a luminous efficacy of up to 150lm/W, achieving a true balance between high efficiency and energy conservation as well as cost-effectiveness.

Drivers Brands Of Surface Panel Light

We offer Philips, Eaglerise and Tridonic for option. Also, we can use other brand if you want.
The use of power supplies from well-known big brands ensures the stability and service life of the lamps during use

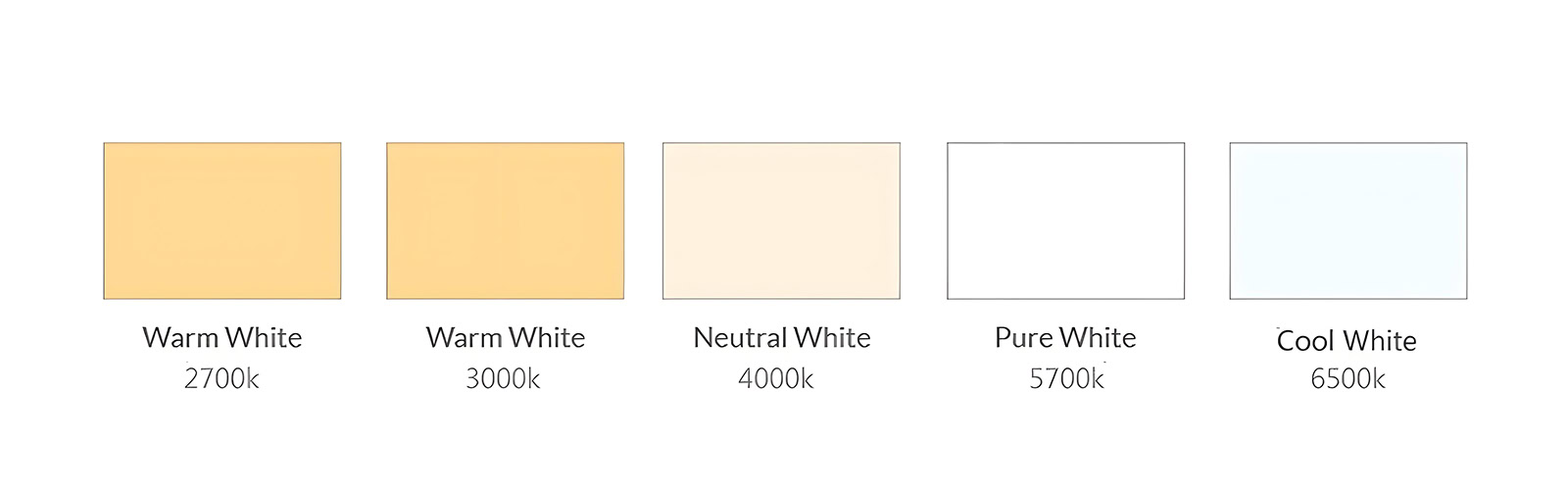

CCT From 2700K To 6500K For option

Our backlit panel lights offer a full color temperature range of 2700K to 6500K, covering diverse scene requirements from warm light to cold light.
The flexible color temperature adjustment combined with the intelligent dimming system enables one-click switching of the ideal lighting according to the changes of day and night and scene functions.

Professional Light Distribution 120 Degree

With professional light distribution curve design, 120° wide-angle light distribution, the light beam is uniform and there are no dark areas.
When paired with PMMA diffusion plates, the light intensity attenuation is ≤15%, and the anti-glare value UGR is < 19. It is suitable for office, commercial, and home scenarios.

Datasheet Of Surface LED Panel Light

Model No.	GS-P312
Power	40W
Material	6063 aluminum + PS + Steel sheet
Beam angle	120°
Light efficiency	100lm/W, 120lm/W, 130lm/W, 150lm/W
Driver Brand	Philips/Tridonic/Eaglerise
Voltage	AC200-240V
LEDs	Samsung/OSRAM
PF	>0.95
LED Lifespan	>50000 Hours
IP	IP20/IP44
IK	IK10
CRI	>80
CCT	2700K/3000K/4000K/5000K/6000K/6500K
Size	295119532
Warranty	5 Years

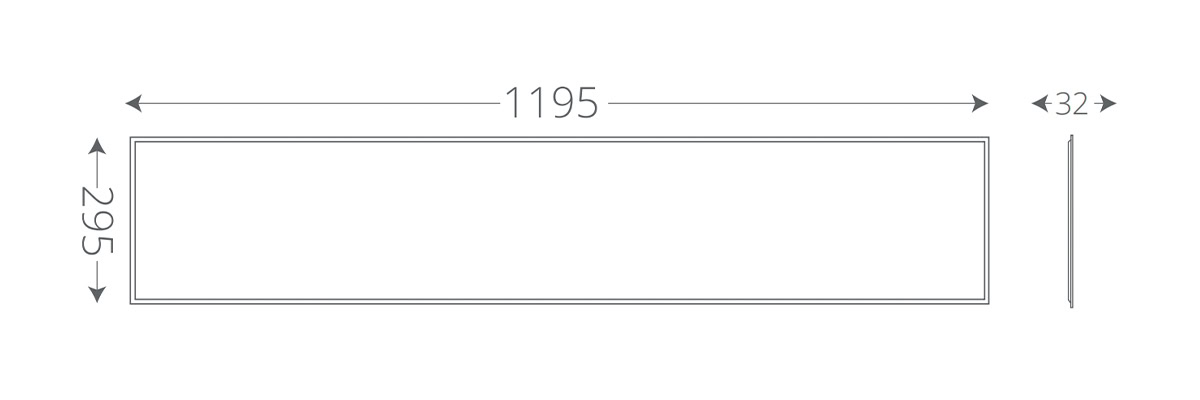

Size Of LED BackLit Panel 300x1200mm

Pearl Cotton Packaging Process

The 120× 30-sized LED panel light adopts the full-sheet pearl cotton full wrapping packaging process.
Its independent bubble structure can effectively absorb the impact force during transportation, providing 360° three-dimensional protection against possible risks such as vibration and collision during transportation.

Applicable Scenarios Of Back Lit Surface Panel Light

Backlit panel lights are suitable for diverse scenarios: In commercial and office Settings, they can be used in office buildings and meeting rooms to provide undisturbed professional lighting.
Adapt to shopping malls and exhibition halls to present the true colors of products; Meet the demands of hospitals and elderly care institutions for different light colors and emergency lighting.

Frequently Asked Questions

Most frequent questions and answers

How many years warranty you provided?

We can provide 5 years warranty for the whole light body.

What driver you used in panel light?

We use well-known brands, Tridonic, Philips, eaglerise of power supply.

What is the brand of light source?

Samsung/OSRAM brand and the light efficiency of backlit panel can reach 150lm/W.

Do you offer after-sales service for led panel lights?

We provide perfect after-sales service, including product warranty, technical support, return service, etc., to protect your rights and interests.
