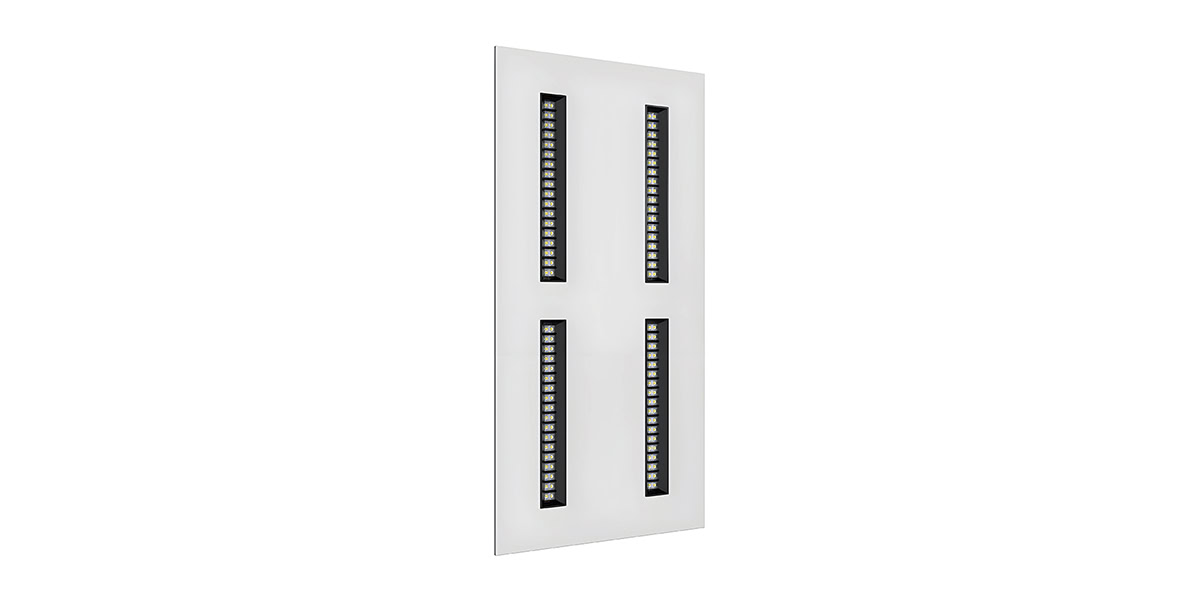

Panel LED Light

Panel LED light is adopting efficient LED technology, it is a energy-saving and high brightness LED tri-proof lighting with aluminum heat sinks,
It has excellent heat dissipation function. 50000hours lifespan. UGR＜16，customizable high power, It is suitable for office space, medical facilities,retail stores.

Features:

-Aluminum frame, PC lens

-Wattage: 50W/60W
-UGR<16

-IP20, IK10, CRI>80

-Light efiiciency: 160lm/W

-AC200-240V

-Size: 595x1195x27mm
-0-10V Dim/DALI Dim

-Emergency kits/microwave sensor

-OSRAM/Samsung LEDs

-Eaglerise/Tridonic/Philips free flicker drivers

-CCT: 3000K/4000K/5000K/6000K

-Warranty: 5Years

Panel LED Light 4 modules

Equipped with aluminum heat sinks, the unique heat dissipation structure design greatly enhances the heat dissipation efficiency.
Quickly remove the heat generated by the LED chip during operation, avoiding light attenuation and component aging problems caused by overheating.

Drivers Of LED Panel Light

We offer Philips, Eaglerise and Tridonic for option. Also, we can use other brand if you want.
The use of power supplies from well-known big brands ensures the stability and service life of the lamps during use

Replaceable Lens Module For Option

The module lens is replaceable and offers the option of 2, 3, or 4 modules for combination.
The color of the lamp cup is black and white. You can flexibly combine them according to the size of the space and lighting needs to create a personalized lighting effect.

Intelligent Control of Panel LED Light

We offer a rich variety of intelligent dimming options, including DALI dimming, 0-10V dimming, as well as intelligent sensing dimming methods such as motion sensors, microwave sensors, and daylight collection sensors, fully meeting the unique needs of various application scenarios.

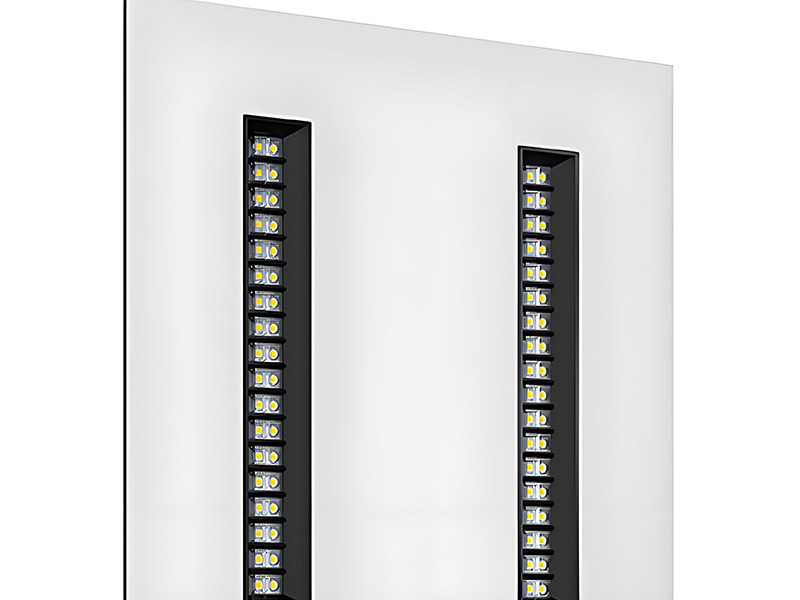

High Efficiency Light Source

We use light source from Samsung/ OSRAM brand.
CRI>80, SDCM<3 steps, and the light efficiency is up to 160lm/W.

Emergency Power Modules For Option

Support the flexible installation of emergency power modules.
providing a dual solution of “constant lighting + emergency backup” and handle sudden power outages.

Datasheet Of LED Panel Light

Model No.	GS-M612-4T
Power	50W/60W
Material	aluminum + PC lens
Beam angle	120°
Light efficiency	160lm/W
Driver Brand	Philips/Tridonic/Eaglerise
Voltage	AC200-240V
LEDs	Samsung/OSRAM
PF	>0.95
LED Lifespan	>50000 Hours
IP	IP20
IK	IK10
CRI	>80
CCT	3000K/4000K/5000K/6000K/6500K
Installation	Recessed \| Ceiling mounted \| Suspension
Size	595119527
Warranty	5 Years

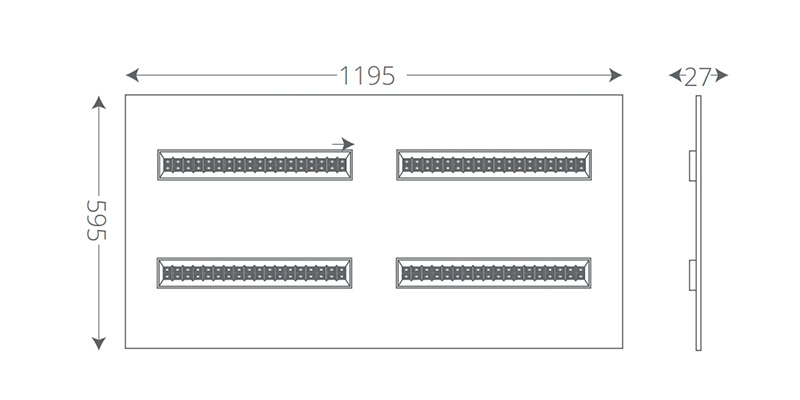

Size Of LED Panel Light

Professional Light Distribution 120 Degree

The 120-degree professional light distribution curve and side light technology are carefully designed to ensure uniform, soft and scientifically distributed light.
The 120-degree wide Angle allows light to fully cover the space, with no dark areas or glare, creating a comfortable lighting environment.

Accessories For Panel LED Lights

Hanging wires

Aluminum frame

Spring clip

Pearl Cotton Packaging Process For Protection

LED panel lights are enveloped in a complete layer of pearl cotton through an intricate packaging process.
Functioning as a robust shock – absorbing medium, the pearl cotton efficiently mitigates impact forces, creating a resilient protective barrier around the panel lights.
This comprehensive packaging solution safeguards the products against vibrations and collisions during transit, ensuring their integrity and quality upon arrival.

Applicable Scenarios Of LED Panel Light

This product is highly versatile, fitting various settings. In offices, it provides bright, comfortable light to enhance productivity.
For medical facilities, it delivers precise illumination for professional tasks. In retail environments, its high color – rendering and sufficient brightness highlight product features, drawing customers and increasing sales.

Frequently Asked Questions

Most frequent questions and answers

How many years warranty you provided for led panel?

We can provide 5 years warranty for the whole light body.

What driver you used in panel light?

We use well-known brands, Tridonic, Philips, eaglerise of power supply.

What is the brand of light source?

Samsung/OSRAM brand and the light efficiency of panel can reach 160lm/W.

Do you offer after-sales service for led panel light?

We provide perfect after-sales service, including product warranty, technical support, return service, etc., to protect your rights and interests.
