LED Panel IP65

Home

Products

LED Indoor Lights

Panel Lights

LED Panel IP65

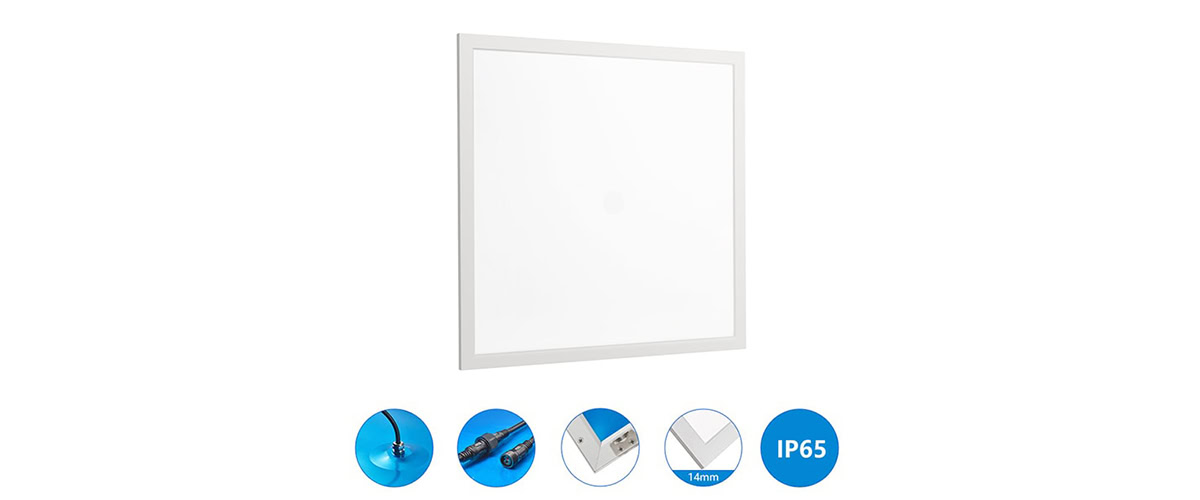

LED Panel IP65 - Edge Lit

LED panel IP65 total lamp waterproof, can be use for some special applications, 595×595mm, 295×1195mm and other custom size.

The 14mm thick frame is sealed with silicone glue to ensure IP65 waterproof and dustproof protection. Strong aluminum ribs and steel screws tightly secure the silicone seal for enhanced durability.

Features:

-Aluminum frame, PMMA diffusion plate, acrylic light guide plate

-Wattage: 40W
-UGR<19

-IP65, CRI>80

-Light efiiciency: 100lm/W, 120lm/W

-AC200-240V

-Size: 600x600mm, 300x1200mm
-0-10V Dim/DALI Dim

-Emergency kits/microwave sensor

-OSRAM/Samsung LEDs

-Eaglerise/Tridonic/Philips free flicker drivers

-CCT: 2700K/3000K/4000K/5000K/6000K/6500K

-Warranty: 5Years

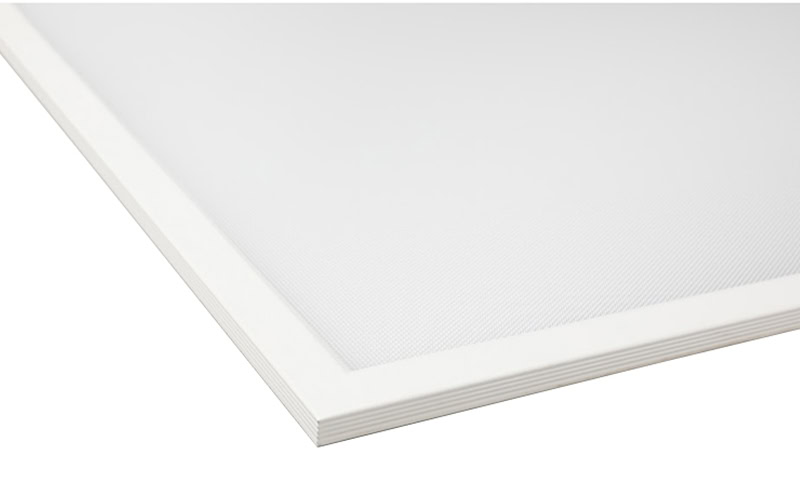

Edge Lit LED Panel Light IP65 Waterpoof Grade

Select high-quality LED light sources, combined with PMMA LGP light guide plates and TUV CE-certified drivers.
The side lighting technology is meticulously designed to provide uniform and soft light, with no dark areas or glare, creating a comfortable lighting environment.

Excellent Waterproof Lighting Effect

The sturdy aluminum frame with a thickness of 14mm is paired with an internal silicone corrugated design.
Combining powerful aluminum corrugations with steel screws for fastening, the silicon corrugations are firmly pressed. Additionally, special silicone is dripped at the four corners to form a completely leak-proof protective barrier.

High Efficiency Light Source

We use light source from Samsung/ OSRAM brand.
CRI>80, SDCM<3 steps, and the light efficiency can choose from 100lm/W, 120lm/W, 130lm/W.

Emergency Power Modules For Option

Support the flexible installation of emergency power modules.
providing a dual solution of “constant lighting + emergency backup” and handle sudden power outages.

Drivers Brands Of LED Panel Light

We offer Philips, Eaglerise and Tridonic for option. Also, we can use other brand if you want.
The use of power supplies from well-known big brands ensures the stability and service life of the lamps during use

Intelligent Control of LED Panel IP65 Light

We offer a rich variety of intelligent dimming options, including DALI dimming, 0-10V dimming, as well as intelligent sensing dimming methods such as motion sensors, microwave sensors, and daylight collection sensors, fully meeting the unique needs of various application scenarios.

Datasheet Of IP65 LED Panel Light

Model No.	GSP-66-IP65	GSP-312-IP65
Power	40W
Material	6063 aluminum + PMMA
Beam angle	120°
Light efficiency	100lm/W, 120lm/W
Driver Brand	Philips/Tridonic/Eaglerise
Voltage	AC200-240V
LEDs	Samsung/OSRAM
PF	>0.95
LED Lifespan	>50000 Hours
IP	IP65
IK	IK10
CRI	>80
CCT	2700K/3000K/4000K/5000K/6000K/6500K
Size	59559514	295119514
Warranty	5 Years

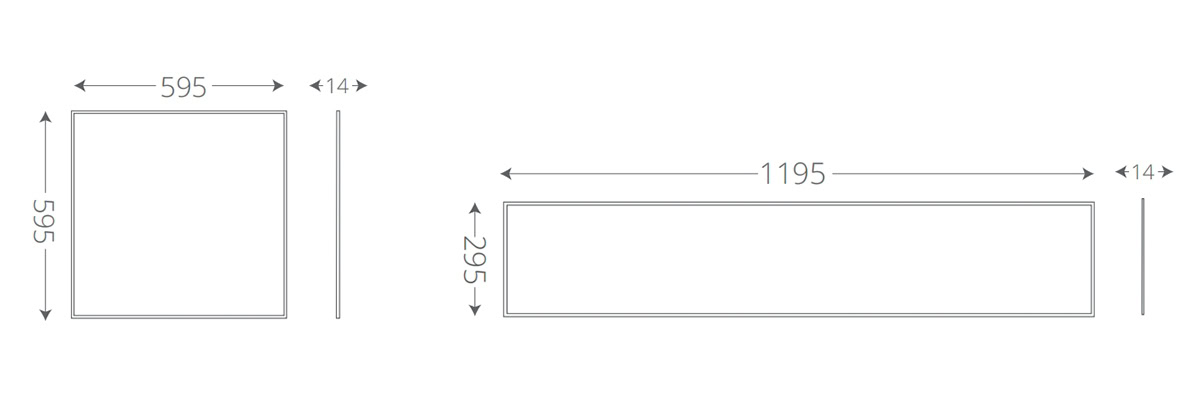

Size Of LED Panel IP65 Lights

600x600mm

300x1200mm

Professional Light Distribution 120 Degree

The 120-degree professional light distribution curve and side light technology are carefully designed to ensure uniform, soft and scientifically distributed light.
The 120-degree wide Angle allows light to fully cover the space, with no dark areas or glare, creating a comfortable lighting environment.

Applicable Scenarios Of LED Panel Lights

In high-dust and heavily polluted environments such as bathroom Spaces and industrial workshops, and in open-air areas such as outdoor corridors and courtyards,
This IP65 panel light, with its sturdy aluminum frame and tight sealing structure, continuously and stably outputs high-quality light.

Frequently Asked Questions

Most frequent questions and answers

How many years warranty you provided?

We can provide 5 years warranty for the whole light body.

What driver you used in panel light?

We use well-known brands, Tridonic, Philips, eaglerise of power supply.

What is the brand of light source?

Samsung/OSRAM brand and the light efficiency of IP65 panel can reach 120lm/W.

Do you offer after-sales service for led panel lights?

We provide perfect after-sales service, including product warranty, technical support, return service, etc., to protect your rights and interests.

LED Panel IP65
