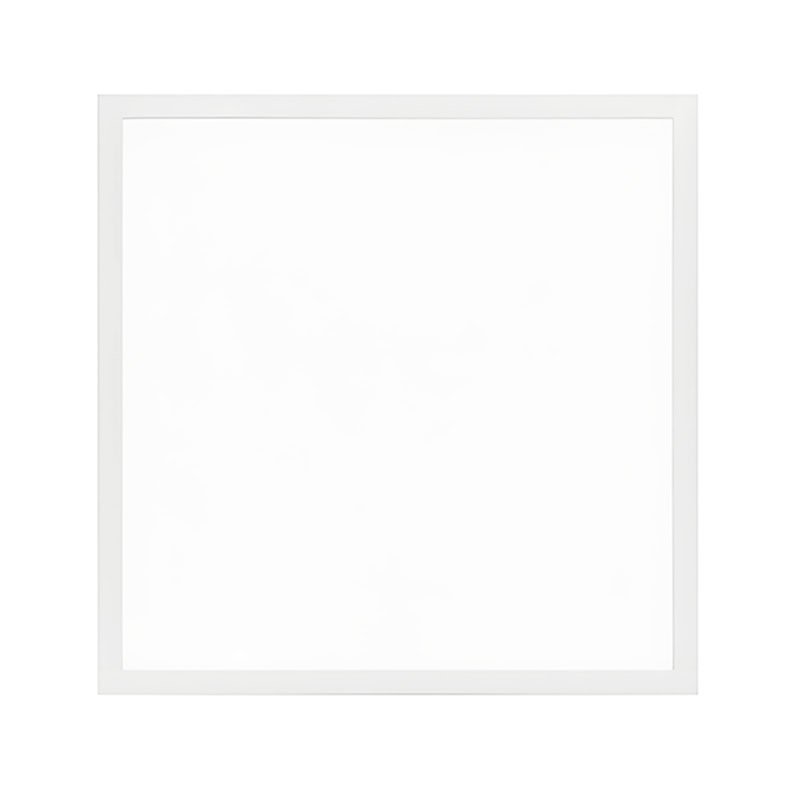

Edge Lit LED Panel - 600x600

Edge lit Panel Light is only 10mm in thickness, Aluminum Frame, 2.0mm PMMA LGP, free flicker driver, 100lm/w, 120lm/w, 130lm/w.

It is made of 6063 aluminum frame, acrylic light guide plate, PMMA diffusion plate, LED driver, back plate and SMD LEDs to deliver a smooth, flawless of illumination without visible bulbs or hot spots.

Features:

-Aluminum frame, PMMA diffusion plate, acrylic light guide plate

-Wattage: 40W

-IP20, CRI>80

-Light efiiciency: 100lm/W, 120lm/W, 130lm/W

-AC200-240V 50/60Hz

-Size: 600x600mm
-0-10V Dim/DALI Dim

-Emergency kits/microwave sensor

-CREE/OSRAM LEDs

-Eaglerise/Tridonic/Philips free flicker drivers

-CCT: 3000K/4000K/5000K/5700K

-Warranty: 5Years

Edge Lit LED Panel Light

The unique edge-emitting technology hides the LED light source within an aluminum frame. When observed from the side, only a soft halo is visible, avoiding direct and dazzling light.
It is especially suitable for scenarios with high requirements for anti-glare, such as reading in the study, lighting of exhibits in commercial exhibition halls, and lighting of kitchen operation counters.

10mm Slim LED Panel Light

The edge lighting panel lamp breaks the heaviness of traditional lamps with a minimalist design. The ultra-thin body of only 10mm fits the wall/ceiling like a work of art, releasing the visual tension of the space.
The 6063 aluminum frame combines lightweight and high strength. Its surface is treated with fine sandblasting and oxidation, which is corrosion-resistant and does not fade, infusing modern home and office Spaces with a technological feel.

CCT Changeable From 3000K To 5700K

It supports stepless adjustment of full color temperature from 2700K to 6500K, and can also achieve multi-mode switching between bright and transparent white light, soft and soothing natural light, and warm and soothing warm light.
From the cold white focus of commercial Spaces to the precise neutral light restoration in art exhibition halls, from the warm yellow atmosphere of watching movies in the living room to the 4000K natural light protecting the eyes when reading in the study.
One-click switching can meet the needs of all scenarios including business, home, art and office.

Intelligent Control of Edge Lit LED Panel

We offer a rich variety of intelligent dimming options, including DALI dimming, 0-10V dimming, as well as intelligent sensing dimming methods such as motion sensors, microwave sensors, and daylight collection sensors, fully meeting the unique needs of various application scenarios.

Accessories For LED Panel Light

Hanging wires

Aluminum frame

Spring clip

Professional Light Distribution 120° Degree

With professional light distribution curve design, 120° wide-angle light distribution, the light beam is uniform and there are no dark areas.
When paired with PMMA light guide plates and diffusion plates, the light intensity attenuation is ≤15%, and the anti-glare value UGR is < 19. It is suitable for office, commercial, and home scenarios.

Drivers Brand For LED Panel Lights

We offer Philips, Eaglerise and Tridonic for option. Also, we can use other brand if you want.

When there is a power outage, our emergency LED panel lights can automatically switch to the backup power supply and continuously provide reliable lighting for 1.5 to 3 hours in key areas such as escape routes and safety exits.

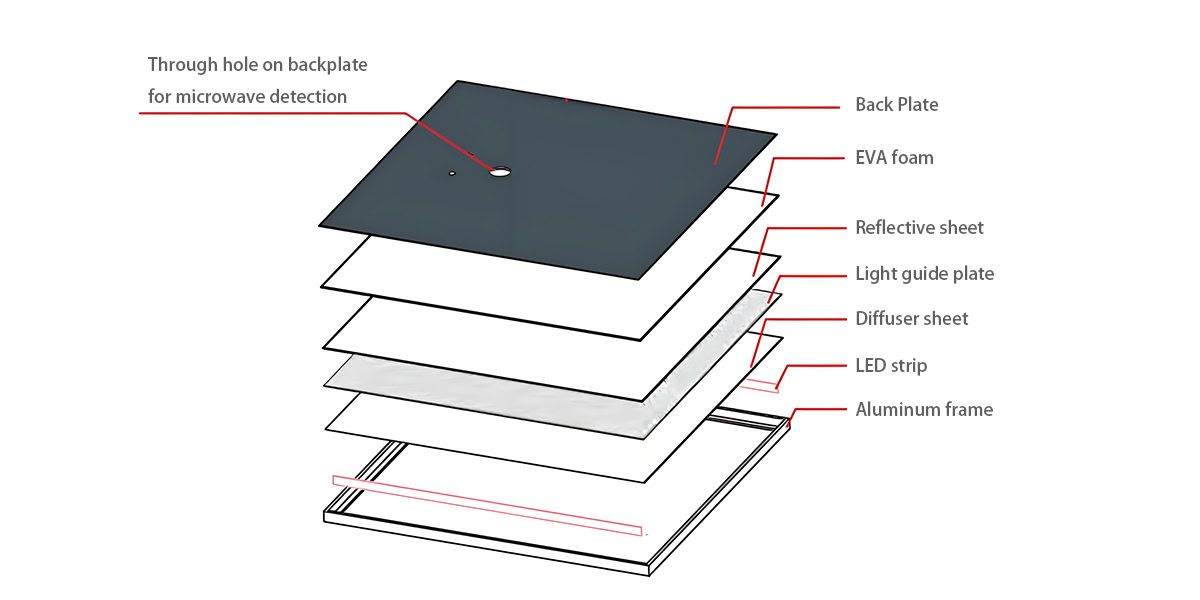

Structure Of LED Edge Lit Panel Light

The backplate is equipped with microwave detection through holes, and EVA foam is used to enhance stability. The reflector, light guide plate and diffusion plate work together to efficiently conduct and evenly diffuse light.
The LED light strips provide the light source, and the aluminum alloy frame firmly supports it. All components work closely together to create a high-quality lighting experience.

High Efficiency Light Source

We use light source from Samsung/ OSRAM brand.
CRI>80, SDCM<3 steps, and the light efficiency can choose from 100lm/W, 120lm/W, 130lm/W.

Emergency Power Modules For Option

Support the flexible installation of emergency power modules.
providing a dual solution of “constant lighting + emergency backup” and handle sudden power outages.

Datasheet Of Edge Lit LED Panel Light

Model No.	GSP-66
Power	40W
Material	6063 aluminum + optical PMMA
Beam angle	120°
Light efficiency	100lm/W, 120lm/W, 130lm/W
Driver Brand	Philips/Tridonic/Eaglerise
Voltage	AC200-240V
LEDs	CITIZEN/CREE/OSRAM
PF	>0.95
LED Lifespan	>50000 Hours
IP	IP20
IK	IK10
CRI	>80
CCT	3000K/4000K/5000K/5700K
Size	59559510
Warranty	5 Years

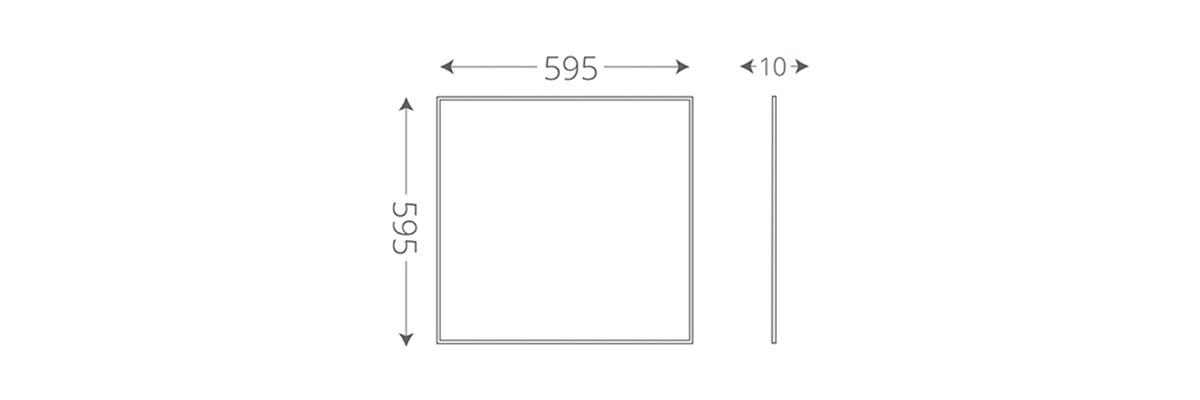

Size Of Edge Lit Panel 600x600mm

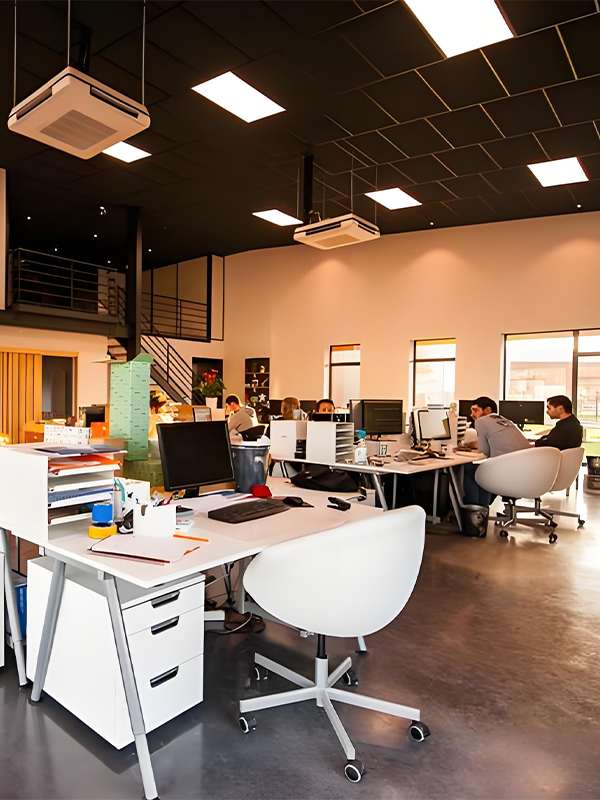

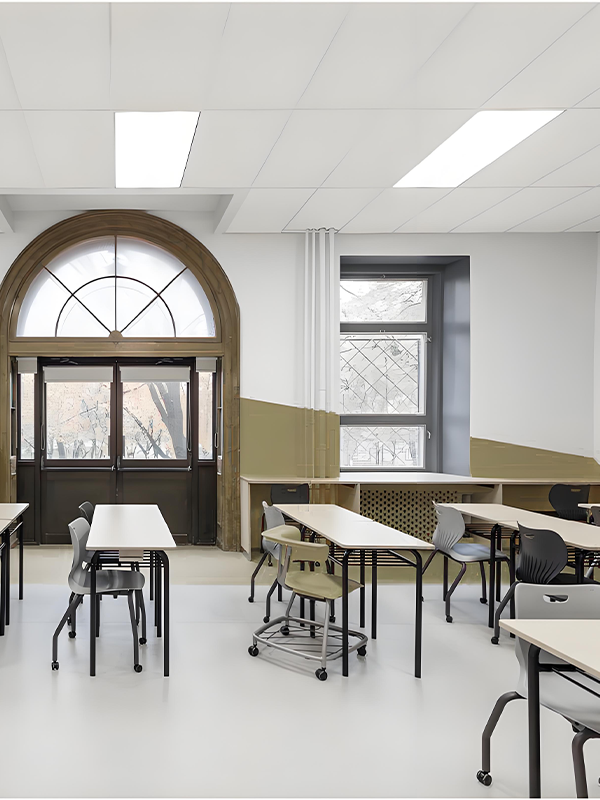

Applicable Scenarios Of Edge Lit Panel

Applicable scenarios: shopping mall stores, chain stores, exhibition halls, office building lobbies.
Classrooms, libraries, laboratories, factory workshops, storage warehouses, underground garages, subway stations, school canteens.

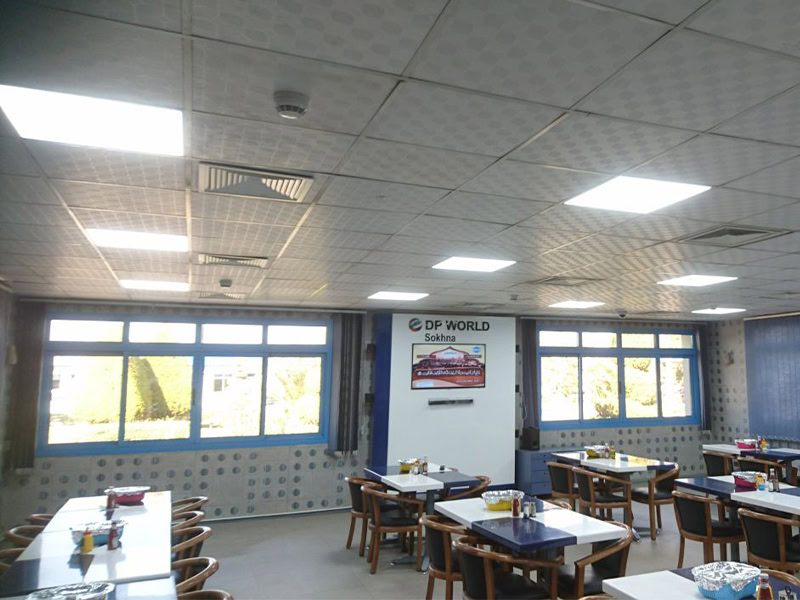

Client Case Of Edge Lit Panel Lights

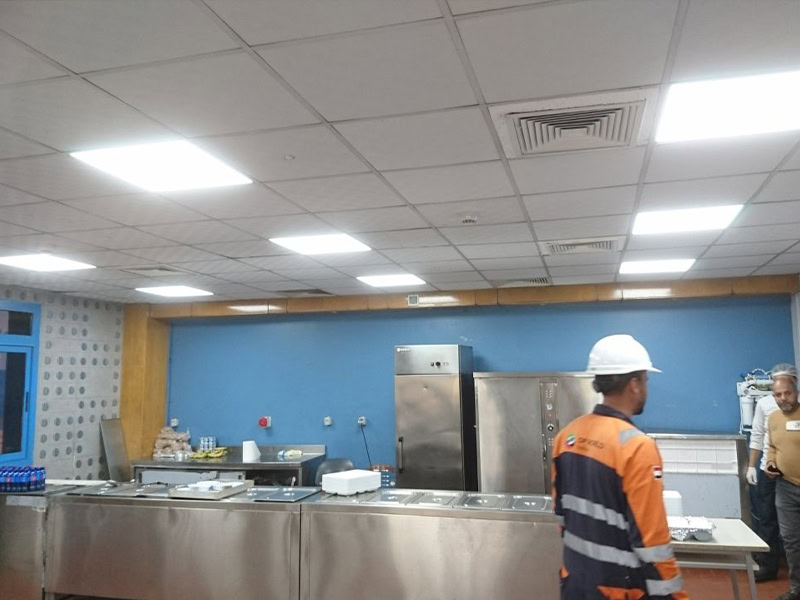

Our panel lights were applied to a restaurant in Egypt, providing it with a practical lighting solution.
The light is uniform and soft, with an anti-glare design to avoid dazzling during meals. At present, the lamps are operating stably, meeting the daily lighting needs of the restaurant and receiving customer recognition.

Frequently Asked Questions

Most frequent questions and answers

How many years warranty you provided?

We can provide 5 years warranty for the whole light body.

What driver you used in panel light?

We use well-known brands, Tridonic, Philips, eaglerise of power supply.

Can i get a sample?

We can provide customized samples for you, and if you have any adjustment, we can make for you.

Do you offer after-sales service for led panel lights?

We provide perfect after-sales service, including product warranty, technical support, return service, etc., to protect your rights and interests.
