Backlit Panel - 600x600

Backlit panel lights, with their outstanding performance and innovative design, have become the ideal choice for modern lighting.

Different structure for the edge-lit, the back-lit more economical solution. LED panel Backlit light is with direct lighting design, which has higher lumen efficiency and perfect lighting performance

Features:

-Aluminum frame, PMMA diffusion plate, steel sheet

-Wattage: 40W
-UGR<19

-IP20, CRI>80

-Light efiiciency: 100lm/W, 120lm/W, 130lm/W, 150lm/W

-AC200-240V 50/60Hz

-Size: 600x600mm
-0-10V Dim/DALI Dim

-Emergency kits/microwave sensor

-OSRAM/Samsung LEDs

-Eaglerise/Tridonic/Philips free flicker drivers

-CCT: 2700K/3000K/4000K/5000K/6000K/6500K

-Warranty: 5Years

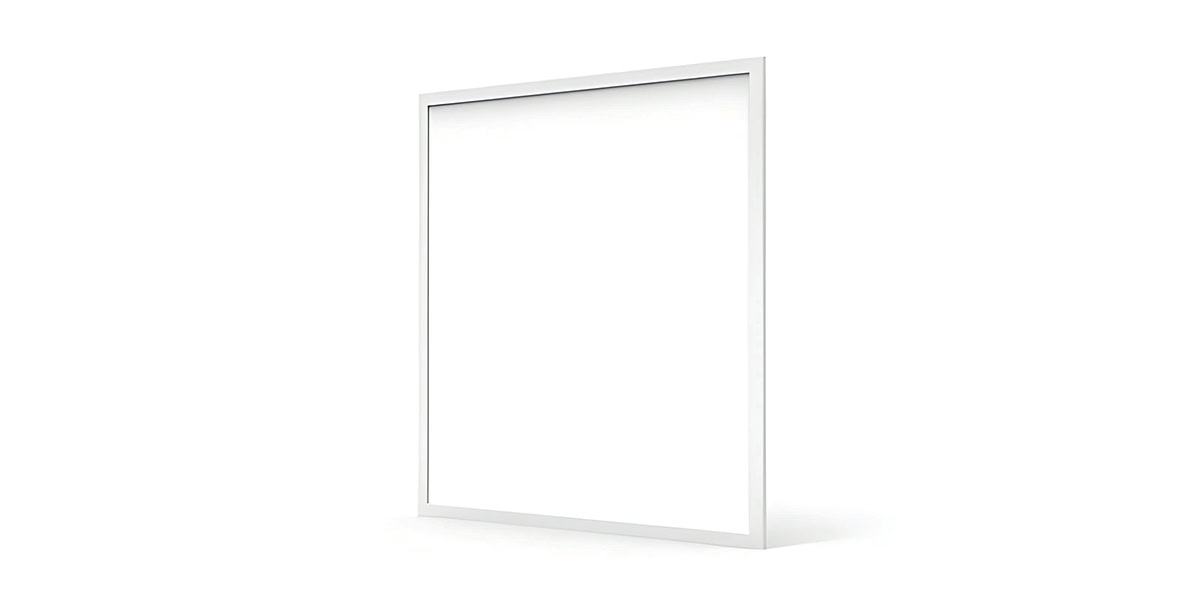

Back Lit LED Panel Light

32mm Thickness, without LGP, PMMA Lens, Philips free flicker driver, UGR<19, DALI dimmable for option.

No flicker, less weight, no radiation, no mercury, 2700K-6500K adjustable, Excellent heat dissipation structure UGR<19 or CRI>90 available and optional.

Backlit Panel Light With High Luminous Efficacy CRI>80

We use light source from Samsung/ OSRAM brand.
CRI>80, SDCM<3 steps, and the light efficiency can choose from 100lm/W, 120lm/W, 130lm/W, and 150lm/W.

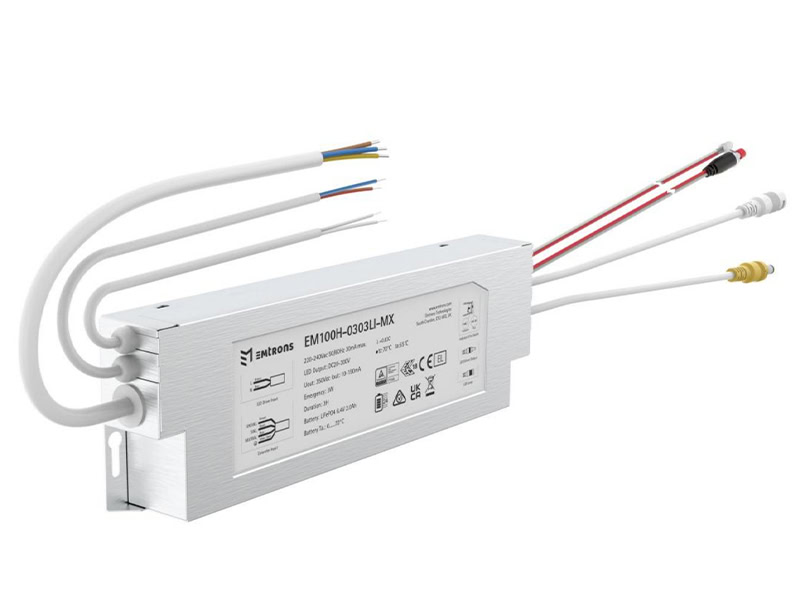

Emergency Power Modules Optional

To meet the demands of diverse scenarios, our backlit panel lights support seamless installation of emergency power modules, building an all-weather lighting safety net.
The built-in emergency power module can achieve an emergency lighting battery life of ≥90 minutes.

CCT Changeable From 3000K To 5700K

It supports stepless adjustment of full color temperature from 2700K to 6500K, and can also achieve multi-mode switching between bright and transparent white light, soft and soothing natural light, and warm and soothing warm light.

Intelligent Control of BackLit Panel Light

We offer a rich variety of intelligent dimming options, including DALI dimming, 0-10V dimming, as well as intelligent sensing dimming methods such as motion sensors, microwave sensors, and daylight collection sensors, fully meeting the unique needs of various application scenarios.

Accessories For LED Panel Light

Hanging wires

Aluminum frame

Spring clip

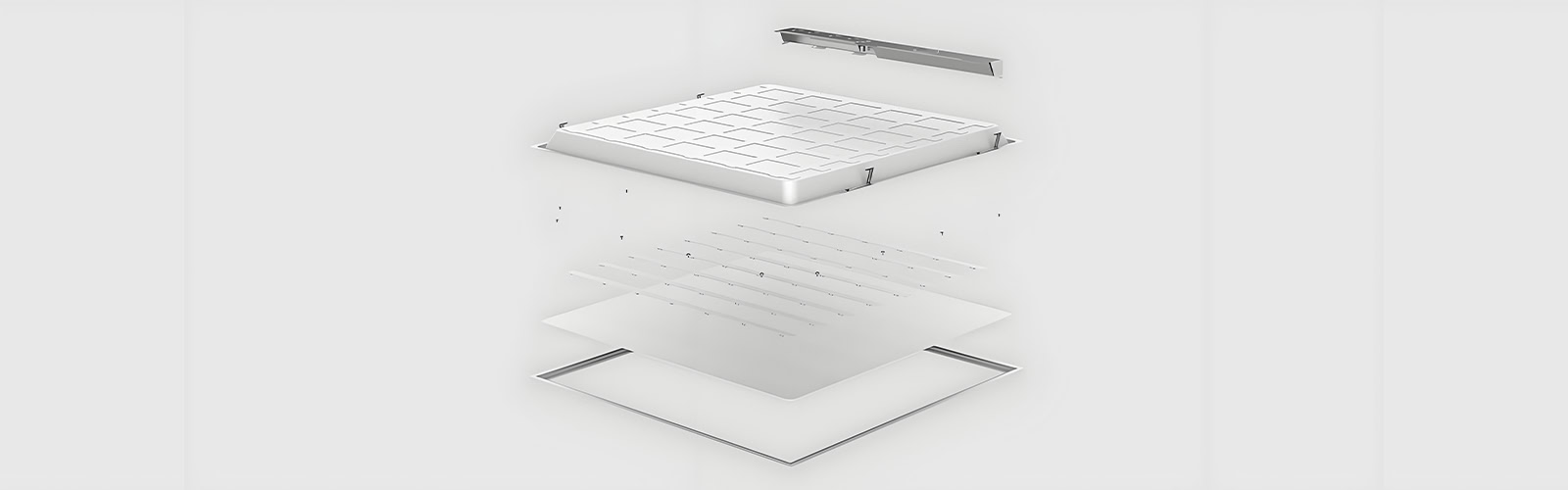

Backlit Panel Light Structure

Our backlit panel lights feature an innovative design without a light guide plate, significantly reducing their weight and making installation and maintenance much easier.
The use of light guide plates has been reduced, effectively lowering production costs and allowing you to enjoy high-quality lighting at a more affordable price.

Drivers Brands Of BackLit Panel Light

We offer Philips, Eaglerise and Tridonic for option. Also, we can use other brand if you want.
The use of power supplies from well-known big brands ensures the stability and service life of the lamps during use

Professional Light Distribution 120° Degree

With professional light distribution curve design, 120° wide-angle light distribution, the light beam is uniform and there are no dark areas.
When paired with PMMA diffusion plates, the light intensity attenuation is ≤15%, and the anti-glare value UGR is < 19. It is suitable for office, commercial, and home scenarios.

Datasheet Of BackLit LED Panel Light

Model No.	GS-P66
Power	40W
Material	6063 aluminum + PS + Steel sheet
Beam angle	120°
Light efficiency	100lm/W, 120lm/W, 130lm/W, 150lm/W
Driver Brand	Philips/Tridonic/Eaglerise
Voltage	AC200-240V
LEDs	Samsung/OSRAM
PF	>0.95
LED Lifespan	>50000 Hours
IP	IP20/IP44
IK	IK10
CRI	>80
CCT	2700K/3000K/4000K/5000K/6000K/6500K
Size	59559532
Warranty	5 Years

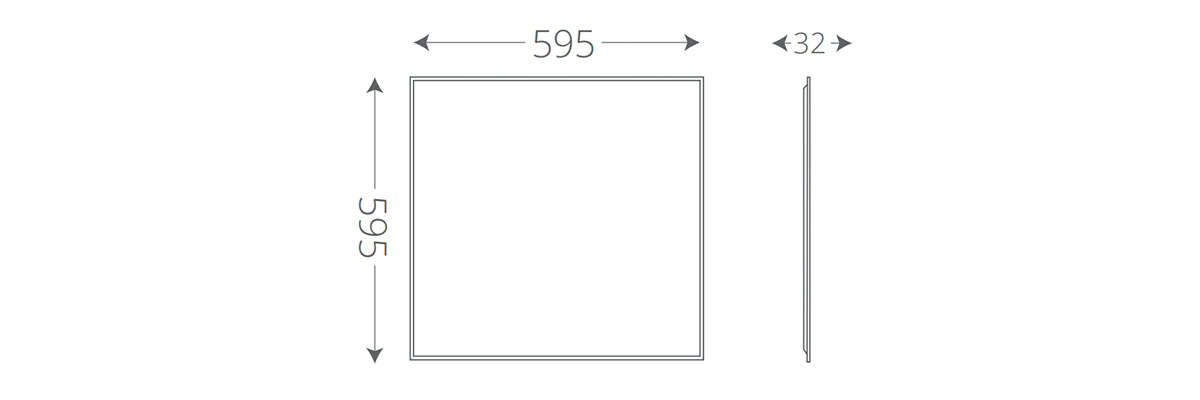

Size Of LED BackLit Panel 600x600mm

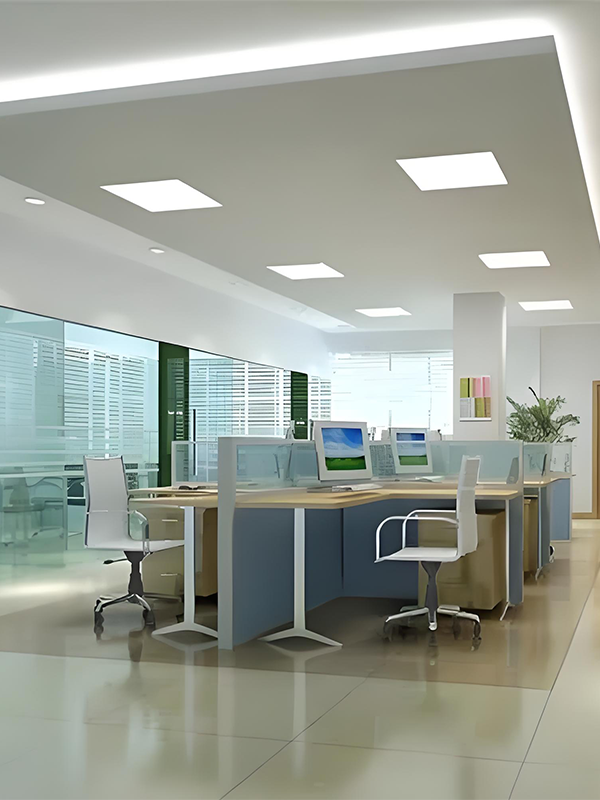

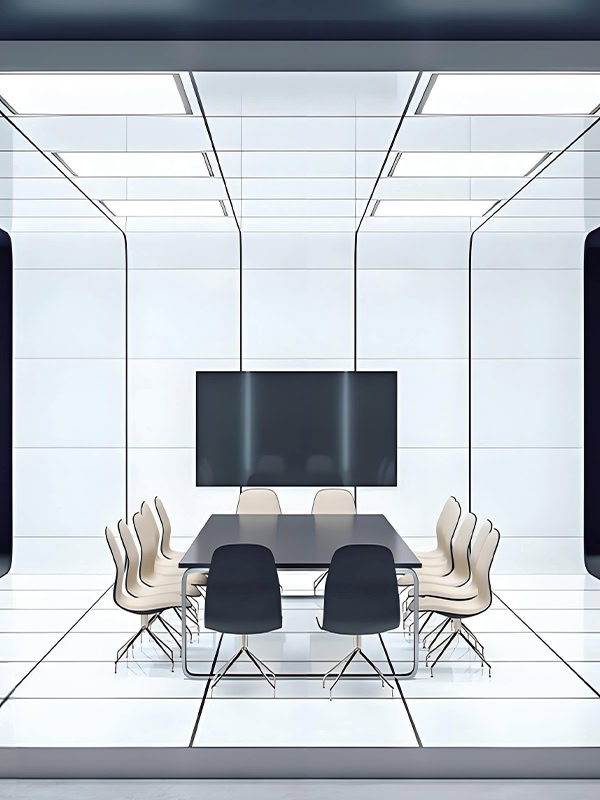

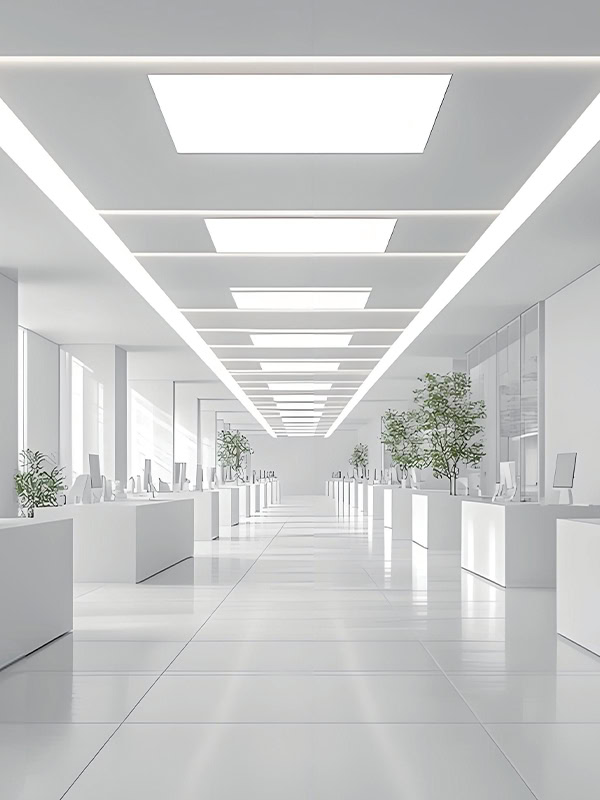

Applicable Scenarios Of Back Lit Panel

Backlit panel lights are suitable for diverse scenarios: In commercial and office Settings, they can be used in office buildings and meeting rooms to provide undisturbed professional lighting.
Adapt to shopping malls and exhibition halls to present the true colors of products; Meet the demands of hospitals and elderly care institutions for different light colors and emergency lighting.

Frequently Asked Questions

Most frequent questions and answers

How many years warranty you provided?

We can provide 5 years warranty for the whole light body.

What driver you used in panel light?

We use well-known brands, Tridonic, Philips, eaglerise of power supply.

What is the brand of light source?

Samsung/OSRAM brand and the light efficiency of backlit panel can reach 150lm/W.

Do you offer after-sales service for led panel lights?

We provide perfect after-sales service, including product warranty, technical support, return service, etc., to protect your rights and interests.
