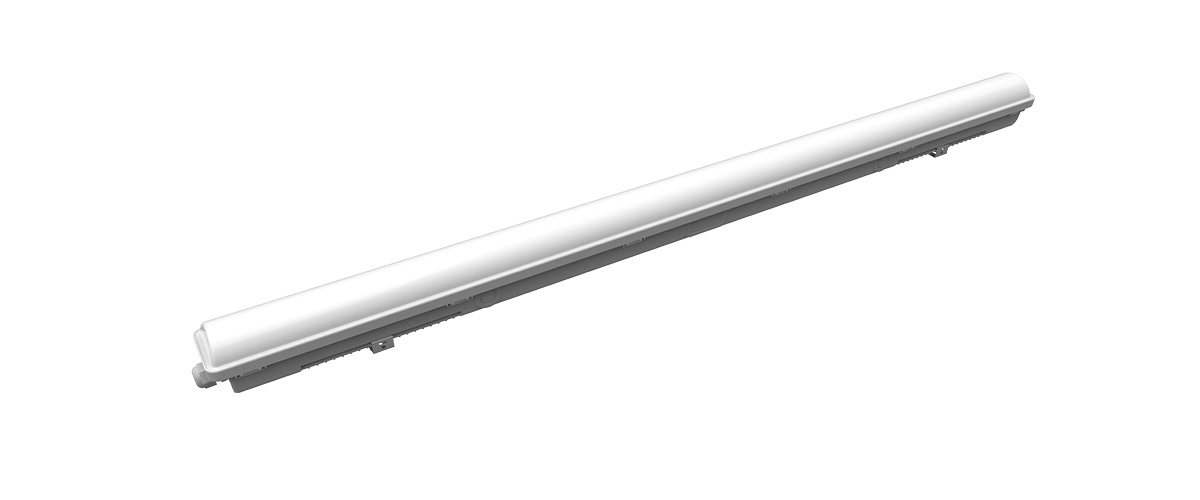

Waterproof LED Batten - TE Series

Waterproof LED batten lamp has multiple power options (18W/36W/50W/60W) adapt to different brightness requirements in various scenarios.
Commercial light up to 160Lm/W system efficiency delivers exceptional brightness while minimizing energy use. Environmentally friendly with no mercury, UV, or lR emissions.

Features:

-Wattage: 15/30/40 W

-IP65, CRI>80, 120°

-Light efficiency: 120lm/W

-AC200-240V 50/60Hz

-Standard /0-10V DlM/Triac Dim/DALI dimmable

-Self-test emergency with LifePo4 battery optional

-PC material

-CREE/OSRAM/ LEDs

-Eaglerise/Tridonic/PHILIPS drivers

-3000K/4000K/5000K/5700K

-Warranty: 5Years

Waterproof LED Batten Cost Performance With High Quality

This is a series full of cost performance. While ensuring quality, the price of this lamp is advantageous.

Many accessories for option, hollowed out, monochrome, tricolor and multicolor choices.CCT changeable from 2700K to 5700K, DALI/TRIAC/2.4G dimming ways, DMX512 control system is available.

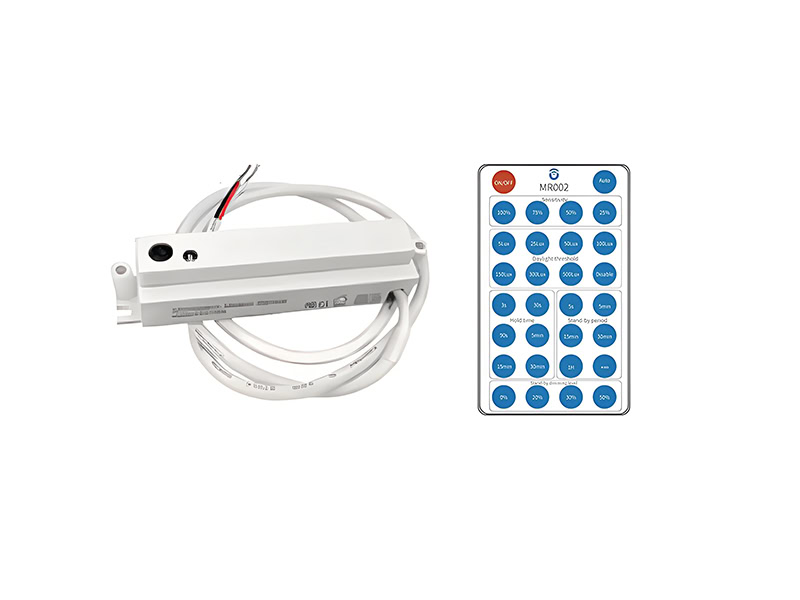

Intelligent Wireless Control

Adjustable brightness, color temperature, light time.
It can be precisely adjusted according to actual needs to avoid excessive lighting.

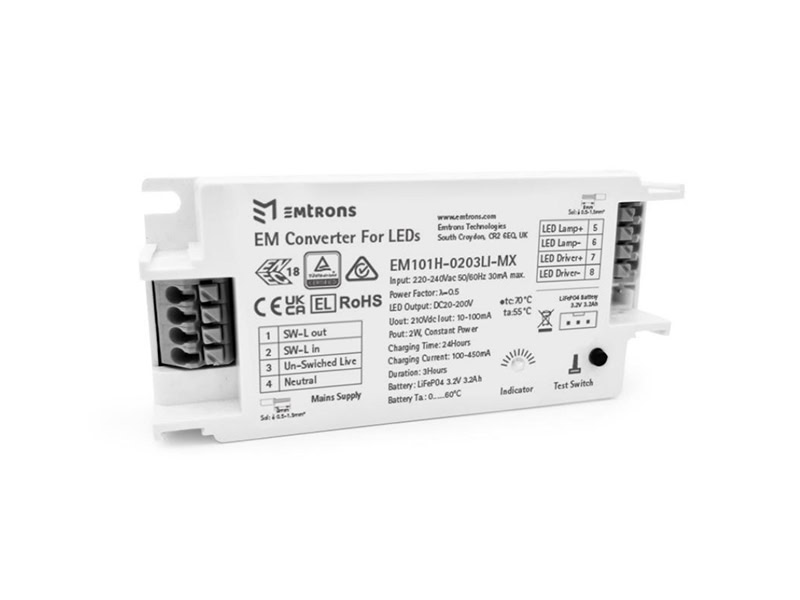

Emergency Battery Optional

Optional lithium iron phosphate (LiFePO4) batteries are available,
featuring self-check and emergency response functions.

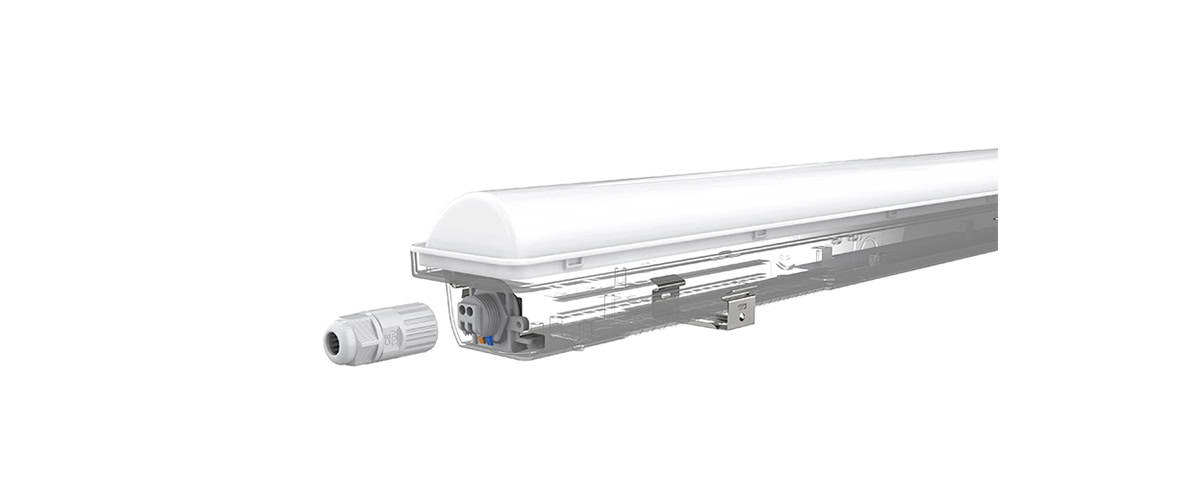

Quick Connector Design Waterproof LED Batten

While achieving rapid connection, it can ensure the stability of the connection.
Without the need for complex tools or cumbersome operations, the lamp can be connected to power cords and other components in a short time through a quick connection interface.

Intelligent Dimming Control LED Tri Proof Lights

Support DALI, 0-10V dimming and wireless control, adapt to different customer needs, no need to replace hardware.
0-100% smooth brightness adjustment, no stroboscopic, protect human eye comfort. Automatic dimming + remote control, save electricity and reduce labor costs.

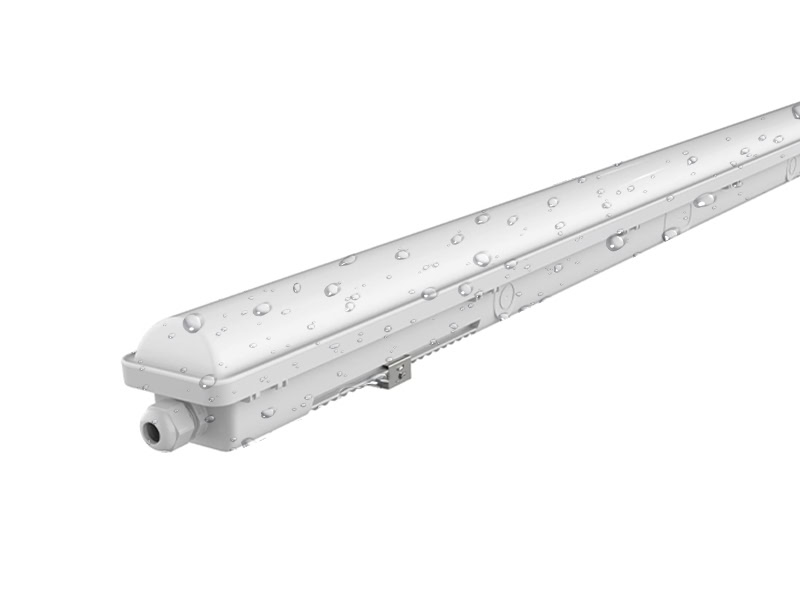

IP65 Waterproof Grade LED Batten Light

In the fields of industrial and commercial lighting, lamps not only need to provide a stable light source but also possess excellent protective performance to cope with complex environments.
The TE series three-proof lamps, with their outstanding IP65 and IK10 protection ratings, are widely applicable to various harsh environments.

Datasheet Of Batten Light TS Series

Model No.	GS-TE600-20W	GS-TE1200-40W	GS-TE1200-50W
Power	15W	30W	40W
Material	PC material
Light efficiency	120lm/W
Driver Brand	Eaglerise/Tridonic
Voltage	AC200-240V
LEDs	SMD2835
PF	>0.95
IP	IP65
IK	IK10
CRI	>80
CCT	3000K/4000K/5000K/5700K
Size	L600xW80xH72	L1200xW80xH72	L1600xW80xH72
Warranty	5 Years

LED Batten Light Sizes

3 Ways Of LED Batten Lights Installations

LED batten lights have 3 ways of installation: suiface mount, wall mount and suspend mount.

We offer corresponding accessories to meet your needs. Different installation methods are applicable to different scenarios.

Modern Lighting Solutions Using Batten Lights

It can be used in many scenarios, such as industrial plants, warehouses, underground parking lots, tunnels, ship terminals, food processing plants, chemical plants, sewage treatment plants, etc.
Its high sealing and corrosion resistant design can adapt to complex environments such as wet, dusty and corrosive gases to ensure stable and safe lighting

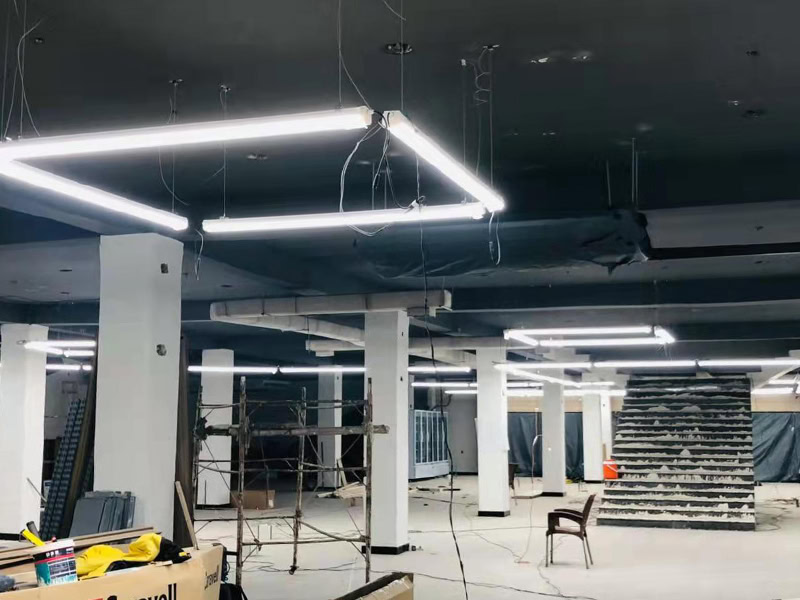

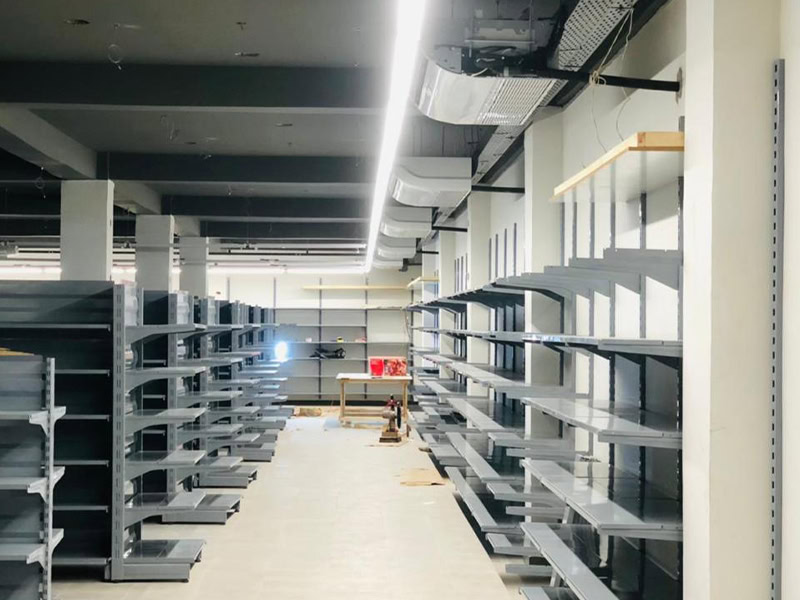

Waterproof LED Batten Lamp Project Case In Pakistan

Waterproof led batten lamps are applied in supermarkets in Pakistan. Their unique design without dark zones ensures that every corner of the supermarket is evenly illuminated.
The climate in Pakistan is complex, but our tri proof lamps operate stably with their excellent waterproof, dustproof and anti-corrosion performance.

Frequently Asked Questions

Most frequent questions and answers

How many years warranty you provided?

We can provide 5 years warranty for the whole light body.

What driver you used in led batten lamp?

We use well-known brands, Tridonic, Eaglerise of power supply.

Can i get a sample?

We can provide customized samples for you, and if you have any adjustment, we can make for you.

Do you offer after-sales service for your batten lights?

We provide perfect after-sales service, including product warranty, technical support, return service, etc., to protect your rights and interests.
