Tri Proof Light LED - TPE Series

Tri Proof Light LED TPE series are energy-saving, high-brightness LED tri-proof lamps equipped with aluminum heat sinks,
with excellent heat dissipation function, using efficient LED technology, with the characteristics of energy saving.

Features:

-Wattage: 18/36/45 W

-IP65, CRI>80, 120°

-Light efficiency: 160lm/W

-AC200-240V 50/60Hz

-Standard /0-10V DlM/Triac Dim/DALI dimmable

-Self-test emergency with LifePo4 battery optional

-PC material and aluminum heatsink

-CREE/OSRAM/ LEDs

-Eaglerise/Tridonic/PHILIPS drivers

-3000K/4000K/5000K/5700K/6000K/6500K

-Life span: Ta40℃ L70> 54000 hours

-Warranty: 5Years

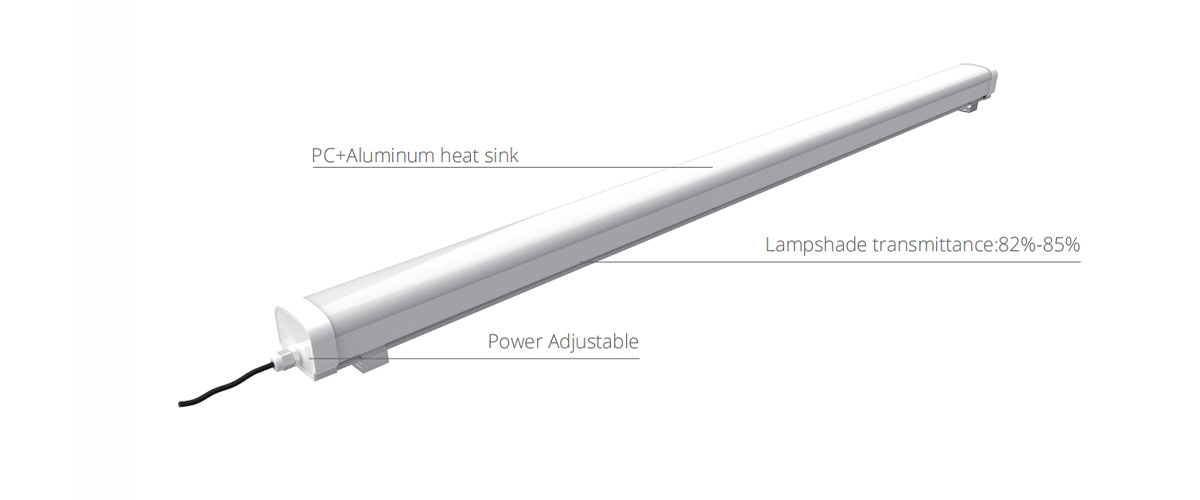

Tri Proof Light LED Materials

The combination of a PC casing and an internal aluminum heat sink takes into account both sturdiness and heat dissipation.
The PC casing has a light transmittance of 82% to 85%, ensuring that the light spreads evenly and gently, reducing glare and providing a comfortable lighting environment.

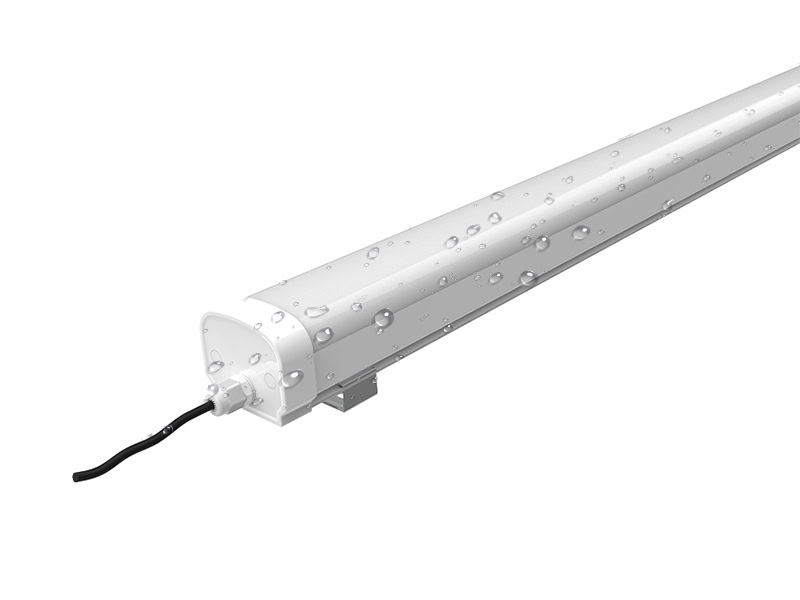

IP65 LED Tri Proof Light

It features IP65 dust and water resistance and IK10 impact resistance.
Equipped with an efficient and energy-saving core.

Emergency Battery Optional

Optional lithium iron phosphate (LiFePO4) batteries are available,
featuring self-check and emergency response functions.

Dimming Function And Control System

Set the daylight threshold at 25Lux. When the ambient light intensity reaches or exceeds 25Lux, it is considered to have sufficient light.
When it is below 25Lux, it is regarded as insufficient light. When the lamp detects human movement, the light will switch from a low-brightness state to full brightness (100% brightness).

Equipped With Sensors For Optional

Our tri proof lamps are equipped with advanced sensing technology, ensuring precise coverage of the detection range.
When installed on the ceiling, the maximum detection distance can reach 5 meters. When installed on the wall, it is recommended to install at a height of 1.5 to 1.8 meters, which can also effectively detect the surrounding area and provide convenient lighting control for the place. Different colors indicate different sensing sensitivities, ranging from 25% to 100%, to meet diverse usage scenarios.

High Light Efficiency And 120° Beam Angle

The TPE series is equipped with high-efficiency LED technology, with a luminous efficacy of up to 160lm/W.
It adopts a 120-degree large-angle lighting design, allowing a single lamp to cover a wider space and effectively reducing the number and cost of lamp installations.

Datasheet Of Tri Proof Light LED

Model No.	GS-TPE600-18W	GS-TPE1200-36W	GS-TPE1500-45W
Power	18W	36W	45W
Material	PC material + aluminum heatsink
Light efficiency	160lm/W
Driver Brand	Eaglerise/Tridonic
Voltage	AC200-240V
LEDs	SMD2835
PF	>0.95
LED Lifespan	Ta 40°C L70>54000 hours
IP	IP65
IK	IK10
CRI	>80
CCT	3000K/4000K/5000K/5700K/6000K/6500K
Size	6505862	12505862	15505862
Warranty	5 Years

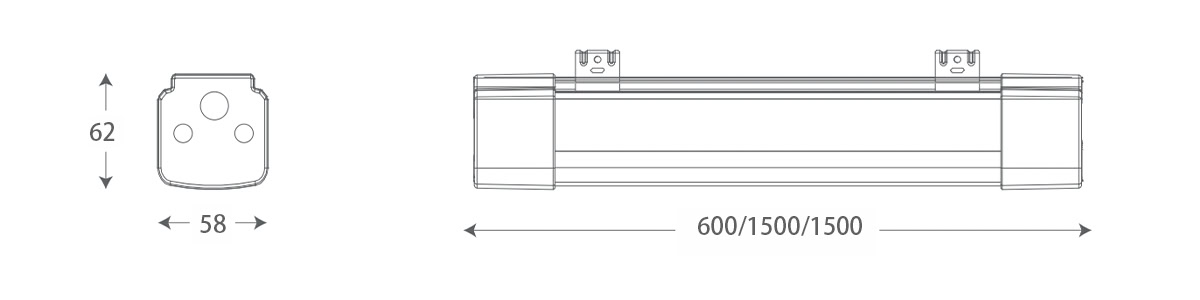

LED Tri Proof Light Sizes

3 Ways Of Tri Proof Lights Installations

Tri proof lights have 3 ways of installation: surface mount, wall mount and suspend mount.

We offer corresponding accessories to meet your needs. Different installation methods are applicable to different scenarios.

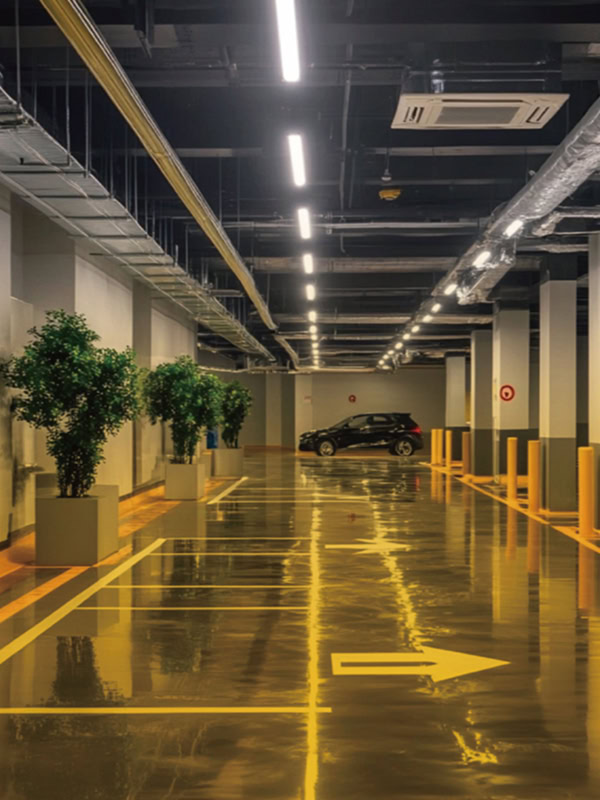

Modern Lighting Solutions Using Tri Proof Lights

It can be used in many scenarios, such as industrial plants, warehouses, underground parking lots, tunnels, ship terminals, food processing plants, chemical plants, sewage treatment plants, etc.
Its high sealing and corrosion resistant design can adapt to complex environments such as wet, dusty and corrosive gases to ensure stable and safe lighting

Frequently Asked Questions

Most frequent questions and answers

How many years warranty you provided?

We can provide 5 years warranty for the whole light body.

What driver you used in led tri proof lamp?

We use well-known brands, Tridonic, Eaglerise of power supply.

Can i get a sample?

We can provide customized samples for you, and if you have any adjustment, we can make for you.

Do you offer after-sales service for your tri proof lights?

We provide perfect after-sales service, including product warranty, technical support, return service, etc., to protect your rights and interests.
