Tri Proof LED - TQ Series

Tri proof led light TQ series with 160lm/W, PC material.

Wireless control: microwave sensor, PIR sensor. Quick connector design, IP65.

Features:

-Wattage: 25/35/45 W

-IP65, CRI>80, 120°

-Light efficiency: 160lm/W

-AC200-240V 50/60Hz

-Standard /0-10V DlM/Triac Dim/DALI dimmable

-Self-test emergency with LifePo4 battery optional

-PC material

-CREE/OSRAM LEDs

-Eaglerise/Tridonic drivers

-3000K/4000K/5000K/5700K/6000K/6500K

-Life span: Ta40℃ L70> 54000 hours

-Warranty: 5Years

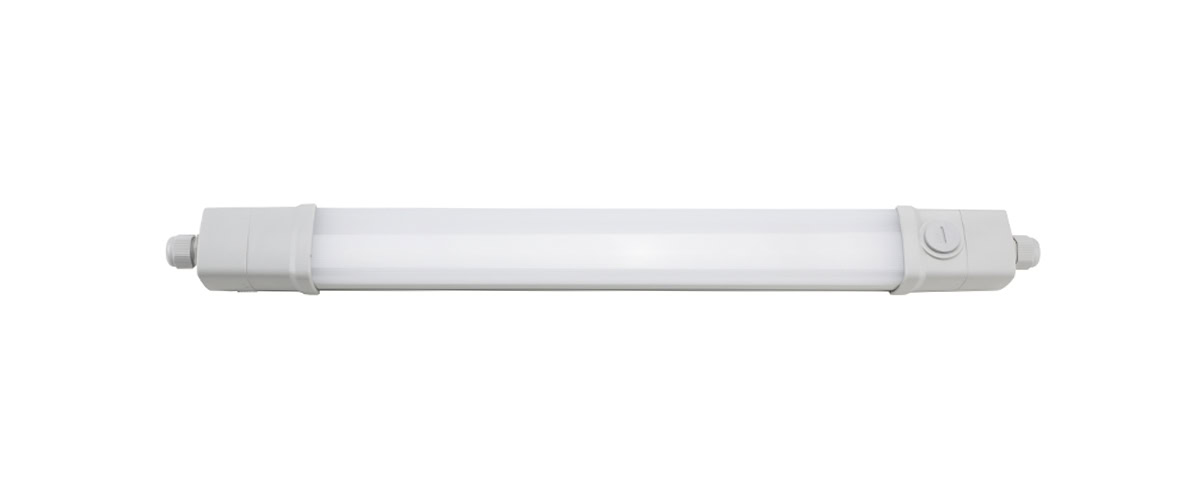

Tri Proof LED High Quality PC Material

The shell is made of PC material, which features high strength and high toughness.
It can withstand unexpected collisions and compressions, and also has excellent anti-aging and anti-corrosion properties.

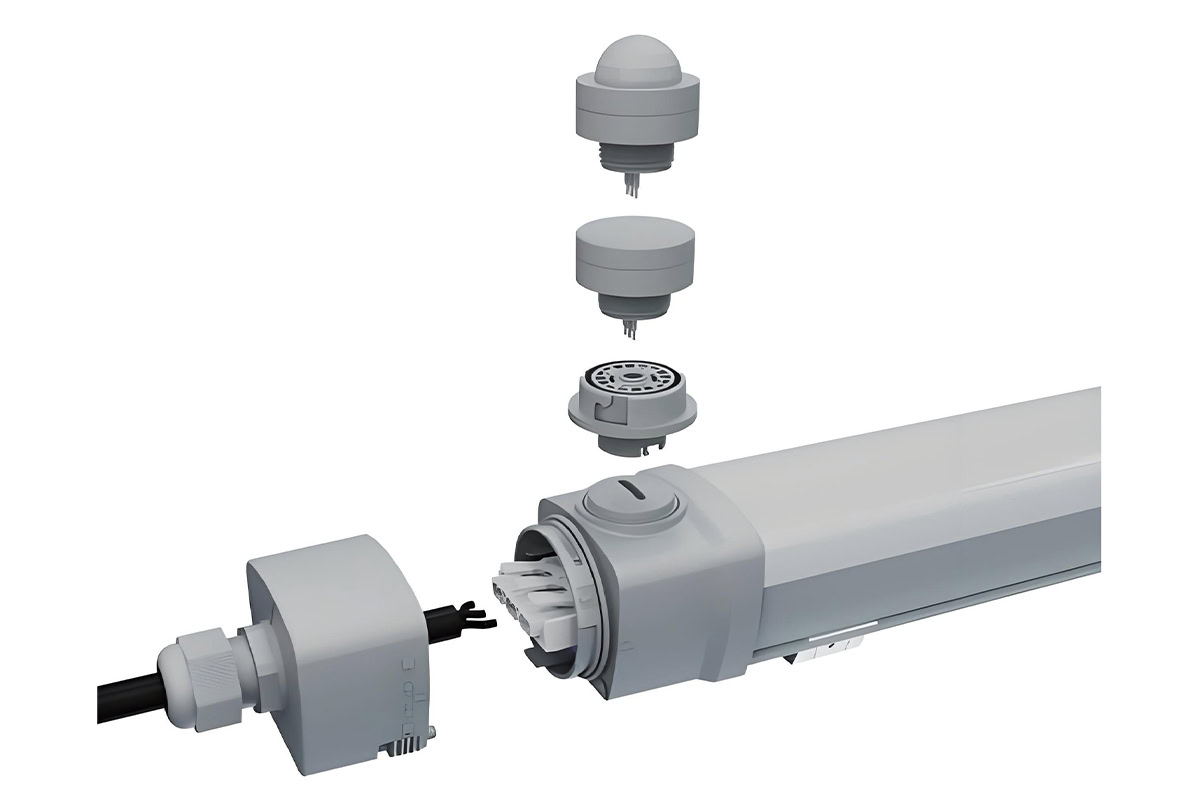

Sensors For Tri Proof LED Light

Supports wireless control of microwave sensors, PIR sensors and Zhaga sockets to achieve automatic sensing and intelligent dimming,
Users can adjust the brightness and switch status at will through smart devices to achieve automatic sensing and intelligent dimming, meeting the lighting needs of different scenarios, such as turning off the lights when people leave the office to save energy, and automatic lighting in corridors to ensure safety.

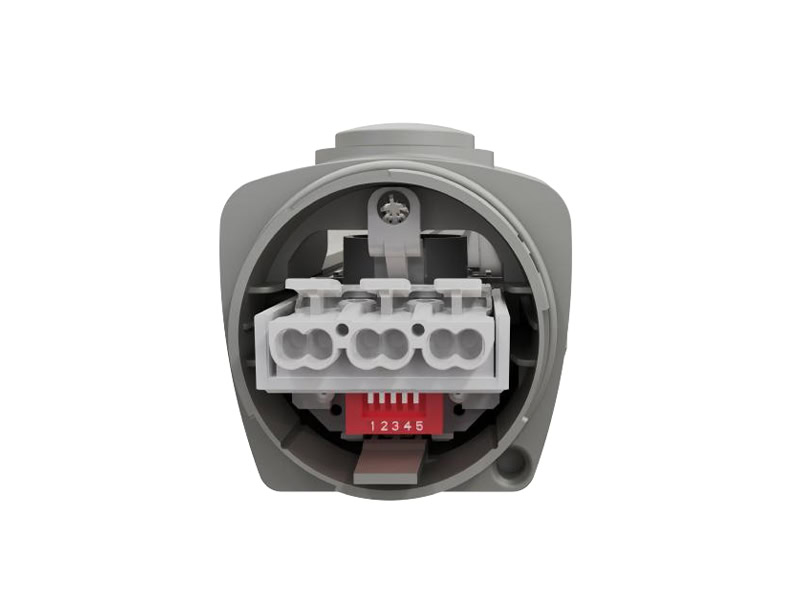

Special Toolless Convenience Design

The plug part adopts an innovative tool-free portable installation design. Through the press-type structure, it can be quickly disassembled and installed by hand.
The 3-core connection is suitable for basic power supply and control requirements, while the 5-core connection can achieve more functional expansives, such as dimming and color adjustment control, sensor connection, etc.

Intelligent Dimming Control Tri Proof LED Light

Support DALI, 0-10V dimming and wireless control, adapt to different customer needs.
0-100% smooth brightness adjustment, no stroboscopic, protect human eye comfort. Automatic dimming + remote control, save electricity and reduce labor costs.

Emergency Battery Optional

The TD series can be optionally equipped with lithium iron phosphate (LiFePO4) batteries.
The self-check function can monitor the battery status in real time, issue early warnings of potential faults, and ensure the stable operation of the equipment.
The emergency response function can quickly activate the lighting in case of sudden power outages and other emergencies, ensuring the safety and order of the operation.

Sensors Function With Dimming Control

You can choose to set the daylight threshold at 25Lux and the stand by period to “5s/5mins/10mins/30mins”
And with dimming control, the light will dim to 100% when motion was detected.

Drivers Used In LED Tri Proof Lights

For the core components of lighting products, such as power supplies, well-known industry brands like Tridonic and Eaglerise are used.
From high efficiency and energy conservation to stable operation, from long-lasting durability to safety and reliability, every link demonstrates quality.

Datasheet Of Tri Proof LED Light

Model No.	GS-TQ650-25W	GS-TQ1250-35W	GS-TQ1550-45W
Power	25W	35W	45W
Material	PC
Light efficiency	160lm/W
Driver Brand	Eaglerise/Tridonic
Voltage	AC200-240V
LEDs	SMD2835
PF	>0.95
LED Lifespan	Ta 40°C L70>54000 hours
IP	IP65
IK	IK10
CRI	>80
CCT	3000K/4000K/5000K/5700K/6000K/6500K
Size	6505862	12505862	15505862
Warranty	5 Years

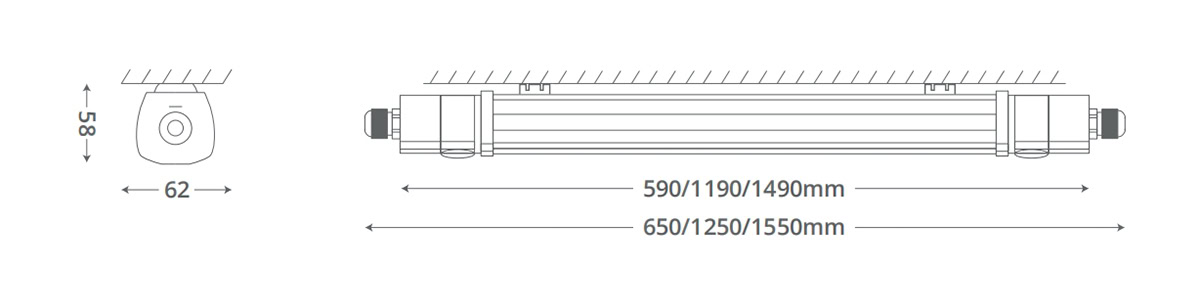

LED Tri Proof Light Sizes

High Light Efficiency And 120° Beam Angle

The TQ series is equipped with high-efficiency LED technology, with a luminous efficacy of up to 160lm/W.
It adopts a 120-degree large-angle lighting design, allowing a single lamp to cover a wider space and effectively reducing the number and cost of lamp installations.

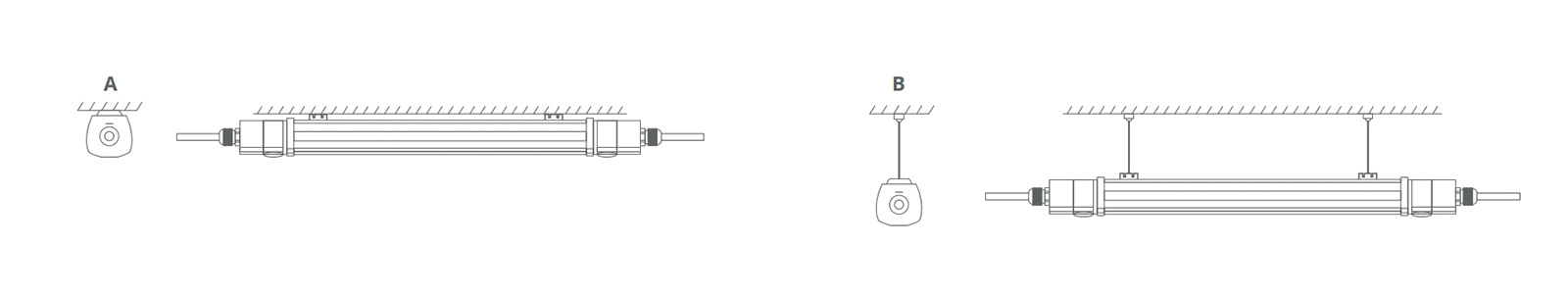

2 Kinds Of Ways Of Tri Proof Lights Installations

Tri proof lights have 2 ways of installation: surface mount and suspend mount.

We offer corresponding accessories to meet your needs. Different installation methods are applicable to different scenarios.

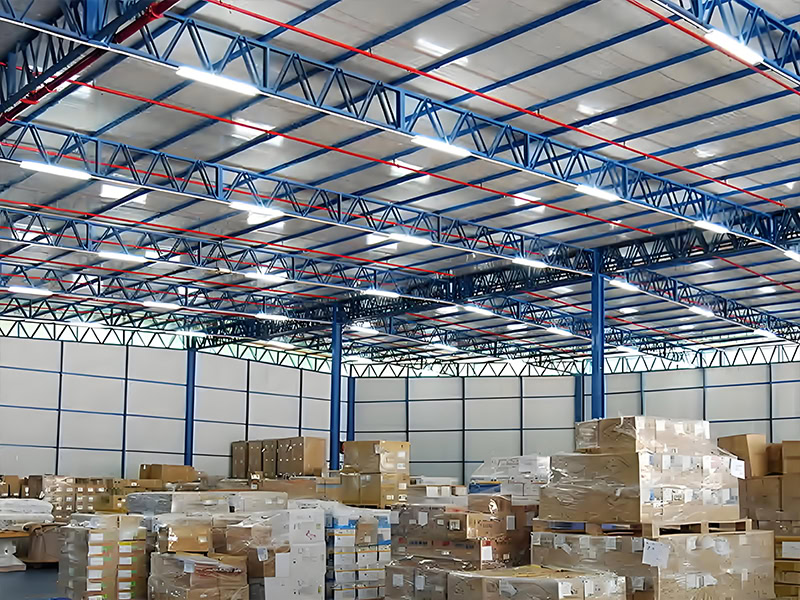

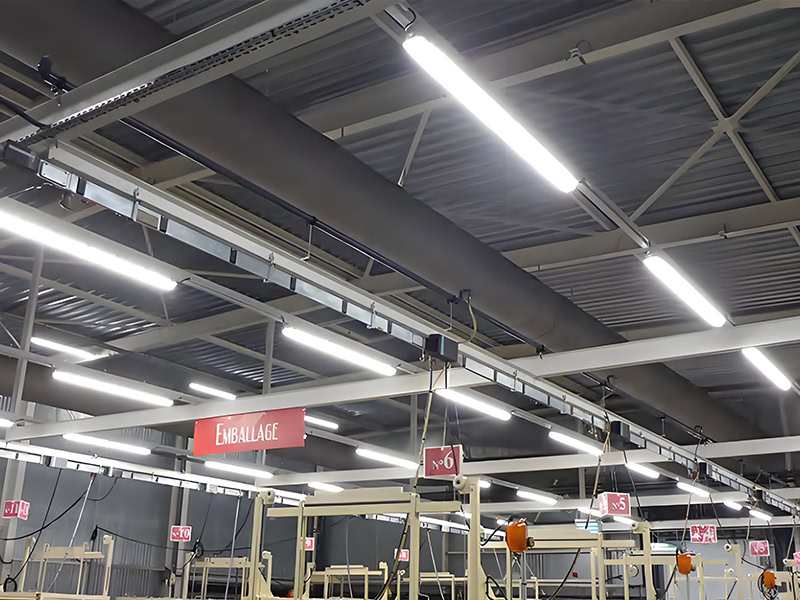

Applications In Different Scenarios

Developed for diverse application environments such as warehouses, factories, and logistics centers, the TQ series can stably play a role with its excellent performance,
whether it is for the lighting needs of large storage Spaces, equipment matching in factory workshops, or indication signs in logistics centers, making it your ideal choice.

Frequently Asked Questions

Most frequent questions and answers

How many years warranty you provided?

We can provide 5 years warranty for the whole light body.

What driver you used in led tri proof led light?

We use well-known brands, Tridonic, Eaglerise of power supply.

Can i get a sample?

We can provide customized samples for you, and if you have any adjustment, we can make for you.

Do you offer after-sales service for your tri proof lights?

We provide perfect after-sales service, including product warranty, technical support, return service, etc., to protect your rights and interests.
