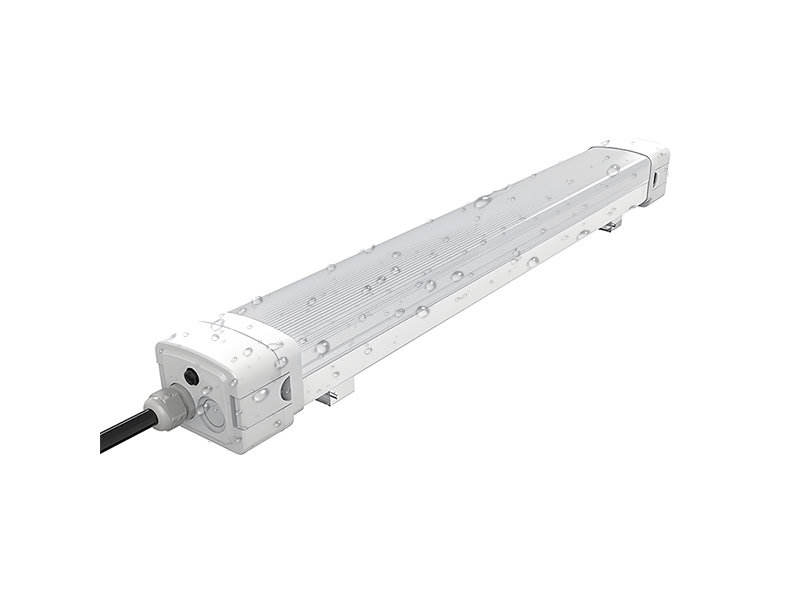

Tri Proof Lamp - TM Series

Tri proof lamp TM series all-plastic shell is lightweight and durable, and it also has excellent anti-corrosion, moisture-proof and dust-proof performance.
Supports free adjustment of power and color temperature to meet the lighting needs in different scenarios. The unique flip plug design makes the wiring operation simple and convenient.

Features:

-Wattage: 30/60/80 W

-IP65, CRI>80, 120°

-Light efficiency: 160lm/W

-AC200-240V 50/60Hz

-Standard /0-10V DlM/Triac Dim/DALI dimmable

-Self-test emergency with LifePo4 battery optional

-All plastic material

-CREE/OSRAM LEDs

-Eaglerise/Tridonic drivers

-3000K/4000K/5000K/5700K/6000K/6500K

-Life span: Ta40℃ L70> 54000 hours

-Warranty: 5Years

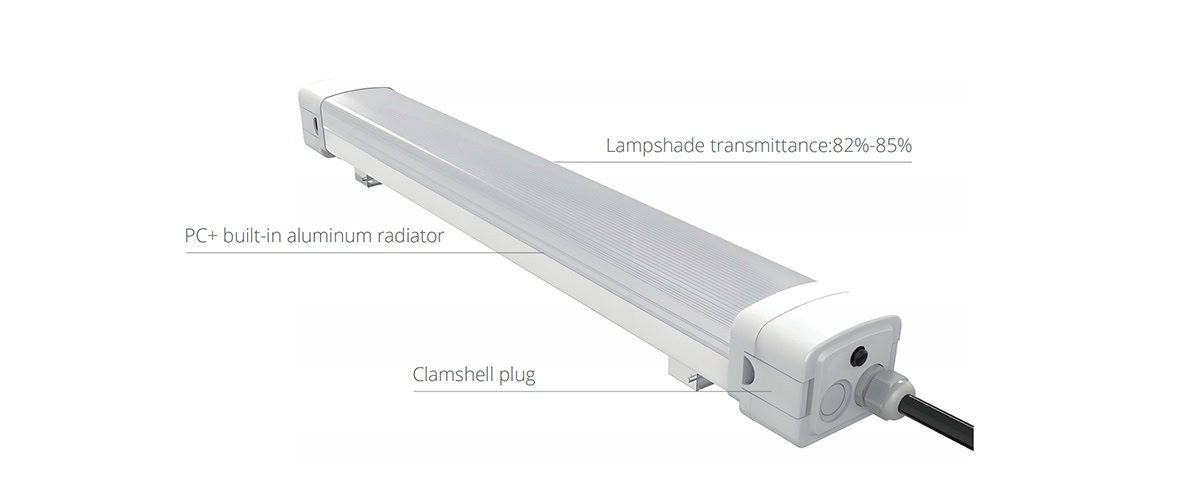

High Quality Material Of Tri Proof Lamp

The unique flip plug design makes the wiring operation simple and convenient, greatly saving installation time and effort.
It is compatible with multiple power supply specifications and has a wide range of application scenarios.

Sensors Function And Modes Optional

You can choose to set the daylight threshold at 25Lux or the daylight threshold disabling mode.
This setting can be flexibly selected according to actual needs, facilitating energy conservation and on-demand lighting under different lighting conditions.

IP65 LED Tri Proof Lamp

Commercial light lP65 dust & waterresistant,
lKl0 impact resistant, operates inwide temperatures (-20°C to +40°C).

Emergency Battery Optional

Optional lithium iron phosphate (LiFePO4) batteries are available,
featuring self-check and emergency response functions.

Intelligent Dimming Control LED Tri Proof Lamp

Support DALI, 0-10V dimming and wireless control, adapt to different customer needs, no need to replace hardware.
0-100% smooth brightness adjustment, no stroboscopic, protect human eye comfort. Automatic dimming + remote control, save electricity and reduce labor costs.

Drivers Used In LED Tri Proof Lamps

For the core components of lighting products, such as power supplies, well-known industry brands like Tridonic and Eaglerise are used.
From high efficiency and energy conservation to stable operation, from long-lasting durability to safety and reliability, every link demonstrates quality.

Datasheet Of LED Tri Proof Lamp

Model No.	GS-TM600-30W	GS-TM1200-60W	GS-TM1500-80W
Power	30W	60W	80W
Material	Aluminum housing and PC cover
Light efficiency	160lm/W
Driver Brand	Eaglerise/Tridonic
Voltage	AC200-240V
LEDs	SMD2835
PF	>0.95
LED Lifespan	Ta 40°C L70>54000 hours
IP	IP65
IK	IK10
CRI	>80
CCT	3000K/4000K/5000K/5700K/6000K/6500K
Size	6008469	12008469	15008469
Warranty	5 Years

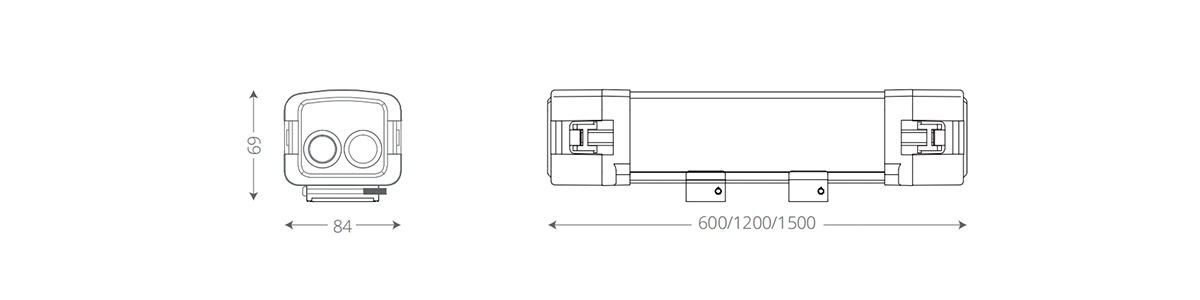

LED Tri Proof Lamp Sizes

High Light Efficiency And 120° Beam Angle

The TM series is equipped with high-efficiency LED technology, using LEDs from CREE/OSRAM brand, with a luminous efficacy of up to 160lm/W.
It adopts a 120-degree large-angle lighting design, allowing a single lamp to cover a wider space and effectively reducing the number and cost of lamp installations.

3 Kinds Of Ways Of Tri Proof Lamps Installations

Tri proof lights have 3 ways of installation: surface mount, wall mount and suspend mount.

We offer corresponding accessories to meet your needs. Different installation methods are applicable to different scenarios.

Applications In Different Scenarios

Tri proof lamp is widely used in places where the environment is complex and the durability of lamps is required. It can be used in parking lots and warehouses.
At the same time, it can also be used in environments with high protection requirements such as damp basements, workshops with a lot of dust, and outdoor construction sites.

Frequently Asked Questions

Most frequent questions and answers

How many years warranty you provided?

We can provide 5 years warranty for the whole light body.

What driver you used in led tri proof lamp?

We use well-known brands, Tridonic, Eaglerise of power supply.

Can i get a sample?

We can provide customized samples for you, and if you have any adjustment, we can make for you.

Do you offer after-sales service for your tri proof lamps?

We provide perfect after-sales service, including product warranty, technical support, return service, etc., to protect your rights and interests.
