Tri Proof Light - TD Series

Tri proof light TD series as a high-power lighting series, it offers multiple power options of 60W, 120W, and 150W, easily meeting the lighting needs of large areas and long distances.
ON/OFF sensors or use DALI function to achieve intelligent lighting control, which is energy-saving and convenient. The tool-free intelligent end cover design enables installation and maintenance to be completed by hand.

Features:

-Wattage: 60/120/150 W

-IP65, CRI>80, 120°

-Light efficiency: 160lm/W

-AC200-240V 50/60Hz

-Standard /0-10V DlM/Triac Dim/DALI dimmable

-Self-test emergency with LifePo4 battery optional

-PC cover + Aluminum housing

-CREE/OSRAM LEDs

-Eaglerise/Tridonic drivers

-3000K/4000K/5000K/5700K/6000K/6500K

-Life span: Ta40℃ L70> 54000 hours

-Warranty: 5Years

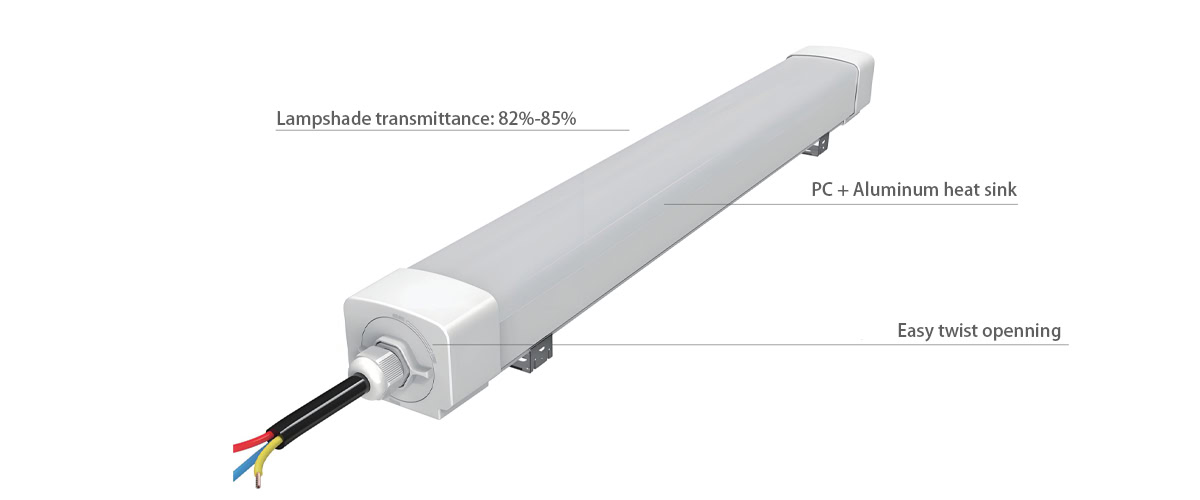

Tri Proof Light High Quality Material

The PC casing endows the product with strong heat dissipation performance. Even if it operates under high load for a long time, it can still ensure stable operation.
Whether it is an extremely harsh industrial environment or a conventional operation scenario, it can handle them all with ease

Sensors Function And Modes Optional

You can choose to set the daylight threshold at 25Lux or the daylight threshold disabling mode.
This setting can be flexibly selected according to actual needs, facilitating energy conservation and on-demand lighting under different lighting conditions.

Emergency Battery Optional

The TD series can be optionally equipped with lithium iron phosphate (LiFePO4) batteries.
The self-check function can monitor the battery status in real time, issue early warnings of potential faults, and ensure the stable operation of the equipment.
The emergency response function can quickly activate the lighting in case of sudden power outages and other emergencies, ensuring the safety and order of the operation.

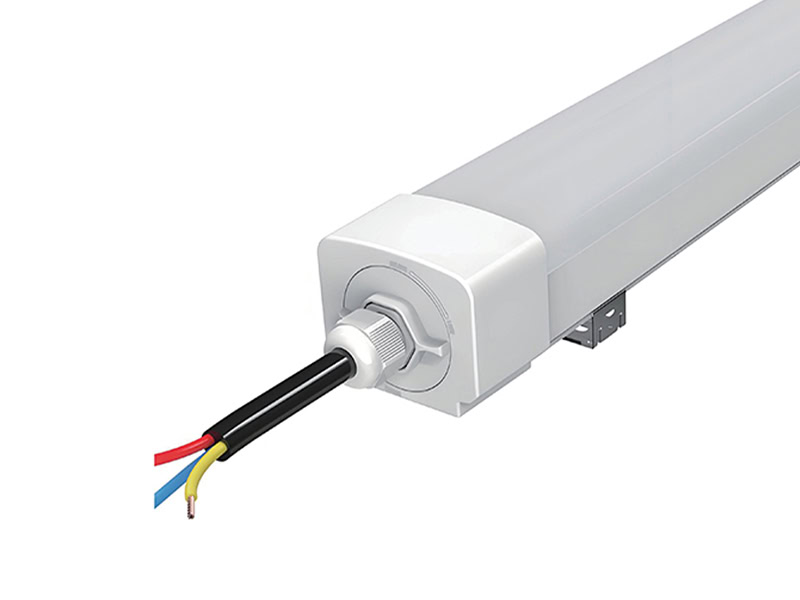

Easy Twist Openning Design

The TD series innovatively adopts a tool-free intelligent end cover design, eliminating the need for any tools such as screwdrivers or wrenches.
With just a simple twist and turn by hand, installation and maintenance can be quickly completed.

Intelligent Dimming Control LED Tri Proof Lights

Support DALI, 0-10V dimming and wireless control, adapt to different customer needs, no need to replace hardware.
0-100% smooth brightness adjustment, no stroboscopic, protect human eye comfort. Automatic dimming + remote control, save electricity and reduce labor costs.

Drivers Used In LED Tri Proof Lights

For the core components of lighting products, such as power supplies, well-known industry brands like Tridonic and Eaglerise are used.
From high efficiency and energy conservation to stable operation, from long-lasting durability to safety and reliability, every link demonstrates quality.

Datasheet Of LED Tri Proof Light

Model No.	GS-TD600-60W	GS-TD1200-120W	GS-TD1500-150W
Power	60W	120W	150W
Material	All plastic and aluminum heat sink
Light efficiency	160lm/W
Driver Brand	Eaglerise/Tridonic
Voltage	AC200-240V
LEDs	SMD2835
PF	>0.95
LED Lifespan	Ta 40°C L70>54000 hours
IP	IP65
IK	IK10
CRI	>80
CCT	3000K/4000K/5000K/5700K/6000K/6500K
Size	6007476	12007476	15007476
Warranty	5 Years

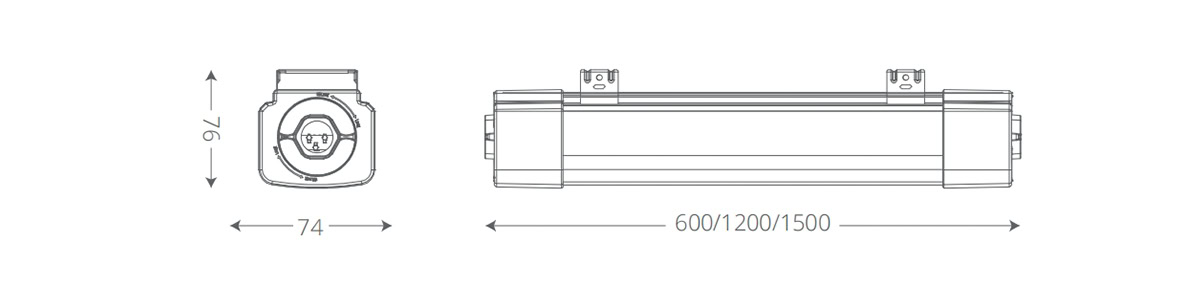

LED Tri Proof Light Sizes

High Light Efficiency And 120° Beam Angle

The TD series is equipped with high-efficiency LED technology, with a luminous efficacy of up to 160lm/W.
It adopts a 120-degree large-angle lighting design, allowing a single lamp to cover a wider space and effectively reducing the number and cost of lamp installations.

3 Kinds Of Ways Of Tri Proof Lights Installations

Tri proof lights have 3 ways of installation: surface mount, wall mount and suspend mount.

We offer corresponding accessories to meet your needs. Different installation methods are applicable to different scenarios.

Applications In Different Scenarios

Developed for diverse application environments such as warehouses, factories, and logistics centers, the TN series can stably play a role with its excellent performance, whether it is for the lighting needs of large storage Spaces, equipment matching in factory workshops, or indication signs in logistics centers, making it your ideal choice.

Frequently Asked Questions

Most frequent questions and answers

How many years warranty you provided?

We can provide 5 years warranty for the whole light body.

What driver you used in led tri proof lamp?

We use well-known brands, Tridonic, Eaglerise of power supply.

Can i get a sample?

We can provide customized samples for you, and if you have any adjustment, we can make for you.

Do you offer after-sales service for your tri proof lamps?

We provide perfect after-sales service, including product warranty, technical support, return service, etc., to protect your rights and interests.
