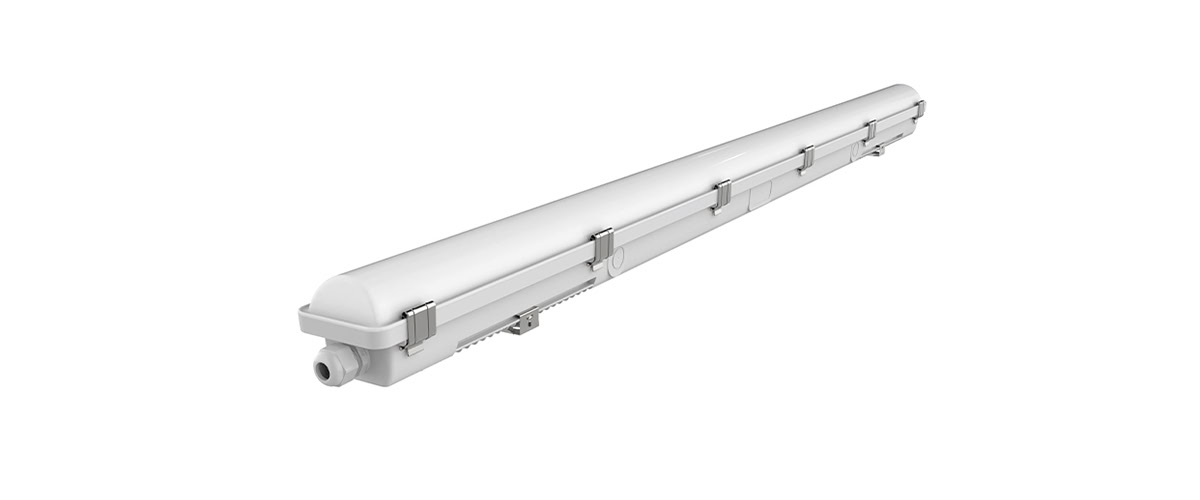

Outdoor Batten Light - TC Series

Outdoor batten light has multiple power options (20W/40W/50W) adapt to different brightness requirements in various scenarios.
Commercial light up to 170Lm/W system efficiency delivers exceptional brightness, provide 3 series for option, standard/pro/max series.

Features:

-Wattage: 20/40/50 W

-IP65, CRI>80, 120°

-Light efficiency: 130/150/170lm/W

-AC200-240V 50/60Hz

-Standard /0-10V DlM/Triac Dim/DALI dimmable

-Self-test emergency with LifePo4 battery optional

-PC+PC material

-CREE/OSRAM/ LEDs

-Eaglerise/Tridonic/PHILIPS drivers

-3000K/4000K/5000K/5700K/6000K/6500K

-Standard/Pro/Max Series

-Warranty: 5Years

Outdoor Batten Light High Quality Material

Directly replaces single-tube fluorescent lamps without structural modifications, compatible with existing systems to reduce upgrade costs.
With ultra-high efficiency output, EU up to 125lm/w, it has outstanding energy-saving performance and helps you save on electricity costs. IP65 and Ik10 protection grade.

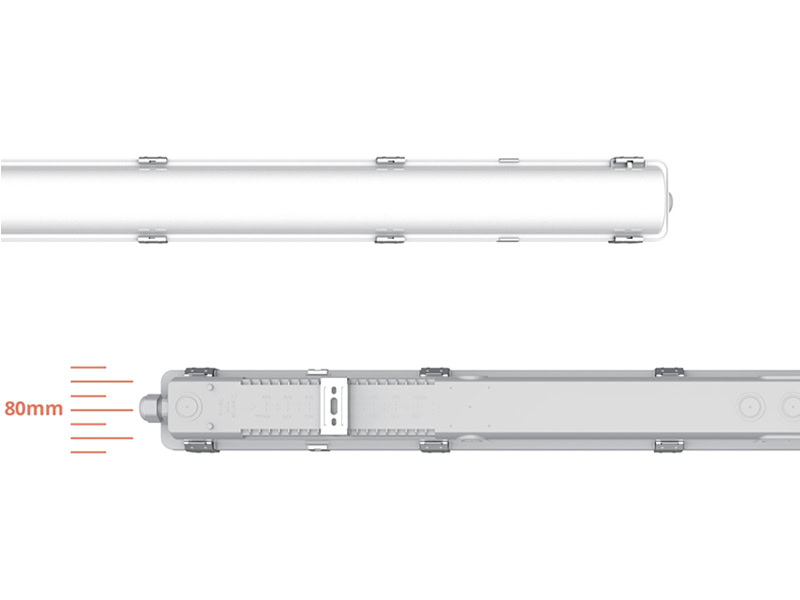

80mm Width And IP65 Waterproof

The narrow width 80mm takes up very little space during installation,
Reach IK10 and IP65 protection levels.

Emergency Battery Optional

Optional lithium iron phosphate (LiFePO4) batteries are available,
featuring self-check and emergency response functions.

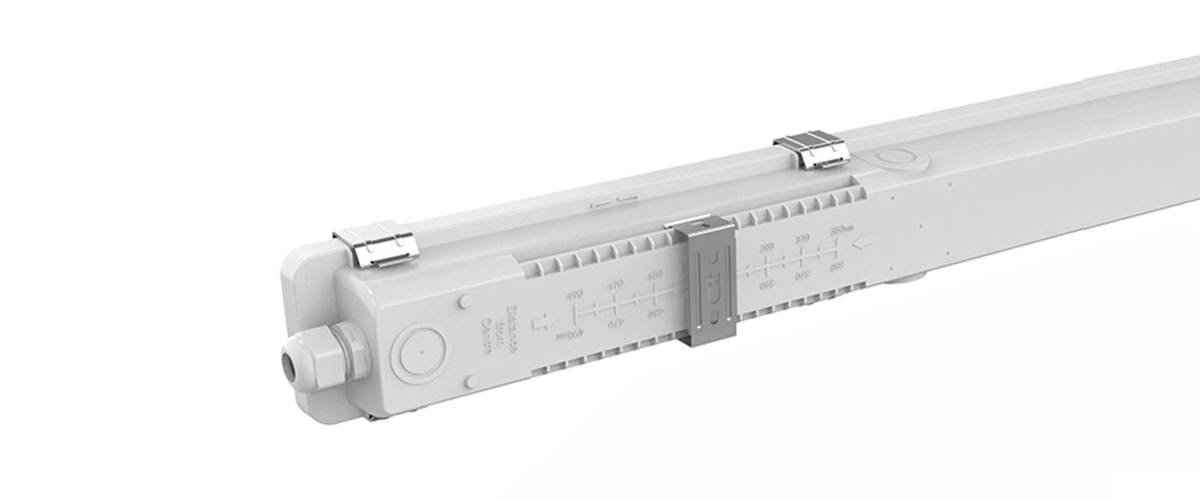

Designed Precise Scale Outdoor Batten Light

A ruler is designed at the buckle on the back of this lamp. It brings many conveniences to the installation
It can precisely position to ensure uniform light distribution, adapt to different scenarios, and greatly improve installation efficiency.

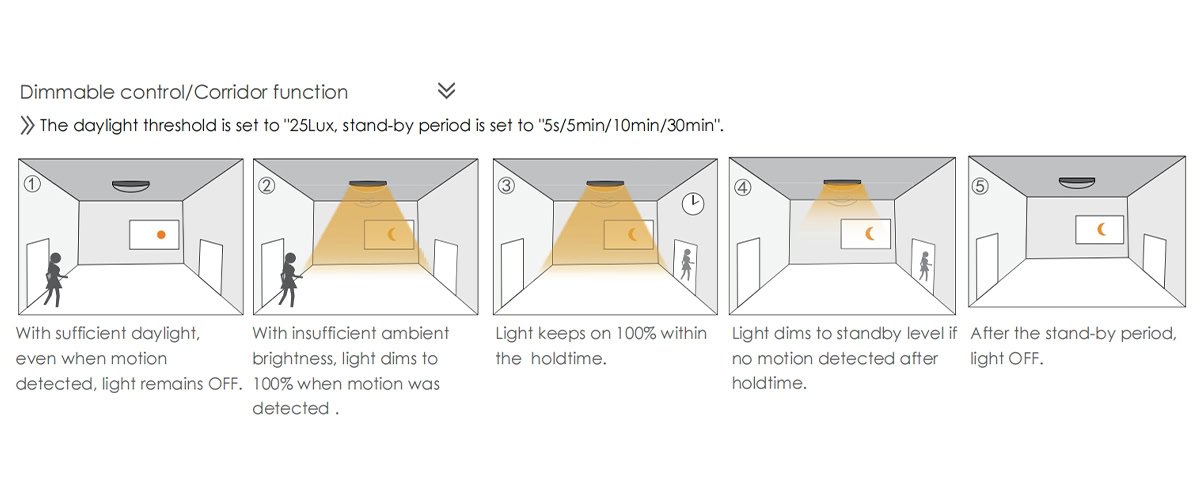

Dimming Function And Control System

Set the daylight threshold at 25Lux. When the ambient light intensity reaches or exceeds 25Lux, it is considered to have sufficient light.
When it is below 25Lux, it is regarded as insufficient light. When the lamp detects human movement, the light will switch from a low-brightness state to full brightness (100% brightness).

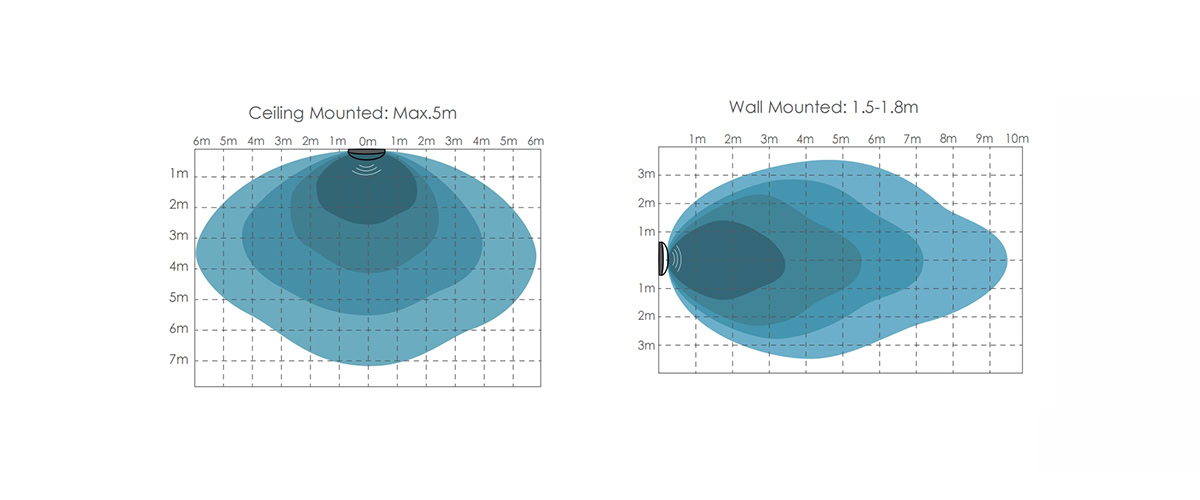

Equipped With Sensors For Optional

Our batten lamps are equipped with advanced sensing technology, ensuring precise coverage of the detection range.
When installed on the ceiling, the maximum detection distance can reach 5 meters. When installed on the wall, it is recommended to install at a height of 1.5 to 1.8 meters, which can also effectively detect the surrounding area and provide convenient lighting control for the place. Different colors indicate different sensing sensitivities, ranging from 25% to 100%, to meet diverse usage scenarios.

Datasheet Of Batten Light TS Series

Model No.	GS-TC600-20W	GS-TC1200-40W	GS-TC1500-50W
Power	20W	40W	50W
Material	PC+PC
Light efficiency	Standard:130lm/W Pro:150lm/W Max:170lm/W
Driver Brand	Eaglerise/Tridonic
Voltage	AC200-240V
LEDs	SMD2835
PF	>0.95
LED Lifespan	>50000 Hours
IP	IP65
IK	IK10
CRI	>80
CCT	3000K/4000K/5000K/5700K
Size	L600xW80xH72	L1200xW80xH72	L1500xW80xH72
Warranty	5 Years

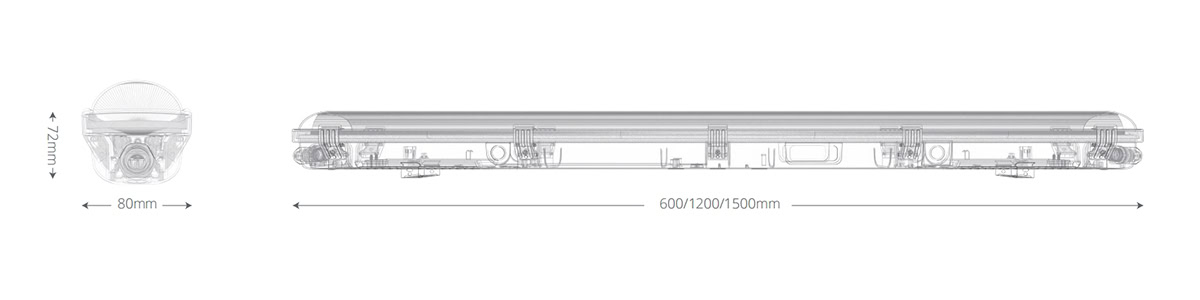

LED Batten Light Sizes

It offers a variety of sizes from 600mm to 1500mm and corresponding wattage options to meet the lighting needs of different Spaces.

Installation Ways Of LED Outdoor Batten Light

This led batten lamp supports two flexible installation methods: surface or suspended, meeting the installation requirements of different scenarios.
It can be easily installed in both retail stores with lower ceilings and exhibition areas of museums with higher Spaces to create an ideal lighting effect.

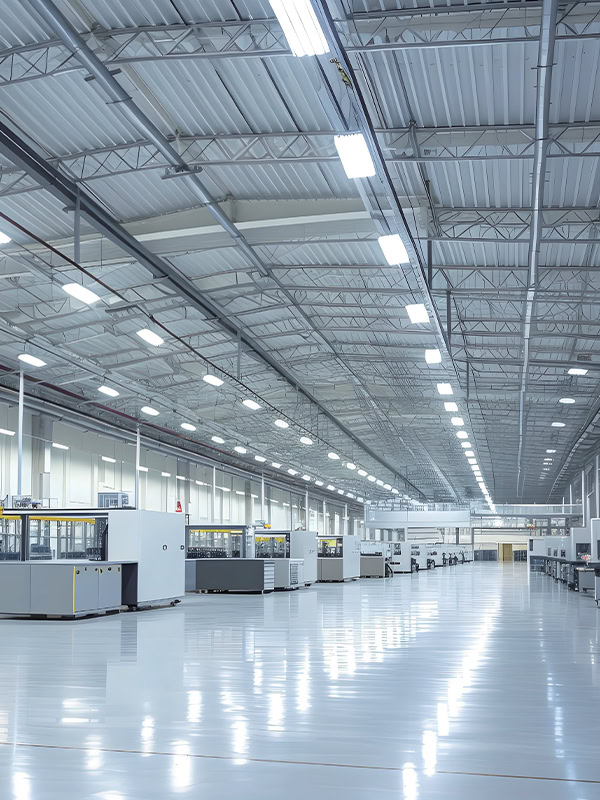

Modern Lighting Solutions Using Batten Lights

It can be used in many scenarios, such as industrial plants, warehouses, underground parking lots, tunnels, ship terminals, food processing plants, chemical plants, sewage treatment plants, etc.
Its high sealing and corrosion resistant design can adapt to complex environments such as wet, dusty and corrosive gases to ensure stable and safe lighting

LED Batten Lamp Project Case In Egypt

Our IP65 tri-proof lamps, with their outstanding protective performance and stable quality, have been successfully applied in local workshops and warehouses.
This three-proof lamp has always maintained stable operation and is not afraid of the test of harsh conditions.
So far, during its actual use in Egypt, its outstanding performance with zero faults has won high recognition from local customers

Frequently Asked Questions

Most frequent questions and answers

How many years warranty you provided?

We can provide 5 years warranty for the whole light body.

What driver you used in led outdoor batten light?

We use well-known brands, Tridonic, Eaglerise of power supply.

Can i get a sample?

We can provide customized samples for you, and if you have any adjustment, we can make for you.

Do you offer after-sales service for your batten lights?

We provide perfect after-sales service, including product warranty, technical support, return service, etc., to protect your rights and interests.
