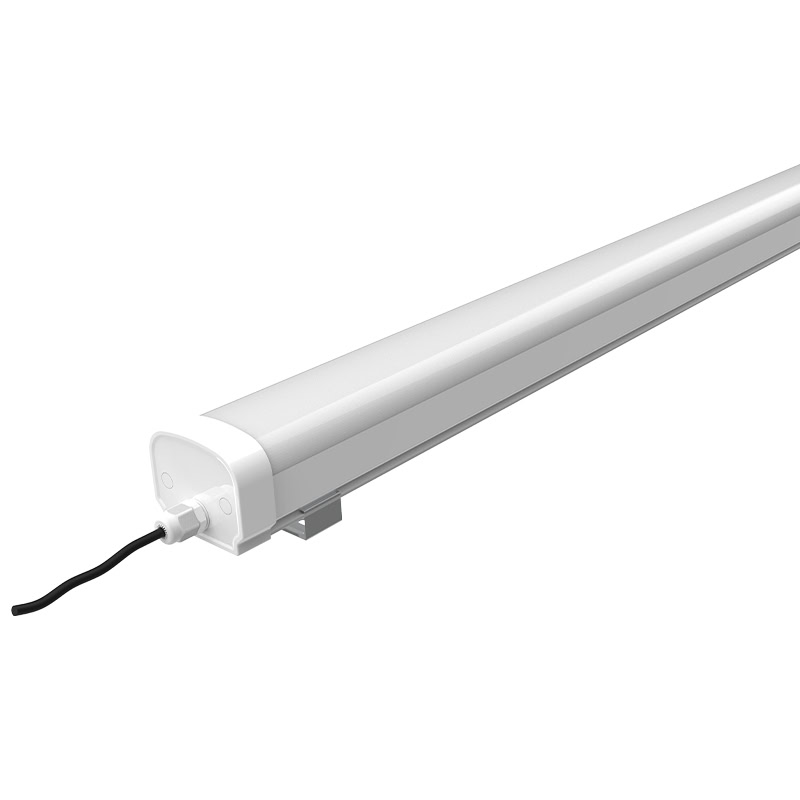

Linear Batten Light - TW Series

Linear batten light TW series is powerful series, with customizable high power output.

It is a robust and high-performance tri-proof luminaire designed for industrial and commercial applications. With PC material and aluminum heatsink.

Features:

-Wattage: 60/120/150W

-IP65, CRI>80, 120°

-Light efficiency: 160lm/W

-AC200-240V 50/60Hz

-Standard /0-10V DlM/Triac Dim/DALI dimmable

-Self-test emergency with LifePo4 battery optional

-PC material + Aluminum heatsink

-CREE/OSRAM LEDs

-Eaglerise/Tridonic drivers

-3000K/4000K/5000K/5700K/6000K/6500K

-Life span: Ta40℃ L70> 54000 hours

-Warranty: 5Years

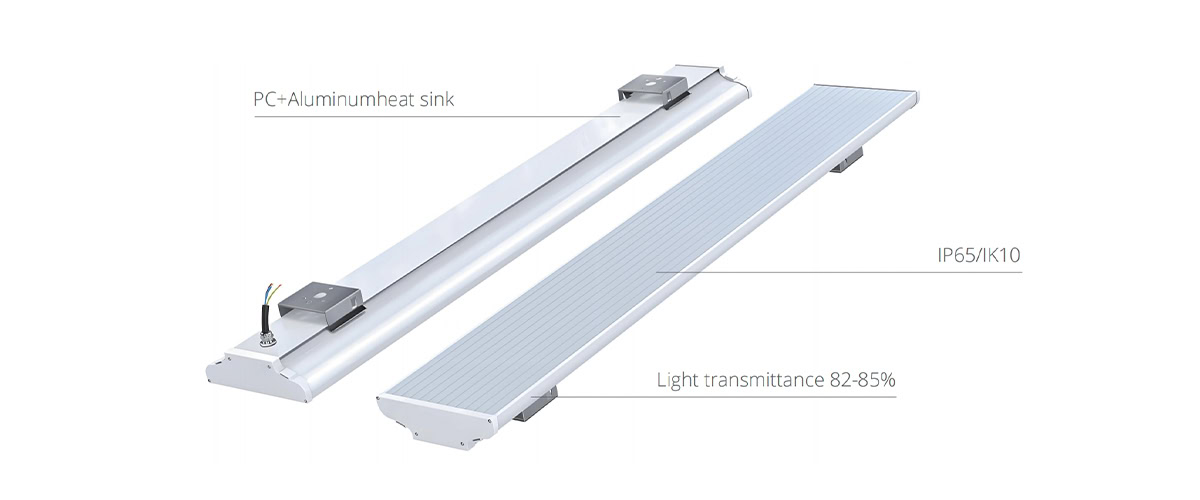

IP65 Linear Batten Light High Quality Material

The shell is made of high-quality PC material, Equipped with an aluminum radiator, aluminum’s excellent thermal conductivity to achieve efficient heat dissipation.
In places with extremely high protection requirements, lamps with IP65 and IK10 protection grades can provide reliable lighting and meet the usage needs of different scenarios.

Emergency Battery Optional

The TW series can be optionally equipped with lithium iron phosphate (LiFePO4) batteries.
The self-check function can monitor the battery status in real time, issue early warnings of potential faults, and ensure the stable operation of the equipment.
The emergency response function can quickly activate the lighting in case of sudden power outages and other emergencies, ensuring the safety and order of the operation.

Dimmable And Sensors Function Optional

Supports 0-10V, DALI dimming. When used in conjunction with microwave sensing function, it can also achieve more intelligent dimming modes.
When someone approaches, the lights quickly dim from low brightness to full brightness, and gradually dim after the person leaves, fully meeting the diverse lighting needs.

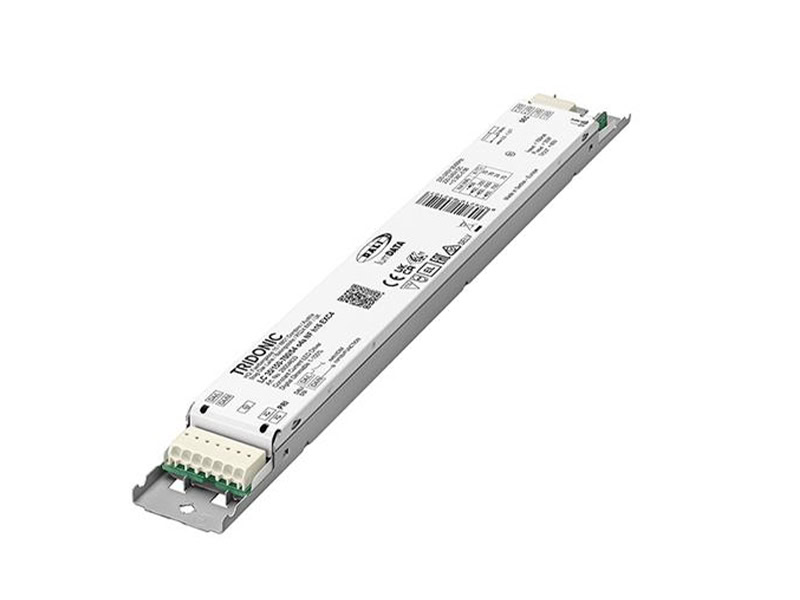

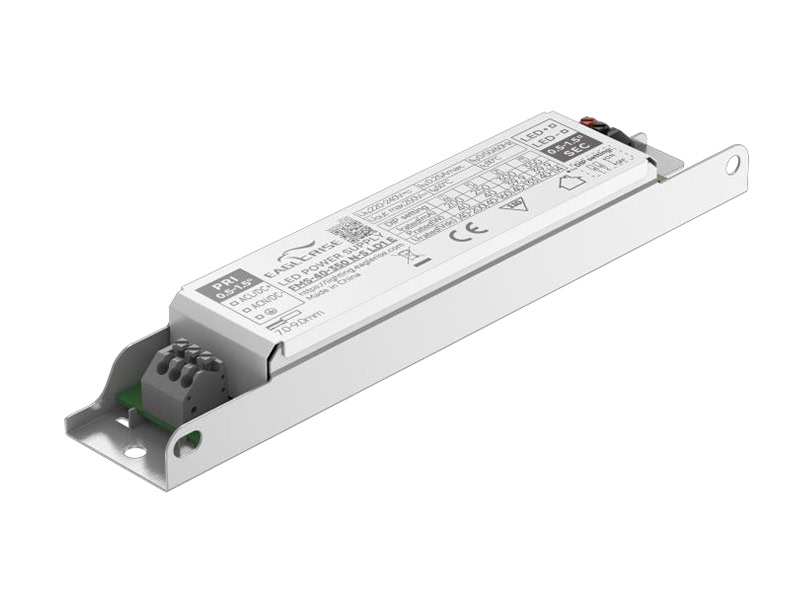

Drivers Used In Linear Batten Light

The power module adopts globally renowned brand products such as Tridonic and Eaglerise.
With advanced power supply technology, the TB series of lamps achieve high efficiency and energy conservation, reducing energy consumption while enhancing power usage efficiency

Datasheet Of LED Batten Light

Model No.	GS-TW600-60W	GS-TW1200-120W	GS-TW1500-150W
Power	60W	120W	150W
Material	PC material and aluminum heatsink
Light efficiency	160lm/W
Driver Brand	Eaglerise/Tridonic
Voltage	AC200-240V
LEDs	SMD2835
PF	>0.95
LED Lifespan	Ta 40°C L70>54000 hours
IP	IP65
IK	IK10
CRI	>80
CCT	3000K/4000K/5000K/5700K/6000K/6500K
Size	60020359	120020359	150020359
Warranty	5 Years

LED Linear Batten Light Sizes

High Light Efficiency And 120° Beam Angle

The TW series is equipped with high-efficiency LED technology, light source from CREE/OSRAM brand, with a luminous efficacy of up to 160lm/W.
It adopts a 120-degree large-angle lighting design, allowing a single lamp to cover a wider space and effectively reducing the number and cost of lamp installations.

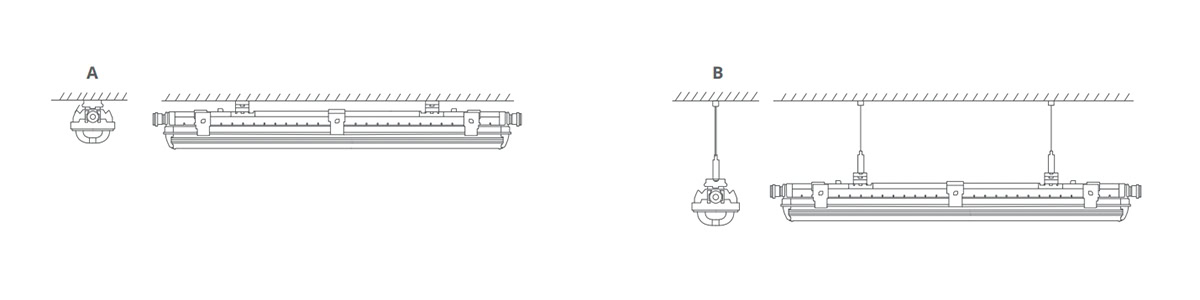

2 Kinds Of Ways Of LED Linear Batten Light Installations

Linear Batten lights have 2 ways of installation: suiface mount and suspend mount.

We offer corresponding accessories to meet your needs. Different installation methods are applicable to different scenarios.

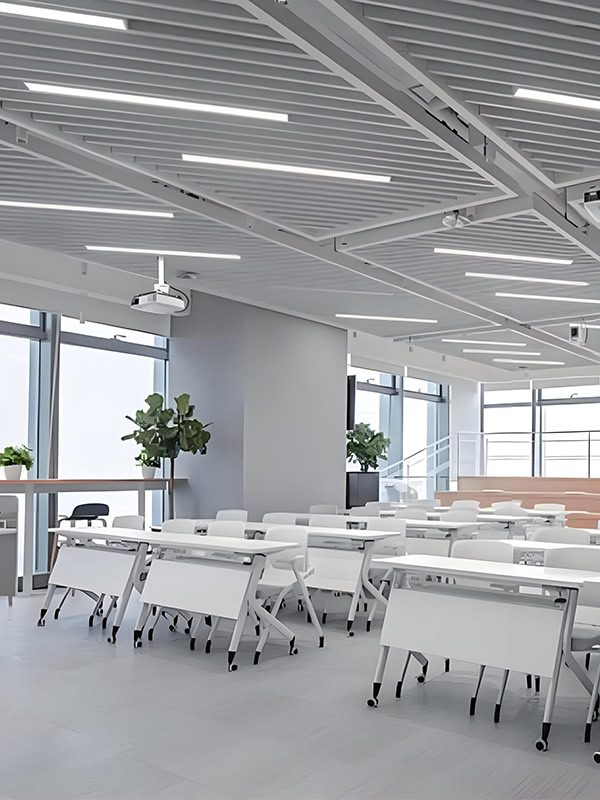

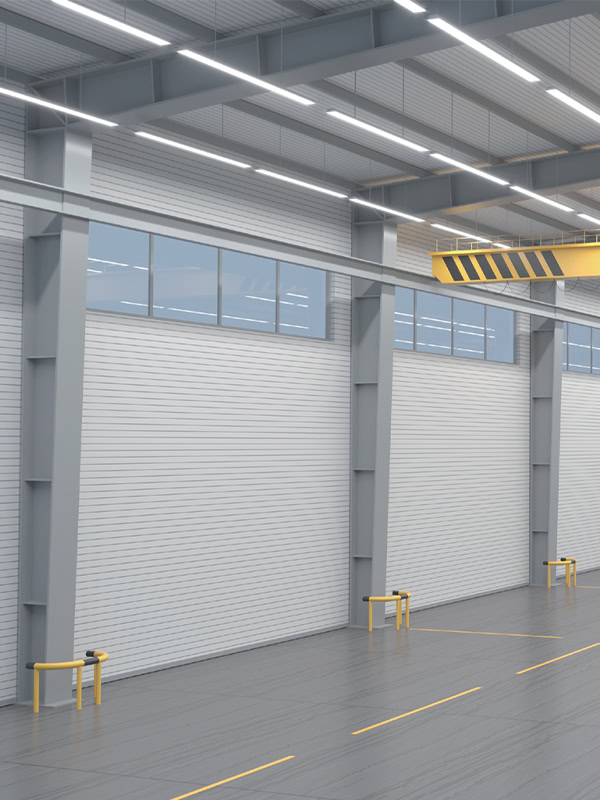

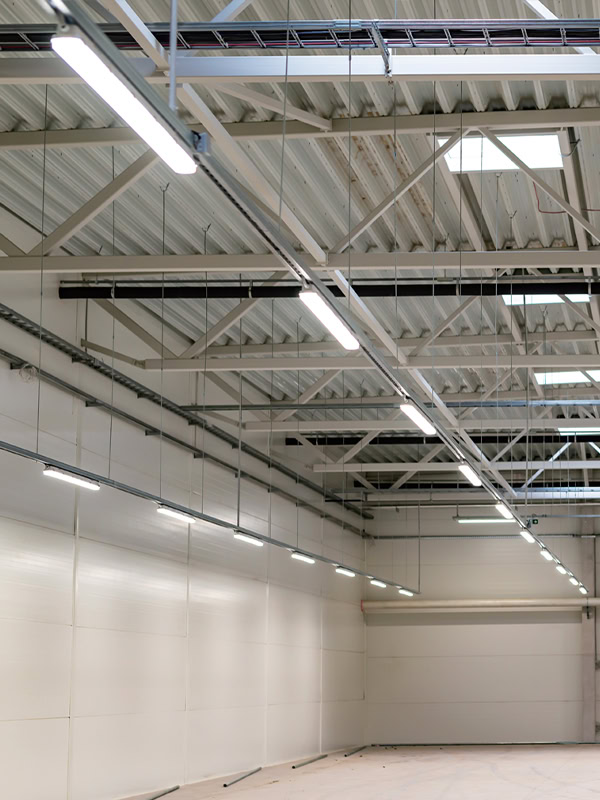

Applications In Different Scenarios

Whether it is to illuminate the tall shelves in the warehouse or the complex production lines in the factory, avoid local overbrightness or dimness.
A larger light-emitting surface leads to a more uniform light distribution, suitable for large industrial plants, underground transportation hubs, high-shelf warehousing and logistics, and large supermarkets

Frequently Asked Questions

Most frequent questions and answers

How many years warranty you provided?

We can provide 5 years warranty for the whole light body.

What driver you used in led linear batten lights?

We use well-known brands, Tridonic, Eaglerise of power supply.

Can i get a sample?

We can provide customized samples for you, and if you have any adjustment, we can make for you.

Do you offer after-sales service for led linear batten lights?

We provide perfect after-sales service, including product warranty, technical support, return service, etc., to protect your rights and interests.
