LED Tri Proof Lamp - TF Series

LED tri proof lamp TF series adopts high-efficiency LED technology and is an energy-saving and high-brightness anti-LED lamp.
It is equipped with an aluminum heat sink and has an excellent heat dissipation effect. Its small size makes it suitable for office Spaces, medical facilities, retail stores.

Features:

-Wattage: 20/40/60 W

-IP65, CRI>80, 120°

-Light efficiency: 160lm/W

-AC200-240V 50/60Hz

-Standard /0-10V DlM/Triac Dim/DALI dimmable

-Self-test emergency with LifePo4 battery optional

-PC cover + Aluminum housing

-CREE/OSRAM LEDs

-Eaglerise/Tridonic drivers

-3000K/4000K/5000K/5700K/6000K/6500K

-Life span: Ta40℃ L70> 54000 hours

-Warranty: 5Years

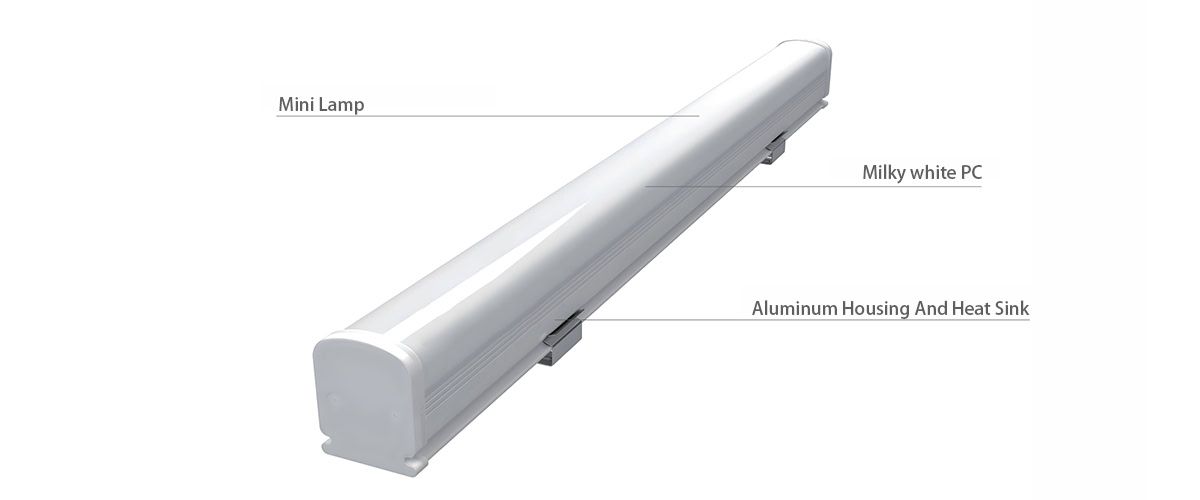

LED Tri Proof Lamp High Quality Material

Equipped with aluminum heat sinks, it has excellent heat dissipation performance, ensuring the stable operation of the lamp,
effectively extending its service life, and reducing the frequency of faults and replacements caused by heat dissipation issues.

Dimming Function And Control System Optional

Set the daylight threshold at 25Lux. When the ambient light intensity reaches or exceeds 25Lux, it is considered to have sufficient light.
When it is below 25Lux, it is regarded as insufficient light. When the lamp detects human movement, the light will switch from a low-brightness state to full brightness (100% brightness).

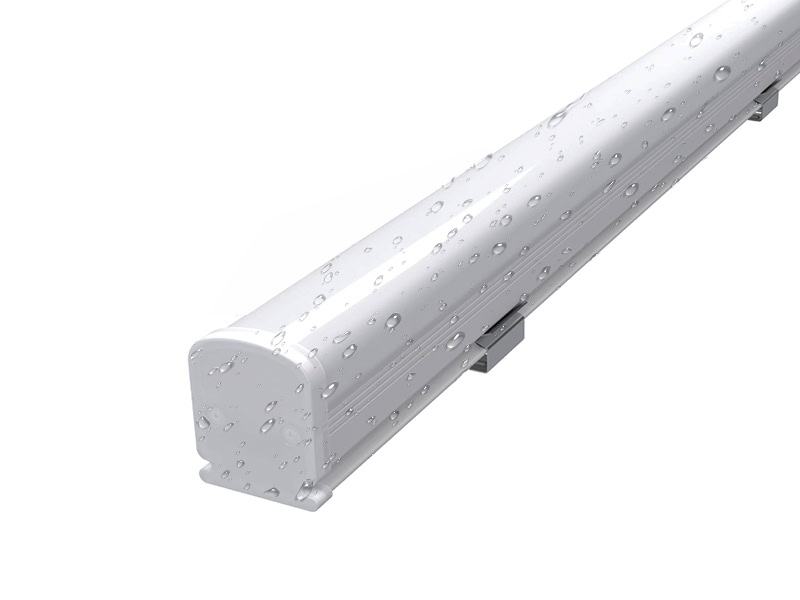

IP65 LED Tri Proof Light

Commercial light lP65 dust & waterresistant,
lKl0 impact resistant, operates inwide temperatures (-20°C to +40°C).

Emergency Battery Optional

Optional lithium iron phosphate (LiFePO4) batteries are available,
featuring self-check and emergency response functions.

Equipped With Sensors For Optional

Equipped with advanced sensing technology, it precisely covers the detection range, ensuring no blind spots in sensing and achieving an intelligent lighting experience.
Supports flexible adjustment from 25% to 100%. Whether it’s a quiet office, a busy corridor, or a frequently accessed warehouse space, the lighting control can be customized as needed.

Drivers Used In LED Tri Proof Lamp

For the core components of lighting products, such as power supplies, well-known industry brands like Tridonic and Eaglerise are used.
From high efficiency and energy conservation to stable operation, from long-lasting durability to safety and reliability, every link demonstrates quality.

Datasheet Of LED Tri Proof Lamp

Model No.	GS-TF600-20W	GS-TF1200-40W	GS-TF1500-60W
Power	20W	40W	60W
Material	Aluminum housing and PC cover
Light efficiency	160lm/W
Driver Brand	Eaglerise/Tridonic
Voltage	AC200-240V
LEDs	SMD2835
PF	>0.95
LED Lifespan	Ta 40°C L70>54000 hours
IP	IP65
IK	IK10
CRI	>80
CCT	3000K/4000K/5000K/5700K/6000K/6500K
Size	6004452	12004452	15004452
Warranty	5 Years

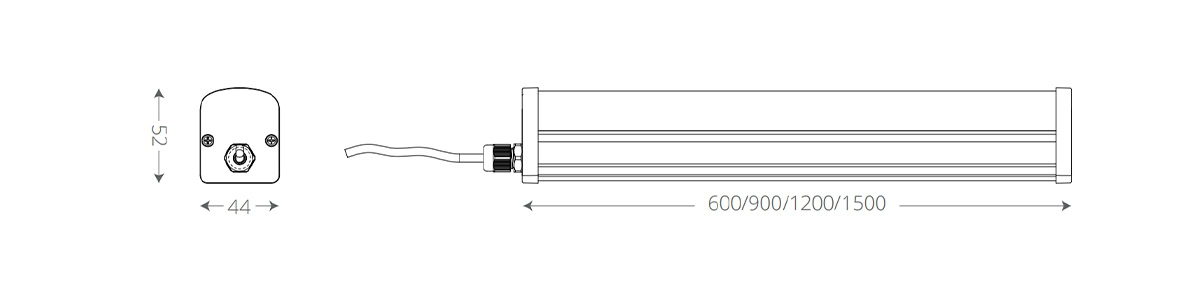

LED Tri Proof Light Sizes

High Light Efficiency And 120° Beam Angle

The TF series is equipped with high-efficiency LED technology, with a luminous efficacy of up to 160lm/W.
It adopts a 120-degree large-angle lighting design, allowing a single lamp to cover a wider space and effectively reducing the number and cost of lamp installations.

3 Kinds Of Ways Of Tri Proof Lights Installations

Tri proof lights have 3 ways of installation: surface mount, wall mount and suspend mount.

We offer corresponding accessories to meet your needs. Different installation methods are applicable to different scenarios.

Small Sized Design Applications

Small-sized design, easy to install and not taking up too much space
It can be flexibly adapted to various scenarios such as office Spaces, medical facilities, and retail stores, easily creating a comfortable, safe and bright lighting environment.

Frequently Asked Questions

Most frequent questions and answers

How many years warranty you provided?

We can provide 5 years warranty for the whole light body.

What driver you used in led tri proof lamp?

We use well-known brands, Tridonic, Eaglerise of power supply.

Can i get a sample?

We can provide customized samples for you, and if you have any adjustment, we can make for you.

Do you offer after-sales service for your tri proof lamps?

We provide perfect after-sales service, including product warranty, technical support, return service, etc., to protect your rights and interests.
