LED Batten Light - TL Series

LED batten light TL series is a weatherproof luminaire,1:1 replace traditional lamps with more affordable price, better quality and more energy saving.

It available in various sizes and wattages from 600mm 1200mm and 1500mm.

Features:

-Wattage: 20/40/50 W

-IP65, CRI>80

-Light efficiency: 130/150/170lm/W

-AC200-240V 50/60Hz

-PC Material
-Standard /0-10V DlM/Triac Dim/DALI dimmable

-CREE/OSRAM/ LEDs

-Eaglerise/Tridonic/PHILIPS drivers

-3000K/4000K/5000K/5700K

-Warranty: 5Years

Special Designs Of LED Batten Light

20W/40W/50W, We provide 3 series of batten lights. Standard series, PRO series and Max Series.

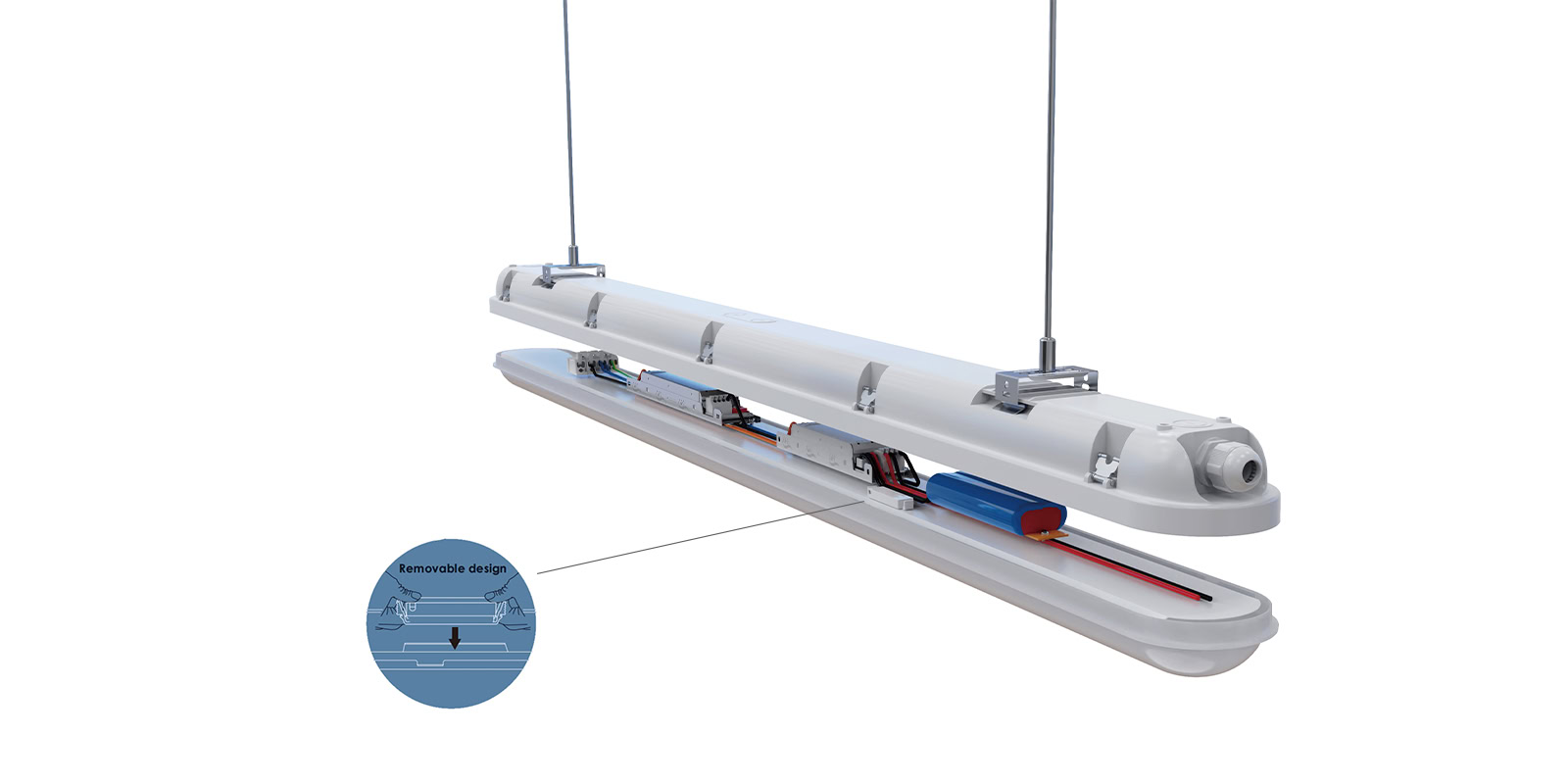

If the sensor or lamp body is damaged, it can be repaired separately to reduce later maintenance costs.

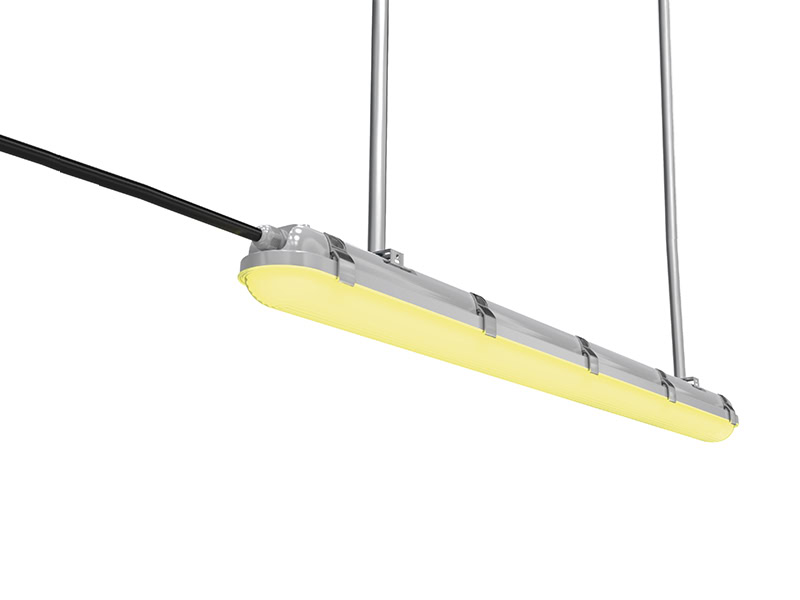

High Efficiency Series LED Batten Light

High output LEDs series for option, it can up to 170lm/w efficiency.

Energy consumption is relatively low, and can save electricity for a long time. Suitable for use in places requiring high brightness,

IP65 Dust And Waterproof LED Batten Light

IP65 protection reduces oxidation and corrosion of internal components and extends service life.
Completely dust-proof, dust will not enter the interior of the lamp, avoid short circuit or light decay, suitable for dusty places (such as wood processing plants, flour mills).
Waterproof, can withstand low-pressure water jet in any direction, suitable for outdoor, humid environment (such as car wash, canopy, tunnel)

IK10 Grade Protect Internal Components

The three anti-lamp has IP10 protection grade and adopts the material combination of aluminum + PC cover.
The aluminum alloy shell is resistant to extrusion and deformation, and protects the internal components from external damage.
Anti-collision design to avoid accidental damage during forklift and equipment handling. It is suitable for industrial and storage scenarios where physical collisions may occur.

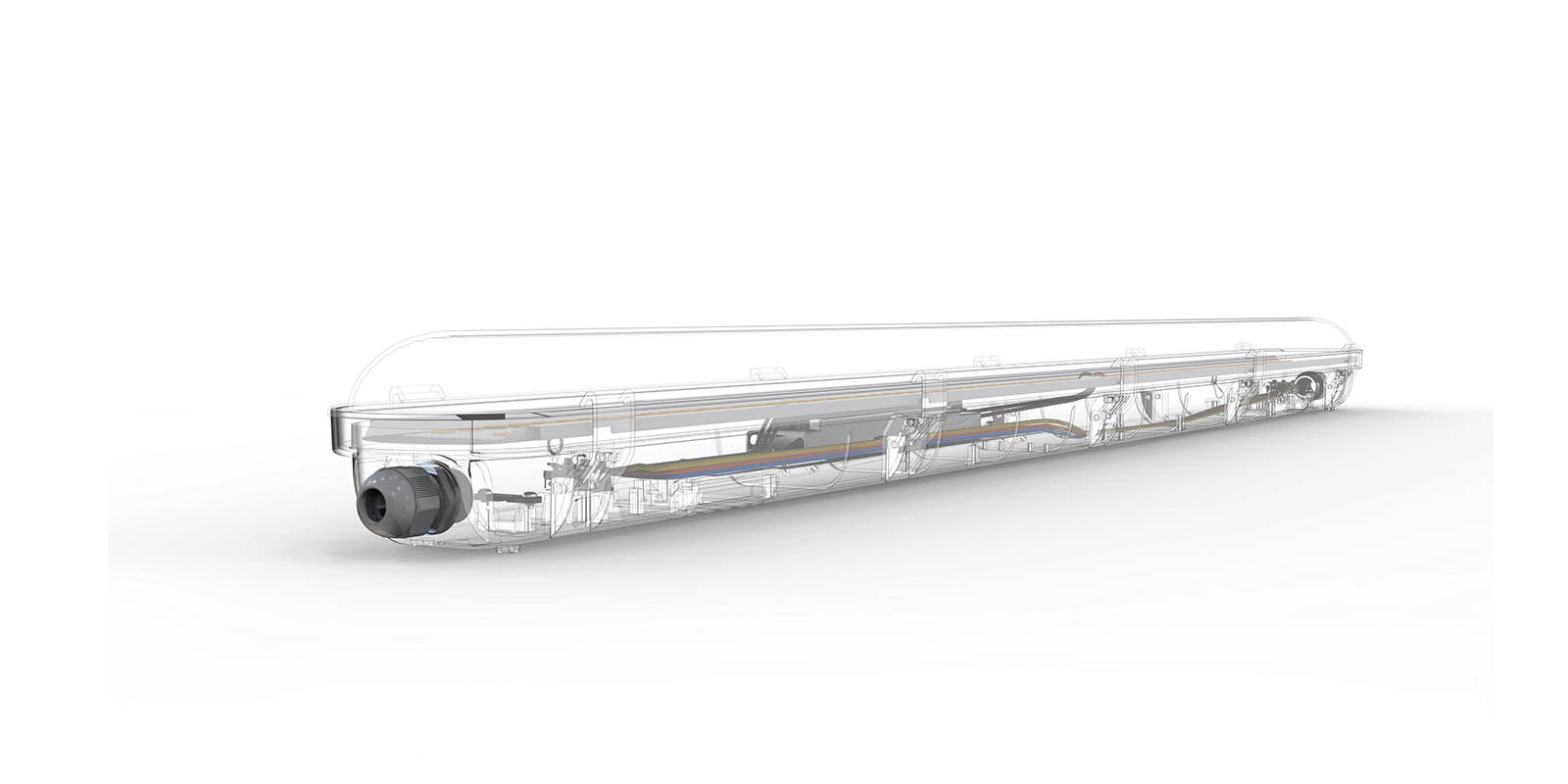

Professional Dimming Ways For Option

This product uses DALI-2.0 standard dimming protocol, compatible with DT6, DT8, D4i, to achieve real digital intelligent lighting control.
Support 0.1%-100% stepless dimming, no stroboscopic, to meet high-end commercial and industrial lighting needs

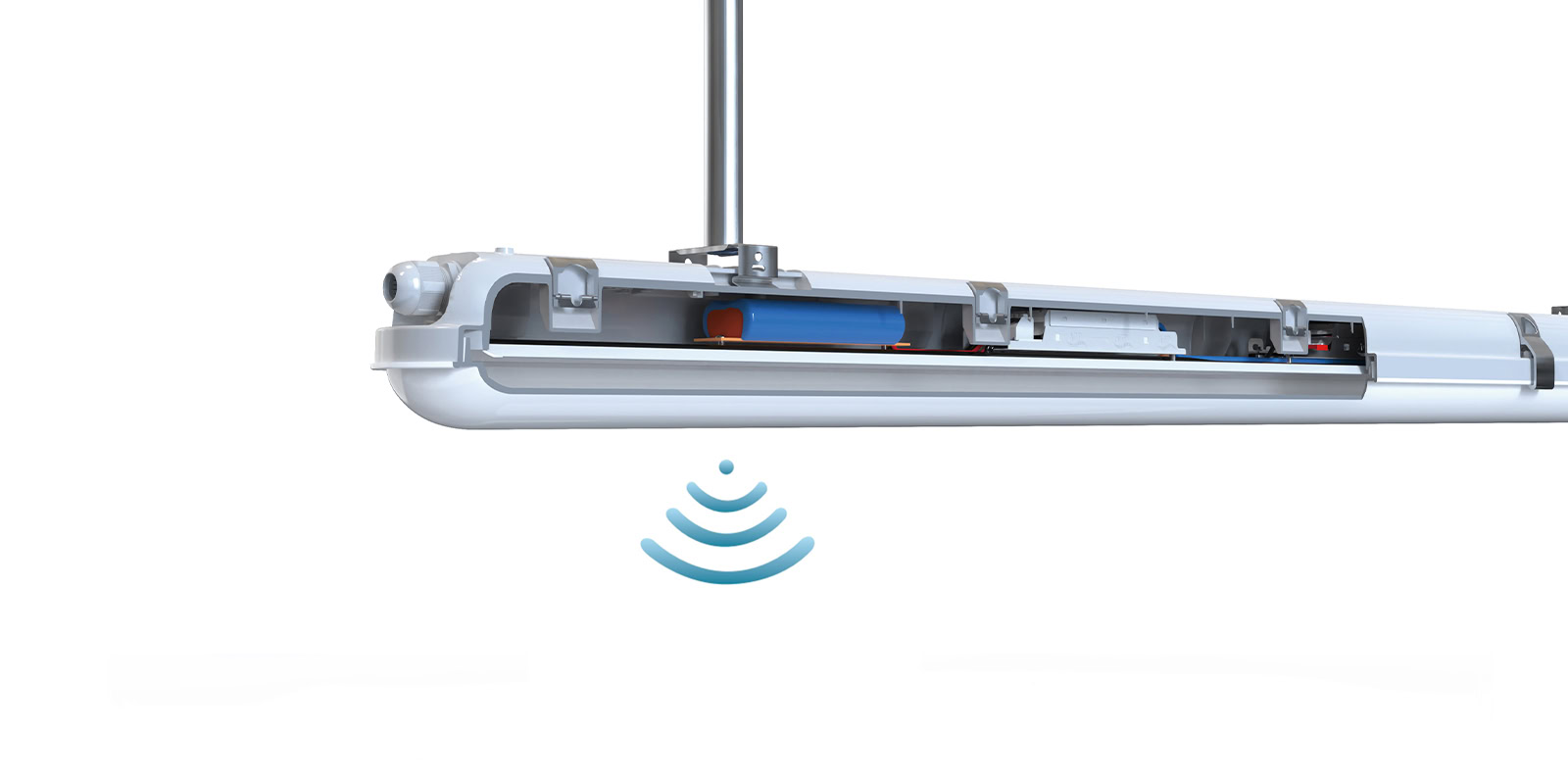

Integrated Microwave Senor And Emergency LED Batten

5.8G microwave induction dimming is highly integrated with the emergency lighting system
High frequency microwave sensor, strong penetration, can cover plastic/glass shell, wide detection range, the maximum radius of up to 8-12 meters, and no blind area.

Datasheet Of Batten Light TL Series

Model No.	GS-TL600-20W	GS-TL1200-40W	GS-TL1500-50W
Power	20W	40W	50W
Material	PC+PC
Light efficiency	Standard:130lm/W Pro:150lm/W Max:170lm/W
Driver Brand	Eaglerise/Tridonic
Voltage	AC200-240V
LEDs	SMD2835
PF	>0.95
LED Lifespan	>50000 Hours
IP	IP65
IK	IK10
CRI	>80
CCT	3000K/4000K/5000K/5700K
Size	L600xW95xH80	L1200xW95xH80	L1500xW95xH80
Warranty	5 Years

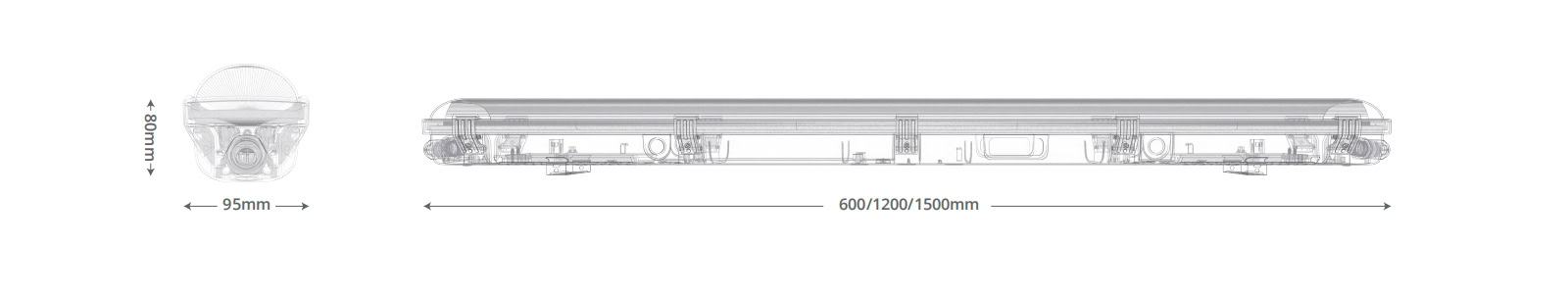

Sizes Of LED Batten Light

Modern Lighting Solutions using Batten Light

It can be used in many scenarios, such as industrial plants, warehouses, underground parking lots, tunnels, ship terminals, food processing plants, chemical plants, sewage treatment plants, etc.
Its high sealing and corrosion resistant design can adapt to complex environments such as wet, dusty and corrosive gases to ensure stable and safe lighting

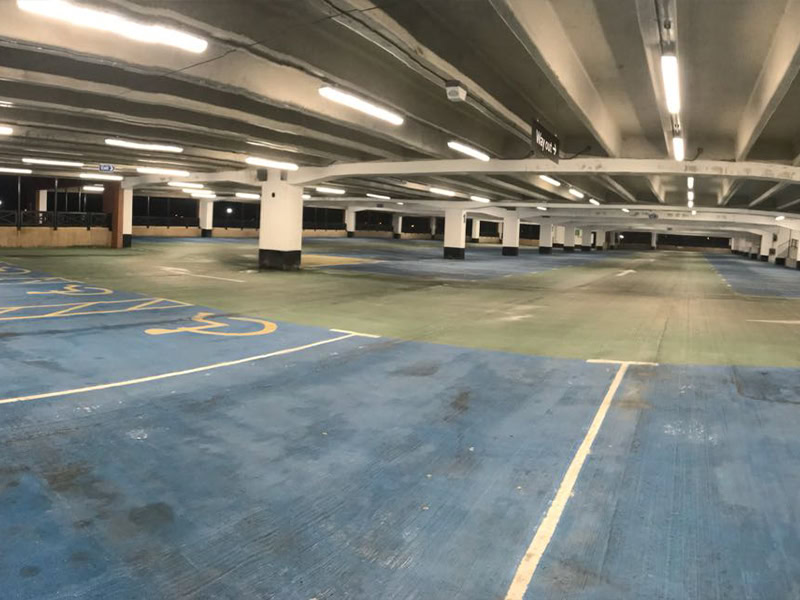

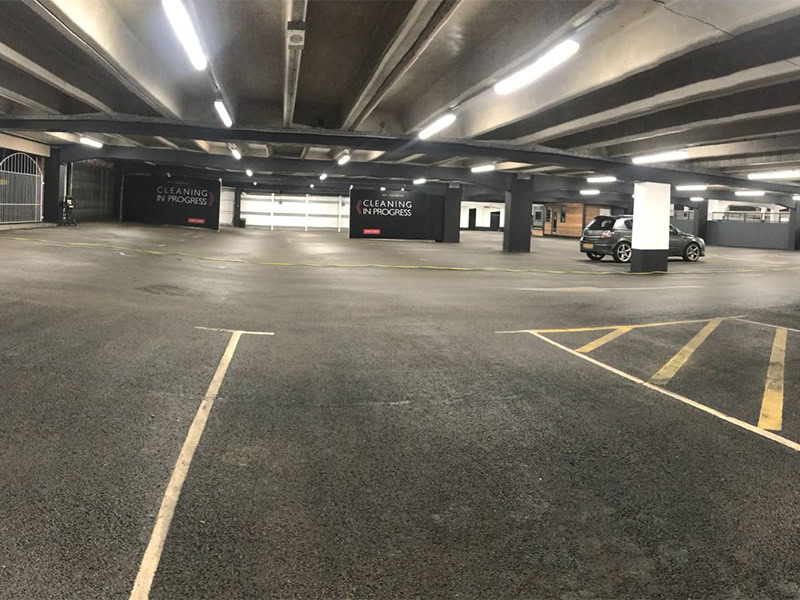

LED Batten Light Project Case In UK

Our tri-proof lights are successfully used in UK underground parking garage.
The high brightness and low energy consumption design improves the safety and energy saving of the parking lot.

Frequently Asked Questions

Most frequent questions and answers

How many years warranty you provided?

We can provide 5 years warranty for the whole light body.

What driver you used in tri proof light?

We use well-known brands, Tridonic, Eaglerise of power supply.

Can i get a sample?

We can provide customized samples for you, and if you have any adjustment, we can make for you.

Do you offer after-sales service for your led batten lights?

We provide perfect after-sales service, including product warranty, technical support, return service, etc., to protect your rights and interests.
