UFO LED High Bay - U10 Series

UFO LED high bay light has complete range of products, power options from 60W to 240W.
Compatible with inductive function, DALI dimmable, emergency kits.

Features:

-Wattage: 60/100/150/200/240W

-IP65, CRI>80, 60°/90°/120°

-Light efficiency: 150lm/W, 170lm/W, 190lm/W SDCM<3 steps

-AC120-277V

-0-10V DlM/DALI dimmable

-Emergency kits function

-PC + Aluminum

-Lumileds light source

-MOSO/Sosen/Philips drivers

-3000K/4000K/5000K/5700K/6500K

-Life span: >50000 Hours

-Warranty: 5Years

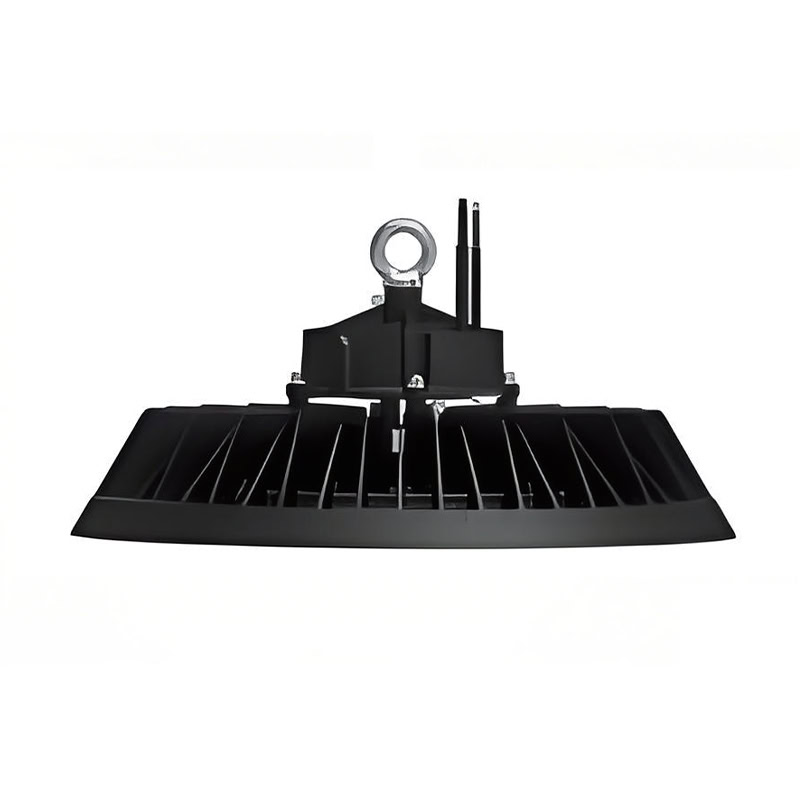

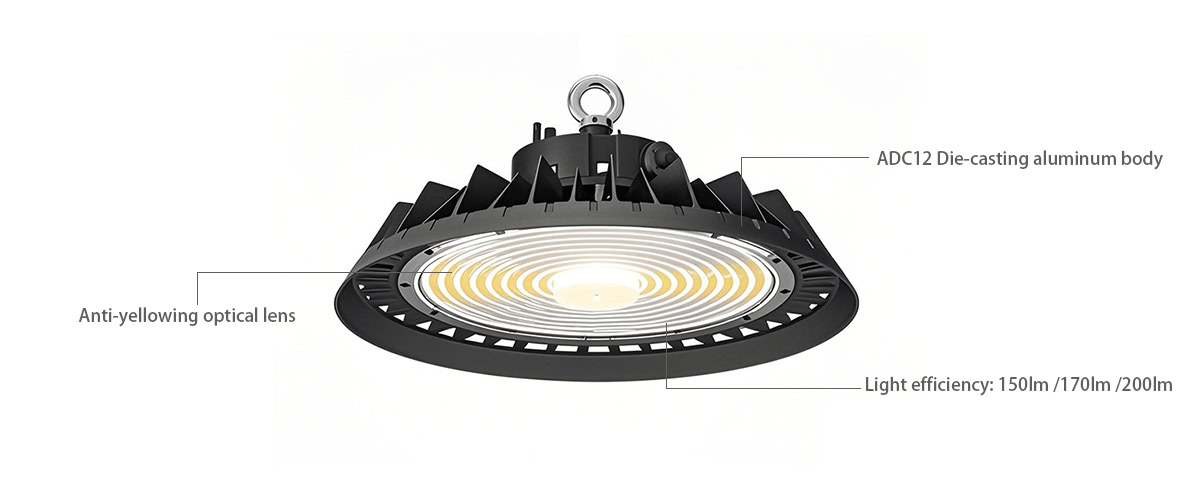

UFO LED High Bay Light Strong Durability

The lamp body shell is made of ADC12 material and treated with electrostatic spraying on the surface. The protection level reaches IP65/IK08.
Leds have a long lifespan. Those with a 150/170lm luminous efficacy can last up to 50,000 hours, and those with a 200lm luminous efficacy can last up to 100,000 hours

Drivers And Dimmable Ways For Option

Choose a well-known power supply like MOSO,Sosen,Philips brand. It features highly stable current output characteristics and can effectively prevent damage to lamps caused by current fluctuations.
Supports 0-10V and DALI dimming modes. It can automatically adjust according to natural light and human activities to achieve precise lighting and energy conservation.

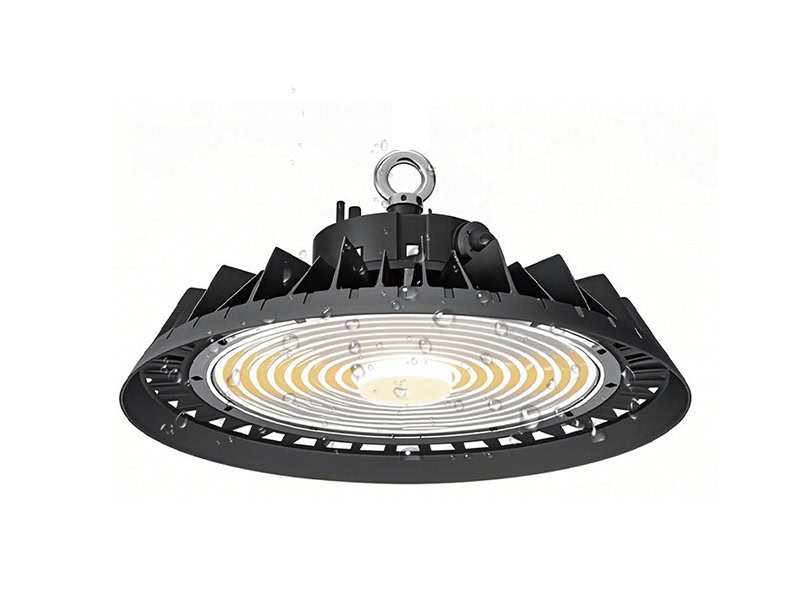

IP65 Water Proof Protection Grade

It features an outstanding IP65 protection function, providing a solid guarantee for its stable operation in various complex environments.
Not only does it adapt to various harsh environments, but it also reduces maintenance costs and the frequency of replacing lamps

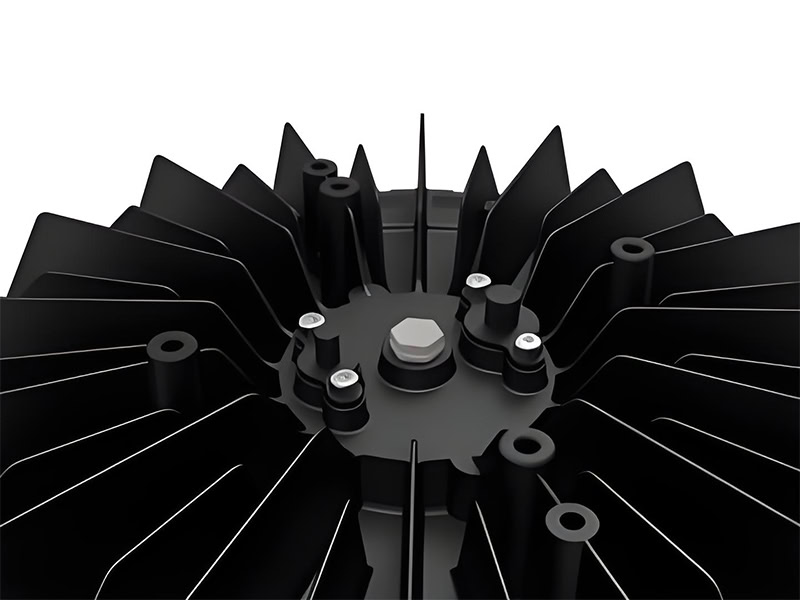

Screw-in breather nut

Adopt a screw-in design
Convenient for installation and disassembly

Bracket And Lampshade Combined Design

Modular design
It is convenient to install and replace according to actual needs

Emergency Kits Function For UFO LED High Bay Light

The lights support emergency kits for option, and provide 30mins, 60 mins and 90mins selected.

In line with industrial safety standards, suitable for warehouses, workshops, underground mines and other key places.

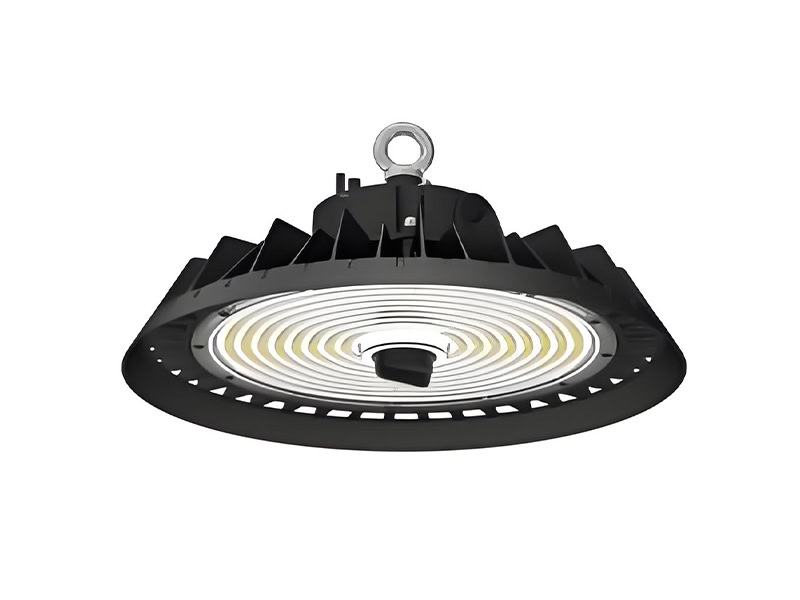

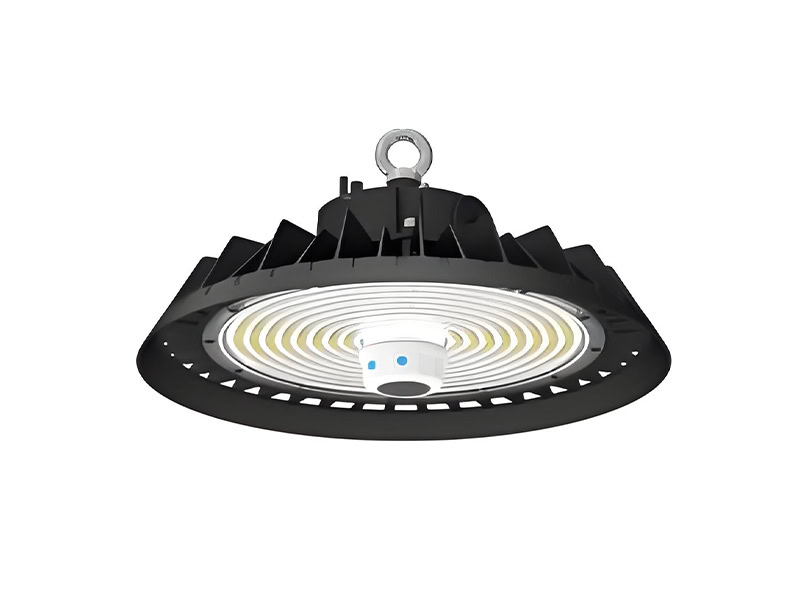

Sensors Optional UFO LED High Bay

It can be optionally equipped with intelligent control functions such as infrared sensing,
microwave sensing and ZIGBEE to achieve intelligent lighting management.

Microwave Sensor Optional

ZHAGA Induction Base

Beam Angles Of LED High Bay Lights

The unique optical light distribution design achieves uniform illumination through the distribution of light at different angles such as 60°, 90°, and 120°, effectively avoiding lighting dead zones.
In industrial environments, providing workers with clear and shadow-free working light can enhance work efficiency and reduce the risk of safety accidents caused by insufficient lighting.

Datasheet Of UFO High Bay

Model No.	GSH-60W-U10	GSH-100W-U10	GSH-150W-U10	GSH-200W-U10	GSH-240W-U10
Power	60W	100W	150W	200W	240W
Material	Aluminum housing and PC lens
Light efficiency	150lm/W 170lm/W 200lm/W
Driver Brand	MOSO, Sosen, Philips
Beam angle	60°/90°/120°
Voltage	AC120-277V
LEDs	SMD2835
PF	>0.95
LED Lifespan	>50000 hours
IP	IP65
IK	IK10
CRI	>80
CCT	3000K/4000K/5000K/5700K/6000K/6500K
Size	Φ200×149	Φ240×152	Φ280×155	Φ320×159	Φ360×172
Warranty	5 Years

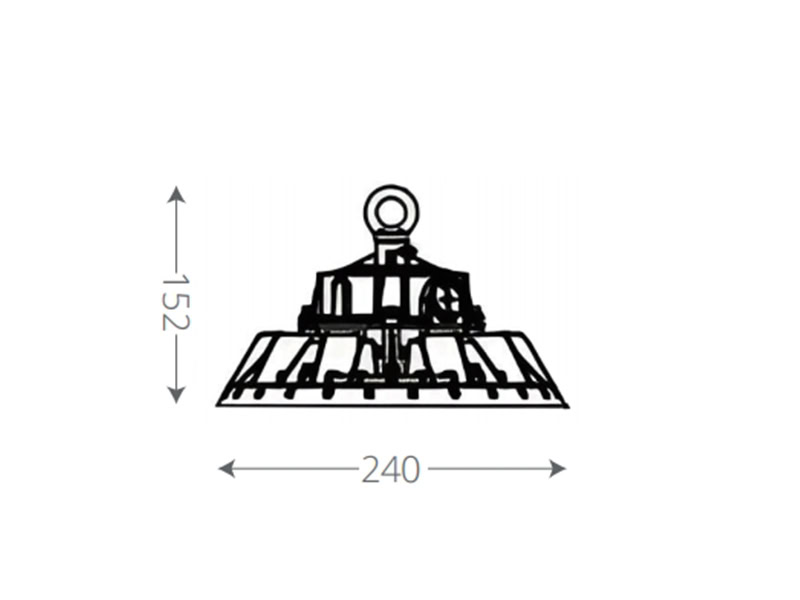

LED High Bay Lights Sizes

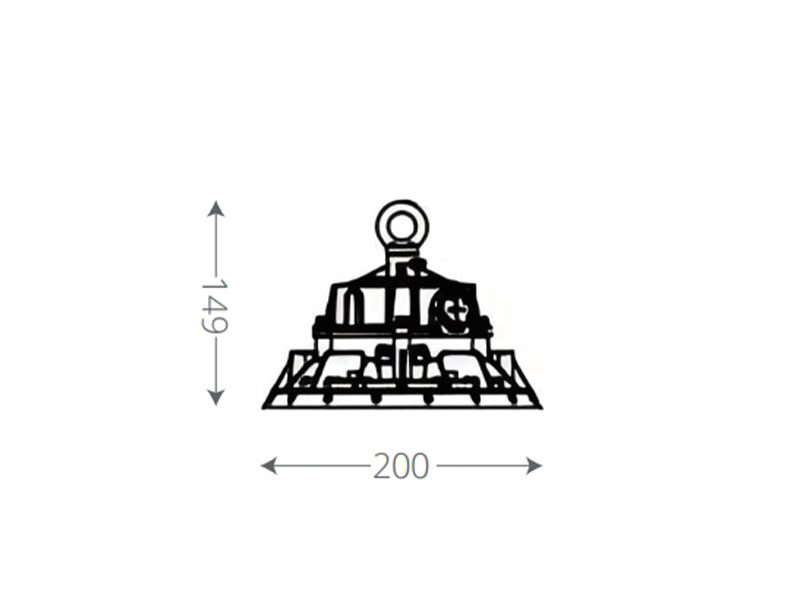

60W

100W

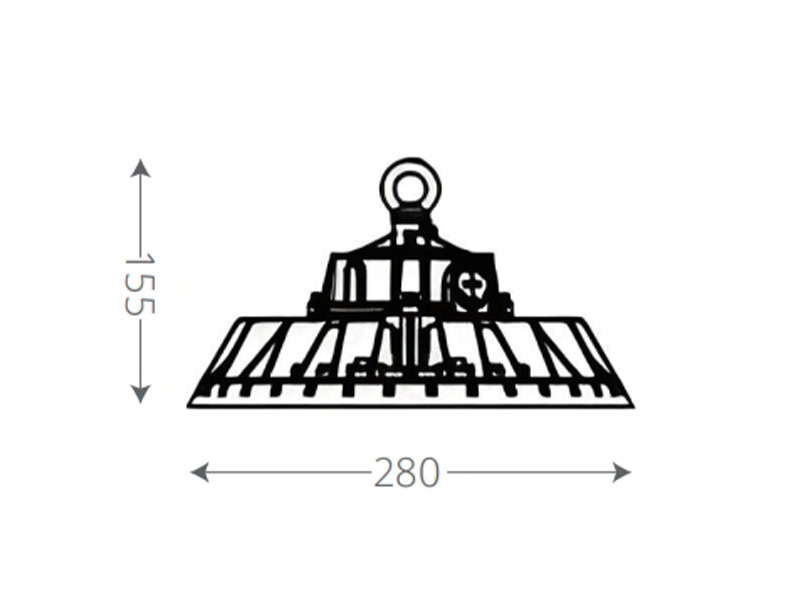

150W

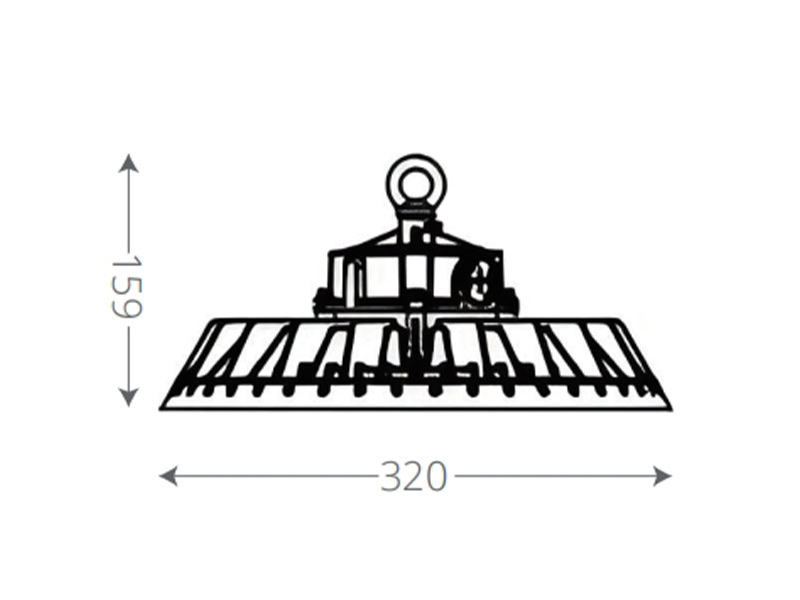

200W

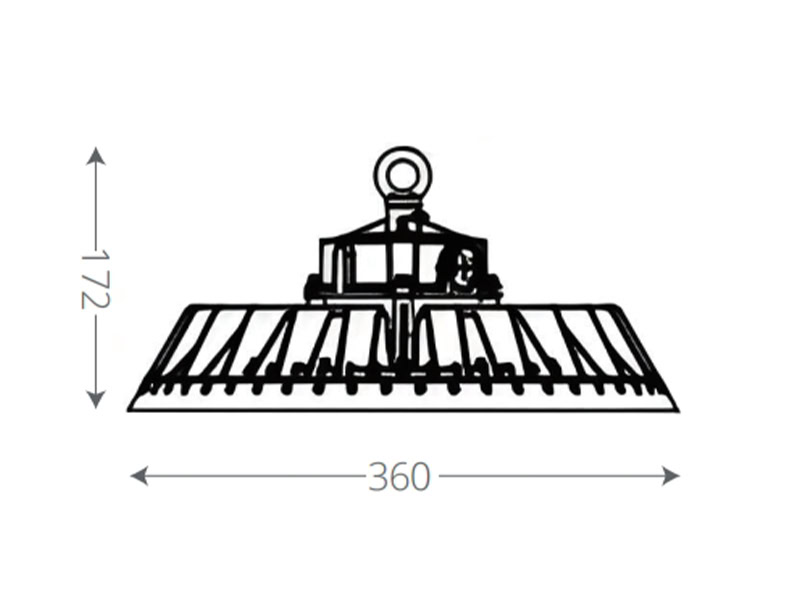

240W

Accesories For LED High Bay Lights Option

It is equipped with a standard hanging ring, and various installation accessories such as hooks, brackets, and 3/4 pipe thread adapters are available as options.

U Bracket

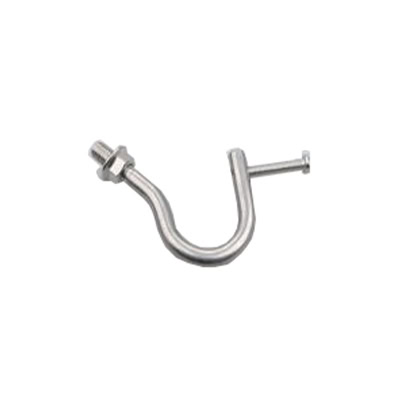

Hanger

M10 to 3/4 pipe thread

Stainless Steel Hang Chains

Intelligent Control Accesories

Equipped with microwave sensor, infrared body sendor, Zhaga sensor for option, and wireless remote control mode.

Microwave induction

Microwave Sensor – Bluetooth Version

Infrared body sensing

Zhaga Base Sensor

Inductive remote

Equipped With Lamp Fittings For Option

A variety of accessories such as lampshades, reflectors and lenses can be optionally equipped to meet different installation and lighting effect requirements.

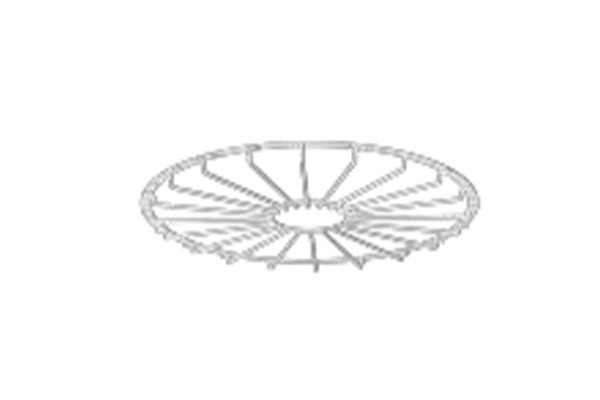

Safe Guard

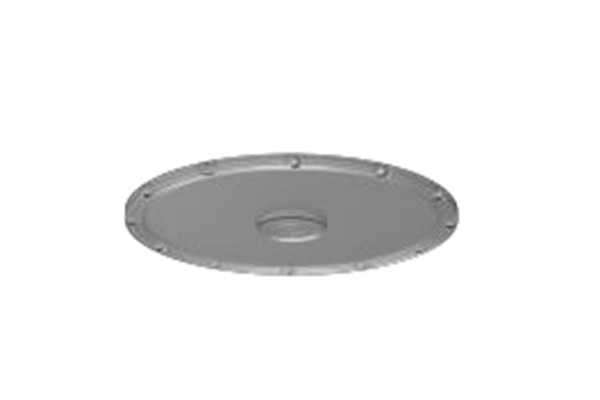

60°/90° PC Lens

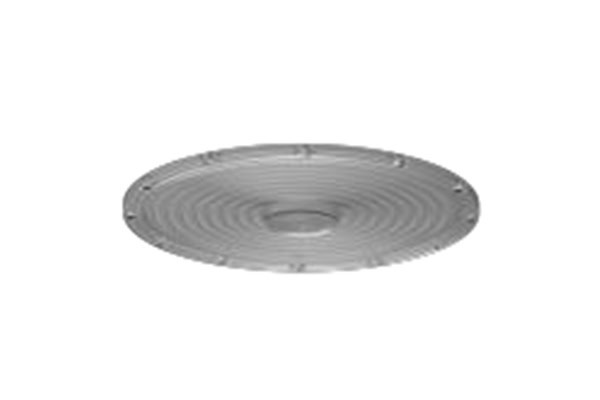

120° PC Lens

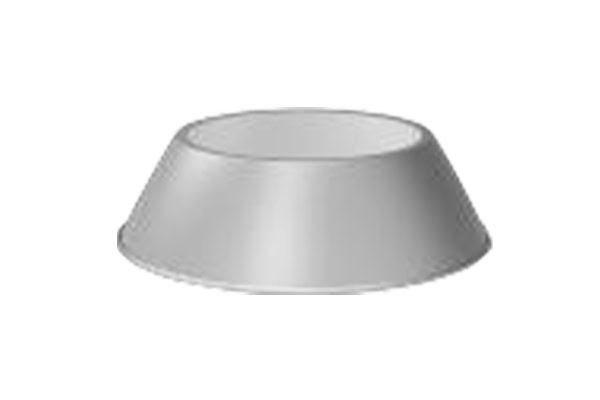

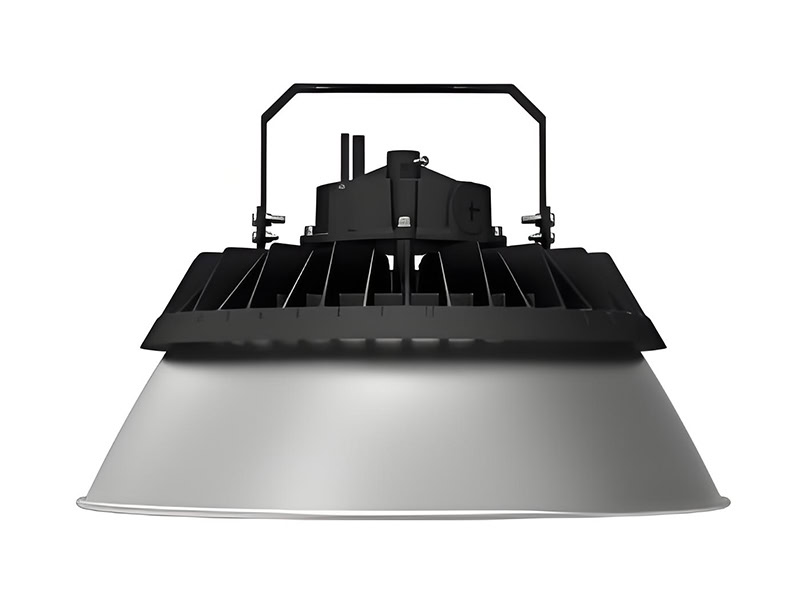

Aluminum Reflector

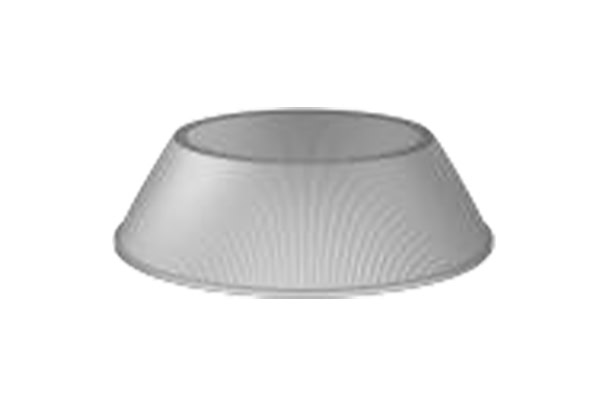

PC Reflector

Applications In Different Scenarios

In industry, in factory workshops such as automobile manufacturing and mechanical processing, it can provide lighting for production operations. In all kinds of warehouses, it is convenient for the search and handling.
In the business field, supermarkets use it to illuminate the shelves, and gymnasiums rely on it to meet their lighting needs. In terms of public facilities, there is an underground parking lot.

Frequently Asked Questions

Most frequent questions and answers

How many years warranty you provided?

We can provide 5 years warranty for the whole light body.

What driver you used in led high bay light?

We use well-known brands, MOSO,Sosen, Philips power supply.

Can i get a sample?

We can provide customized samples for you, and if you have any adjustment, we can make for you.

Do you offer after-sales service for your led high bay lights?

We provide perfect after-sales service, including product warranty, technical support, return service, etc., to protect your rights and interests.
