UFO High Bay Light – U8 Series

  1. Home
  2. Products
  3. LED Indoor Lights
  4. High Bay Lights
  5. UFO High Bay Light – U8 Series

UFO High Bay Light - U8 Series

UFO high bay light U8 series is high efficiency and high cost performance effective.

Features:

-Wattage: 100/150/200/240W

-IP65, CRI>80, 60°/90°/120°

-Light efficiency: 150lm/W, 170lm/W, 190lm/W SDCM<3 steps

-AC120-277V

-0-10V DlM/DALI dimmable

-Emergency kits fuction

-PC + Aluminum

-Lumileds brand light source

-MOSO, Sosen, Philips drivers

-3000K/4000K/5000K/5700K

-Life span: >50000 Hours

-Warranty: 5Years

Send Inquiry
WhatsApp
Wechat

UFO High Bay Light High Quality Material

The body is made of ADC12 die-cast aluminum, and the lamps are equipped with high-transparency and yellow-resistant PC lenses.

U8 UFO – style light fixture features a smart thermal design. Its hollow structure enables effortless heat dissipation, ensuring stable performance and a longer lifespan.

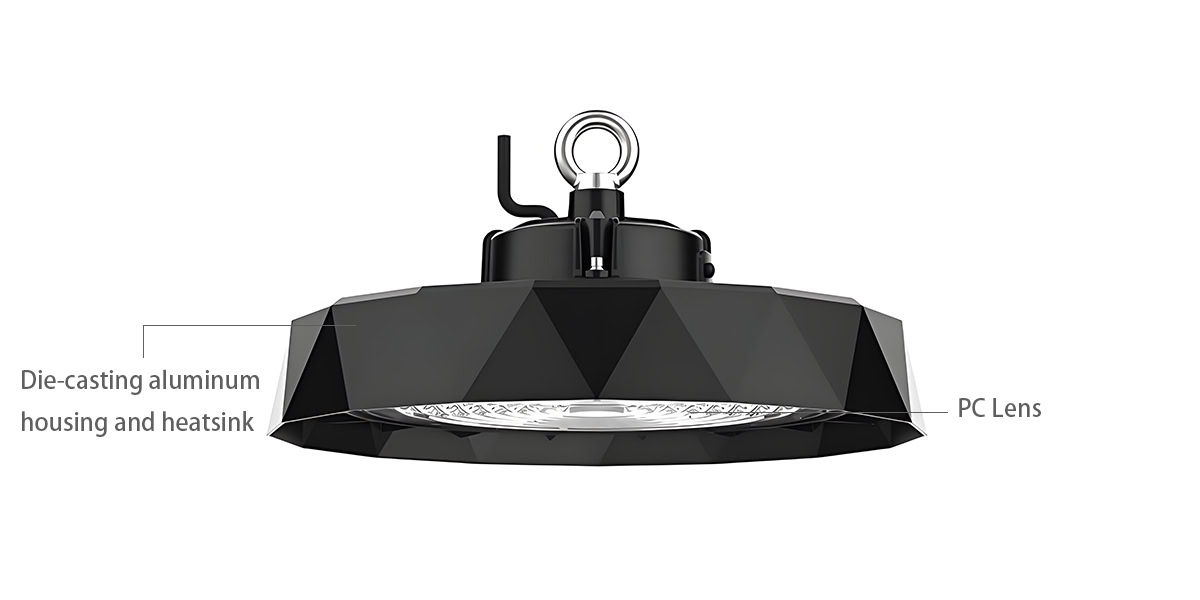

structure of high bay U8 series

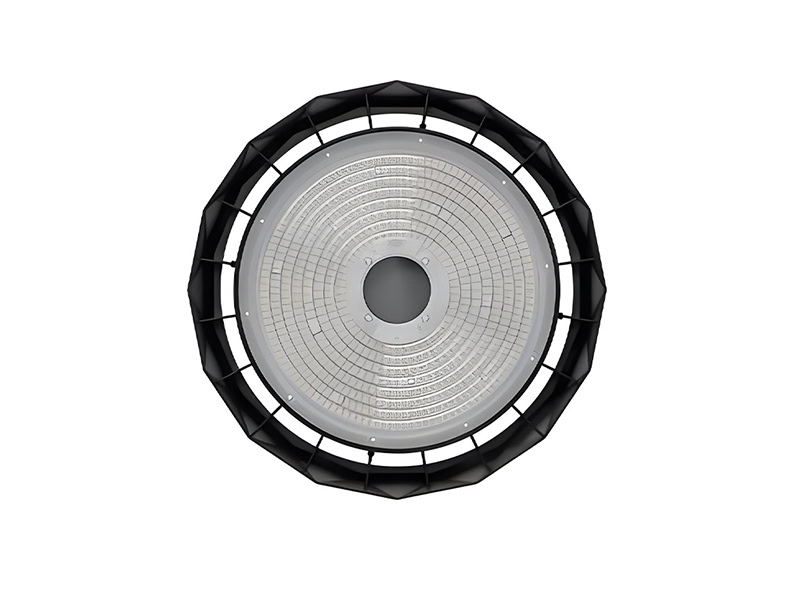

led high bay ufo light source

Light Source With High Efficiency

The SMD3030 light source utilized in our product is sourced from the renowned Lumileds brand. Renowned for its high – brightness and high – luminous – efficiency characteristics,
this leds significantly enhances lighting efficiency while concurrently reducing energy consumption.

Drivers For LED High Bay Light

We opt for well – established power supply brands such as MOSO, Sosen, or Philips.These brands’ power supplies are recognized for their highly stable current output.
This stability is crucial as it can efficiently safeguard from damage induced by current fluctuations.

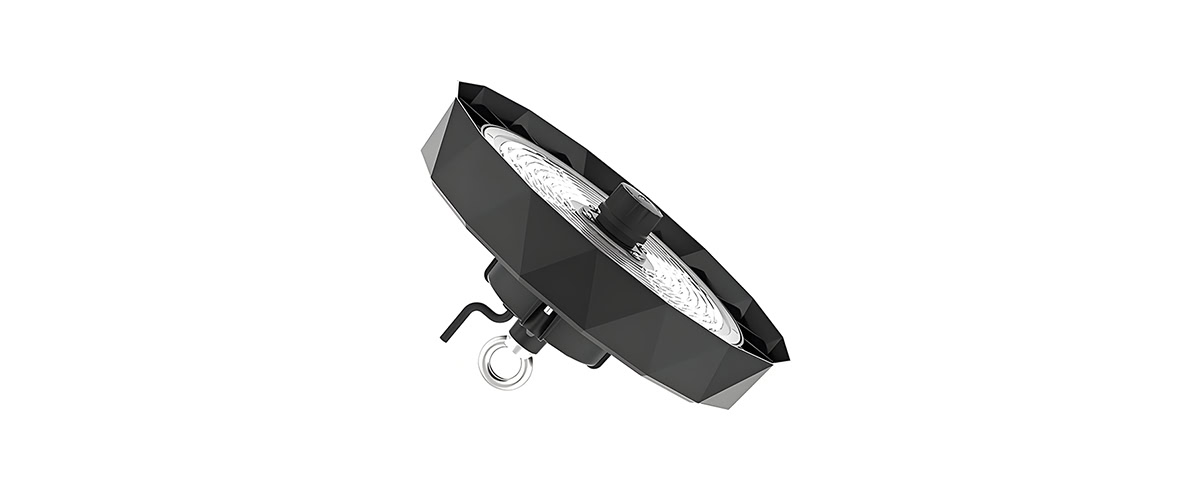

Dimmable Ways Optional UFO High Bay

Supports 0-10V and DALI dimming modes.
It can automatically adjust according to natural light and human activities to achieve precise lighting and energy conservation.

Emergency Kits Function For UFO High Bay Light

The lights support emergency kits for option, and provide 30mins, 60 mins and 90mins selected.

In line with industrial safety standards, suitable for warehouses, workshops, underground mines and other key places.

high bay lights emergency kits
microwave sensor of high bay

Microwave Sensors Optional

It can be equipped with a microwave sensor and has intelligent sensing function.
When someone or a moving object enters the sensing area, the lamp lights up automatically.
After people leave or objects stop moving for a period of time, the lamps will automatically go out or be adjusted to a low brightness state.

Beam Angles Of LED High Bay Lights

The unique optical light distribution design achieves uniform illumination through the distribution of light at different angles such as 60°, 90°, and 120°, effectively avoiding lighting dead zones.
In industrial environments, providing workers with clear and shadow-free working light can enhance work efficiency and reduce the risk of safety accidents caused by insufficient lighting.

led ufo high bay light beam angles

Datasheet Of UFO High Bay

Model No. GSH-100W-U8 GSH-150W-U8 GSH-200W-U8 GSH-300W-U8
Power
100W
150W
200W
240W
Material
Aluminum housing and PC lens
Light efficiency
150lm/W 170lm/W 190lm/W
Driver Brand
MOSO, Sosen, Philips
Beam angle
60°/90°/120°
Voltage
AC120-277V
LEDs
SMD2835
PF
>0.95
LED Lifespan
>50000 hours
IP
IP65
IK
IK10
CRI
>80
CCT
3000K/4000K/5000K/5700K
Size
Φ262×175
Φ301×175
Φ350×175
Φ350×175
Warranty
5 Years

High Bay Lights Sizes

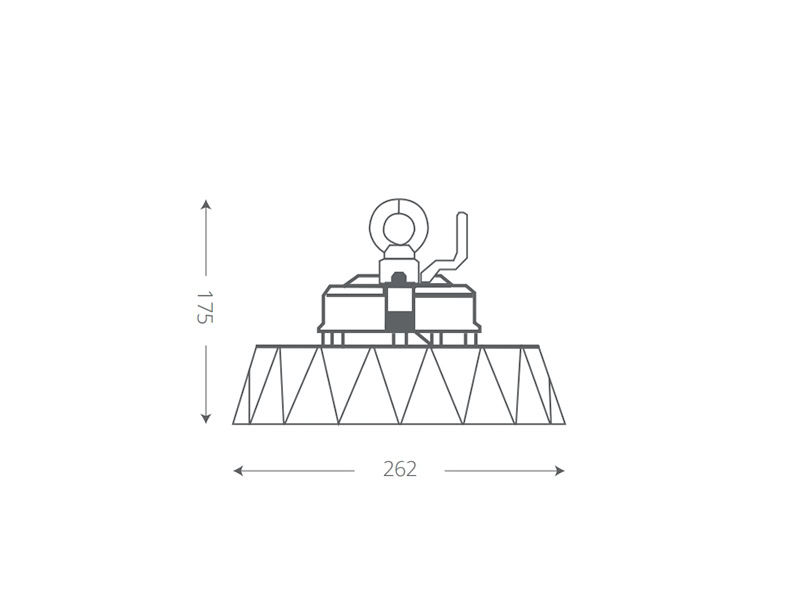

size of UFO led high bay

100W

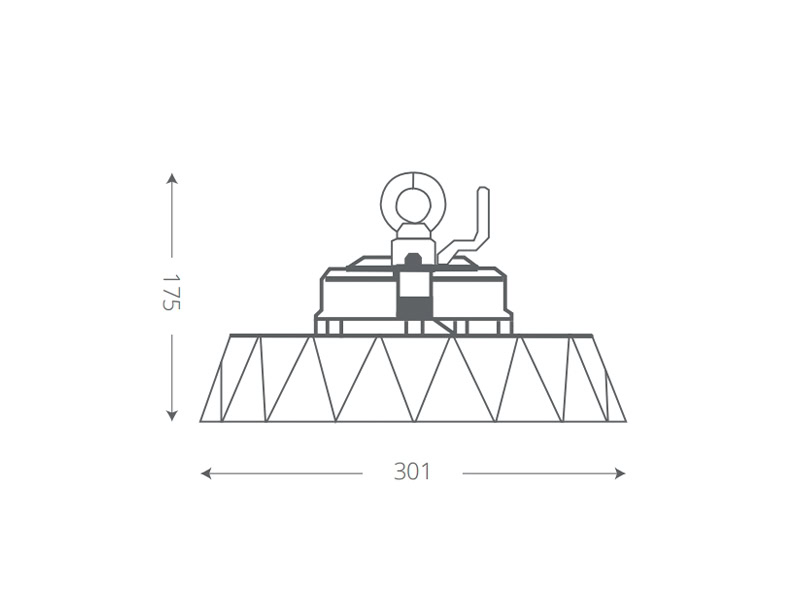

size of UFO led high bay 301mm

150W

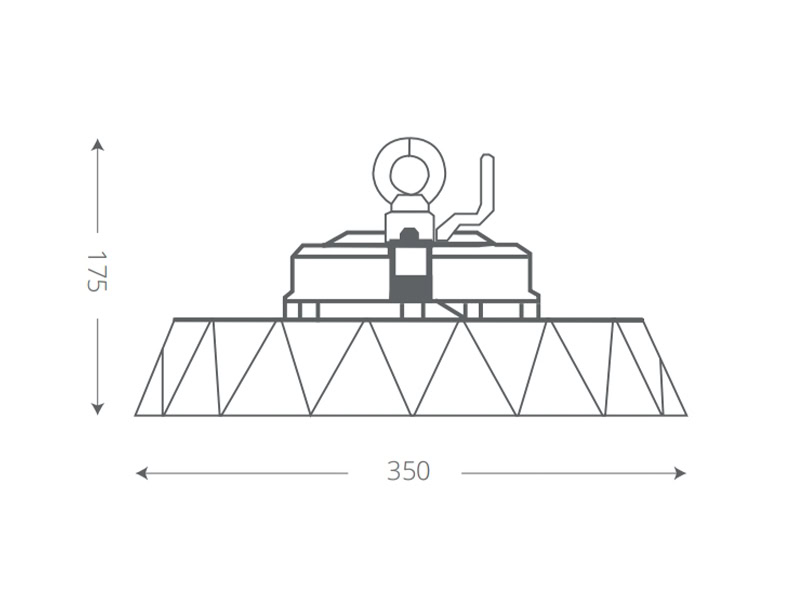

size of UFO led high bay 350mm

200W/240W

Accesories For UFO High Bay Lights Option

We provide matching installation accessories, like bracket, safety rope, external threads  and chains.

led high bay mounting U bracket

U Bracket

high bay mounting safety rope

Safety Rope(0.3m)

led high bay mounting External Threads

External Threads M10 / M12

led high bay mounting Stainless Steel

Stainless Steel Hang Chains

Equipped With PC Refractor For Option

The material of the PC reflector has excellent optical properties, which can effectively reflect light, make the light distribution more uniform and reduce glare.
The combination of a reflector and a lens further optimizes the light control capability. Lenses can precisely refract and focus light, achieving light distribution at specific angles.

Small Size PC Refractor

Small Size PC Refractor

Middle Size PC Refractor

Middle Size PC Refractor

Large Size PC Refractor

Large Size PC Refractor

Small Size PC Refractor With Drop Lens

Small Size PC Refractor With Drop Lens

Middle Size PC Refractor With Drop Lens

Middle Size PC Refractor With Drop Lens

Large Size PC Refractor With Drop Lens

Large Size PC Refractor With Drop Lens

Applications In Different Scenarios

In industry, in factory workshops such as automobile manufacturing and mechanical processing, it can provide lighting for production operations. In all kinds of warehouses, it is convenient for the search and handling.
In the business field, supermarkets use it to illuminate the shelves, and gymnasiums rely on it to meet their lighting needs. In terms of public facilities, there is an underground parking lot.

application of high bay lights warehouse
application of high bay lights tennis court
application of high bay lights sports field

Client Cases In Philippines Factory

Facing the humid and high-temperature environment of the factory in the Philippines, our high bay lamps reach the IP65 protection level, effectively preventing dust and water, and can resist the erosion of humid air.
The unique heat dissipation design ensures stable operation even in high-temperature environments, guaranteeing the service life of the lamps and reducing the costs and troubles caused by frequent lamp replacement.

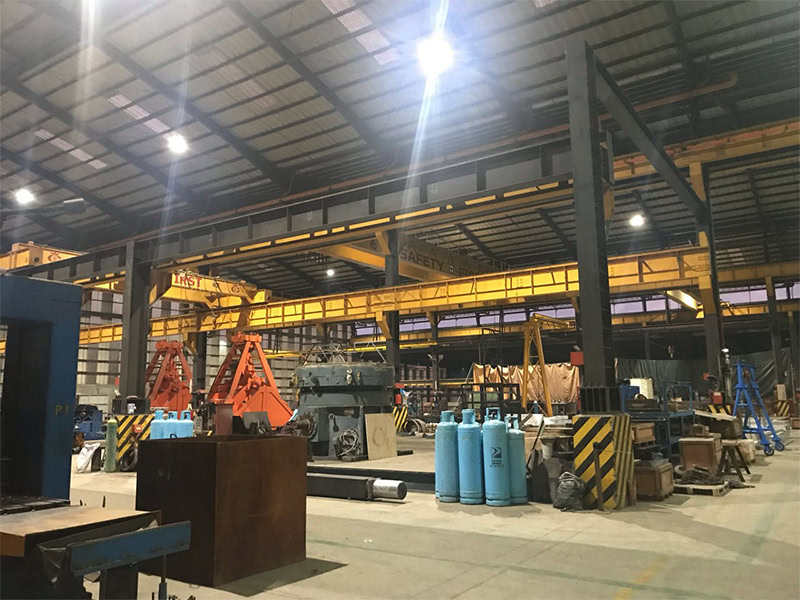

led high bay ufo client case

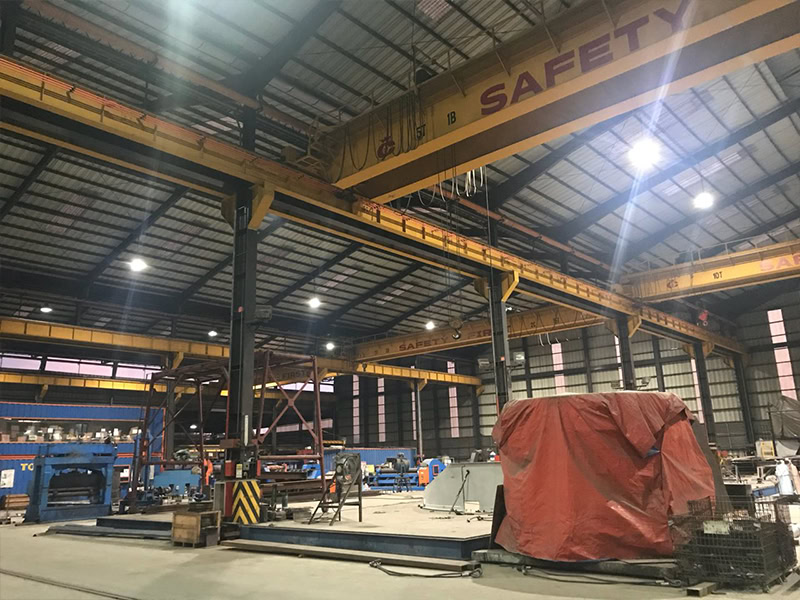

led high bay ufo case

Frequently Asked Questions

Most frequent questions and answers

How many years warranty you provided?

We can provide 5 years warranty for the whole light body.

What driver you used in led high bay light?

We use well-known brands, MOSO power supply.

Can i get a sample?

We can provide customized samples for you, and if you have any adjustment, we can make for you.

Do you offer after-sales service for your led high bay lights?

We provide perfect after-sales service, including product warranty, technical support, return service, etc., to protect your rights and interests.
