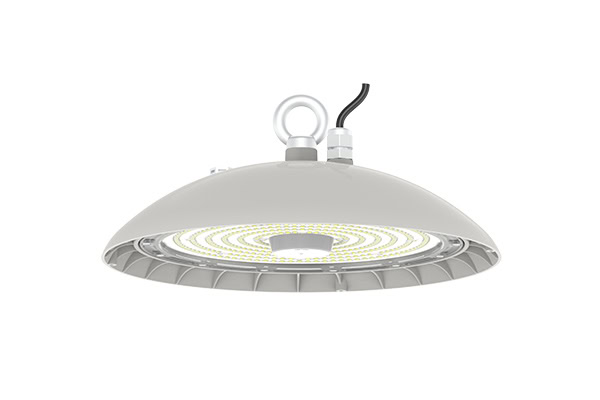

NSF Food Grade High Bay Light - U14 Series

NSF food grade high bay light creates an ideal lighting environment for the food industry with outstanding performance.

Features:

-Wattage: 60/80/100/120/150/180/200W

-IP65, CRI>80, 60°/90°/120°

-Light efficiency: 150lm/W, SDCM<3 steps

-AC120-270V

-0-10V DlM/DALI dimmable

-Emergency kits function

-PC + Aluminum material

-black/grey/orange or customized colors

-Lumileds light source

-MOSO/Philips/Sosen drivers

-3000K/4000K/5000K/5700K/6000K/6500K

-Life span: >50000 Hours

-Warranty: 5Years

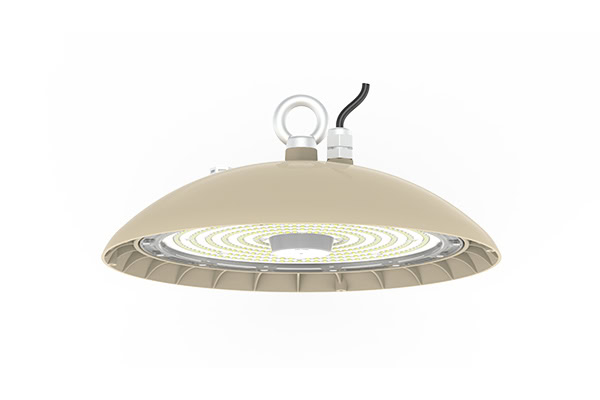

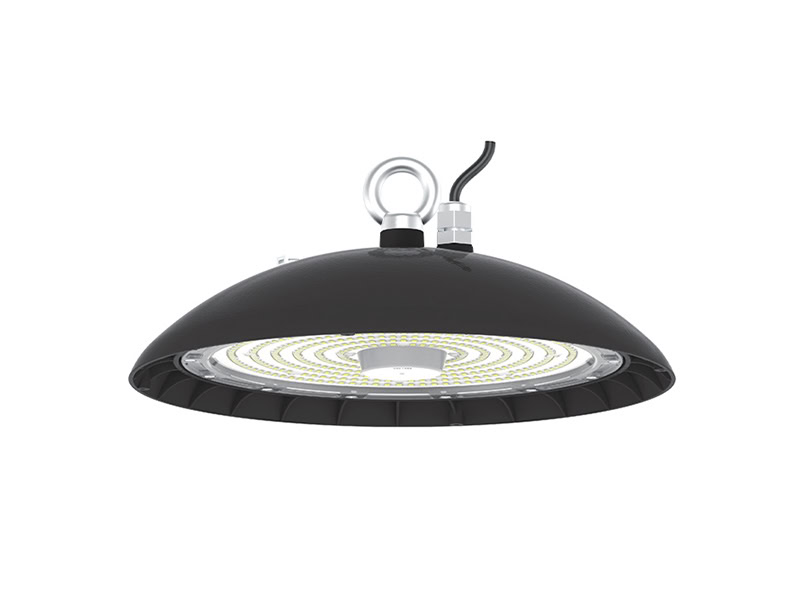

UFO High Bay Light High Quality Material

Customizable color, featuring a large-area integrated die-cast aluminum casing for comprehensive heat dissipation,
with a sleek and straightforward appearance and easy installation.

Light Source With High Efficiency

The SMD3030 light source selected is from the Lumileds brand, featuring high brightness and high luminous efficiency.
The luminaires do not produce ultraviolet and infrared radiation during the process of emitting light.
Prevent food from spoiling and losing nutrients due to light exposure, and safeguard food quality from the perspective of lighting.

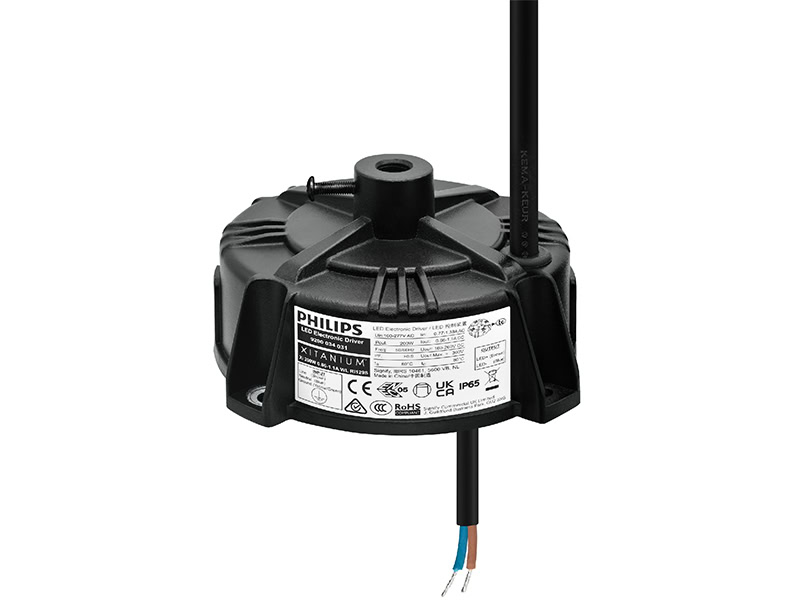

Drivers For NSF Food Grade High Bay Light

Choose a well-known power supply like MOSO,Sosen,Philips brand.
It features highly stable current output characteristics and can effectively prevent damage to lamps caused by current fluctuations. Keep the lamps in the best luminous state all the time, providing continuous, uniform and bright light.

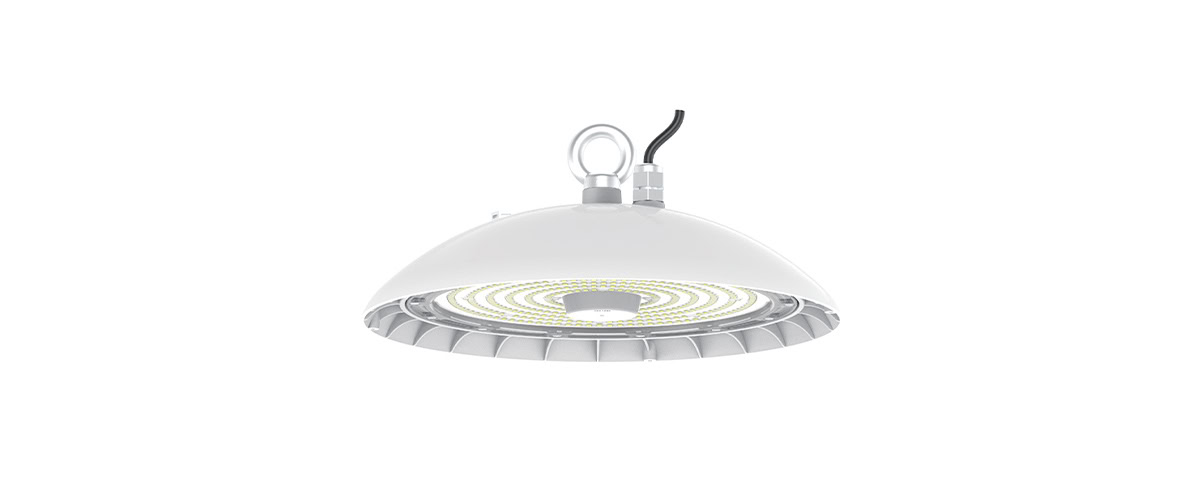

Food Industry High Bay Light

There are no dead corners for dust accumulation. The surface material does not adsorb oil stains, dust and other contaminants, making it easy to clean.
It meets the hygiene requirements of the food industry, reduces the risk of bacterial growth, and decreases the workload of cleaning and maintenance.

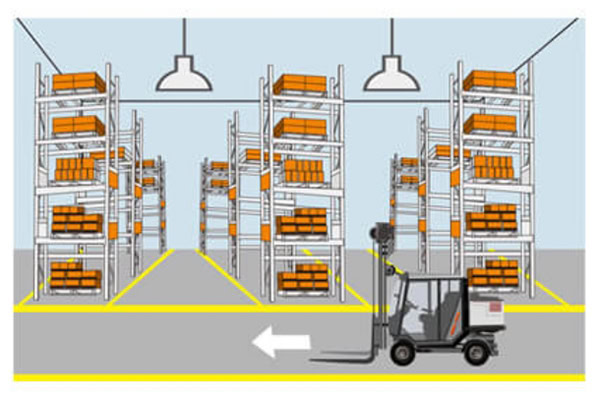

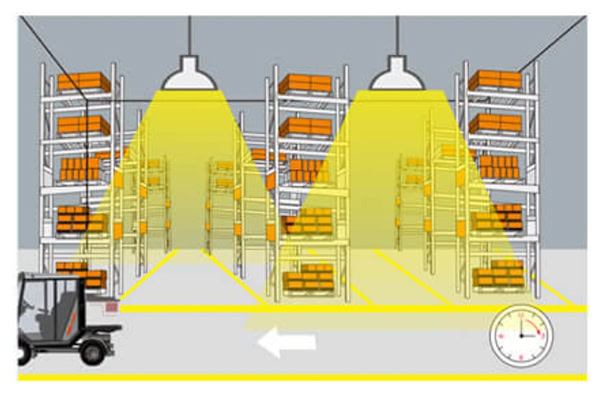

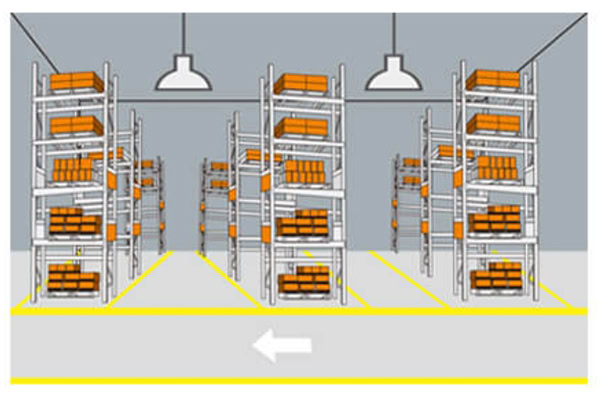

Microwave Sensor Dimming Function for option

When paired with 1 – 10V dimmable LED drivers and ballasts, our sensors enable a three – step dimming feature, cycling through 100% brightness, low light, and off.
Moreover, these sensors are equipped with adjustable daylight sensors. Installation is a breeze, and they offer excellent cost – effectiveness, making them a practical choice for various lighting control needs.

With sufficient ambient light,
the sensor does not switch on the lamp

With insufficient ambient light,
the sensor switches on the lamp when motion is detected

After hole time,
the sensor dims the lamp ata low light level if no new motion trigger.

After stand-by period,
the sensor switches off the lamp if no motion is detected.

Emergency Kits Function For NSF Food High Bay Light

The lights support emergency kits for option, and provide 30mins, 60 mins and 90mins selected.

In line with industrial safety standards, suitable for warehouses, workshops, underground mines and other key places.

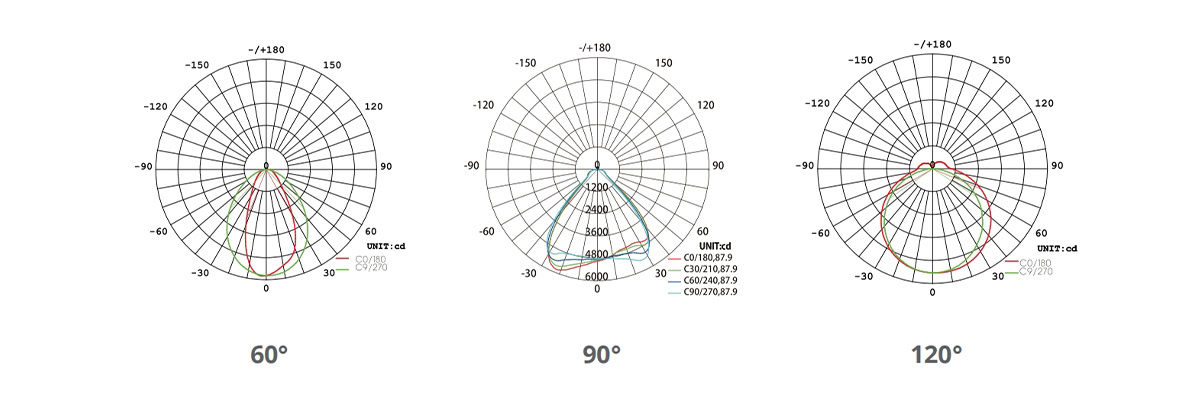

Beam Angles Of NSF Food High Bay Light

The unique optical light distribution design achieves uniform illumination through the distribution of light at different angles such as 60°, 90°, and 120°, effectively avoiding lighting dead zones.
In industrial environments, providing workers with clear and shadow-free working light can enhance work efficiency and reduce the risk of safety accidents caused by insufficient lighting.

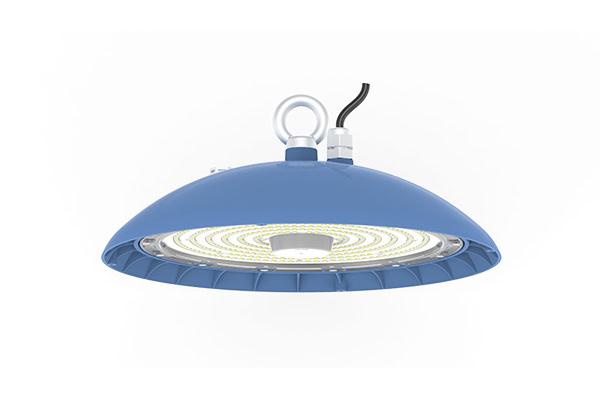

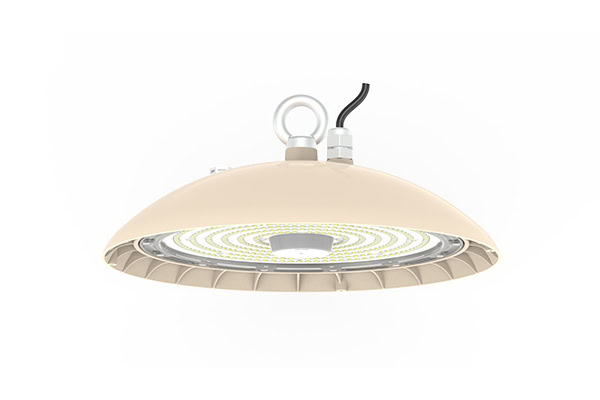

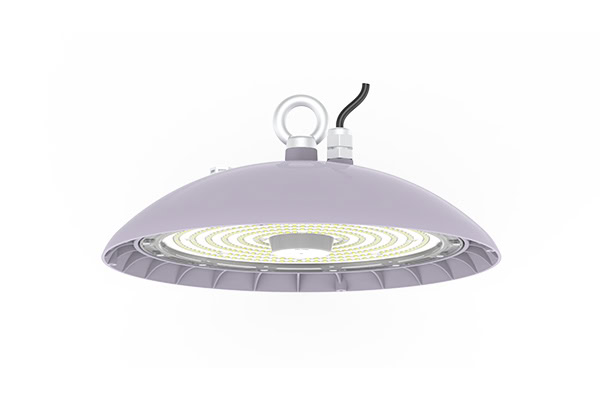

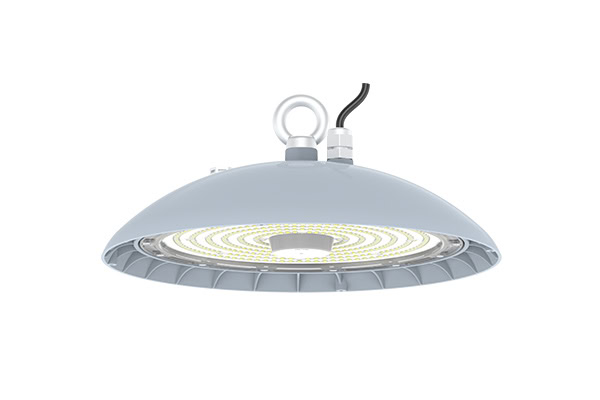

Customized Colors NSF Food High Bay Lights

The exterior of the lamp body supports customization in any color. Whether you are pursuing a calm tone that harmonizes with the industrial environment,
Whether it is to add a unique bright touch to the commercial space or to meet the color requirements of a specific brand image, we can precisely achieve it.

Datasheet Of UFO High Bay

Model No.	GSH-60W-U14	GSH-80W-U14	GSH-100W-U14	GSH-120W-U14	GSH-150W-U14	GSH-180W-U14
Power	60W	80W	100W	120W	150W	180W/200W
Material	Aluminum housing and PC lens
Light efficiency	150lm/W
Driver Brand	MOSO,Sosen,Philips
Beam angle	60°/90°/120°
Voltage	AC100-277V
LEDs	Lumileds SMD3030
PF	>0.95
LED Lifespan	>50000 hours
IP	IP65
IK	IK10
CRI	>80
CCT	3000K/4000K/5000K/5700K/6500K
Size	Φ300×125	Φ300×125	Φ300×125	Φ300×125	Φ300×125	Φ345×136
Warranty	5 Years

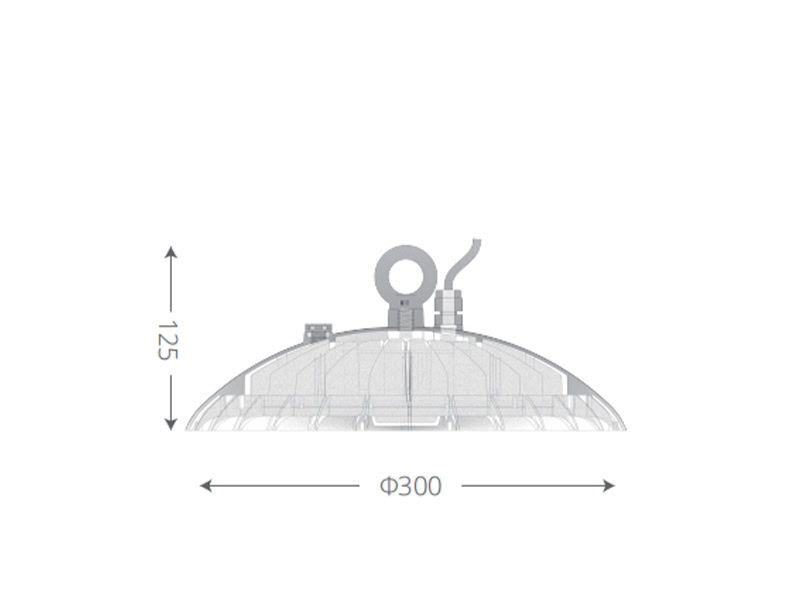

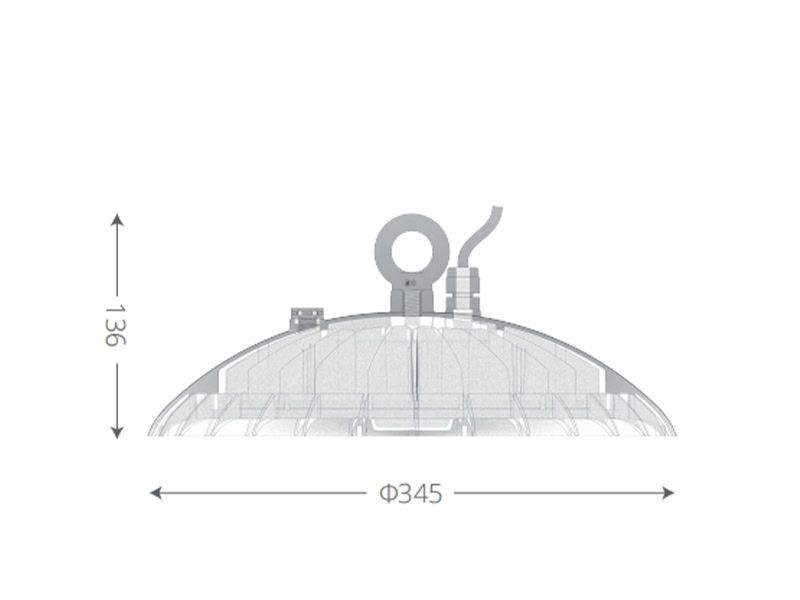

NSF Food High Bay Lights Sizes

60/80/100/120/150W

180/200W

Accesories For NSF Food High Bay Light Option

We provide matching installation accessories, like bracket, safety rope, external threads and chains.

U Bracket

Safety Rope(0.3m)

External Threads M10 / M12

Stainless Steel Hang Chains

Equipped With PC Refractor For Option

The material of the PC reflector has excellent optical properties, which can effectively reflect light, make the light distribution more uniform and reduce glare.
The combination of a reflector and a lens further optimizes the light control capability. Lenses can precisely refract and focus light, achieving light distribution at specific angles.

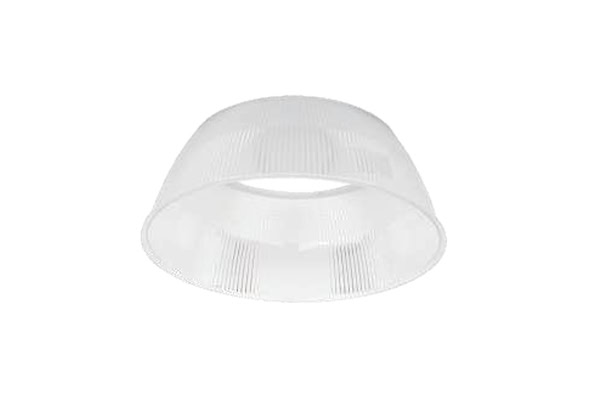

Small Size PC Refractor

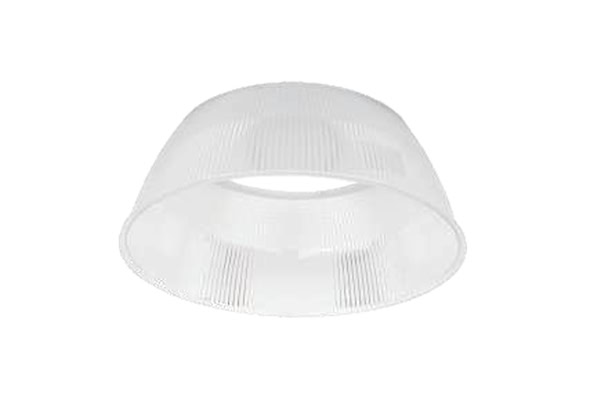

Middle Size PC Refractor

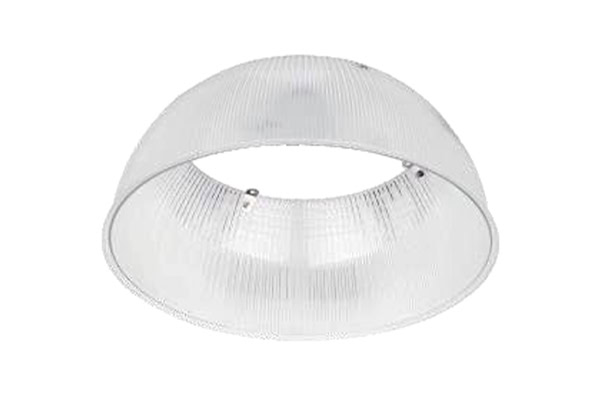

Large Size PC Refractor

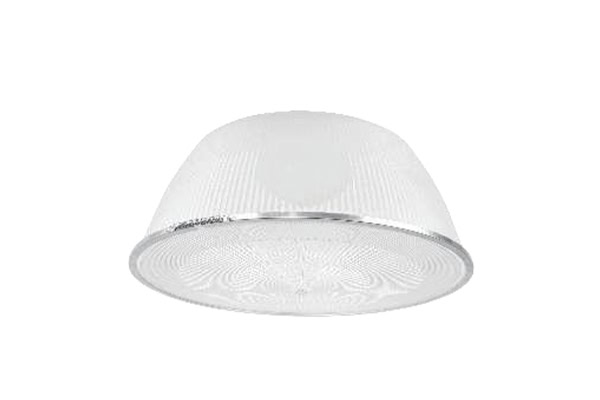

Small Size PC Refractor With Drop Lens

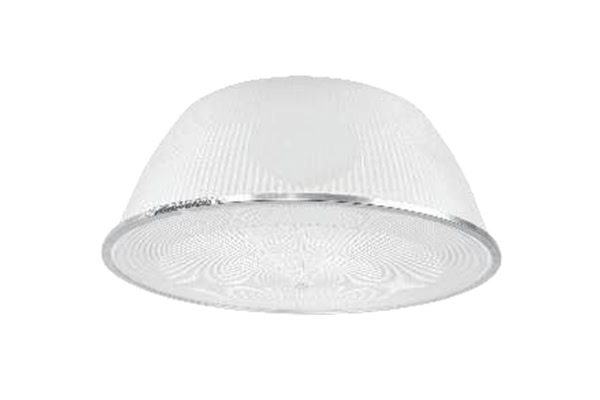

Middle Size PC Refractor With Drop Lens

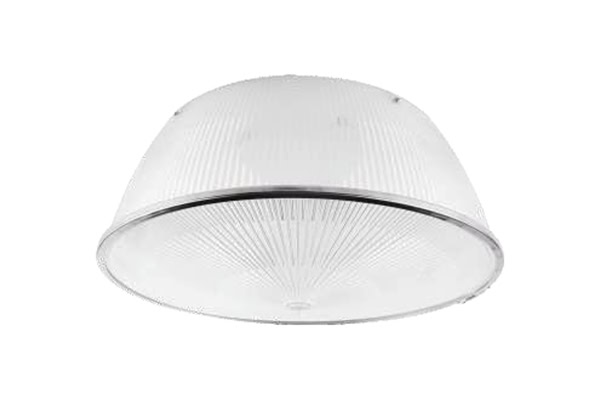

Large Size PC Refractor With Drop Lens

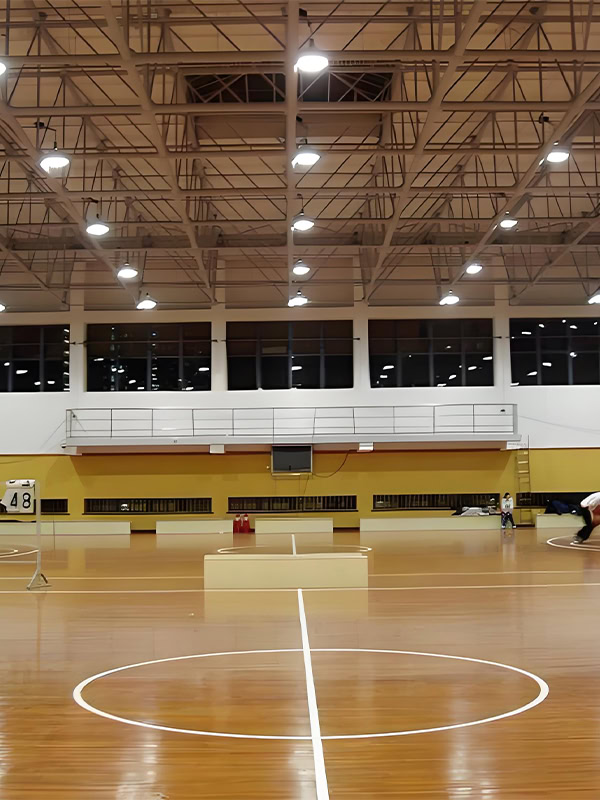

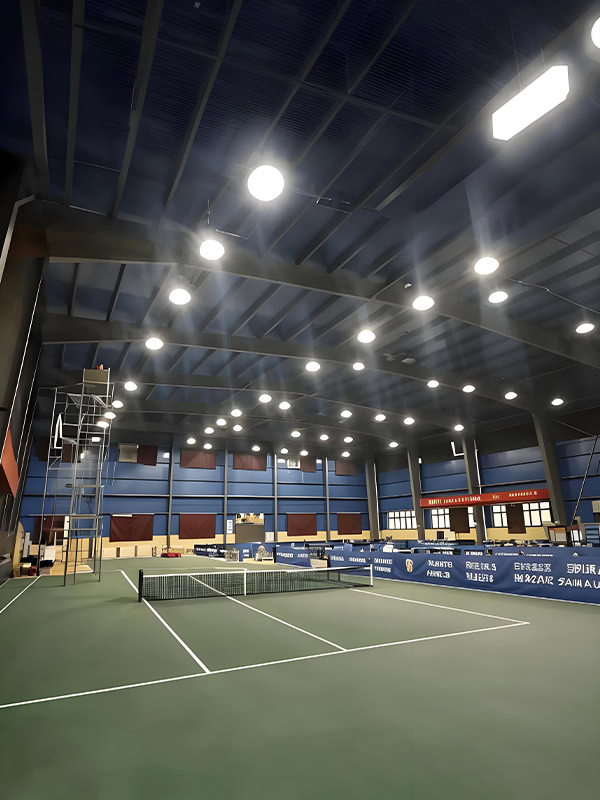

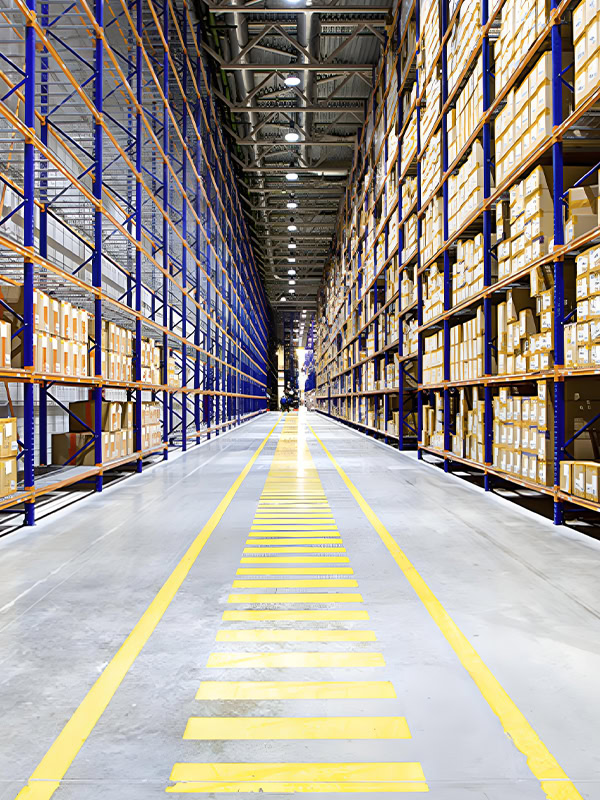

Applications In Different Scenarios

It can be applied in food processing workshops, food distribution centers and food storage cold storage
The lamps are made of food-grade materials, which are non-toxic and harmless, easy to clean and corrosion-resistant. They can adapt to the frequent cleaning and humid environment in the workshop, ensuring food safety.

Frequently Asked Questions

Most frequent questions and answers

How many years warranty you provided?

We can provide 5 years warranty for the whole light body.

What driver you used in NSF food high bay light?

We use well-known brands, MOSO,Sosen,Philips power supply.

Can i get a sample?

We can provide customized samples for you, and if you have any adjustment, we can make for you.

Do you offer after-sales service for your led high bay lights?

We provide perfect after-sales service, including product warranty, technical support, return service, etc., to protect your rights and interests.
