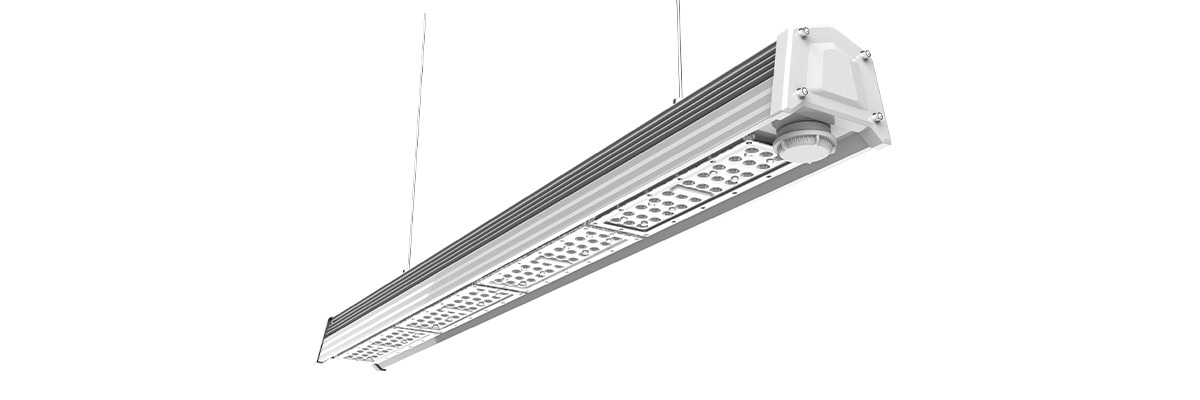

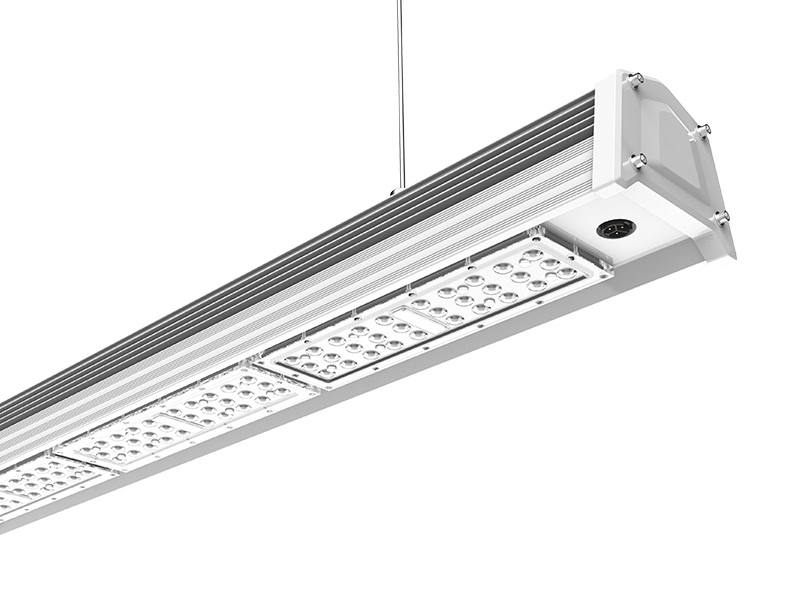

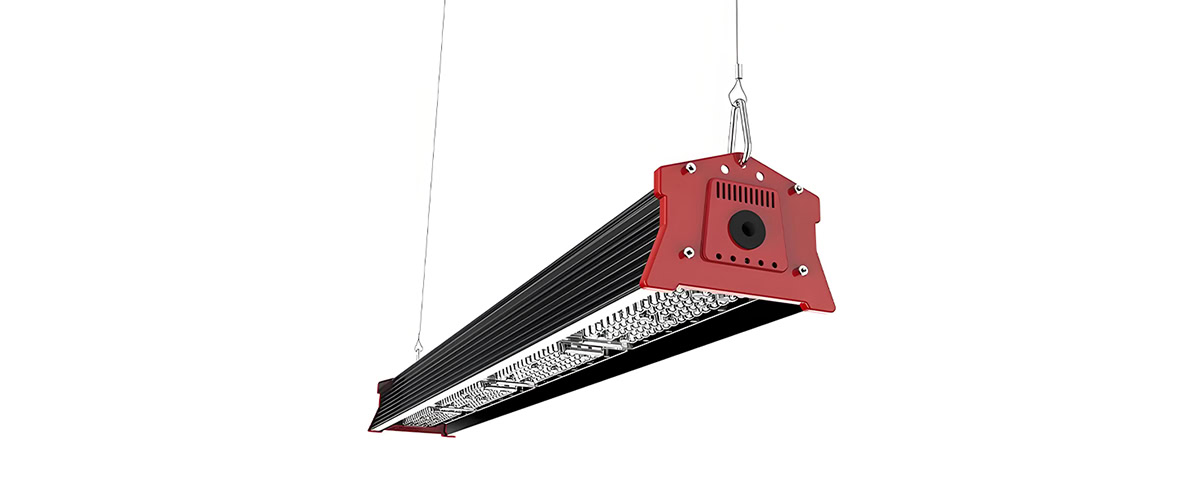

Linear High Bay LED Light - L2 Series

Linear high bay led light use ADC12 Die-casting aluminum body, with IP65 dustproof and waterproof.

It offers multiple beam angle options including 30°, 60°, 90°, 30×70°, 60×90°, and 80×155°.

Features:

-Wattage: 50/100/150/200/240W

-IP65, CRI>80, 30° / 60° / 90° / 30×70° / 60×90° / 80×155°

-Light efficiency: 140lm/W SDCM<3 steps

-AC100-305V

-0-10V DlM/DALI dimmable

-Emergency kits fuction

-PC + Aluminum

-Lumileds light source

-MOSO/Meanwell drivers

-3000K/4000K/5000K/5700K

-Life span: >50000 Hours

-Warranty: 5Years

High Bay Light High Quality Material

The body is made of ADC12 die-cast aluminum, and the lamps are equipped with high-transparency and yellow-resistant PC lenses.
The equipped high-efficiency aluminum substrate features excellent thermal conductivity and electrical insulation.

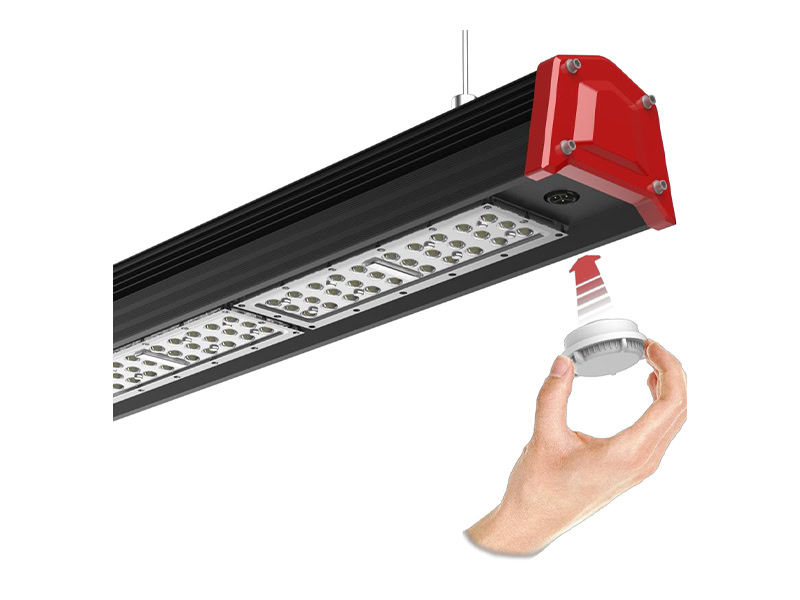

Sensor Pluggable Intelligent Design

The sensor can be accurately installed at the designated position of the lamp by hand without the need for complex tools
Whether it is the installation in a new place or the renovation of old lighting fixtures, the addition of intelligent sensing functions can be quickly achieved

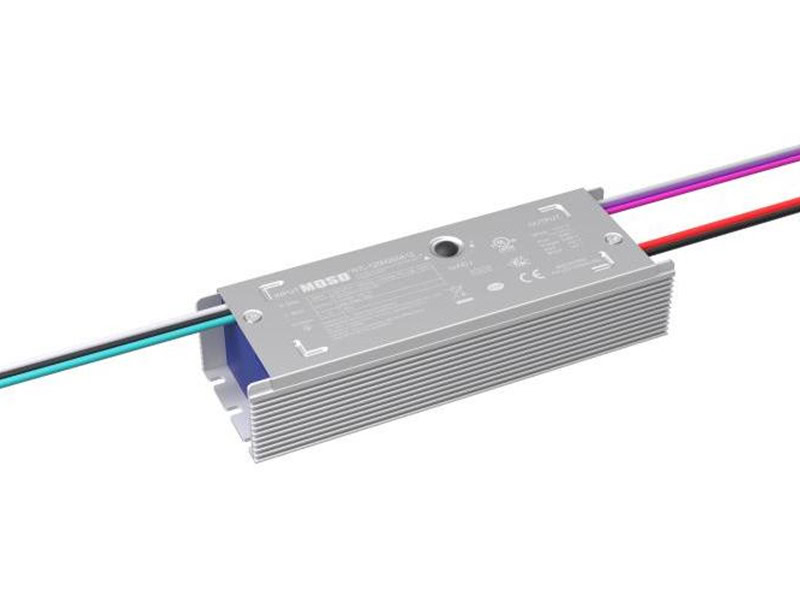

Drivers Of High Bay Light

The lamp adopts an aluminum shell power supply from MOSO or Meanwell. The aluminum shell material is not only sturdy and durable but also has excellent heat dissipation performance.
Effectively reduce the internal temperature of the power supply, ensure its stable operation and extend its service life

Light Source Of Linear High Bay Light

The light source adopts SMD3030 from Lumileds, with SDCM < 3; High power factor >0.95,
CRI >80 and color temperature (3000K, 4000K, 5000K, 6500K) selection;
There are different lengths and wattage options available, and the luminous efficacy can reach 140lm/w.

ON/OFF Sensors And Dimming Functions

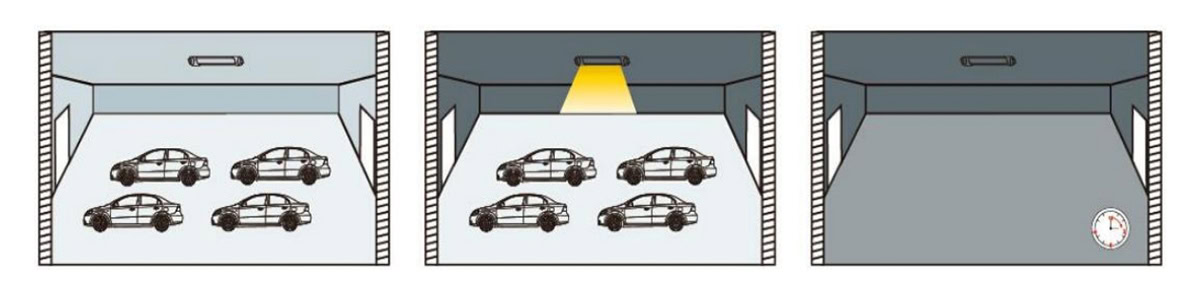

ON/OFF Function (stand-by period set at ‘0’)
With insufficient ambient light, the sensor switches on the light when motion is detected.

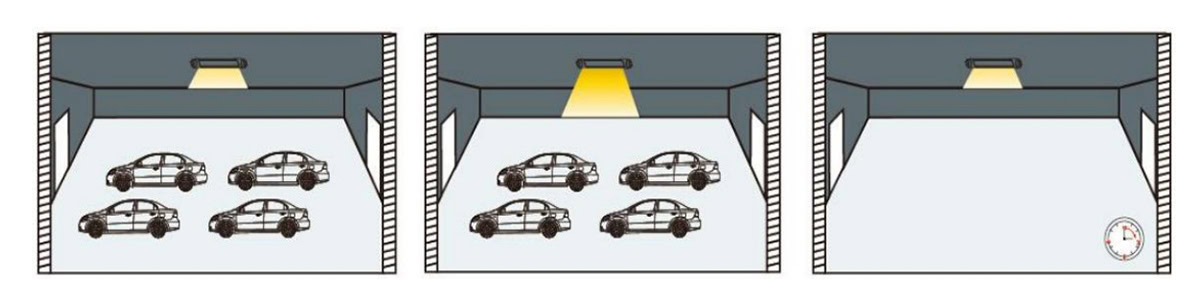

2-step dimming function (stand-by period set at “+∞”)

If there is no motion detected, the light will be remained at a low light level all the time. When motion is detected, the sensor will switch on the light to 100% brightness.
After elapse of hold time, the sensor dims the light at the present low light level if no motion.

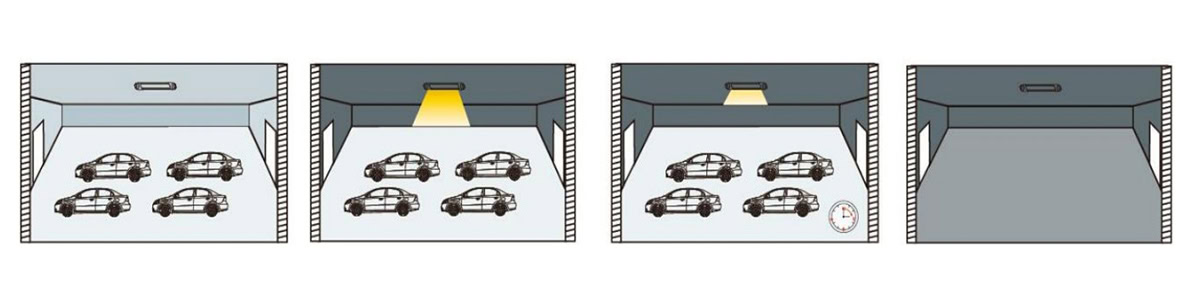

3-step dimming function (stand-by period set at “5min”or“15min”)

With insufficient ambient light, the sensor switches on the light when motion is. After elapse of hold time, the sensor dims the light at a low light level if no new.

Emergency Kits Function Optional

The lights support emergency kits for option, and provide 30mins, 60 mins and 90mins selected.

In line with industrial safety standards, suitable for warehouses, workshops, underground mines and other key places.

Beam Angles Of Linear High Bay LED Lights

Designed specifically for warehouses, this perfect rectangular lighting spot is suitable for storage Spaces with narrow shelf spacing, warehouses or retail stores.
It offers multiple beam Angle options including 15°, 25°, 30°, 40°, 60°, 90°, 120°, 30×70°, 60×90°, 140×75°, and 50×20°.

Datasheet Of Linear High Bay LED Lights

Model No.	GSH-50W-L2	GSH-100W-L2	GSH-150W-L2	GSH-200W-L2	GSH-240W-L2
Power	50W	100W	150W	200W	240W
Material	Aluminum housing and PC lens
Light efficiency	140lm/W
Driver Brand	MOSO/Meanwell
Beam angle	30° / 60° / 90° / 30×70° / 60×90° / 80×155°
Voltage	AC100-305V
LEDs	SMD2835
PF	>0.95
LED Lifespan	>50000 hours
IP	IP66
IK	IK10
CRI	>80
CCT	3000K/4000K/5000K/5700K
Colors	Red/Black/White
Size	L353W137H107	L620W137H107	L887W137H107	L1154W137H107	L1421W137H107
Warranty	5 Years

Linear LED High Bay Lights Sizes

Multiple Installation Methods

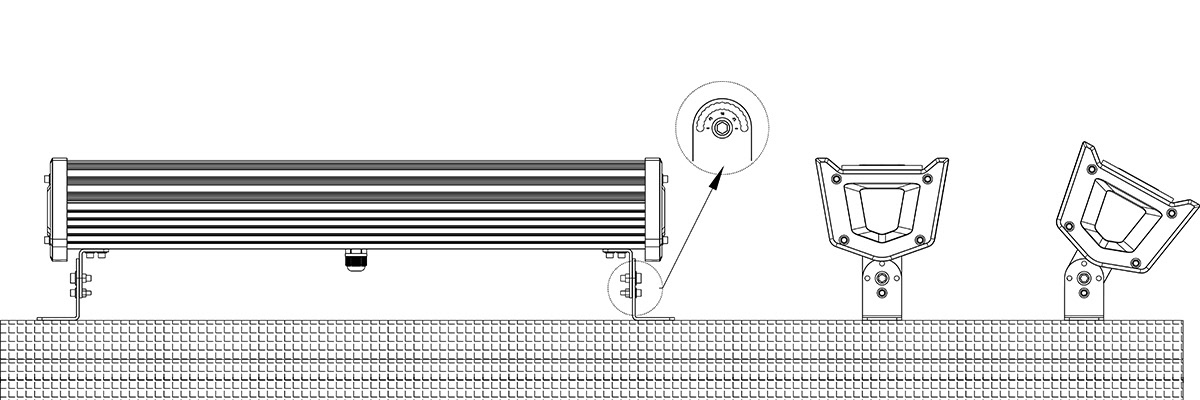

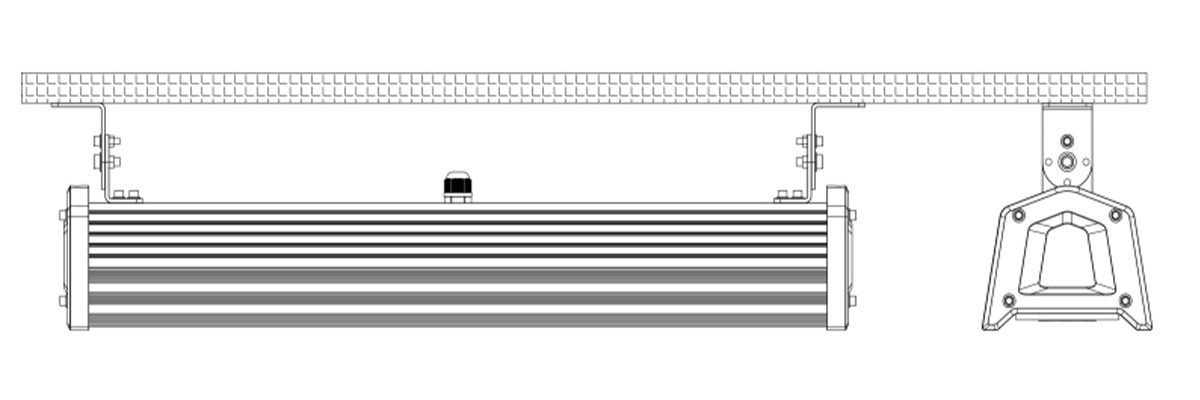

Supports various installation methods such as suspended, ceiling-mounted and wall-mounted.
It can meet the installation requirements of different scenarios such as tunnels, billboards, warehouses, sports venues and architectural lighting

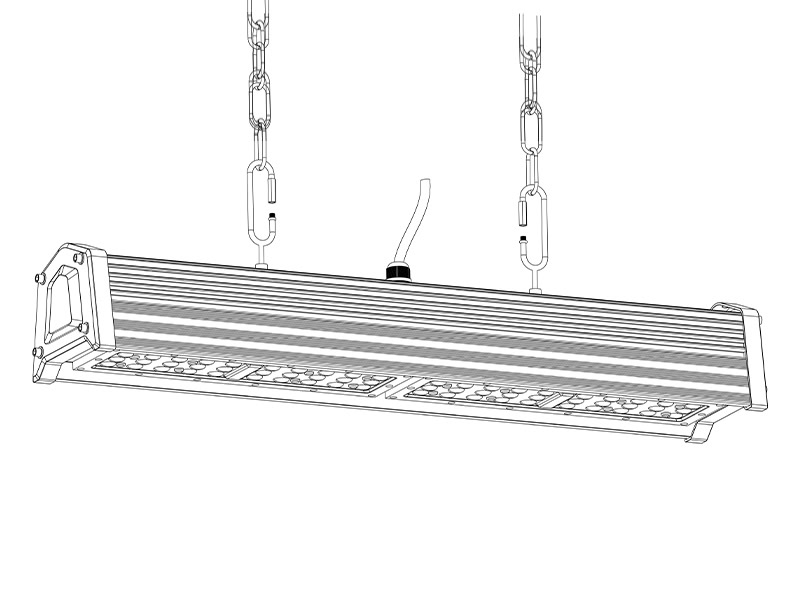

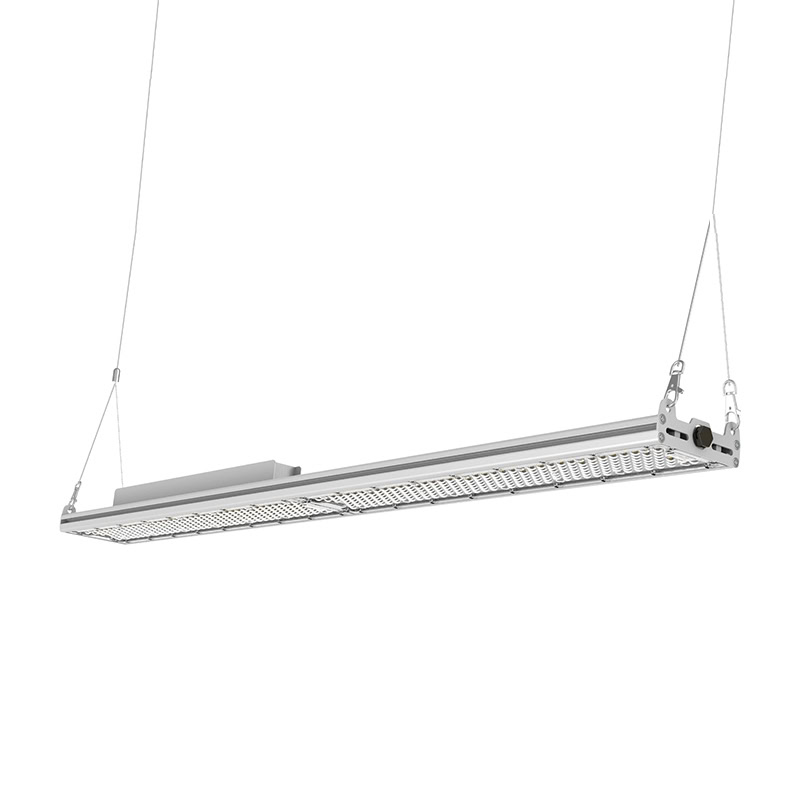

Pandent mount

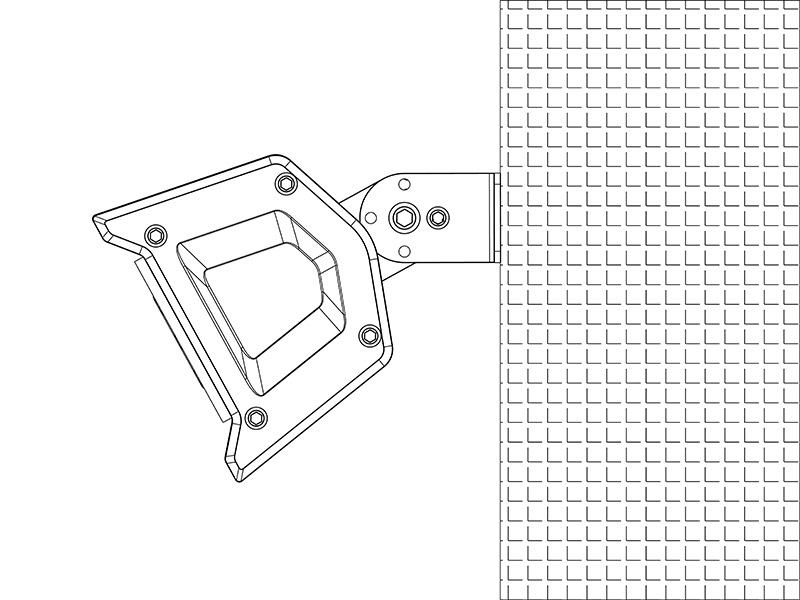

Wall mount

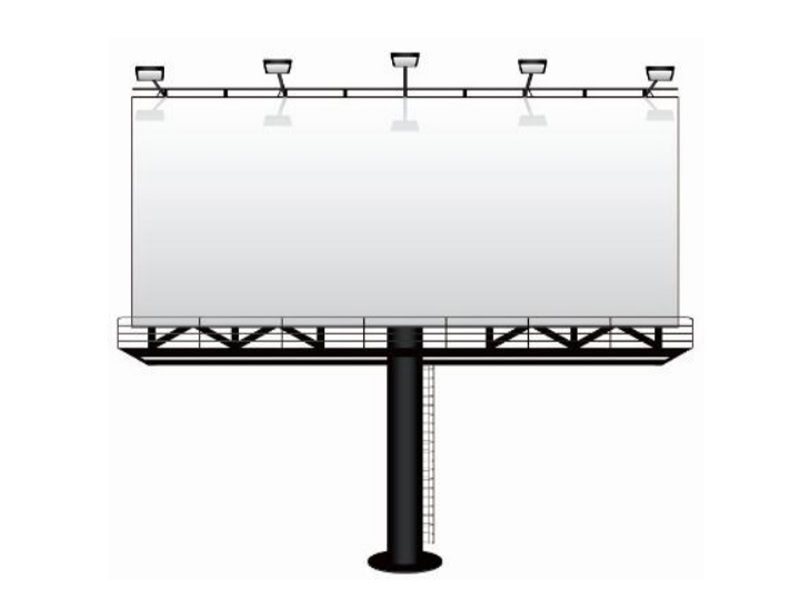

Billboard Lighting or Wall washer

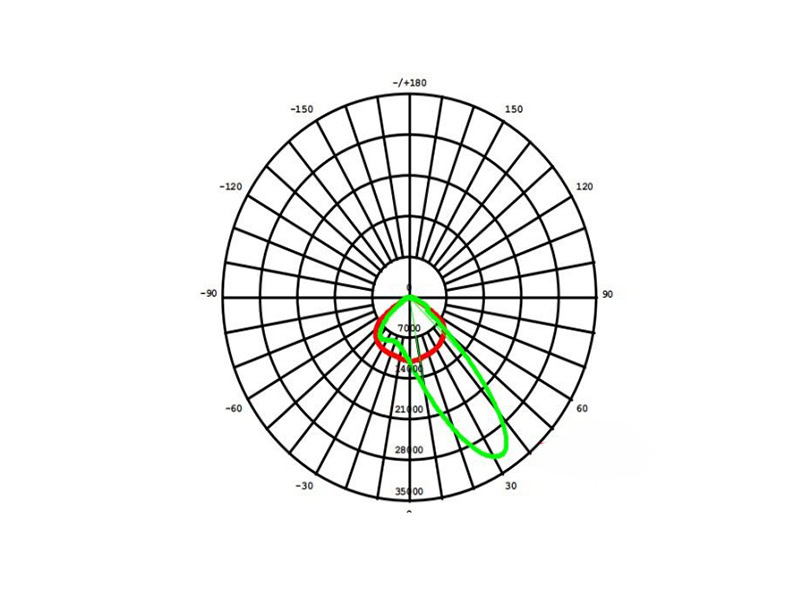

Asymmetrical optics for billboard lighting or wall washer

Asymmetric optical design, suitable for billboard lighting or wall-washing effects, meets the lighting requirements of specific scenarios.
Meanwhile, the modular design can also be used for floodlighting.

Accesories For Linear High Bay LED Lights Option

We provide matching installation accessories, like Suspending Cable, Sensor pluggable receptacle, Pluggable Sensor, and Mounting brackets.

Suspending Cable

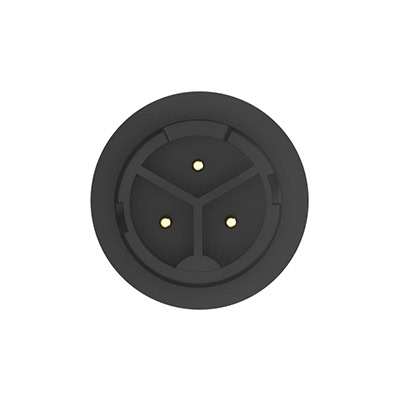

Sensor pluggable receptacle

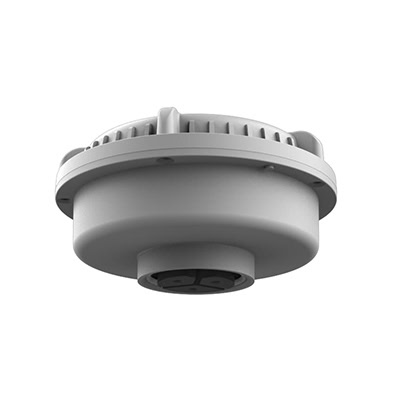

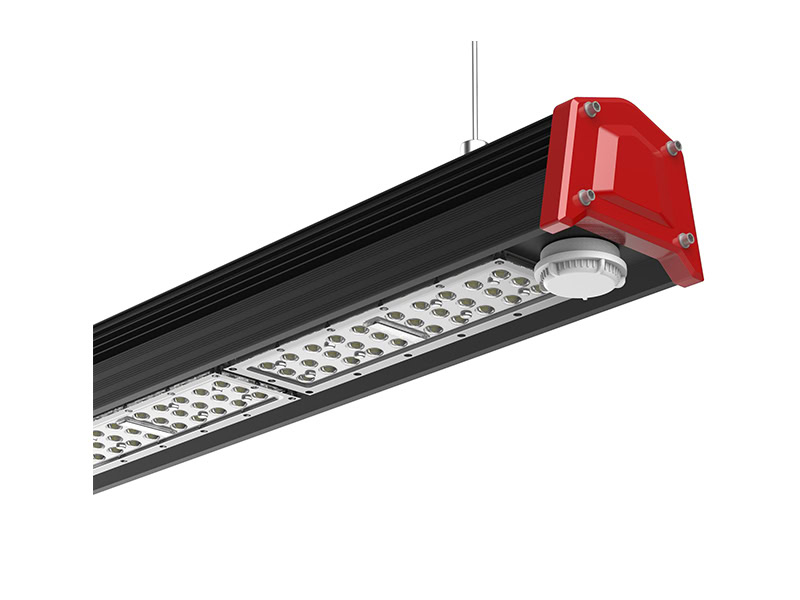

Pluggable Sensor

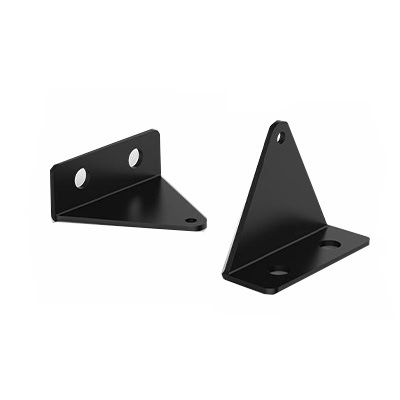

Mounting brackets

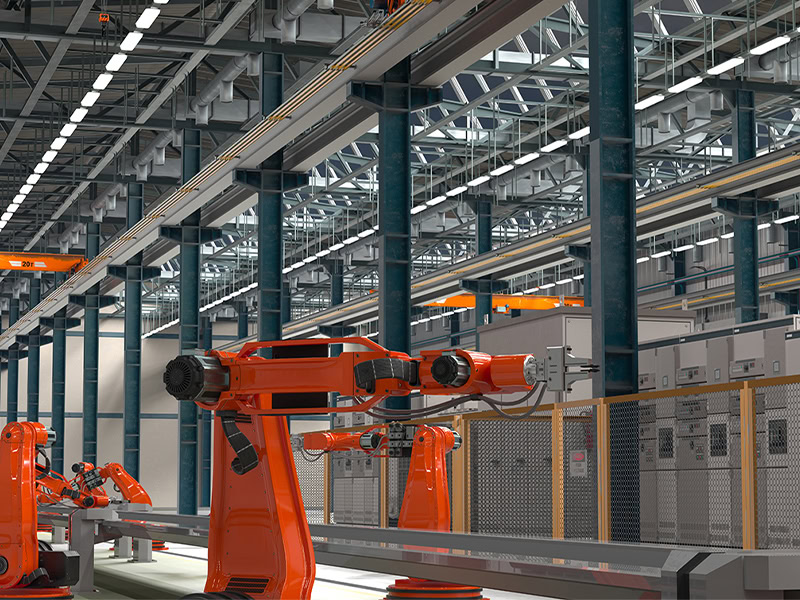

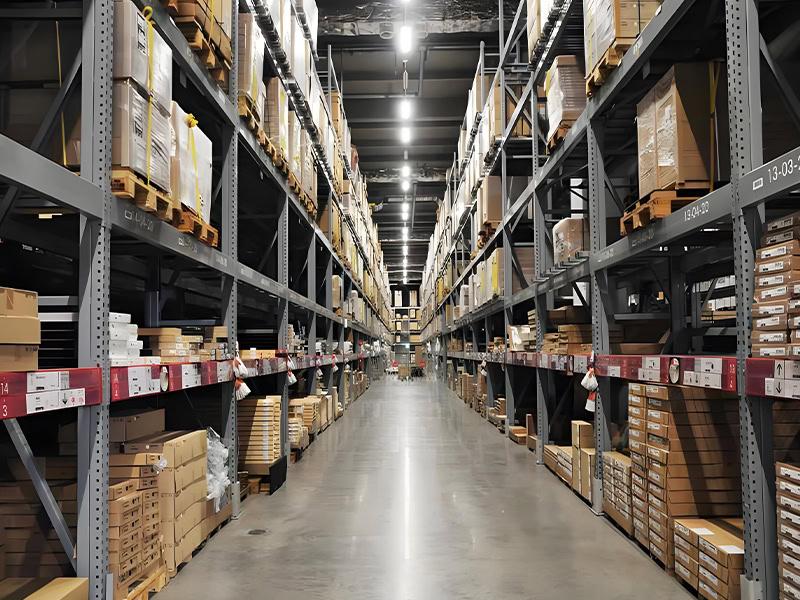

Applications In Different Scenarios

Factory workshops, warehouses, logistics centers, maintenance workshops, gymnasiums, fitness centers, swimming pools, ports, docks, large supermarkets, shopping malls

Frequently Asked Questions

Most frequent questions and answers

How many years warranty you provided?

We can provide 5 years warranty for the whole light body.

What driver you used in led linear high bay light?

We use well-known brands, MOSO/MEANWELL power supply.

Can i get a sample?

We can provide customized samples for you, and if you have any adjustment, we can make for you.

Do you offer after-sales service for your led high bay lights?

We provide perfect after-sales service, including product warranty, technical support, return service.
