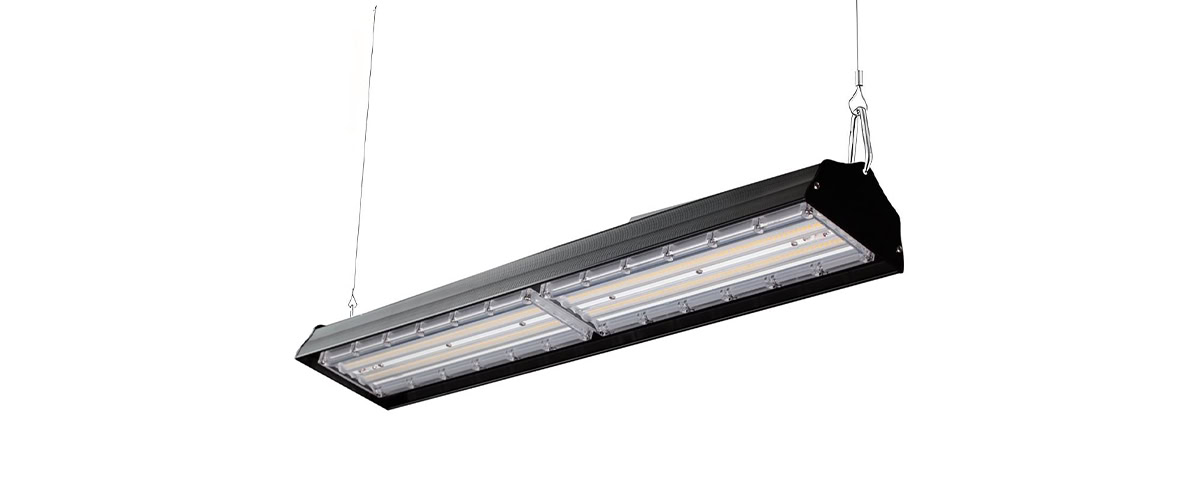

Linear High Bay Light - L3 Series

Linear high bay light has simple structure, small size, and small weight.
High light efficiency 150lm/W and IP65 waterproof grade, 60°, 90°,110° beam angles.

Features:

-Wattage: 50/100/150/200/250W

-IP65, CRI>80, 60° / 90° / 110°

-Light efficiency: 150lm/W SDCM<3 steps

-AC100-277V

-0-10V DlM/DALI dimmable

-Emergency kits fuction

-PC + Aluminum

-Lumileds light source

-MOSO/Meanwell drivers

-3000K/4000K/5000K/5700K

-Life span: >50000 Hours

-Warranty: 5Years

High Bay Light High Quality Material

The body is made of ADC12 die-cast aluminum, and the lamps are equipped with high-transparency and yellow-resistant PC lenses.
The equipped high-efficiency aluminum substrate features excellent thermal conductivity and electrical insulation.

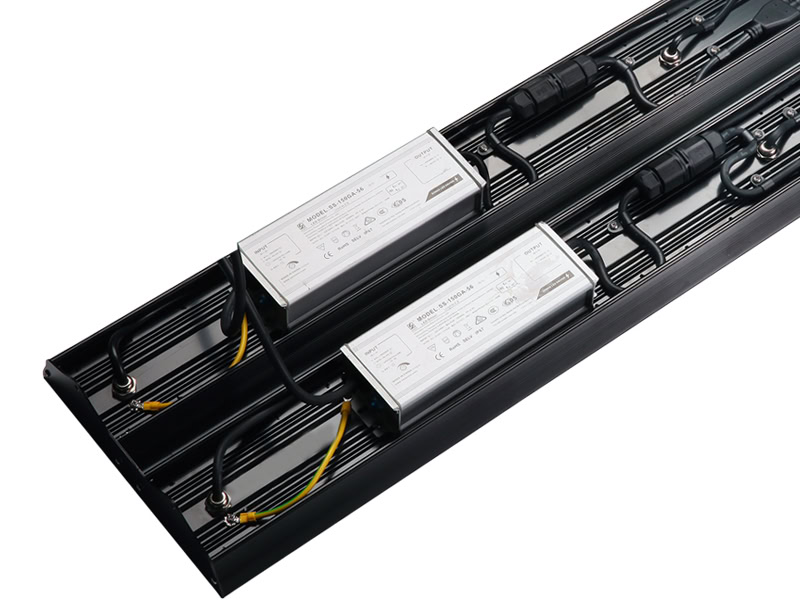

Drivers Of Linear High Bay Light

The lamp adopts an aluminum shell power supply from MOSO or Meanwell. The aluminum shell material is not only sturdy and durable but also has excellent heat dissipation performance.
Effectively reduce the internal temperature of the power supply, ensure its stable operation and extend its service life

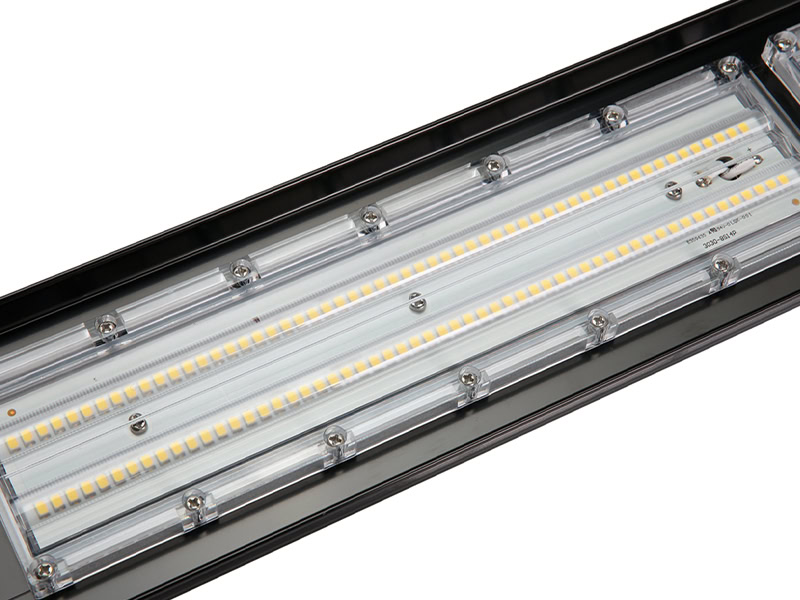

Light Source Of Linear High Bay Light

The light source adopts SMD3030 from Lumileds, with SDCM < 3; High power factor >0.95,
CRI >80 and color temperature (3000K, 4000K, 5000K, 6500K) selection;
There are different lengths and wattage options available, and the luminous efficacy can reach 150lm/w.

ON/OFF Sensors And Dimming Functions

ON/OFF Function (stand-by period set at ‘0’)
With insufficient ambient light, the sensor switches on the light when motion is detected.

2-step dimming function (stand-by period set at “+∞”)

If there is no motion detected, the light will be remained at a low light level all the time. When motion is detected, the sensor will switch on the light to 100% brightness.
After elapse of hold time, the sensor dims the light at the present low light level if no motion.

3-step dimming function (stand-by period set at “5min”or“15min”)

With insufficient ambient light, the sensor switches on the light when motion is. After elapse of hold time, the sensor dims the light at a low light level if no new.

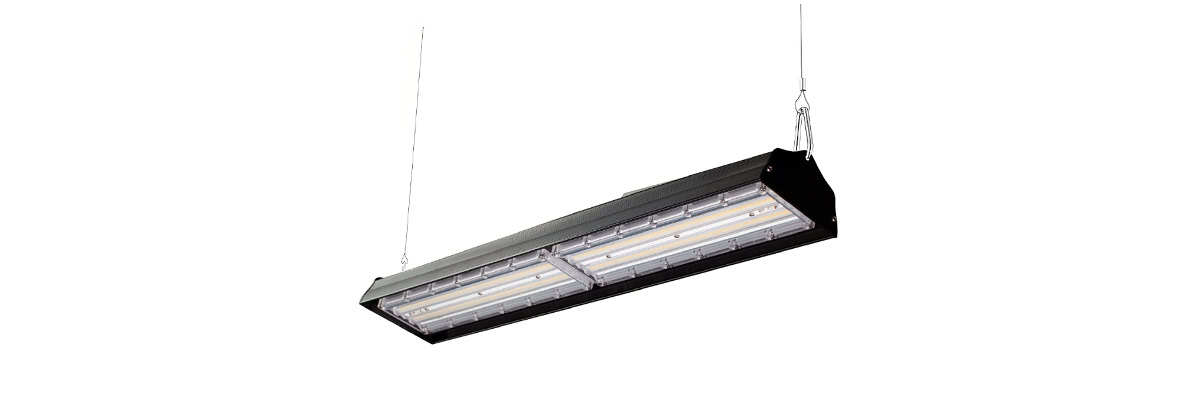

Emergency Kits Function Optional

The lights support emergency kits for option, and provide 30mins, 60 mins and 90mins selected.

In line with industrial safety standards, suitable for warehouses, workshops, underground mines and other key places.

Beam Angles Of Linear LED High Bay Lights

Linear high bay offers multiple Angle options of 60°, 90°, and 110°, and is applicable in a wide range of scenarios.
For small-sized precision operation areas in factory workshops, a 60° Angle is selected. For large storage areas in the warehouse, use 90°. Open areas, achieving large-scale coverage lighting at 110°.

Datasheet Of Linear High Bay

Model No.	GSH-50W-L3	GSH-100W-L3	GSH-150W-L3	GSH-200W-L3	GSH-250W-L3
Power	50W	100W	150W	200W	250W
Material	Aluminum housing and PC lens
Light efficiency	150lm/W
Driver Brand	MOSO/Meanwell
Beam angle	60° / 90° / 110°
Voltage	AC100-277V
LEDs	SMD3030
PF	>0.95
LED Lifespan	>50000 hours
IP	IP65
IK	IK10
CRI	>80
CCT	4000K/5000K/5700K/6500K
Size	L305W106H78	L605W106H78	L905W106H78	L1205W106H78	L1505W106H78
Warranty	5 Years

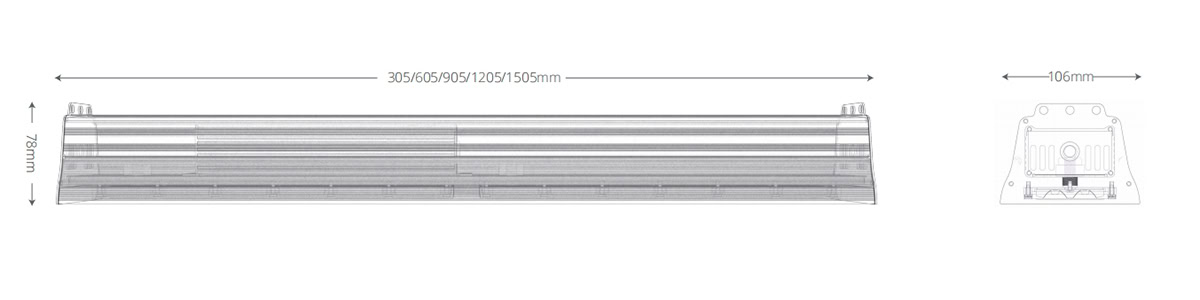

Linear LED High Bay Lights Sizes

Accesories For LED Linear High Bay Lights Option

We provide matching installation accessories, like Suspending Cable, Sensor pluggable receptacle, Pluggable Sensor, and Mounting brackets.

Suspending Cable

Sensor pluggable receptacle

Pluggable Sensor

Mounting brackets

Applications In Different Scenarios

Factory workshops, warehouses, logistics centers, maintenance workshops, gymnasiums, fitness centers, swimming pools, ports, docks, large supermarkets, shopping malls

Frequently Asked Questions

Most frequent questions and answers

How many years warranty you provided?

We can provide 5 years warranty for the whole light body.

What driver you used in led linear high bay light?

We use well-known brands, MOSO/MEANWELL power supply.

Can i get a sample?

We can provide customized samples for you, and if you have any adjustment, we can make for you.

Do you offer after-sales service for your led high bay lights?

We provide perfect after-sales service, including product warranty, technical support, return service.
