LED UFO High Bay Light – U7 Series

Home

Products

LED Indoor Lights

High Bay Lights

LED UFO High Bay Light – U7 Series

LED UFO High Bay Light - U7 Series

LED UFO High Bay Light U7 series with power selection and CCT selection capability.

Features:

-Wattage: 100/150/200/240/320W

-IP65, CRI>80, 60°/90°/120°

-Light efficiency: 150lm/W, 190lm/W SDCM<5 steps

-AC200-240V

-0-10V DlM/DALI dimmable

-Emergency kits fuction

-PC + Aluminum

-Lumileds LEDs

-MOSO/Sosen/Philips drivers

-3000K/4000K/5000K/5700K/6000K/6500K

-Life span: >50000 Hours

-Warranty: 5Years

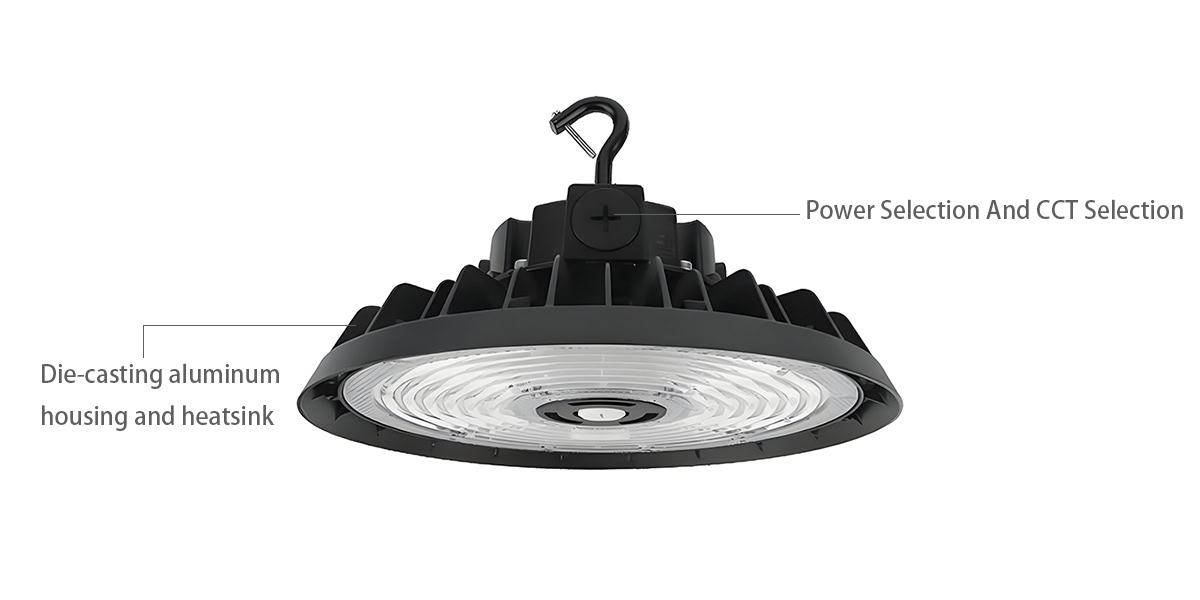

LED UFO High Bay Light High Quality Material

The body is made of ADC12 die-cast aluminum, and the lamps are equipped with high-transparency and yellow-resistant PC lenses.
The equipped high-efficiency aluminum substrate features excellent thermal conductivity and electrical insulation. U7 series provide power selection and CCT selection for option.

Drivers And Dimmable Ways For Option

Choose a well-known power supply like MOSO,Sosen,Philips brand. It features highly stable current output characteristics and can effectively prevent damage to lamps caused by current fluctuations.
Supports 0-10V and DALI dimming modes. It can automatically adjust according to natural light and human activities to achieve precise lighting and energy conservation.

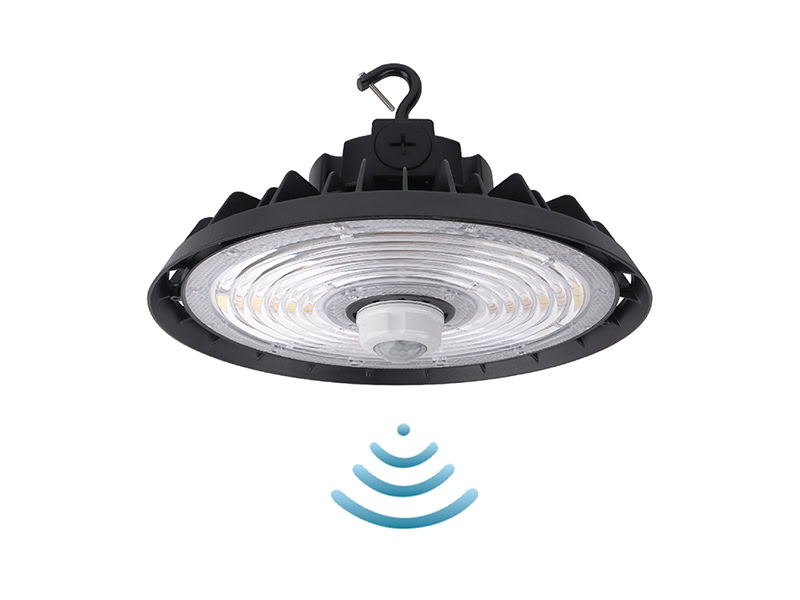

Microwave Sensors Optional

It can be equipped with a microwave sensor and has intelligent sensing function.
When someone or a moving object enters the sensing area, the lamp lights up automatically.
After people leave or objects stop moving for a period of time, the lamps will automatically go out or be adjusted to a low brightness state.

Emergency Kits Function For High Bay Light

The lights support emergency kits for option, and provide 30mins, 60 mins and 90mins selected.

In line with industrial safety standards, suitable for warehouses, workshops, underground mines and other key places.

Beam Angles Of LED High Bay Lights

The unique optical light distribution design achieves uniform illumination through the distribution of light at different angles such as 60°, 90°, and 120°, effectively avoiding lighting dead zones.
In industrial environments, providing workers with clear and shadow-free working light can enhance work efficiency and reduce the risk of safety accidents caused by insufficient lighting.

Datasheet Of LED UFO High Bay Light

Model No.	GSH-100W-U7	GSH-150W-U7	GSH-200W-U7	GSH-240W-U7	GSH-320W-U7
Power	100W	150W	200W	240W	320W
Series	Standard series/ Pro Series: Power Selection And CCT Selection Capability
Material	Aluminum housing and PC lens
Light efficiency	150lm/W 190lm/W
Driver Brand	MOSO, Sosen, Philips
Beam angle	60°/90°/120°
Voltage	AC200-240V
LEDs	SMD3030/2835
PF	>0.95
LED Lifespan	>50000 hours
IP	IP65
IK	IK10
CRI	>80
CCT	3000K/4000K/5000K/5700K/6000K/6500K
Size	Φ275*H124	Φ275*H124	Φ305*H127	Φ305*H127	Φ350×147
Warranty	5 Years

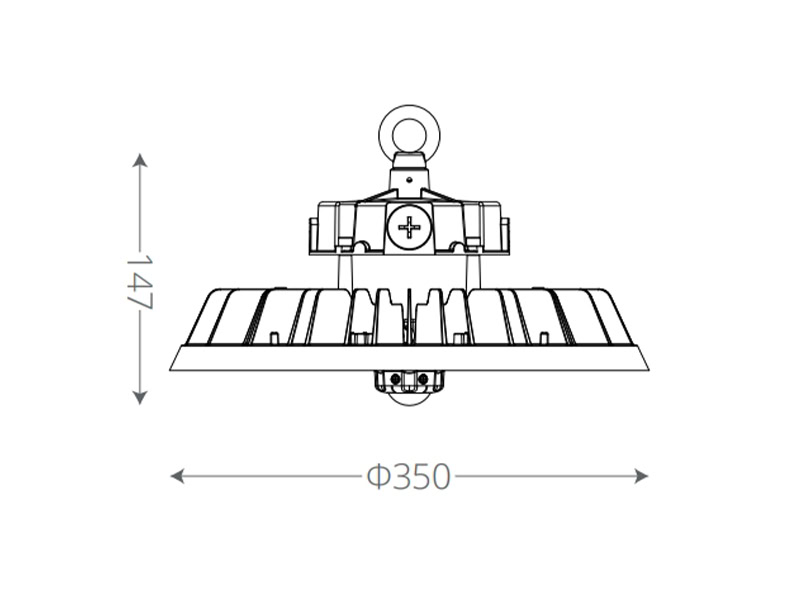

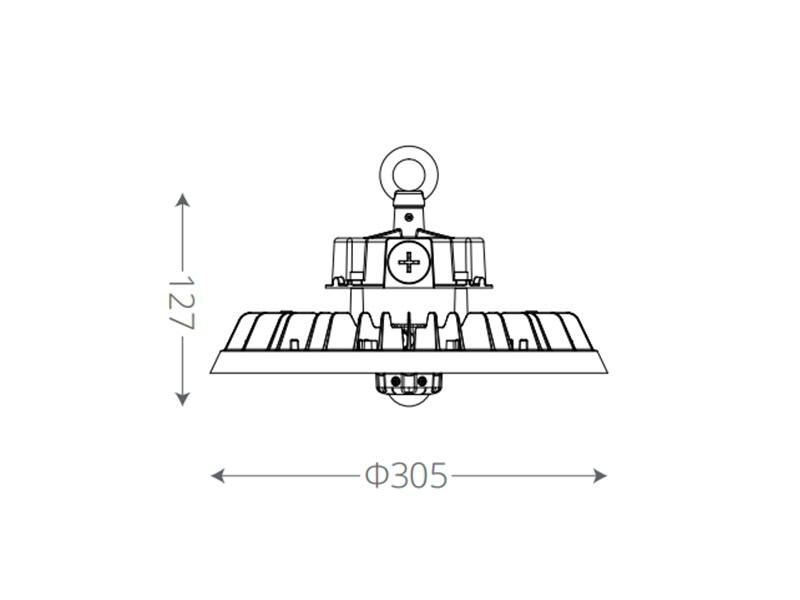

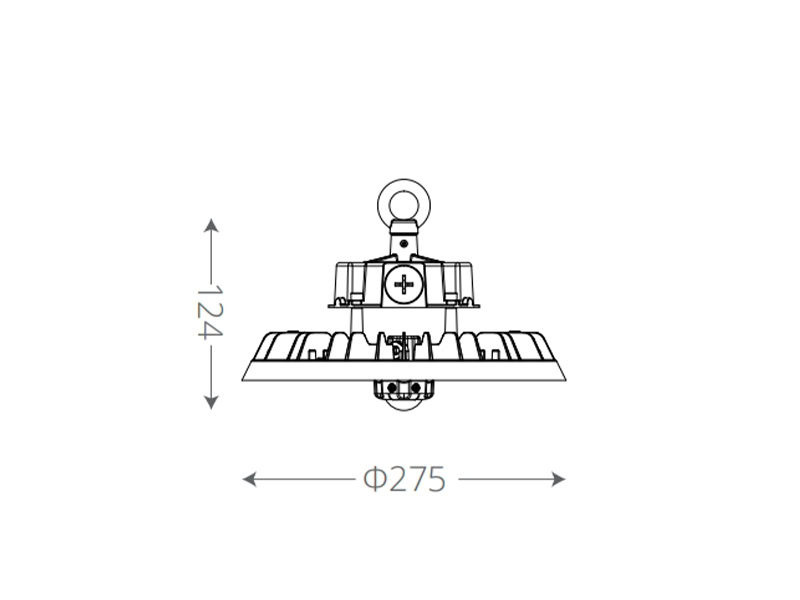

LED High Bay Lights Sizes

100W/150W

200W/240W

320W

Equipped With PC Refractor For Option

The material of the PC reflector has excellent optical properties, which can effectively reflect light, make the light distribution more uniform and reduce glare.
The combination of a reflector and a lens further optimizes the light control capability. Lenses can precisely refract and focus light, achieving light distribution at specific angles.

Small Size PC Refractor

Middle Size PC Refractor

Large Size PC Refractor

Small Size PC Refractor With Drop Lens

Middle Size PC Refractor With Drop Lens

Large Size PC Refractor With Drop Lens

Accesories Used In High Bay Lights

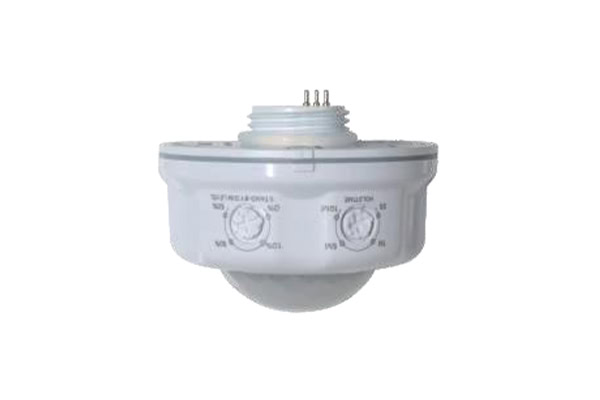

Screw-in PlR Sensor

(Networking Wireless Control Version)

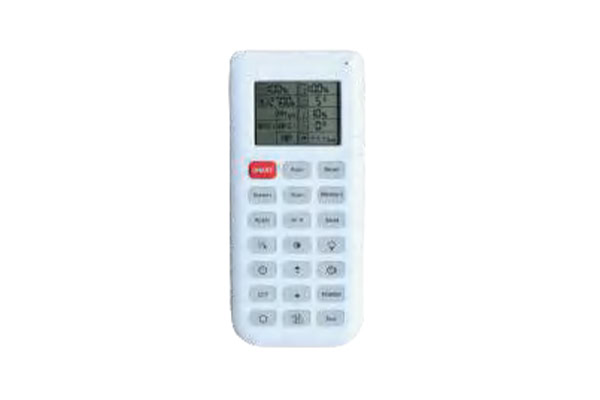

Remote Control

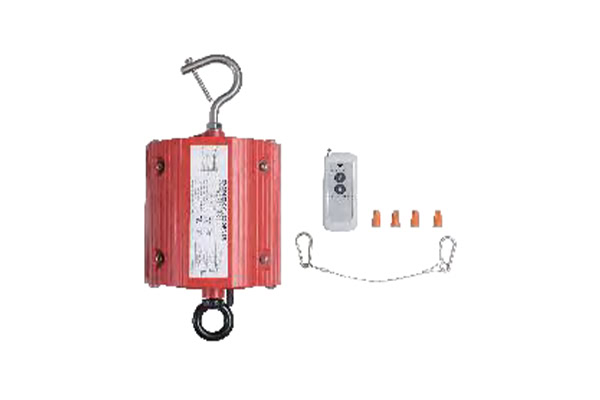

Emergency Battery

Accesories For LED UFO High Bay Lights Installation

We provide matching installation accessories, like bracket, safety rope, external threads and chains.

U Bracket

Safety Rope(0.3m)

External Threads M10 / M12

Stainless Steel Hang Chains

Easily Sensors Installation

1.Remove the plug with a Phillips screw driver. 2.Complete the sensor installation by rotating.

Applications In Different Scenarios

In industry, in factory workshops such as automobile manufacturing and mechanical processing, it can provide lighting for production operations. In all kinds of warehouses, it is convenient for the search and handling.
In the business field, supermarkets use it to illuminate the shelves, and gymnasiums rely on it to meet their lighting needs. In terms of public facilities, there is an underground parking lot.

Frequently Asked Questions

Most frequent questions and answers

How many years warranty you provided?

We can provide 5 years warranty for the whole light body.

What driver you used in led high bay light?

We use well-known brands, MOSO/Sosen/Philips brand power supply.

Can i get a sample?

We can provide customized samples for you, and if you have any adjustment, we can make for you.

Do you offer after-sales service for your led high bay lights?

We provide perfect after-sales service, including product warranty, technical support, return service, etc., to protect your rights and interests.
