Indystrial High Bay - U12 Series

Industrial high bay light use ADC12 Die-casting aluminum body, with IP65 dustproof and waterproof.

Features:

-Wattage: 100/150/200/240W

-IP65, CRI>80, 60°/90°/120°

-Light efficiency: 150lm/W, 190lm/W SDCM<3 steps

-AC200-240V

-0-10V DlM/DALI dimmable

-Emergency kits fuction

-PC + Aluminum

-Lumileds light source

-MOSO,Philips,Sosen drivers

-3000K/4000K/5000K/5700K/6000K/6500K

-Life span: >50000 Hours

-Warranty: 5Years

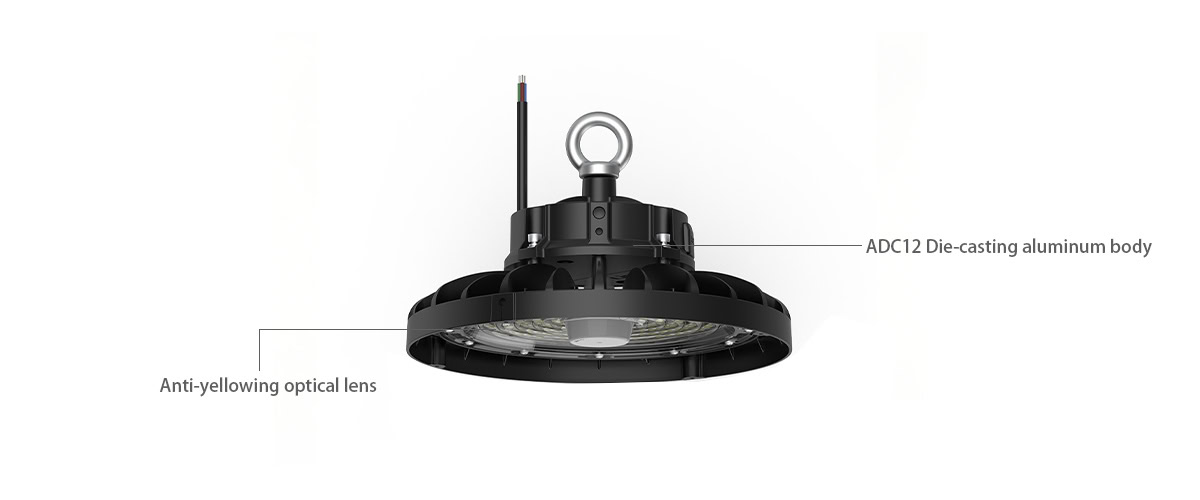

Industrial High Bay Light High Quality Material

The body is made of ADC12 die-cast aluminum, and the lamps are equipped with high-transparency and yellow-resistant PC lenses.
The equipped high-efficiency aluminum substrate features excellent thermal conductivity and electrical insulation.

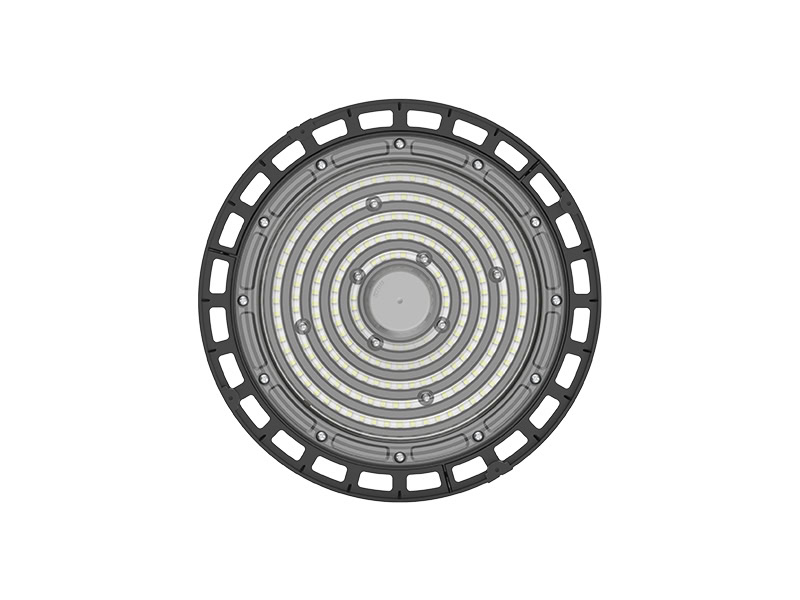

Optical Lens And Different Beam Angles Optional

Our high bay lamps can be equipped with annular lenses and have multiple Angle options of 60 degrees, 90 degrees and 120 degrees.
It has an extremely high light transmittance, whether it is an industrial plant with requirements for the distance of light projection or a large storage space that pays attention to the coverage of light.
All can be precisely adapted and fully meet the lighting needs of different customers in various places

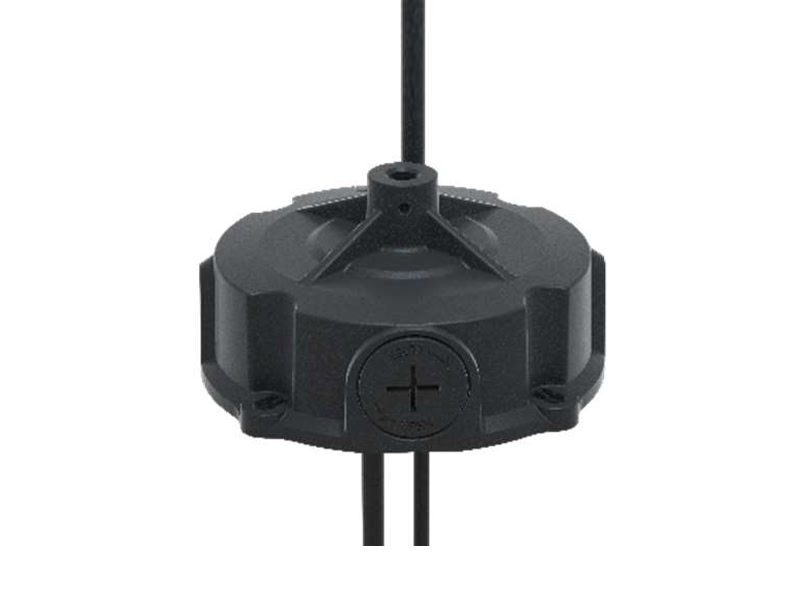

Drivers For LED High Bay Light

Choose a well-known power supply like MOSO,Sosen,Philips brand.
It features highly stable current output characteristics and can effectively prevent damage to lamps caused by current fluctuations. Keep the lamps in the best luminous state all the time, providing continuous, uniform and bright light.

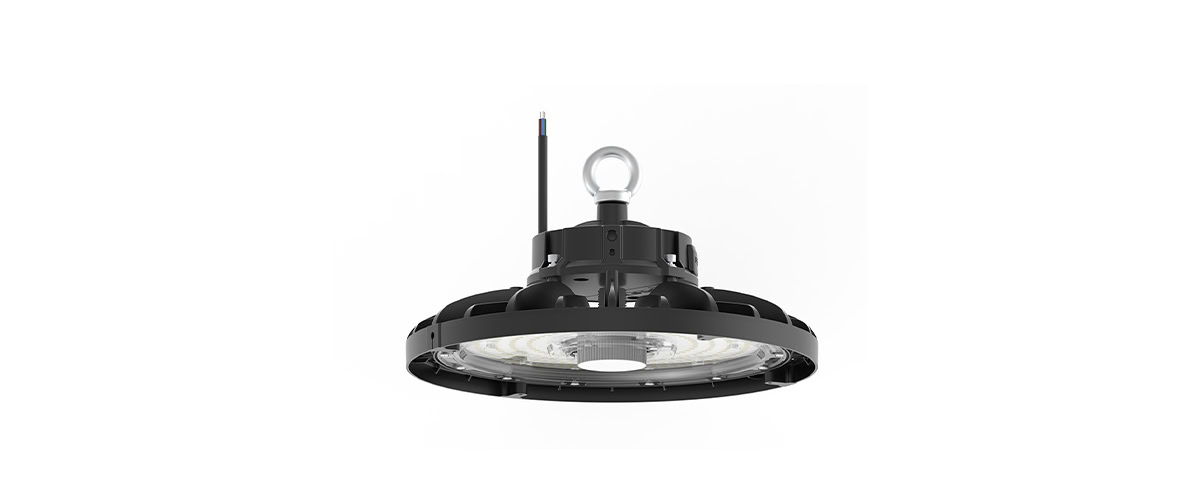

Dimmable Ways Optional Industrial High Bay Light

Supports 0-10V and DALI dimming modes.
It can automatically adjust according to natural light and human activities to achieve precise lighting and energy conservation.

Emergency Kits Function For Industrial High Bay Light

The lights support emergency kits for option, and provide 30mins, 60 mins and 90mins selected.

In line with industrial safety standards, suitable for warehouses, workshops, underground mines and other key places.

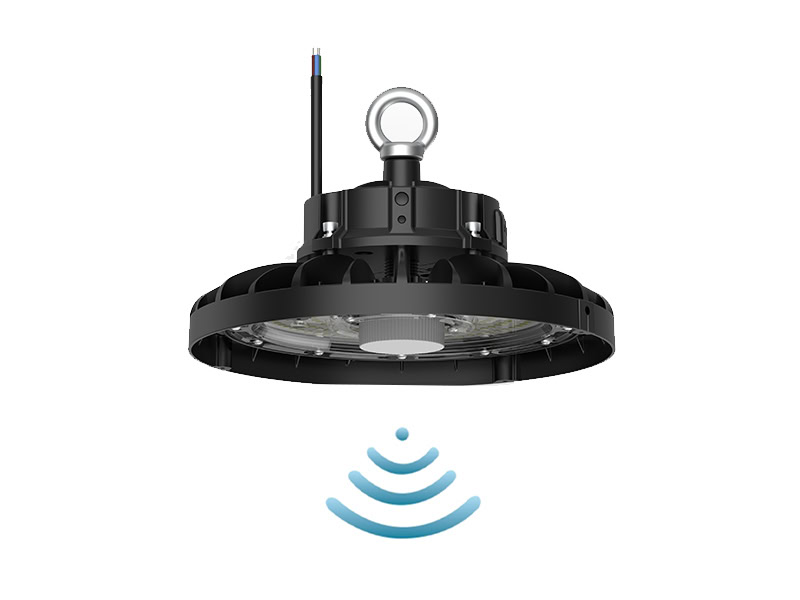

Microwave Sensors Optional

It can be equipped with a microwave sensor and has intelligent sensing function.
Once a person or a moving object enters the sensing zone, the light turns on automatically.
After individuals depart or objects cease moving for a certain duration, the light will either switch off automatically or dim to a low – brightness state.

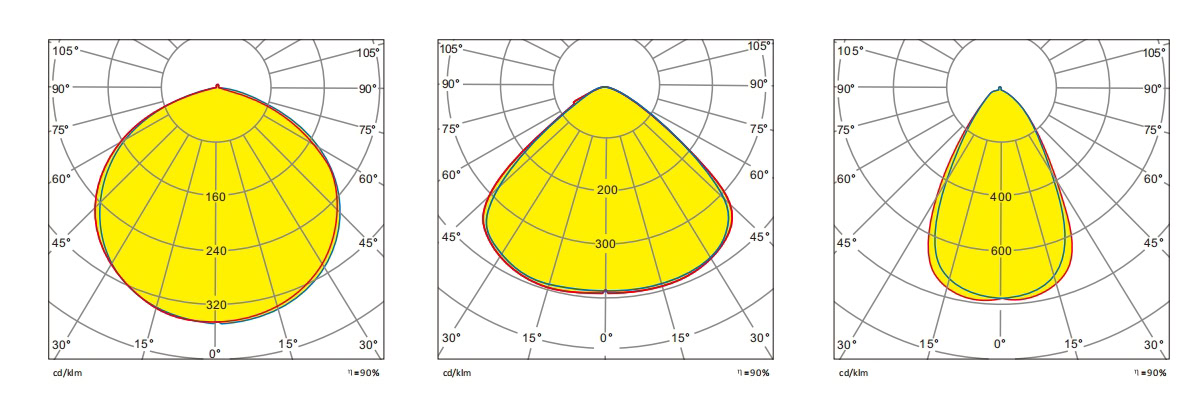

Beam Angles Of LED High Bay Lights

The innovative optical distribution system employs a combination of 60°, 90°, and 120° beam angles to create a precisely calibrated lighting matrix,
ensuring consistent luminance across the entire workspace. This multi – angular approach eliminates dark spots and uneven illumination, addressing the critical requirements of industrial environments.

Datasheet Of UFO High Bay

Model No.	GSH-100W-U12	GSH-150W-U12	GSH-200W-U12	GSH-300W-U12
Power	100W	150W	200W	240W
Material	Aluminum housing and PC lens
Light efficiency	150lm/W
Driver Brand	MOSO,Sosen,Philips
Beam angle	60°/90°/120°
Voltage	AC200-240V
LEDs	SMD2835
PF	>0.95
LED Lifespan	>50000 hours
IP	IP65
IK	IK10
CRI	>80
CCT	3000K/4000K/5000K/5700K
Size	Φ240×144	Φ280×152	Φ320×154	Φ320×154
Warranty	5 Years

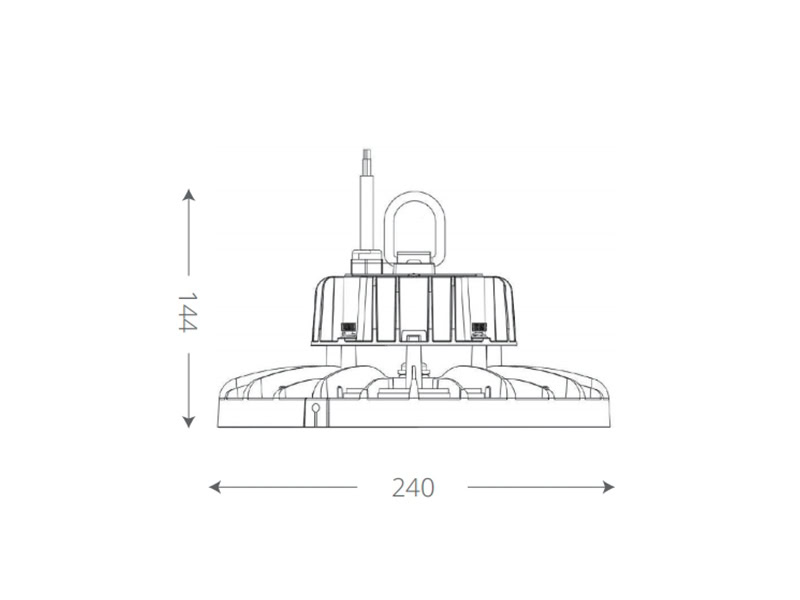

Industrial High Bay Lights Sizes

100W

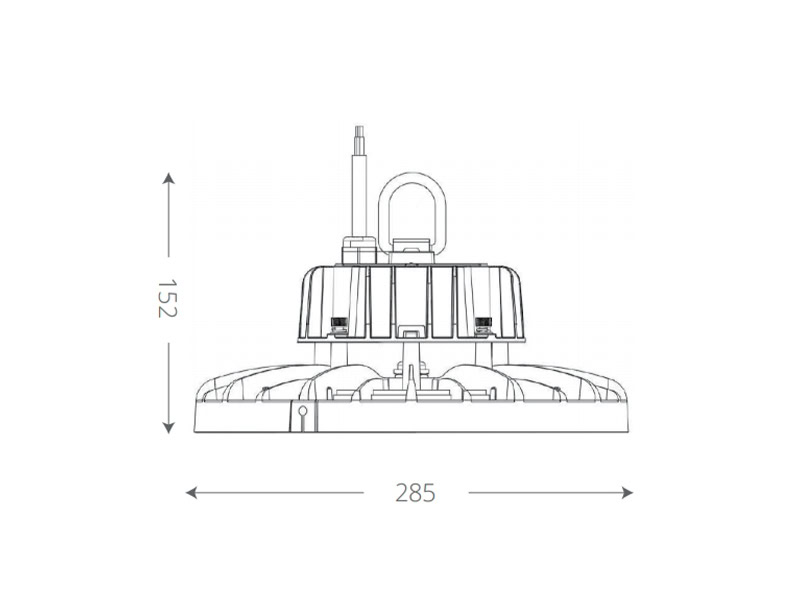

150W

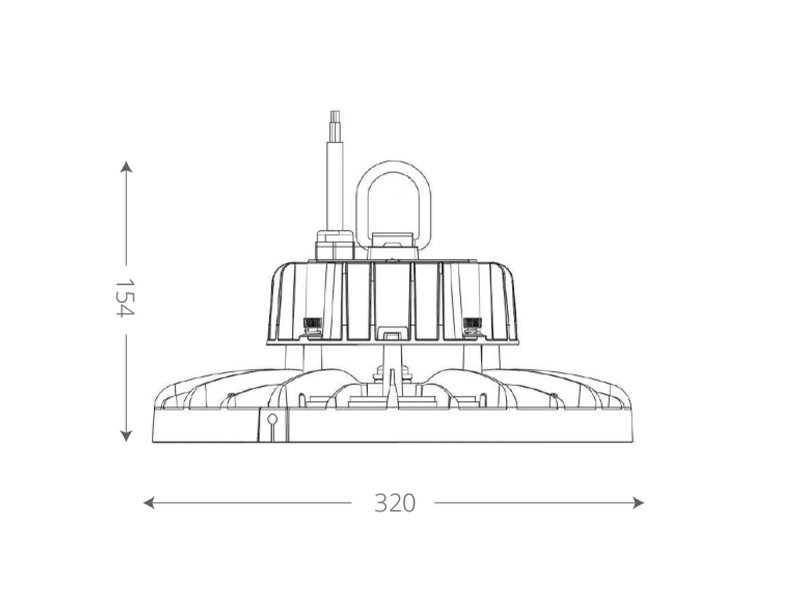

200W/240W

Equipped With PC Or Aluminum Reflector For Option

Our industrial high bay lights offer a choice between PC and aluminum reflectors.
PC reflectors have excellent light transmittance and impact resistance, and aluminum reflectors are highly efficient in reflecting light.

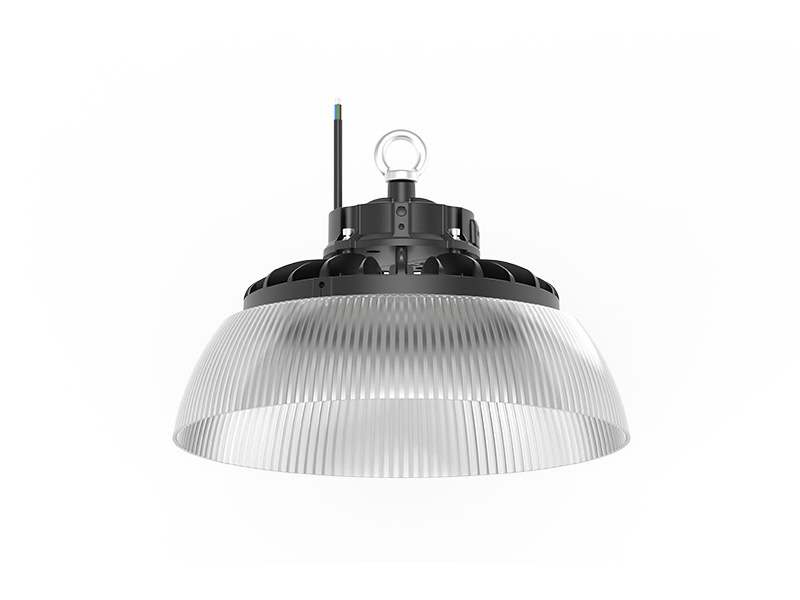

PC Reflector

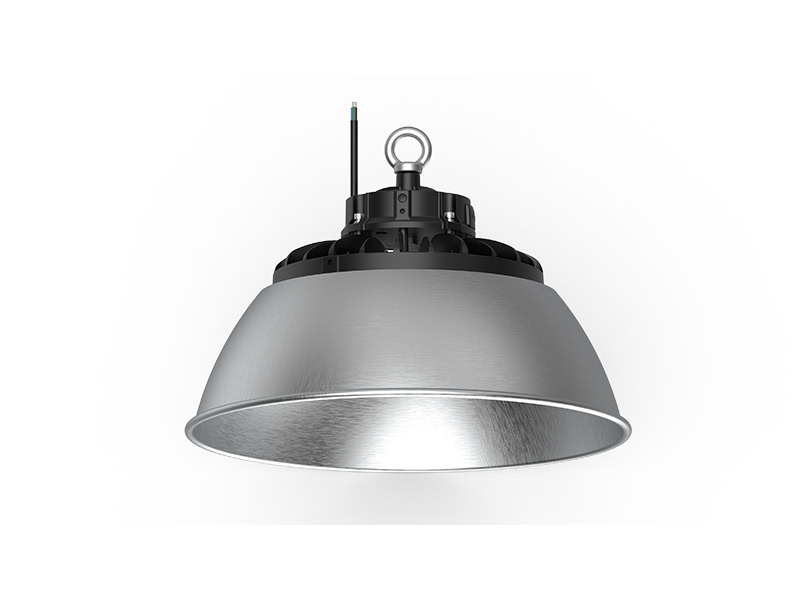

Aluminum Reflector

Accesories For LED High Bay Lights Option

We provide matching installation accessories, like bracket, safety rope, external threads and chains.

U Bracket

Safety Rope(0.3m)

External Threads M10 / M12

Stainless Steel Hang Chains

Intelligent Control Accesories

Equipped with microwave sensor, infrared body sendor, Zhaga sensor for option, and wireless remote control mode.

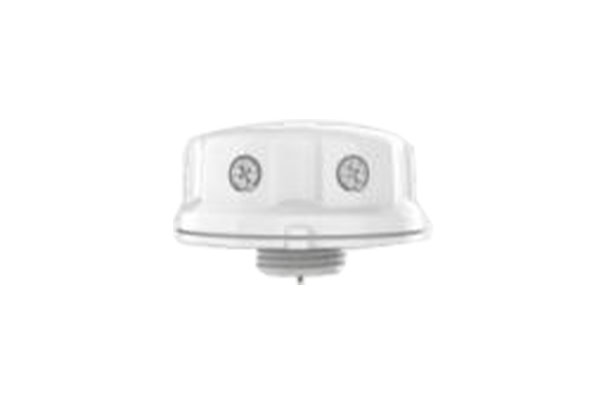

Microwave induction

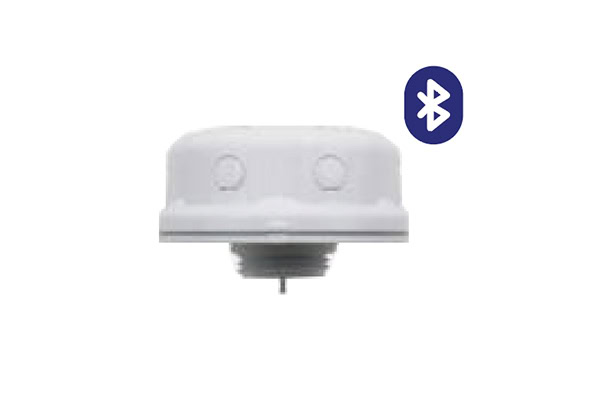

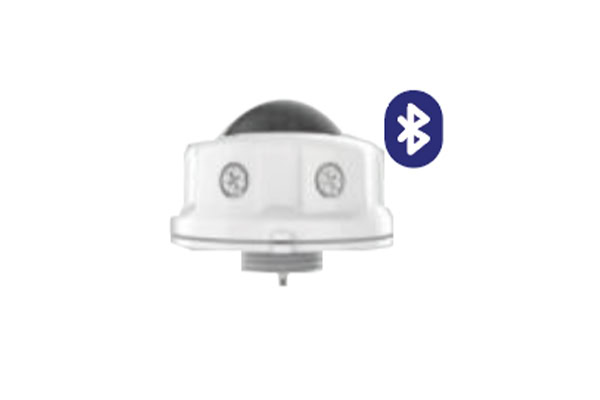

Microwave Sensor – Bluetooth Version

Infrared body sensing

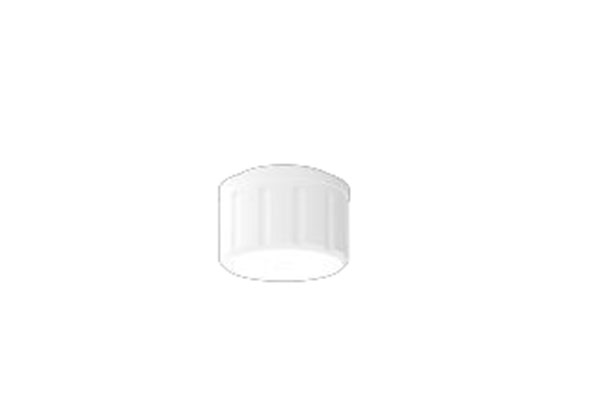

Zhaga Base Sensor

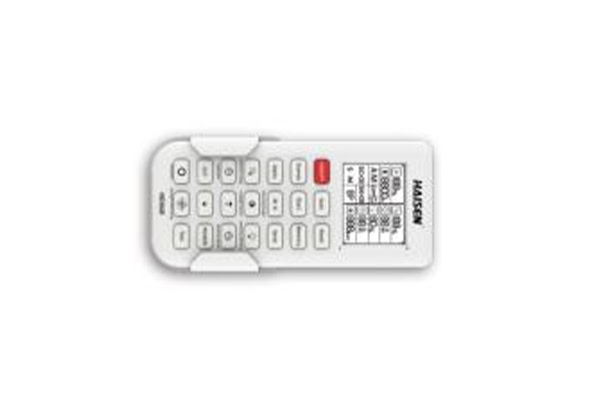

Inductive remote

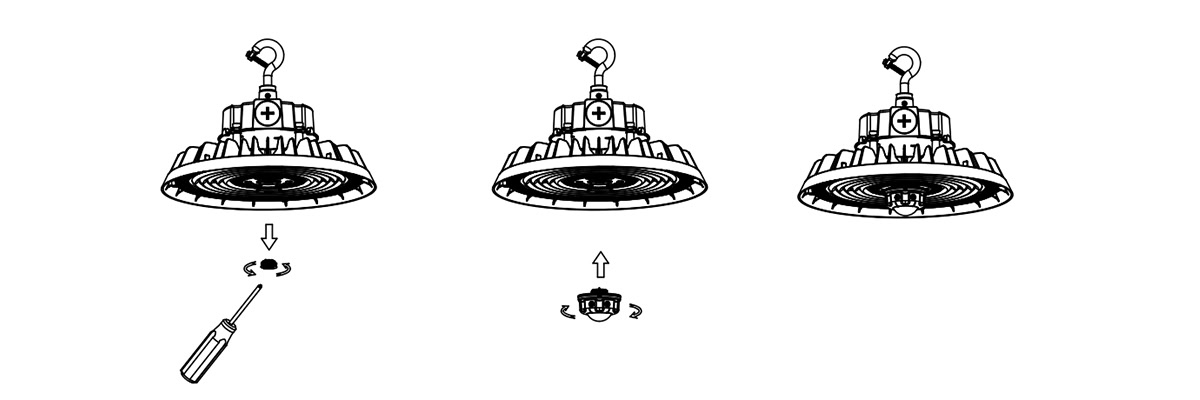

Easily Sensors Installation

1.Remove the plug with a Phillips screw driver. 2.Complete the sensor installation by rotating.

Applications In Different Places

It can be used in many places, such as factory workshops, warehousing and logistics, shopping malls and supermarkets, sports venues, exhibition halls and museums, port terminals (loading and unloading areas, ship decks), highway service areas and toll stations, construction sites, parking lots and underground passages.

Frequently Asked Questions

Most frequent questions and answers

How many years warranty you provided?

We can provide 5 years warranty for the whole light body.

What driver you used in led high bay light?

We use well-known brands, MOSO, Sosen, Philips power supply.

Can i get a sample?

We can provide customized samples for you, and if you have any adjustment, we can make for you.

Do you offer after-sales service for your led high bay lights?

We provide perfect after-sales service, including product warranty, technical support, return service, etc., to protect your rights and interests.
