Linear High Bay Light - L4 Series

Linear high bay light L4 series use ADC12 Die-casting aluminum body, provide wide wattages optional 50-320W.

It offers multiple beam angle options including 90°/30×100°/70×105°.

Features:

-Wattage: 50/75/100/150/200/320W

-IP65, CRI>80, 90°/30×100°/70×105°.

-Light efficiency: 170lm/W SDCM<3/5 steps

-AC100-277V

-0-10V DlM/DALI dimmable

-Emergency kits function

-PC + Aluminum

-Lumileds light source

-MOSO/Meanwell drivers

-3000K/4000K/5000K/5700K

-Life span: >50000 Hours

-Warranty: 5Years

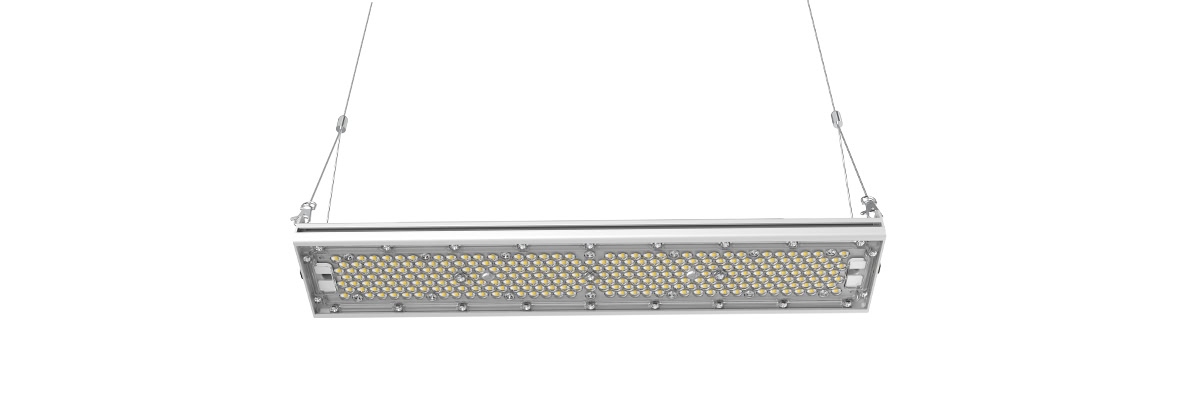

High Bay Linear Light High Quality Material

The body is made of ADC12 die-cast aluminum, and the lamps are equipped with high-transparency and yellow-resistant PC lenses.
The equipped high-efficiency aluminum substrate features excellent thermal conductivity and electrical insulation.

Drivers Of High Bay Light

The lamp adopts an aluminum shell power supply from MOSO or Meanwell. The aluminum shell material is not only sturdy and durable but also has excellent heat dissipation performance.
Effectively reduce the internal temperature of the power supply, ensure its stable operation and extend its service life

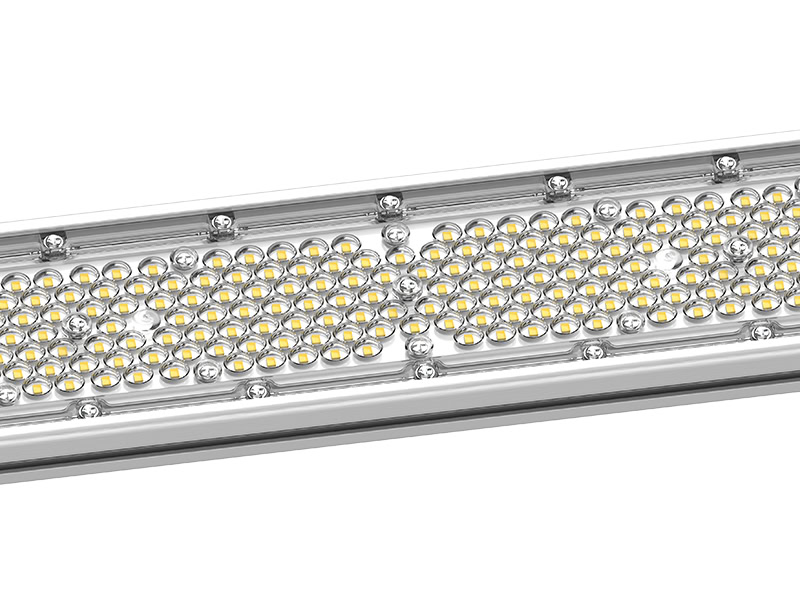

Light Source Of Linear High Bay Light

The light source adopts SMD3030 from Lumileds, with SDCM < 3; High power factor >0.95,
CRI >80 and color temperature (3000K, 4000K, 5000K, 6500K) selection;
There are different lengths and wattage 50-320W options available, and the luminous efficacy can reach 170lm/w.

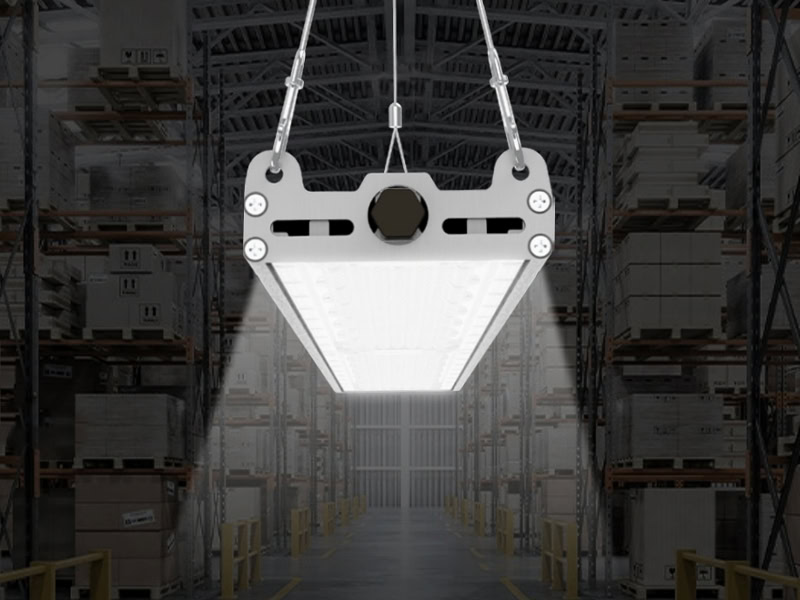

Uniform Light Distribution

It can precisely guide the light along the aisle and project downward, making the light distribution more uniform on the floor, shelf surfaces and aisles.
As the light is concentrated where it is needed, unnecessary lighting waste is reduced and energy costs are lowered.

ON/OFF Sensors And Dimming Functions

ON/OFF Function (stand-by period set at ‘0’)
With insufficient ambient light, the sensor switches on the light when motion is detected.

2-step dimming function (stand-by period set at “+∞”)

If there is no motion detected, the light will be remained at a low light level all the time. When motion is detected, the sensor will switch on the light to 100% brightness.
After elapse of hold time, the sensor dims the light at the present low light level if no motion.

3-step dimming function (stand-by period set at “5min”or“15min”)

With insufficient ambient light, the sensor switches on the light when motion is. After elapse of hold time, the sensor dims the light at a low light level if no new.

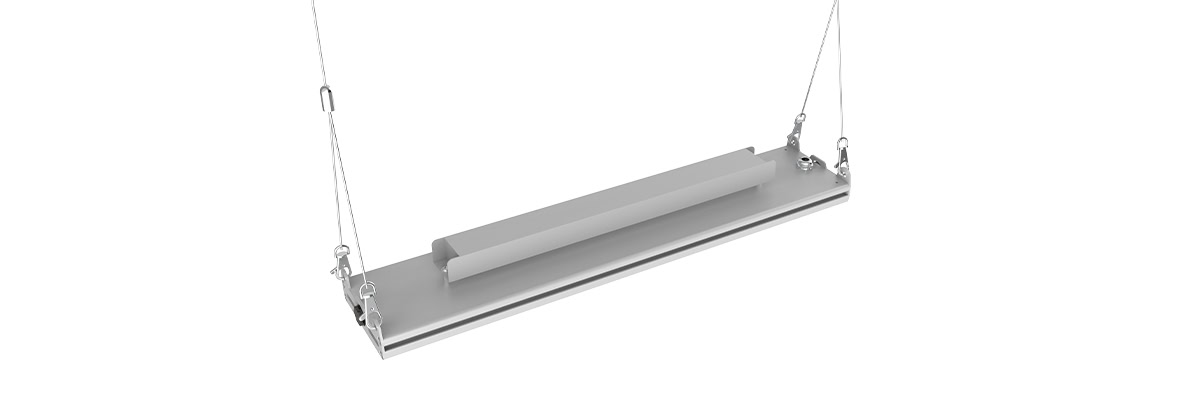

Emergency Kits Function Optional

The lights support emergency kits for option, and provide 30mins, 60 mins and 90mins selected.

In line with industrial safety standards, suitable for warehouses, workshops, underground mines and other key places.

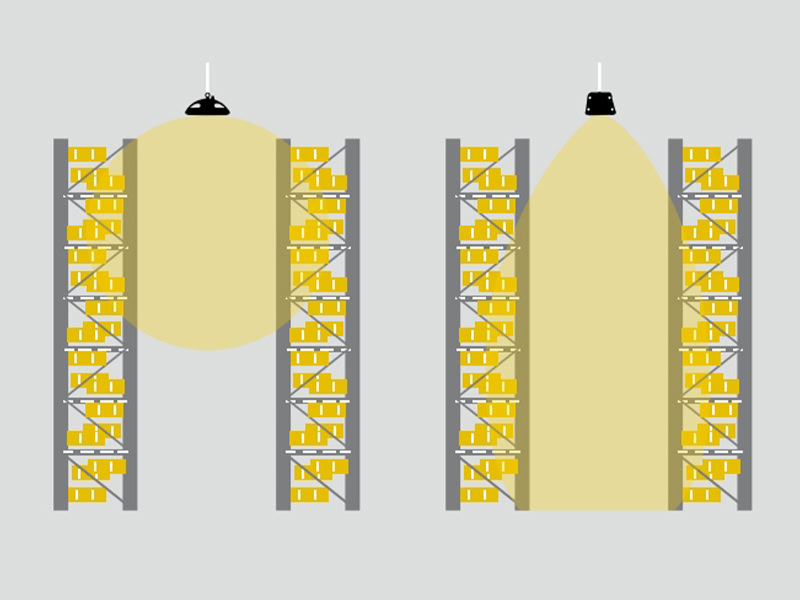

Light Effect Front View

The aisle optics light up the whole racking face from top to bottom making it easier for staff to see what their pocking or customers to see your product

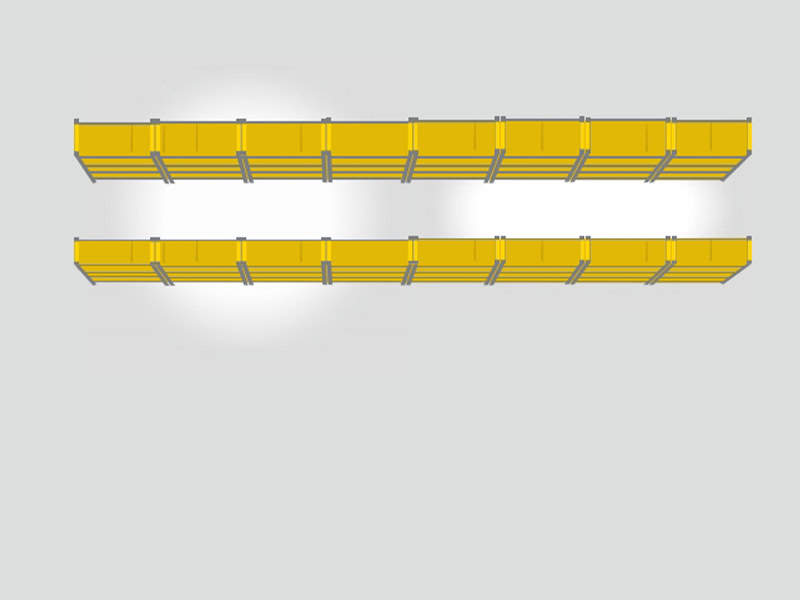

Light Effect Top View

The aisle optics also posh the light down the aisle allowing for less fittings while creating excellent uniformity.

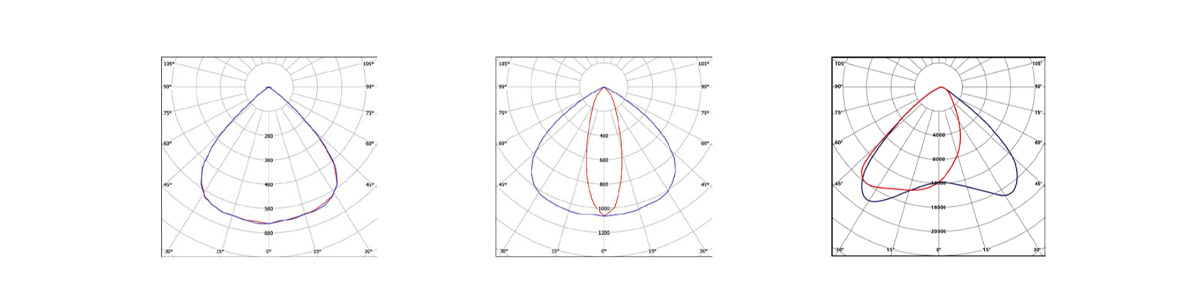

Beam Angles Of High Bay Linear Lights

Designed specifically for warehouses, this perfect rectangular lighting spot is suitable for storage Spaces with narrow shelf spacing, warehouses or retail stores.
It offers multiple beam Angle options including 90°/30×100°/70×105°.

Datasheet Of LED High Bay Linear Light

Model No.	GSH-50W-L4	GSH-75W-L4	GSH-100W-L4	GSH-150W-L4	GSH-200W-L4	GSH-320W-L4
Power	50W	75W	100W	150W	200W	320W
Material	Aluminum housing and PC lens
Light efficiency	170lm/W
Driver Brand	MOSO/Meanwell
Beam angle	90°/30×100°/70×105°
Voltage	AC100-277V
LEDs	SMD2835
PF	>0.95
LED Lifespan	>102000 hours
IP	IP66
IK	IK10
CRI	>70(>80,>90 available)
CCT	3000K/4000K/5000K/5700K/6500K
Colors	Grey
Size	L515W102H1030			L1013W102H1030		L1511W102H1030
Warranty	5 Years

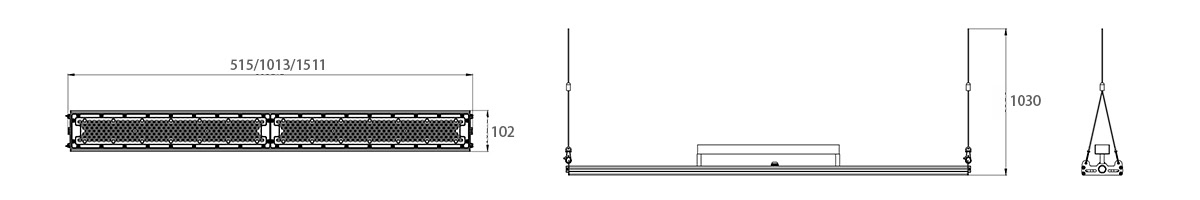

Linear LED High Bay Lights Sizes

Applications In Different Scenarios

Factory workshops, warehouses, logistics centers, maintenance workshops, gymnasiums, fitness centers, swimming pools, ports, docks, large supermarkets, shopping malls

Frequently Asked Questions

Most frequent questions and answers

How many years warranty you provided?

We can provide 5 years warranty for the whole light body.

What driver you used in led linear high bay light?

We use well-known brands, MOSO/MEANWELL power supply.

Can i get a sample?

We can provide customized samples for you, and if you have any adjustment, we can make for you.

Do you offer after-sales service for your led high bay lights?

We provide perfect after-sales service, including product warranty, technical support, return service.
