High Bay LED Lamp - U15 Series

High bay LED lamp U15 series is a cost performance effective series.

With luminous efficacy reaching 150-200lm/W, it used PC and aluminum material made, with IP65 waterproof grade.

Features:

-Wattage: 100/150/200W

-IP65, CRI>80, 60°/90°/120°

-Light efficiency: 150lm/W, 170lm/W, 200lm/W SDCM<5 steps

-AC120-277V

-0-10V DlM/DALI dimmable

-Sensor and Emergency kits function

-PC + Aluminum

-Lumileds light source

-MOSO/Sosen/Philips drivers

-3000K/4000K/5000K/5700K/6000K/6500K

-Life span: >50000 Hours

-Warranty: 5Years

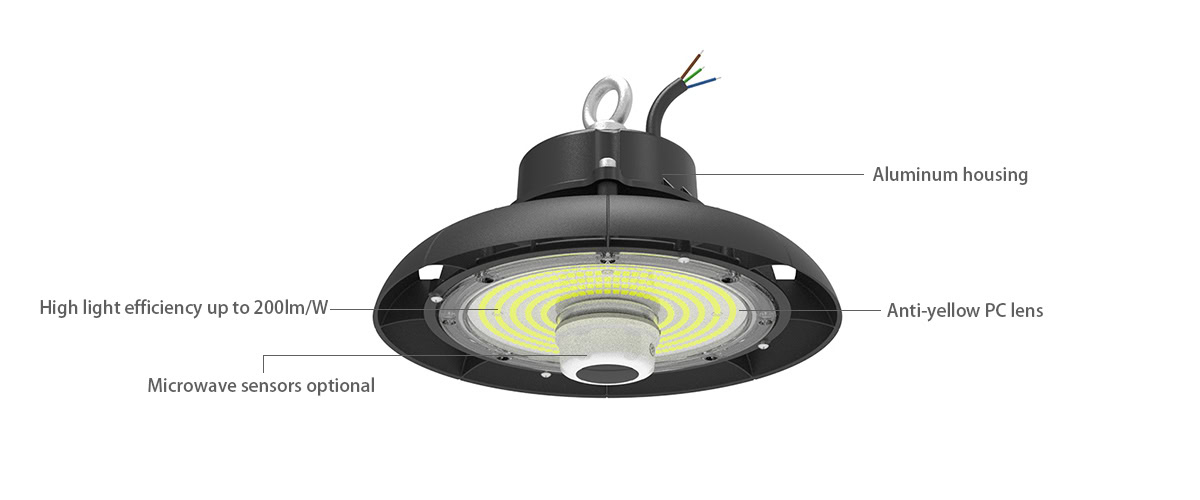

UFO High Bay LED Lamp High Quality Material

The body is made of ADC12 die-cast aluminum, and the lamps are equipped with high-transparency and yellow-resistant PC lenses.
The equipped high-efficiency aluminum substrate features excellent thermal conductivity and electrical insulation.

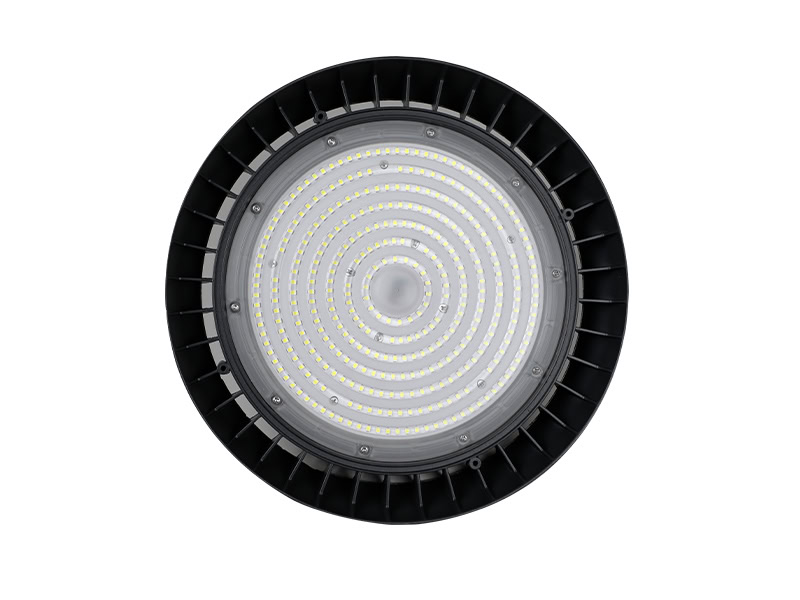

Light Source With High Efficiency

The SMD3030 light source selected is from the Lumileds brand, featuring high brightness and high luminous efficiency. Provide 150lm/, 170lm/W, 200lm/W light efficiency for option.
In industrial Settings, it provides sufficient and clear light for various production activities, meeting the strict requirements of brightness for different operations. Help improve production efficiency.

Drivers For LED High Bay Light

We source power supplies from renowned brands such as MOSO, Sosen, and Philips.
These power supplies are characterized by their highly stable current output. This stability is crucial as it effectively safeguards lamps against damage resulting from current fluctuations.

Microwave Sensor And Dimming Function for option

When paired with 1 – 10V dimmable LED drivers and ballasts, our sensors enable a three – step dimming feature, cycling through 100% brightness, low light, and off.
Moreover, these sensors are equipped with adjustable daylight sensors. Installation is a breeze, and they offer excellent cost – effectiveness, making them a practical choice for various lighting control needs.

With sufficient ambient light,
the sensor does not switch on the lamp

With insufficient ambient light,
the sensor switches on the lamp when motion is detected

After hole time,
the sensor dims the lamp ata low light level if no new motion trigger.

After stand-by period,
the sensor switches off the lamp if no motion is detected.

Emergency Kits Function For High Bay Light

The lights support emergency kits for option, and provide 30mins, 60 mins and 90mins selected.

In line with industrial safety standards, suitable for warehouses, workshops, underground mines and other key places.

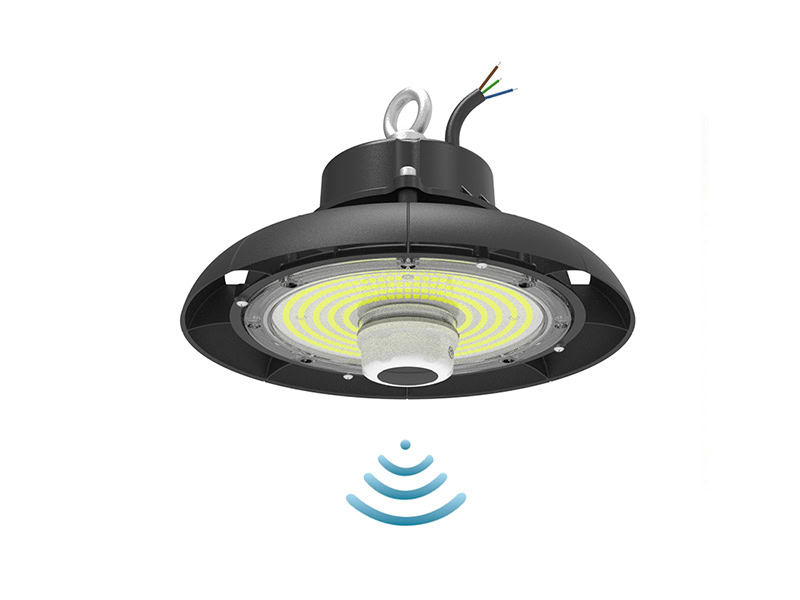

Microwave Sensors Optional

High bay light can be outfitted with a microwave sensor, enabling it to possess an intelligent sensing function.
Once a person or a moving object enters the sensor’s detection zone, the light will turn on automatically.
After individuals have left the area or objects have ceased moving for a certain duration, the light will either switch off automatically or dim to a lower brightness level.

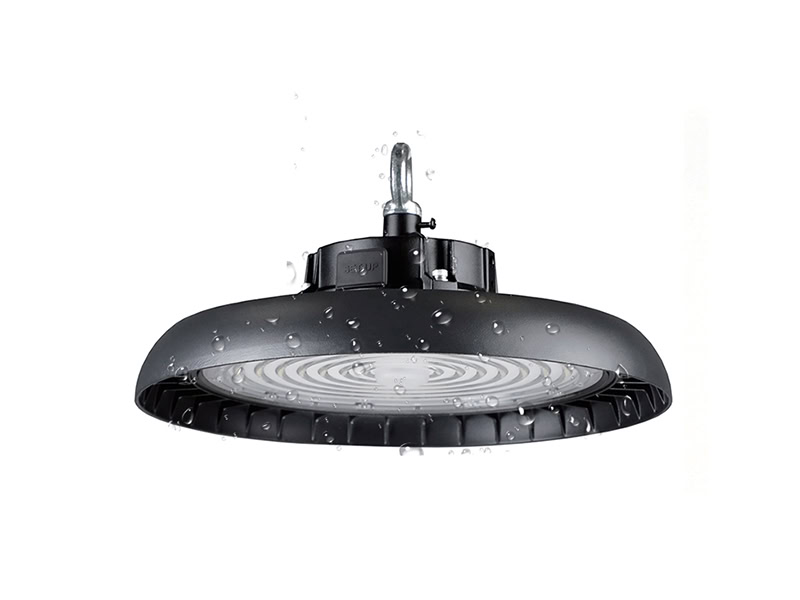

IP65 Waterproof Protection Grade

This high bay led lamp has an outstanding IP65 protection function.
It provides a solid guarantee for its stable operation in various complex environments. The IP65 protection rating means it performs well in terms of dust and water resistance.

Equipped With PC OR Aluminum Reflectors For Option

The lampshade protects the internal components of the lamp and optimizes the light.
Lampshades of different materials and designs can change the direction and Angle of light propagation, meeting the lighting effect requirements of different places.

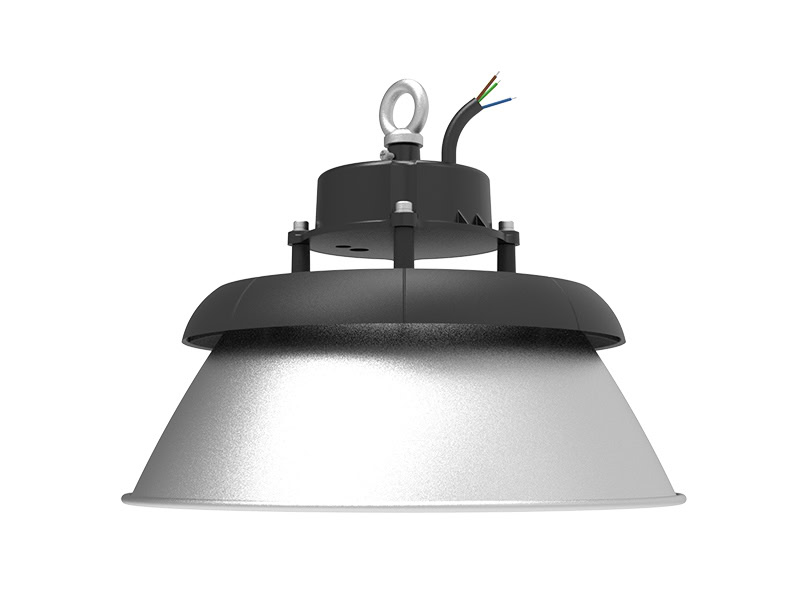

Aluminum reflector

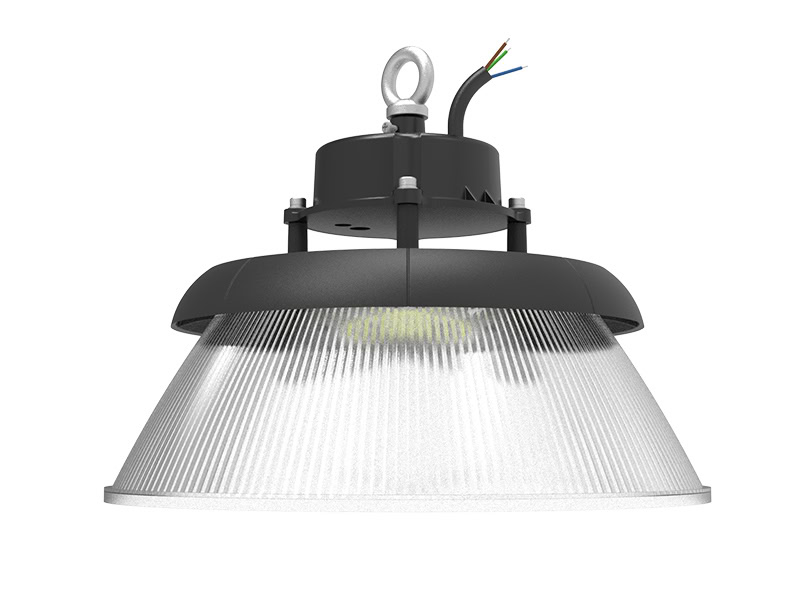

PC reflector

Beam Angles Of LED High Bay Lights

The unique optical light distribution design achieves uniform illumination through the distribution of light at different angles such as 60°, 90°, and 120°, effectively avoiding lighting dead zones.
In industrial environments, providing workers with clear and shadow-free working light can enhance work efficiency and reduce the risk of safety accidents caused by insufficient lighting.

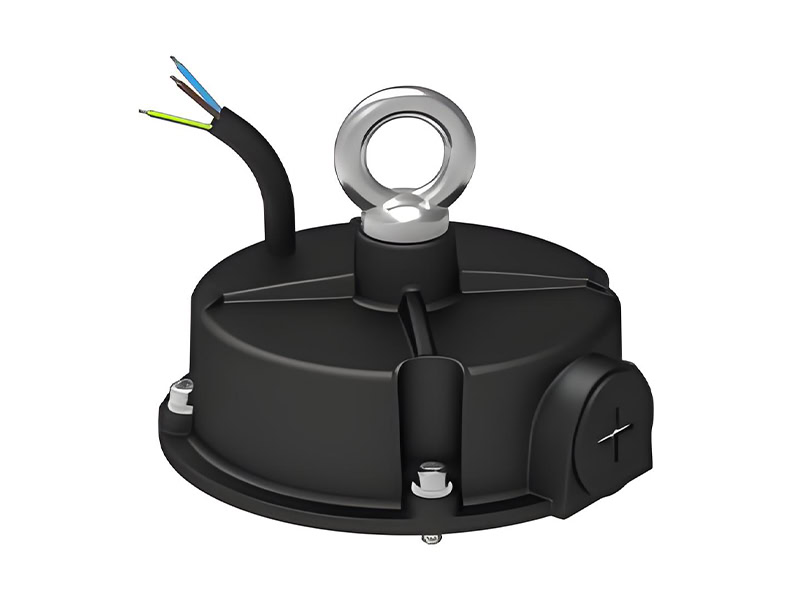

Power and CCT Adjustable

Both power and color temperature can be flexibly adjusted.
It can meet the personalized lighting needs of various scenarios.

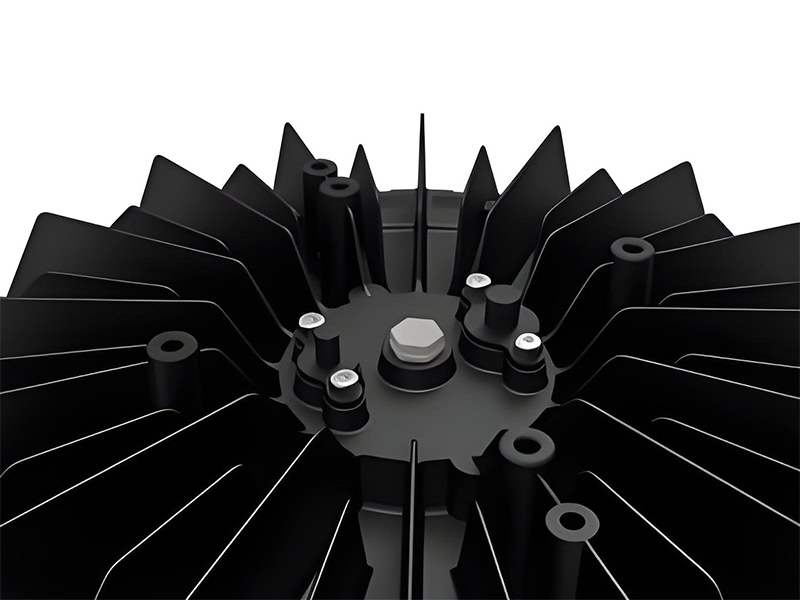

Screw-in Breather Nut Design

Through a specially designed breathable structure,
Balance the air pressure inside and outside the lamps.

Datasheet Of UFO High Bay LED Lamp

Model No.	GSH-100W-U15	GSH-150W-U15	GSH-200W-U15
Power	100W	150W	200W
Material	Aluminum housing and PC lens
Light efficiency	150lm/W 170lm/W 200lm/W
Driver Brand	Sosen, MOSO, Philips
Beam angle	60°/90°/120°
Voltage	AC120-277V
LEDs	SMD2835
PF	>0.95
LED Lifespan	>50000 hours
IP	IP65
IK	IK10
CRI	>80
CCT	3000K/4000K/5000K/5700K/6500K
Size	Φ255×150	Φ300×155	Φ340×160
Warranty	5 Years

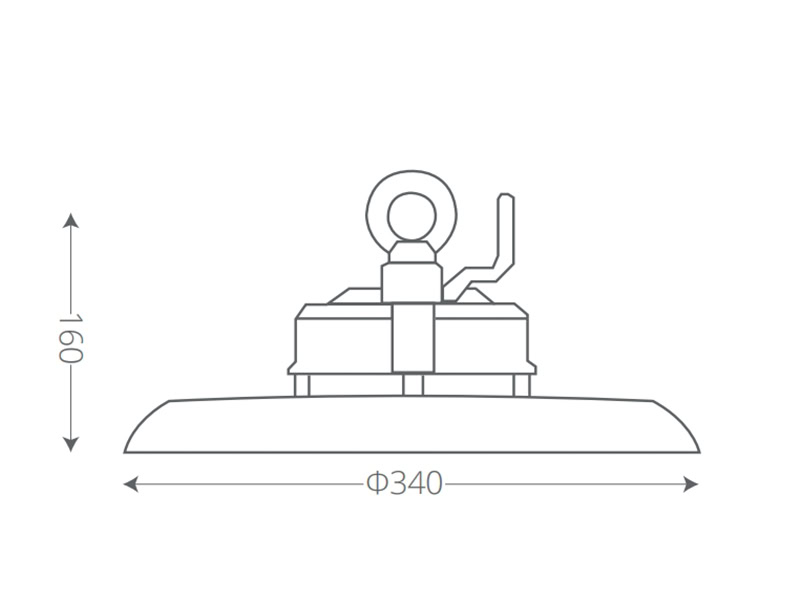

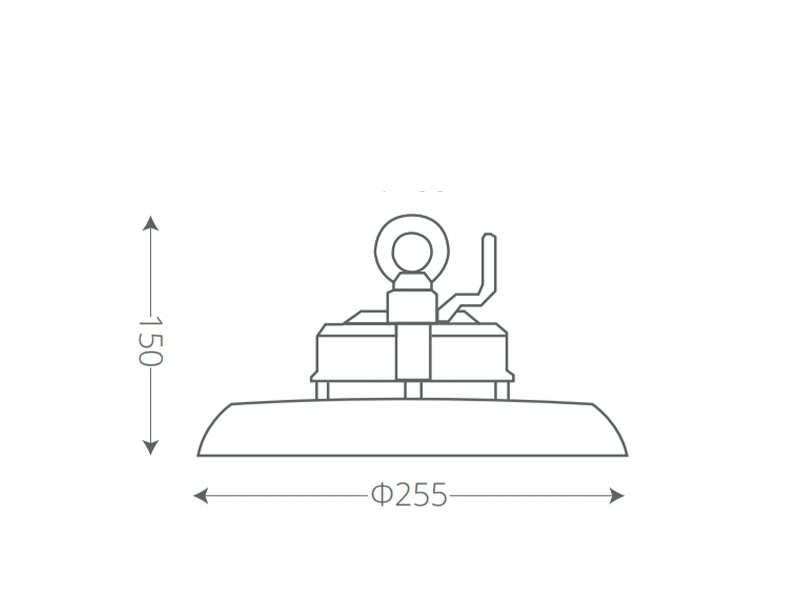

LED High Bay Lamps Sizes

100W

150W

200W

Accesories For High Bay LED Lamp Option

We provide matching installation accessories, like bracket, safety rope, external threads and chains.

U Bracket

Safety Rope(0.3m)

External Threads M10 / M12

Stainless Steel Hang Chains

Applications In Different Scenarios

In industry, in factory workshops such as automobile manufacturing and mechanical processing, it can provide lighting for production operations. In all kinds of warehouses, it is convenient for the search and handling.
In the business field, supermarkets use it to illuminate the shelves, and gymnasiums rely on it to meet their lighting needs. In terms of public facilities, there is an underground parking lot.

Frequently Asked Questions

Most frequent questions and answers

How many years warranty you provided?

We can provide 5 years warranty for the whole light body.

What driver you used in led high bay lamp?

We use well-known brands, MOSO power supply.

Can i get a sample?

We can provide customized samples for you, and if you have any adjustment, we can make for you.

Do you offer after-sales service for your led high bay lights?

We provide perfect after-sales service, including product warranty, technical support, return service, etc., to protect your rights and interests.
