Waterproof ground lights adopts OSRAM LED light source, which has high brightness and uniform and soft light.
Has an IP67 waterproof rating, is rainproof, corrosion-resistant and impact-resistant. Frosted glasses and 120 wide beam angle.
-6063 aluminum alloy extruded thickened lamp body
-strong 8mm tempered glass
-light efficiency up to 90lm/W
-2.2W/3-6W per light source for option
-Single color / RGB Three in one for options
-High performance with OSRAM/CREE leds
-Electrical: DC24V/ AC200-240V
-Beam angle: 120°
-IP67 protecting grade
-5 years warranty

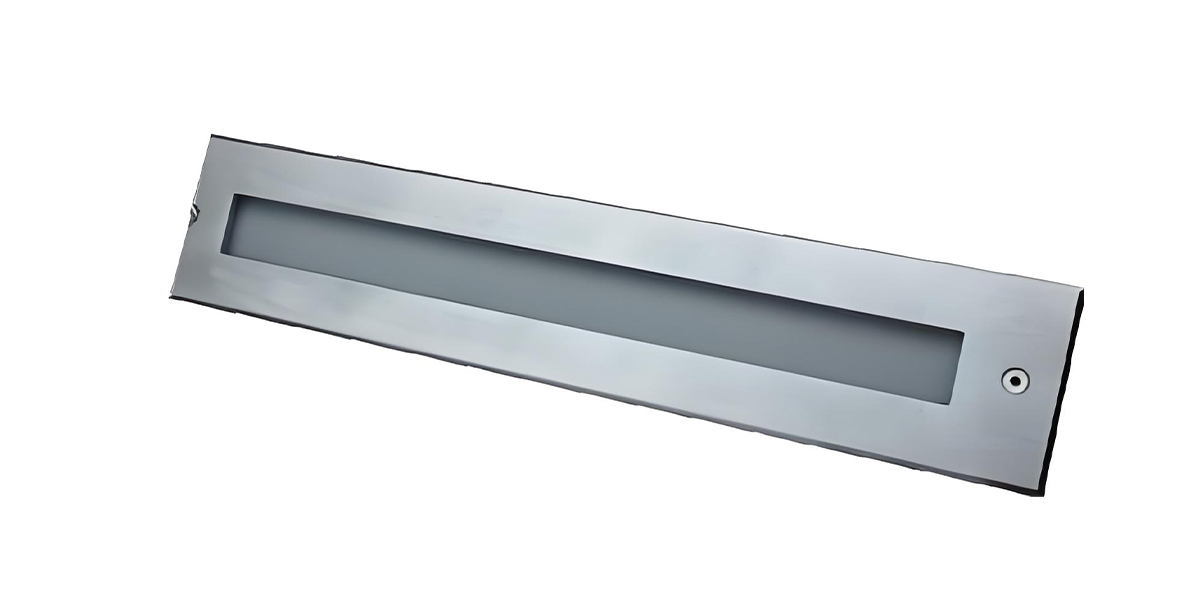

Linear underground lamp adopts a thickened 6063 aluminum alloy lamp body and 8mm tempered glass, and a luminous efficacy as high as 90lm/W.
The face ring is made of 316 stainless steel, which is rainproof, corrosion-resistant and impact-resistant. The aluminum shell has excellent heat conduction and dissipation performance.
The light source brand is OSRAM. Its core advantages are high quality, long lifespan and high luminous efficiency.
Color temperature types cover single color/RGB/RGBW. The color adjustment is flexible and suitable for various scenarios such as decoration and atmosphere creation.
Easy to install, it can be fixed with screws or installed in an installation box. It has an IP67 waterproof rating.
Changing colors from 2700K to 4000K, RGB/RGBW/DMX control for option.
According to the changing needs of your scene, choose the right color temperature to create a different atmosphere.
It can support DALI/0-10V Control dimmable.
DALI Dimming: Suitable for scenarios that require precise control and intelligent management.
0-10V dimming: Suitable for simple, low-cost dimming needs.
| Model No. | GS-L4-195 | GS-L4-328 |
|---|---|---|
|
Power |
2.2W |
3-6W |
|
Material |
6063 Aluminum alloy+8mm tempered glass+stainless steel face ring |
|
|
Beam angle |
120° |
|
|
Light efficiency |
90lm/W |
|
|
Voltage |
DC24V/AC220V |
|
|
LEDs |
SMD |
|
|
Light source brand |
CREE/OSRAM |
|
|
PF |
>0.95 |
|
|
LED Lifespan |
>50000 Hours |
|
|
IP |
IP67 |
|
|
CRI |
>80/90 |
|
|
CCT |
RGB/RGBW/DMX/2700K/3000K/3500K/4000K |
|
|
Warranty |
5 years |
|
Surface light
Polarized design
Stretch film of LED light
Honeycomb

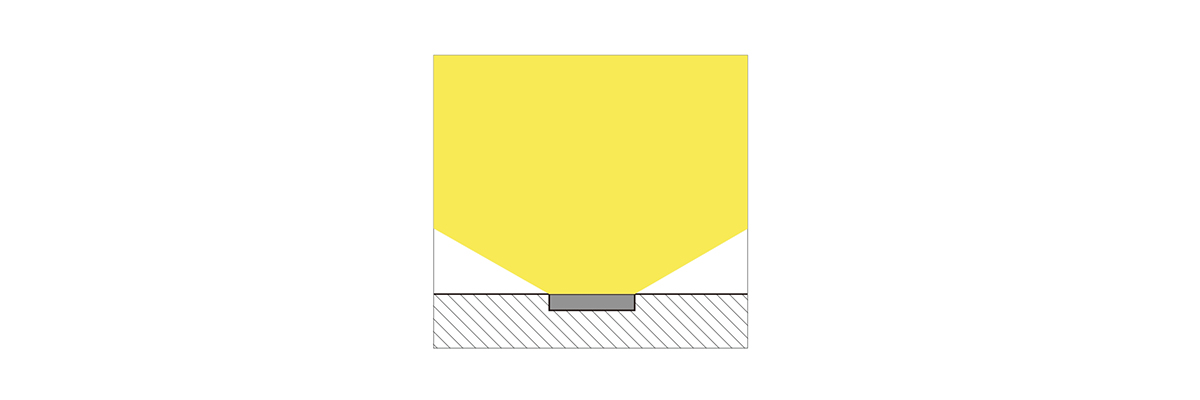

The fixed beam Angle is 120°, which belongs to wide-angle lighting.
The light distribution is wide and the coverage area is large, making it suitable for scenarios that require uniform lighting over a large area

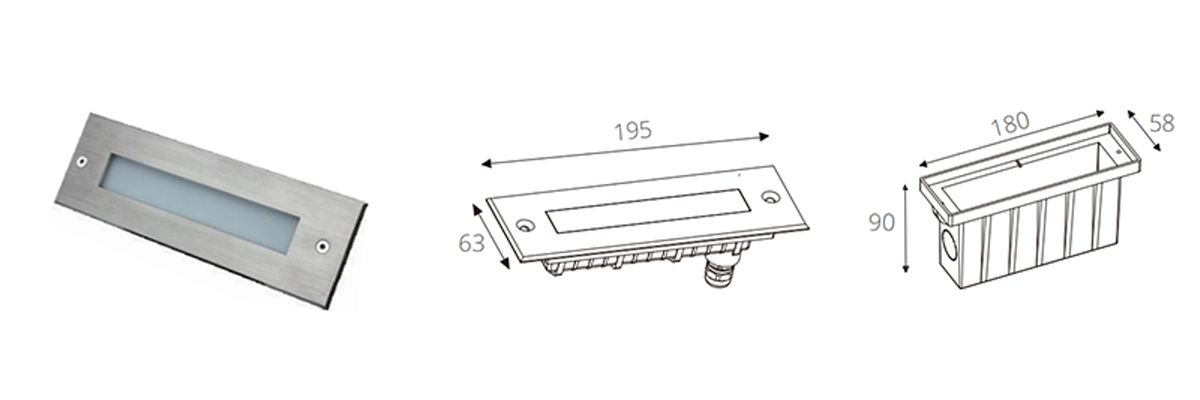

GS-L4-195 Series

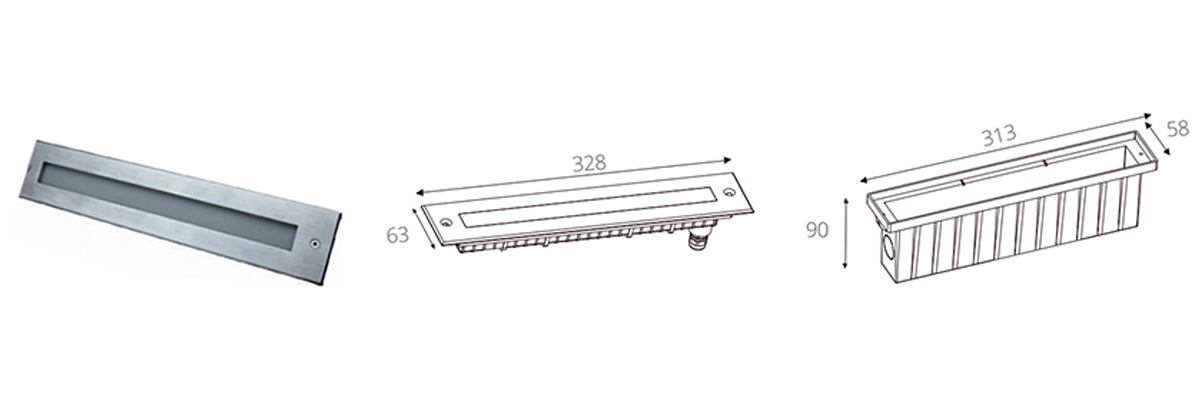

GS-L4-328 Series
Large-scale lighting: such as park walkways, parking lots, squares and other areas that require wide coverage.
Decorative lighting: The RGB 3-in-1 model can be used in scenarios such as landscape lighting and festival atmosphere arrangement, enhancing the visual effect through color transformation.
We can provide 5 years warranty for the whole light body.
The inground lights use high quality CREE/OSRAM leds.
Yes, the inground lights can reach IP67 waterproof grade.
Meanwell/Inventronics free flicker drivers for option.
