Underground LED Lights

Home

Inground Lights

Underground LED Lights

Underground LED Lights

Underground LED lights classical series with light source from CREE/OSRAM.
High performance with classical model, used 316 stainless steel, high quality aluminum alloy, and super white tempered glass.

Features:

-Wattage: 9/18/36/54W

-IP67, CRI>80
-Light efficiency: 90lm/W

-KGP driver

-Aluminum and Tempered glass and Stainless steel face ring

-Intelligent dimming, remote control
-Beam angle: 10°/15°/30°/45°/60°/20*45°/10*60°

-CREE/OSRAM 3030 light source
-DALI/ 0-10V dimming for option

-3000K/4000K/5000K/5700K/6000K/6500K

-Higher reliability, long service life, Warranty: 5Years

Underground LED Lights

The streamlined screw-free design enhances the overall aesthetic appeal, combining simplicity with a sense of luxury.
Outdoor dedicated, with excellent heat dissipation performance, one-piece molding to prevent cracking, and surface electroplating process to prevent corrosion.

Tempered glass

CREE SMD

Stainless Steel

Aluminum

Classical Underground Ground Benefit

We have various beam angles for option 10°/15°/30°/45°/60°/20*45°/10*60°.
Perfect optics for precise light angles. Whether it is flood light or precise light, this underground light can be achieved.

Changing colors from 2700K to 4000K, RGB/RGBW/DMX control for option.
According to the changing needs of your scene, choose the right color temperature to create a different atmosphere.

It can support DALI/0-10V Control dimmable.

DALI Dimming: Suitable for scenarios that require precise control and intelligent management.

0-10V dimming: Suitable for simple, low-cost dimming needs.

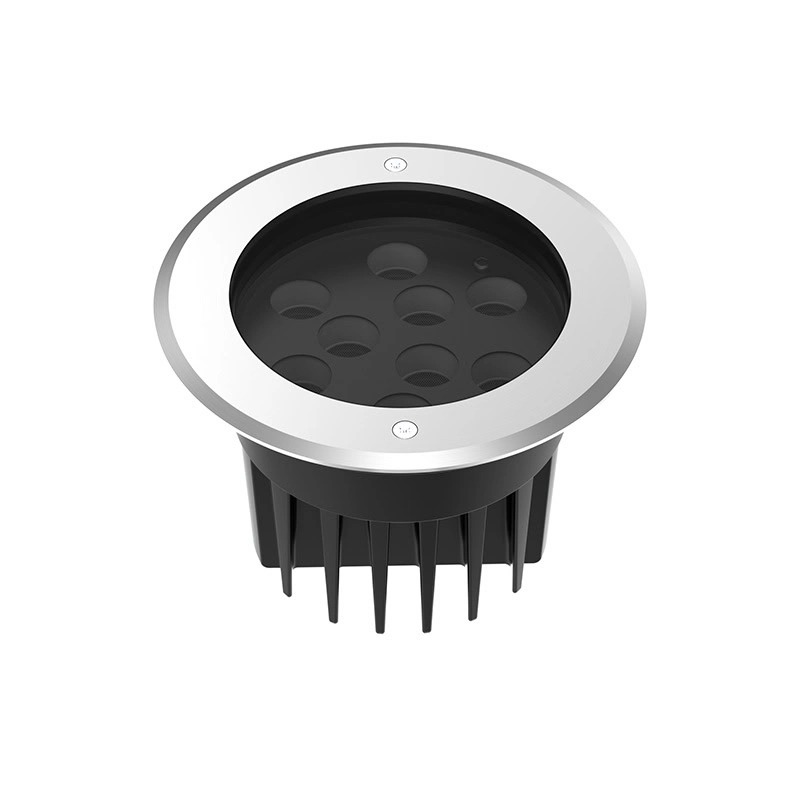

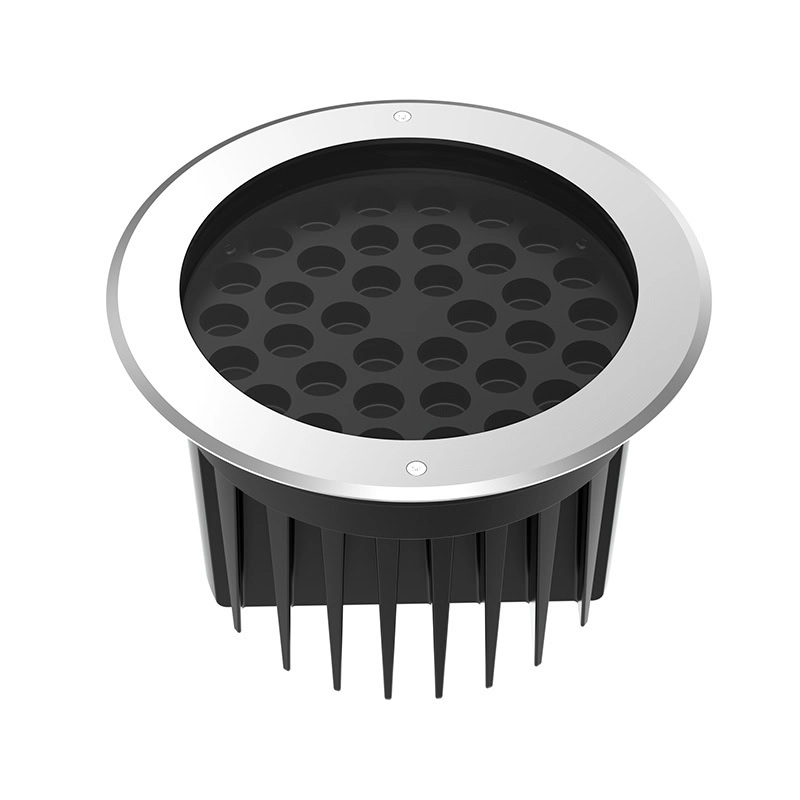

Classical LED Underground Lights Series

The power coverage is 9W/18W/36W/54W, suitable for different area scenarios, such as paths, courtyards and squares.

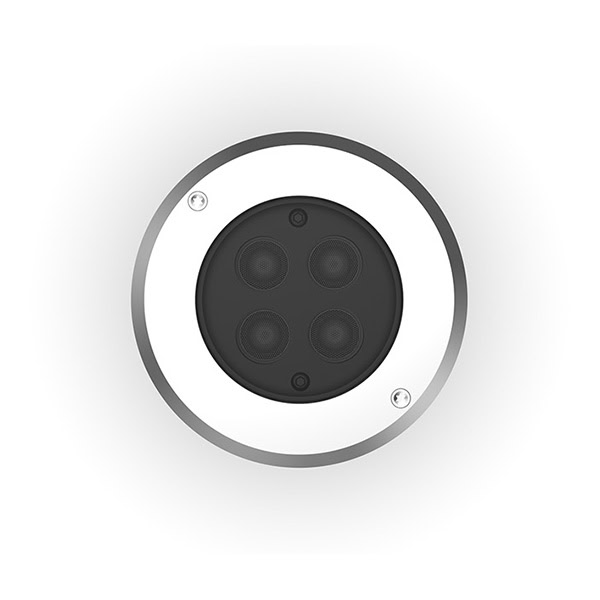

9W

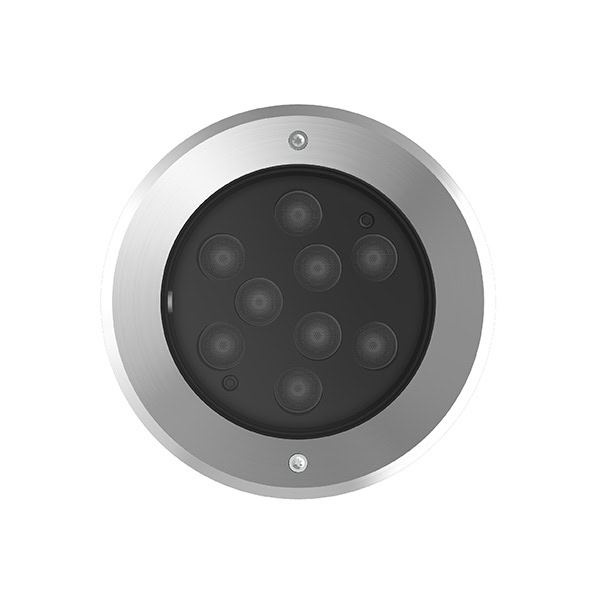

18W

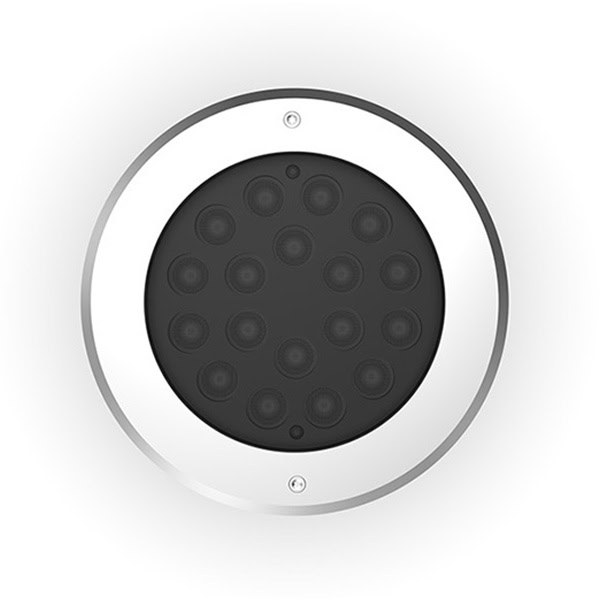

36W

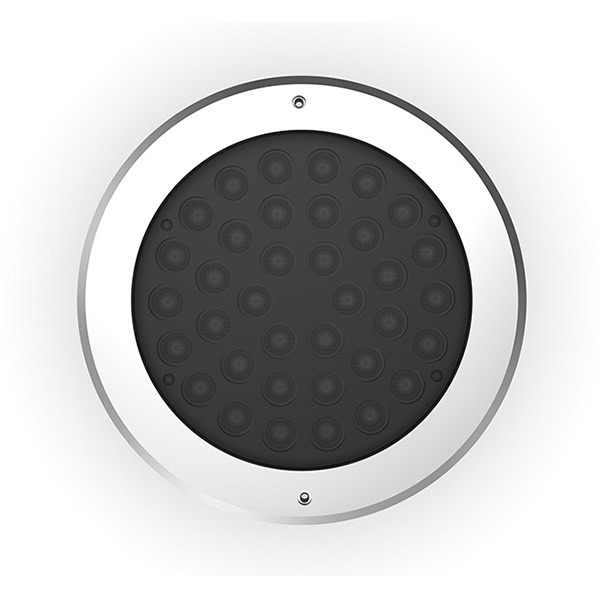

54W

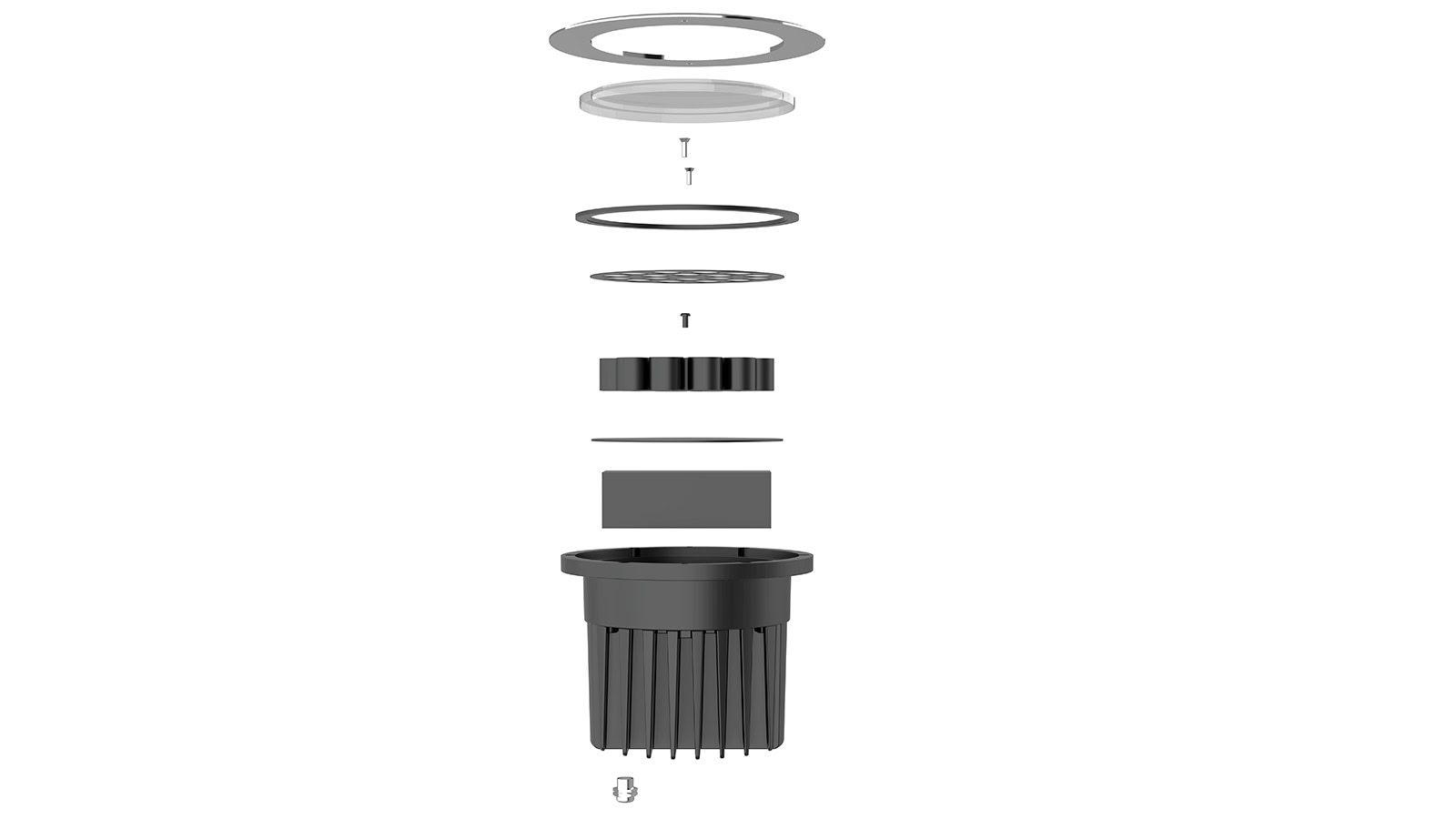

Underground LED Lights Structure

All-metal durable body, thickened die-cast aluminum alloy lamp body, 316 stainless steel face cover and screws,8mm explosion-proof tempered glass.
The high-density material ensures durability and impact resistance, with excellent corrosion resistance, making it suitable for harsh outdoor environments such as humidity and salt spray.

Drivers Of LED Inground Lights

Equipped with a dedicated power supply of KGP brand, it has IP67-level water resistance and is suitable for outdoor damp environments.
The PF index is greater than 0.95, with a high power factor and stable current without loss.
Ensure the long-term and reliable operation of lamps from the source and reduce the risk of circuit failures.

RGBW Effect Of Landscape Underground LED Lights

It offers monochrome /RGB three-in-one/RGBW four-in-one light source options, which can meet the diverse scene requirements such as static monochrome lighting, multi-color mixed light and warm white light.
Color expression suitable for different scenarios such as landscape atmosphere creation and commercial space lighting.

Datasheet Of Classical Inground Lights Series

Model No.	GS-UD120-9W	GS-UD160-18W	GS-UD200-36W	GS-UD250-54W
Power	9W	18W	36W	54W
Material	316 Stainless steel+Aluminum
Beam angle	10°/15°/30°/45°/60°/2045°/1060°
Light efficiency	465lm	1120lm	1438lm	2986lm
Voltage	DC24V/AC220V
LEDs	SMD
Light source brand	CREE
PF	>0.95
LED Lifespan	>50000 Hours
IP	IP67
CRI	>80/90
CCT	RGB/RGBW/DMX/2700K/3000K/3500K/4000K
Size	Φ120*H120	Φ160*H137	Φ200*H170	Φ250*H194
Warranty	5 years

Underground LED Lights Ground Parts Addition

Surface light

Polarized design

Stretch film of LED light

Honeycomb

Undergroud LED Light Beam Angles Options

Beam angles can choose from 10°/15°/30°/45°/60°/20*45°/10*60°. Unique visual effects are created through flexible light angles.

You can adjust the irradiation Angle of the buried lamp according to the actual needs to adapt to different lighting needs.

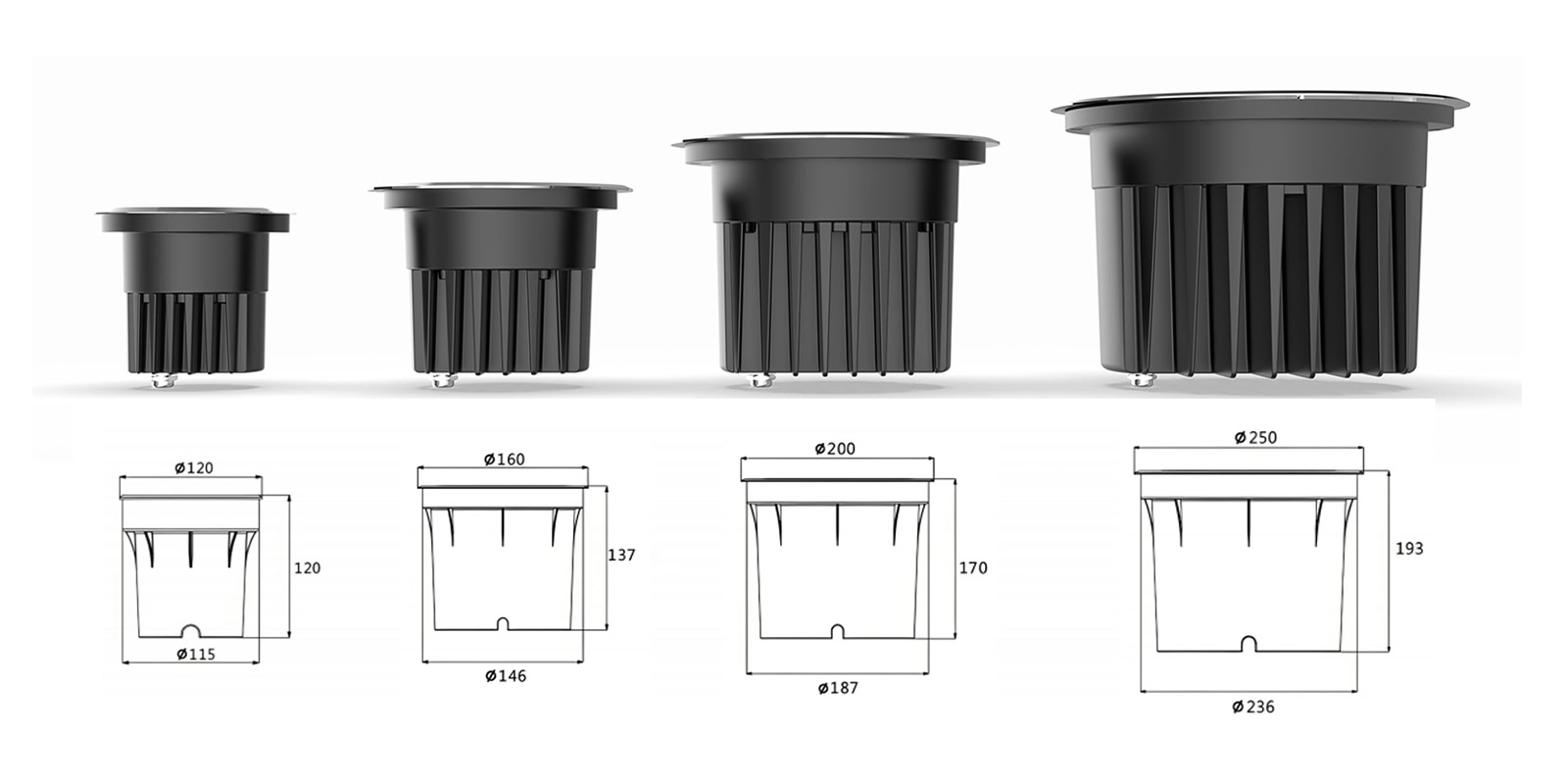

Size Of Classical LED Light Ground Series

It can be flexibly arranged according to demand to adapt to different lighting designs.

Durable Underground Lights Applications

It is widely applicable in various scenarios, such as garden landscapes, commercial plazas, pedestrian streets, and exterior wall lighting of buildings,
both indoor and outdoor. It combines functionality and aesthetic design.
