Underground Lamp Adjustable Series

Home

Inground Lights

Underground Lamp Adjustable Series

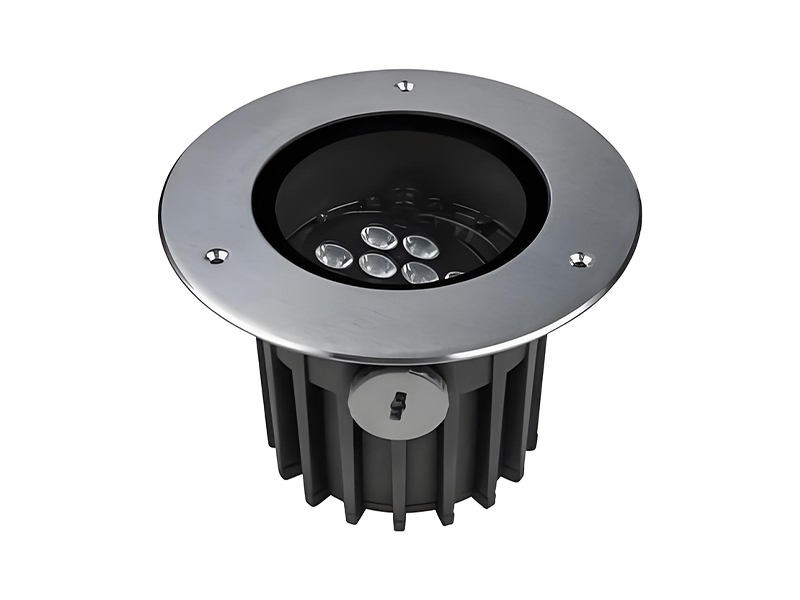

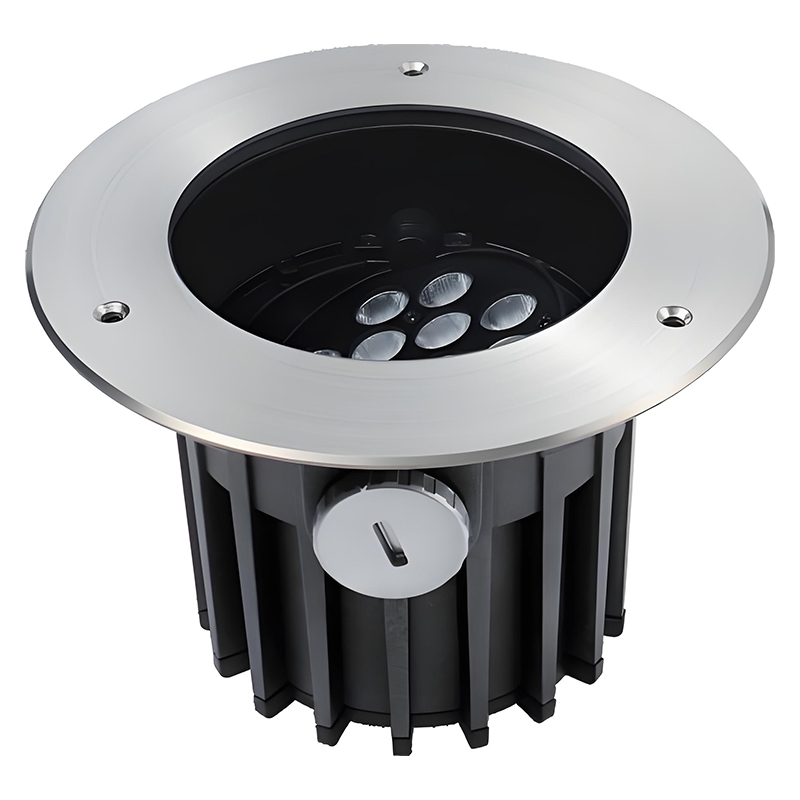

Underground Lamp Adjustable Series

Underground lamp stands out for special housing design and high quality optical components.

The fixture features a 25-degree adjustable mechanism that allows for precise beam direction adjustments, either in a clockwise or anti-clockwise direction.

Features:

-Wattage: 3/6/12/18/27/36W

-IP67, CRI>80
-Light efficiency: 90lm/W

-KGP driver

-Aluminum and Tempered glass and Stainless steel face ring

-Intelligent dimming, remote control
-Beam angle: 3°/5°/8°/12°/15°/25°/40°/60°/10*45°/20*65°

-CREE/OSRAM 3030 light source
-DALI/ 0-10V dimming for option

-3000K/4000K/5000K/5700K/6000K/6500K

-Higher reliability, long service life, Warranty: 5Years

LED Underground Lamp High Quality Materials

It adopts a combination of 316 stainless steel and aluminum alloy, featuring a high-density and lightweight lamp body, which takes into account both sturdiness and ease of installation.
Stainless steel is used for exposed components such as surface rings and screws. After anodizing and polishing treatment, it has excellent corrosion resistance.

LED Underground Lamp High Quality Light Source

This lamp uses high-quality OSRAM/CREE leds with a maximum luminous efficacy of up to 2800lm.
Supports monochrome temperature/RGBW full-color output, with CRI > 80/90 to restore true colors.
The RGBW mode can achieve dynamic dimming through intelligent control, making it suitable for creating commercial atmospheres or landscape art scenes.

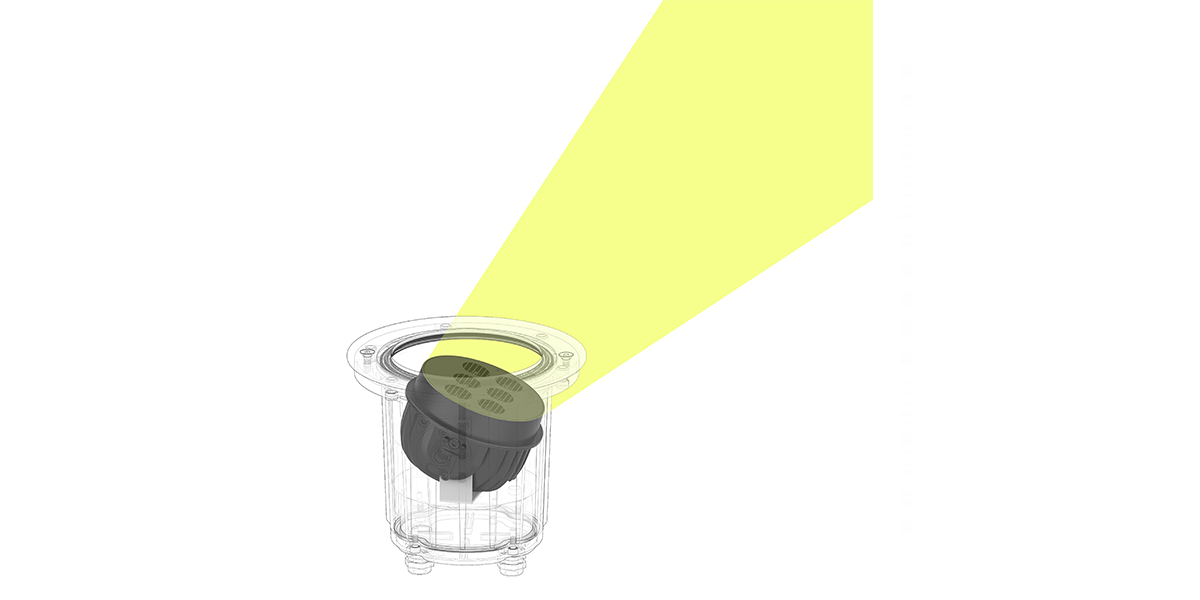

Beam Angles Direction Adjustable

Innovatively equipped with a 25° bidirectional rotation adjustment mechanism, it supports 25° adjustment in both clockwise and counterclockwise directions.
The light projection Angle can be easily fine-tuned through the physical knob to precisely align with the focal points of landscapes such as sculptures and green plants.
Or optimize the lighting direction based on the structure of the building facade to avoid light waste and light pollution.

Landscape LED Underground Lamp

Changing colors from 2700K to 4000K, RGB/RGBW/DMX control for option.
According to the changing needs of your scene, choose the right color temperature to create a different atmosphere.

It can support DALI/0-10V Control dimmable.

DALI Dimming: Suitable for scenarios that require precise control and intelligent management.

0-10V dimming: Suitable for simple, low-cost dimming needs.

Drivers Of LED Inground Lights

Equipped with a dedicated power supply of KGP brand, it has IP67-level water resistance and is suitable for outdoor damp environments.
The PF index is greater than 0.95, with a high power factor and stable current without loss.
Ensure the long-term and reliable operation of lamps from the source and reduce the risk of circuit failures.

RGBW Effect Of Landscape Underground LED Lights

It offers monochrome /RGB three-in-one/RGBW four-in-one light source options, which can meet the diverse scene requirements such as static monochrome lighting, multi-color mixed light and warm white light.
Color expression suitable for different scenarios such as landscape atmosphere creation and commercial space lighting.

Datasheet Of LED Underground Lamp

Model No.	AM95-3W	AM130-6W	AM160-12W	AM180-18W	AM210-27W	AM250-36W
Power	3W	6W	12W	18W	27W	36W
Material	316 Stainless steel+Aluminum
Beam angle	3°/5°/8°/12°/15°/25°/40°/60°/1045°/2065°
Light efficiency	60lm	465lm	920lm	1310lm	1800lm	2800lm
Voltage	DC24V/AC220V
LEDs	SMD
Light source brand	CREE
PF	>0.95
LED Lifespan	>50000 Hours
IP	IP67
CRI	>80/90
CCT	RGB/RGBW/DMX/2700K/3000K/3500K/4000K
Size	Φ95*H116	Φ130*H133	Φ160*H153	Φ180*H162	Φ210*H181	Φ250*H190
Warranty	5 years

Underground Lamp Parts Addition

Surface light

Polarized design

Stretch film of LED light

Honeycomb

LED Underground Lights Beam Angles

Provide rich beam angles such as 3°/5°/8°/12°/15°/25°/40°/60°.
Narrow beams can focus on key areas, while wide beams are suitable for large-area lighting, meeting diverse demands ranging from precise projection to environmental supplementary lighting.

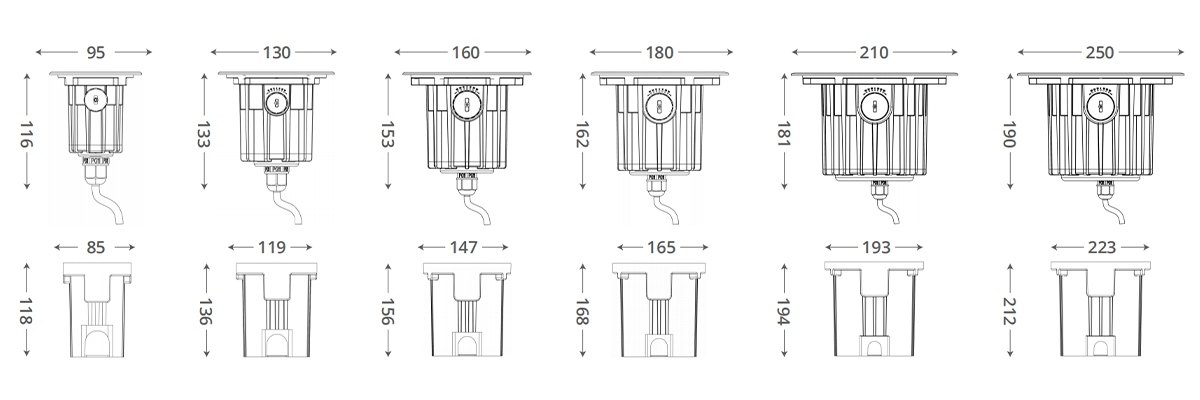

Size Of LED Underground Lamps

It can be flexibly arranged according to demand to adapt to different lighting designs.

LED Underground Lights Applications

Redefine the controllability of outdoor lighting and make light a dynamic element in spatial design.
Provide more intelligent and precise lighting and shadow solutions for landscape, commercial, architectural and other scenarios.
