Recessed ground lights frameless design, lamp body is made of thickened 6063 aluminum alloy and 8mm tempered glass.
It offers 18/24/36/48W power and monochrome /RGB /RGBW light color options, and supports DMX512 control.

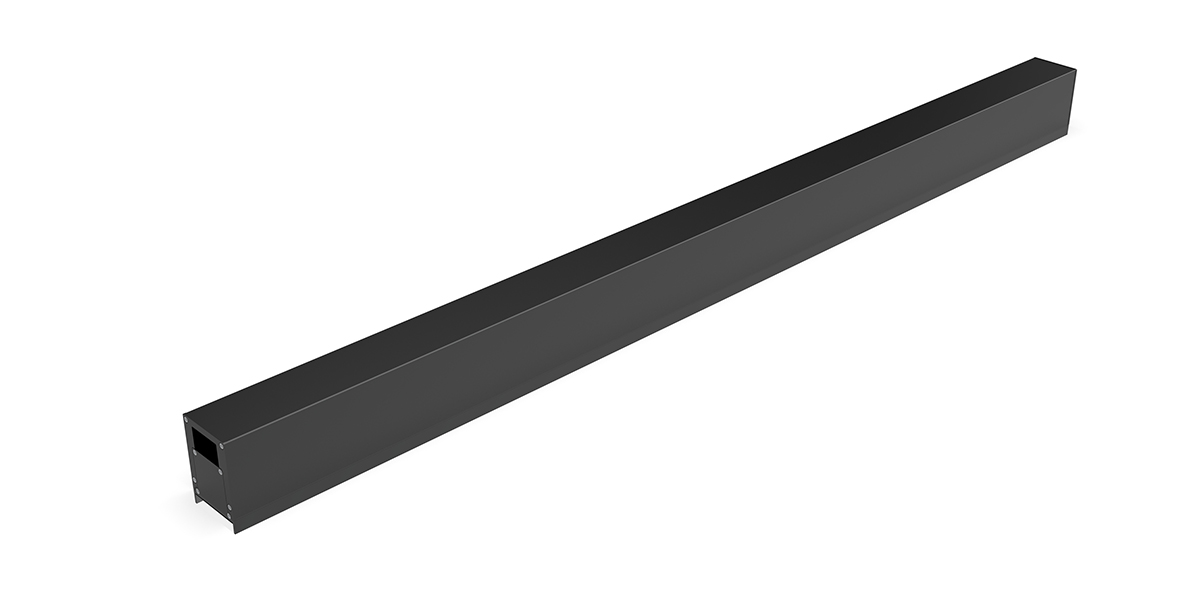

-6063 aluminum alloy extruded thickened lamp body
-strong 8mm tempered glass
-light efficiency up to 90lm/W
-18/24/36/48W for option
-Single Color / RGB Three in one / RGBW 4 in in one for options
-High performance with OSRAM/CREE leds
-Electrical: DC24V/ AC200-240V
-Beam angle: 110°
-IP67 protecting grade
-5 years warranty
The frameless linear underground lamp adopts a thickened 6063 aluminum alloy lamp body and 8mm tempered glass, featuring an IP67 waterproof rating and a luminous efficacy as high as 90lm/W.
It offers 18/24/36/48W power and single color /RGB /RGBW light color options. The light source can be selected from OSRAM/CREE. It supports DMX512 control and anti-glare grid design.
Changing colors from 2700K to 4000K, RGB/RGBW/DMX control for option.
According to the changing needs of your scene, choose the right color temperature to create a different atmosphere.
It can support DALI/0-10V Control dimmable.
DALI Dimming: Suitable for scenarios that require precise control and intelligent management.
0-10V dimming: Suitable for simple, low-cost dimming needs.
All-metal durable body, thickened die-cast aluminum alloy lamp body, 316 stainless steel face cover and screws,8mm explosion-proof tempered glass.
The high-density material ensures durability and impact resistance, with excellent corrosion resistance, making it suitable for harsh outdoor environments such as humidity and salt spray.
Equipped with OSRAM/CREE SMD beads, the luminous efficacy is as high as 90lm/W.
The CRI > 90 high color rendering version truly restores the original color of objects and is especially suitable for scenarios with high requirements for color accuracy, such as commercial display Windows and art exhibitions.
Supports RGB/RGBW/DMX512 intelligent control system
The anti-glare grid design ensures uniform light distribution, eliminates harsh spots/shadows, and enhances lighting comfort. Rational grid density and angle adjustment enable directional light projection to avoid waste. This design reduces glare, improves visual clarity, and boosts work efficiency & quality of life.
The joint of the lamp body is embedded with imported anti-aging silicone rubber sealing rings. It can still work normally after a 24-hour water immersion test.
With an IP67 waterproof rating, it is fully suitable for damp environments such as fountains and pool sides.
| Model No. | GS-FL-18W | GS-FL-24W | GS-FL-36W | GS-FL-48W |
|---|---|---|---|---|
|
Power |
18W |
24W |
36W |
48W |
|
Material |
6063 Aluminum alloy+8mm tempered glass |
|||
|
Beam angle |
110° |
|||
|
Light efficiency |
90lm/W |
|||
|
Voltage |
DC24V/AC220V |
|||
|
LEDs |
SMD |
|||
|
Light source brand |
CREE/OSRAM |
|||
|
PF |
>0.95 |
|||
|
LED Lifespan |
>50000 Hours |
|||
|
IP |
IP67 |
|||
|
CRI |
>80/90 |
|||
|
CCT |
RGB/RGBW/DMX/2700K/3000K/3500K/4000K |
|||
|

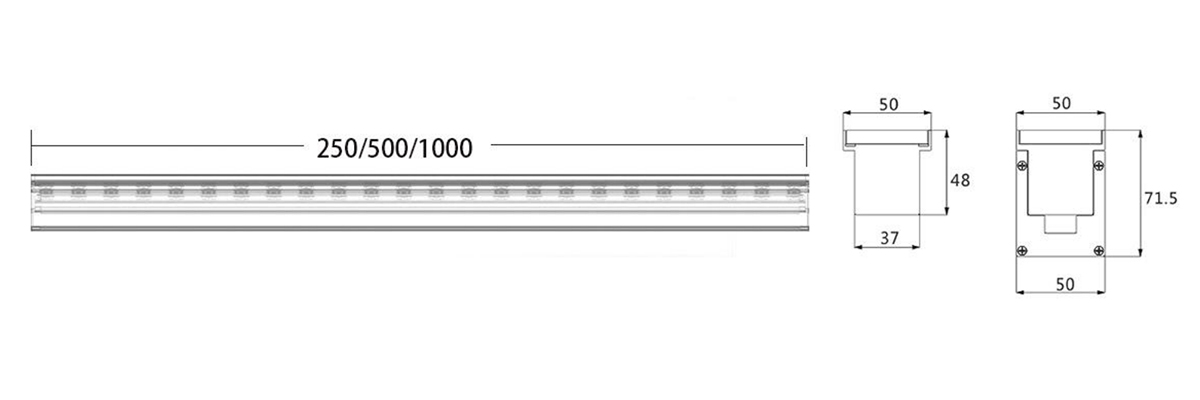

Size |
250/500/1000*50*H48mm |
|||
|
Warranty |
5 years |
|||
Surface light
Polarized design
Stretch film of LED light
Honeycomb

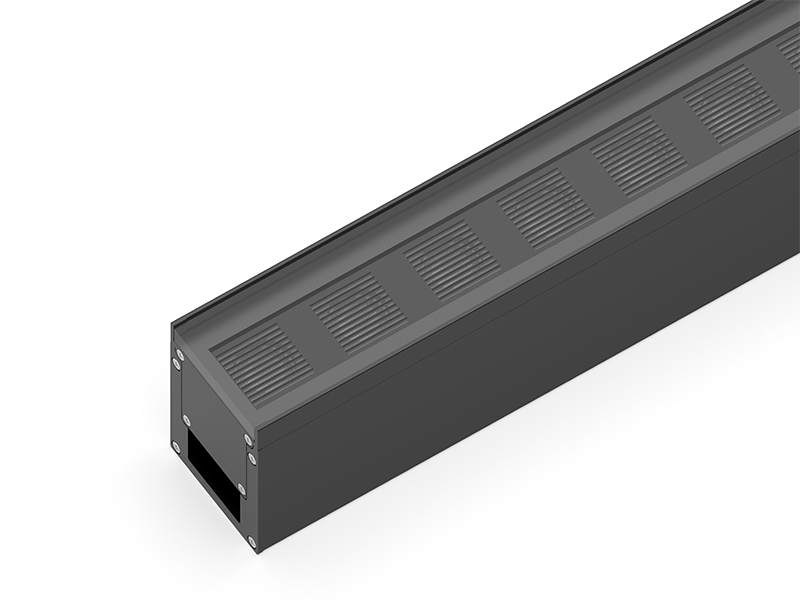

It is equipped with a 0.5mm precision metal grille, and the grid density and Angle are optimized through optical calculation.

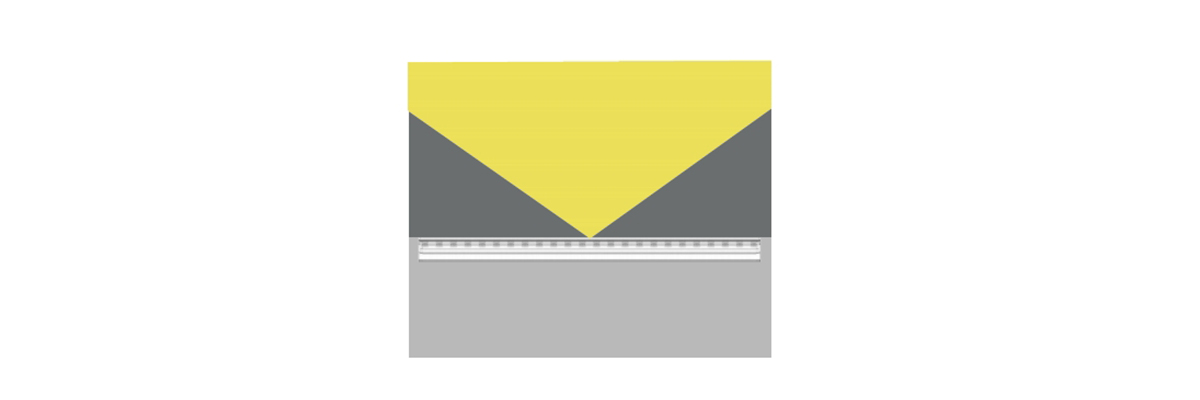

Control the light diffusion Angle within the range of 110° to avoid direct upward glare.
The embedded parts adopt customized metal frames, and their dimensions are exactly matched with those of the lamps.
When the lamp needs maintenance, simply unscrew the hidden quick-release screw on the top of the embedded part, and the lamp module can be removed as a whole.
It is widely applicable in various scenarios, such as garden landscapes, commercial plazas, pedestrian streets, and exterior wall lighting of buildings.
From courtyards to landmarks, from commercial areas to art, frameless linear underground lights, with their “invisible power”, make every beam of light the finishing touch of the scene.
We can provide 5 years warranty for the whole light body.
The inground lights use high quality CREE/OSRAM leds.
Yes, the inground lights can reach IP67 waterproof grade.
MOSO/Inventronics free flicker drivers for option.
