Outdoor ground lights mini trimless series, the surface of the lamp is completely flush and seamless with the installation surface, the ground and the steps.
Wattages choose from 2W to 15W, High performance, used 316 stainless steel, high quality aluminum alloy, and super white tempered glass.
-Wattage: 2/4/4.5/6.5/10/15W
-IP67, CRI>80
-Light efficiency: 90lm/W
-KGP driver
-Aluminum and Tempered glass and Stainless steel face ring
-Intelligent dimming, remote control
-Beam angle: 5°/10°/15°/20°/30°/ 40°/60°/10*45°/25* 45°
-CREE/OSRAM light source
-DALI/ 0-10V dimming for option
-3000K/4000K/5000K/5700K/6000K/6500K
-Higher reliability, long service life, Warranty: 5Years
The lamp body is made of high-strength die-cast aluminum, with an anti-corrosion powder coating on the surface. It is equipped with stainless steel internal components and has good weather resistance.
The light-transmitting surface is ultra-thin tempered glass with a light transmittance of ≥92%, featuring both high light transmittance and impact resistance.
Equipped with a dedicated power supply of KGP brand, it has IP67-level water resistance and is suitable for outdoor damp environments.
The PF index is greater than 0.95, with a high power factor and stable current without loss.
Ensure the long-term and reliable operation of lamps from the source and reduce the risk of circuit failures.
The surface of the lamp is completely flush and seamless with the installation surface, the ground and the steps.
Achieve the visual effect of “seeing the light but not the lamp”, and preserve the integrity of the original appearance of the space to the greatest extent.
Through precise edge processing technology, the lamps are integrated with decorative surfaces such as stone and tiles.
| Model No. | GS3258R-2W | GS4276R-4W | GS5075R-4.5W | GS6589R-6.5W | GS8099R-10W | GS100115R-15W |
|---|---|---|---|---|---|---|
|
Power |
2W |
4W |
4.5W |
6.5W |
10W |
15W |
|
Material |
316 Stainless steel+Aluminum |
|||||
|
Beam angle |
5°/10°/15°/20°/30°/
40°/60°/10*45°/25*
45° |
15°/24°/36°/55° |
12°/24°/36°/55° |
|||
|
Light efficiency |
120lm |
340lm |
454lm |
720lm |
900lm |
1300lm |
|
Voltage |
DC24V/AC220V |
|||||
|
LEDs |
COB |
|||||
|
Light source brand |
CREE |
|||||
|
PF |
>0.95 |
|||||
|
LED Lifespan |
>50000 Hours |
|||||
|
IP |
IP67 |
|||||
|
CRI |
>80/90 |
|||||
|
CCT |
3000K/4000K/5000K/6000K |
|||||
|

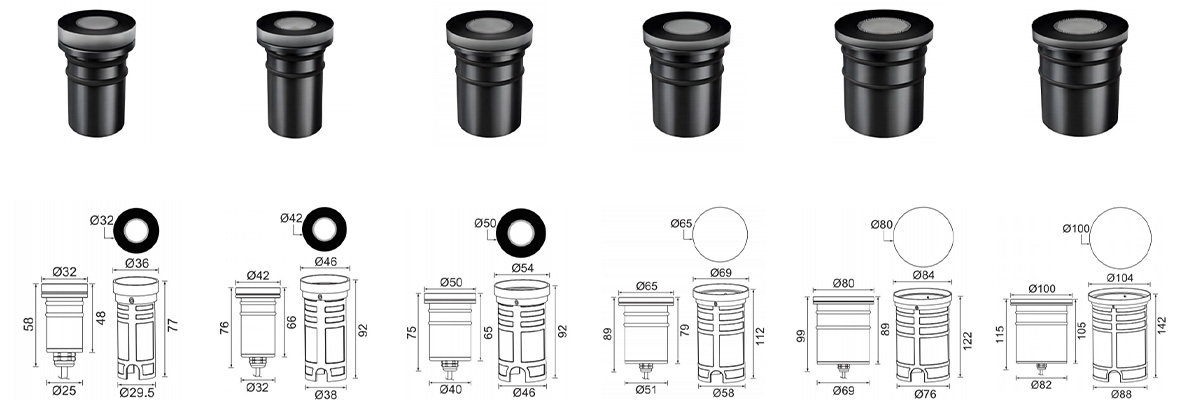

Diameter |
32mm |
42mm |
50mm |
65mm |
80mm |
100mm |
|
Warranty |
5 years |
|||||
Surface light
Polarized design
Stretch film of LED light
Honeycomb
Beam angles can choose from 5°/10°/15°/20°/30°/ 40°/60°/10*45°/25*45°. Unique visual effects are created through flexible light angles.
You can adjust the irradiation Angle of the buried lamp according to the actual needs to adapt to different lighting needs.
It can be flexibly arranged according to demand to adapt to different lighting designs.
The precise edge treatment technology enables the lamp to blend seamlessly with the decorative surface.

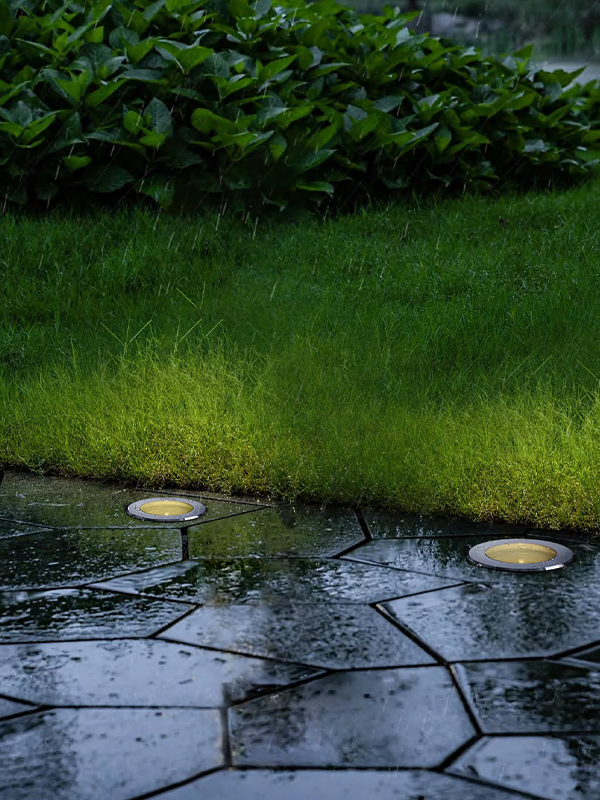

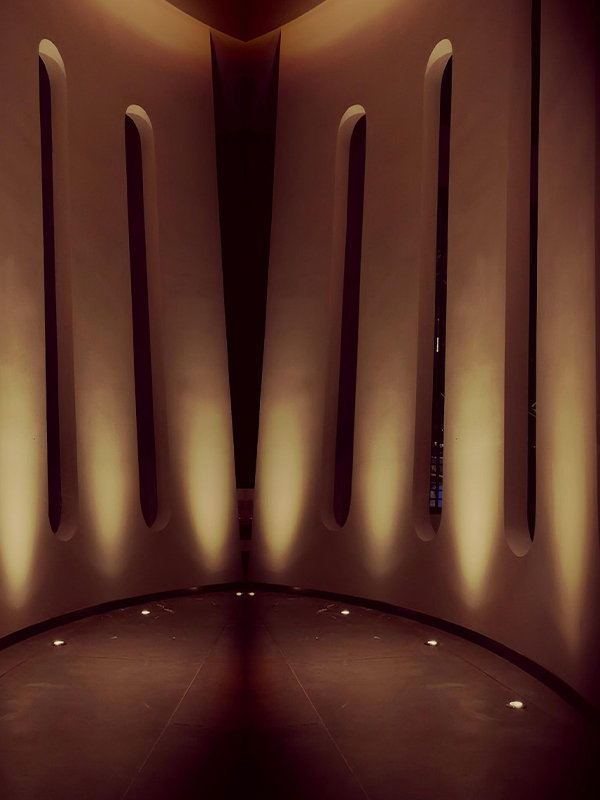

It is especially suitable for modern buildings that pursue a minimalist style, high-end landscapes or scenes with high requirements for visual unity, such as art gallery squares and luxury villa gardens.
We can provide 5 years warranty for the whole light body.
The inground lights use high quality CREE/OSRAM leds.
Yes, the inground lights can reach IP67 waterproof grade.
KGP free flicker drivers for option.
