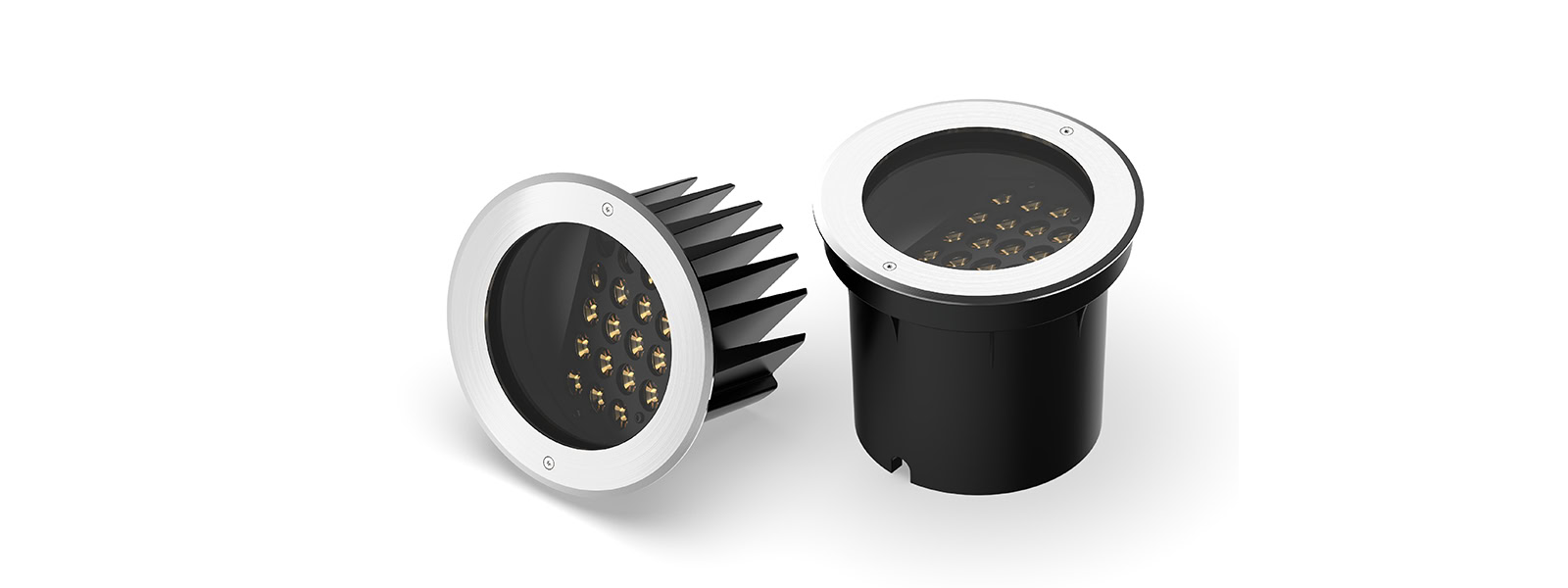

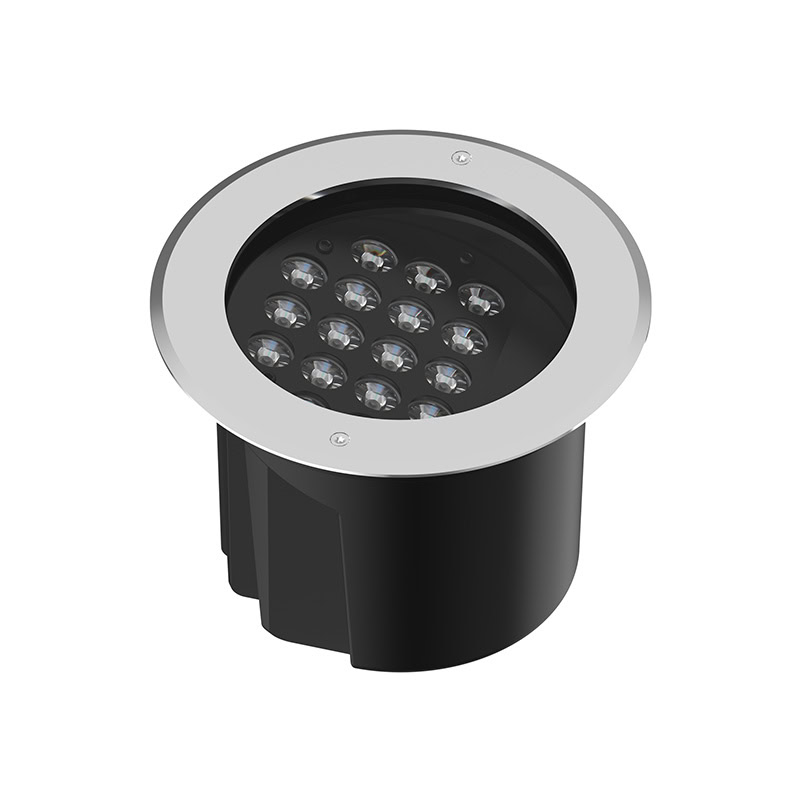

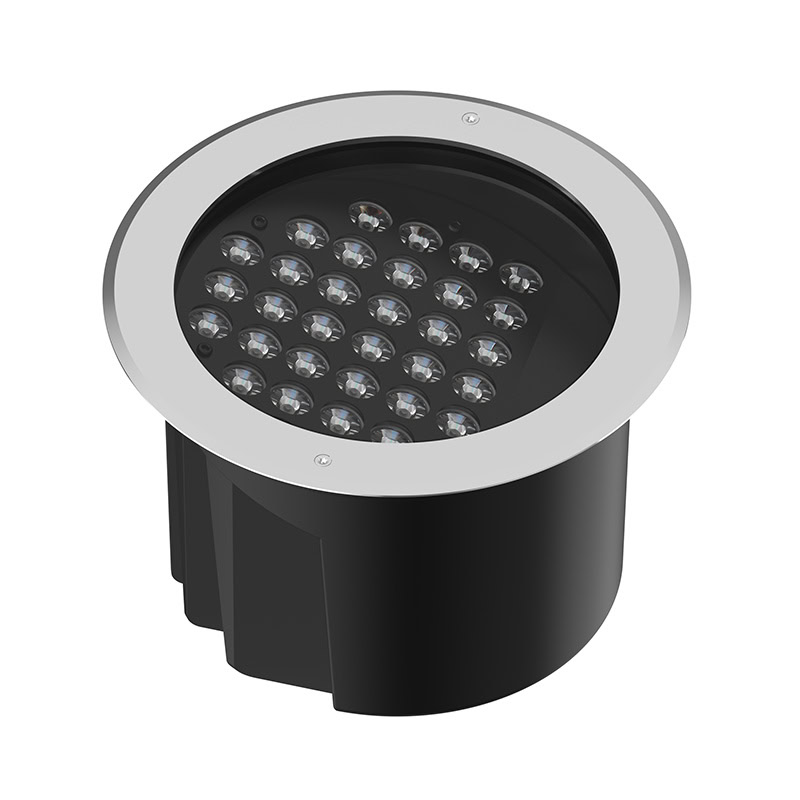

LED lights in ground asymmetric series have a bevel polarized 30 degree design, realizing no direct light at short distance, give a directional lighting effect based on demand.
Aluminum alloy or stainless steel housing, corrosion resistance, high temperature resistance.
-Wattage: 9/18/36/54W
-IP67, CRI>80
-Light efficiency: 90lm/W
-KGP driver
-Aluminum and Tempered glass and Stainless steel face ring
-Intelligent dimming, remote control
-Beam angle: 15°/30°/45°/60°/20*45°/10*60°
-CREE/OSRAM 3030 light source
-DALI/ 0-10V dimming for option
-3000K/4000K/5000K/5700K/6000K/6500K
-Higher reliability, long service life, Warranty: 5Years
We use innovative optical technology to achieve a light effect of 30 degrees of polarization.
That design makes the light more concentrated, reduces light pollution, and improves the lighting effect. Through precise optical lens design, light can be evenly distributed.

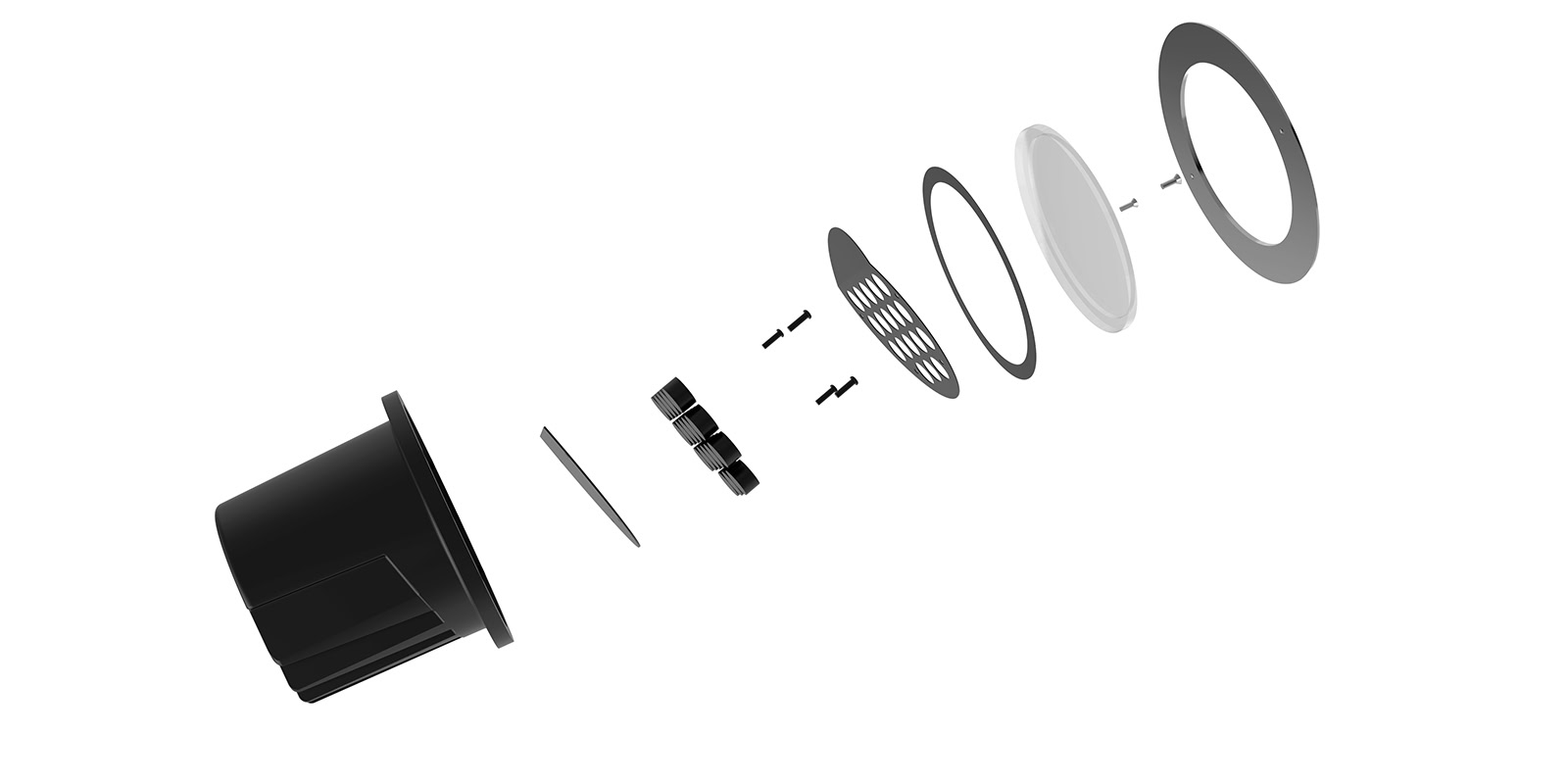

SMD Asymmetric buried lamps not only perform well in optical design and functionality,
but their material selection has been carefully considered to ensure the best balance of durability, beauty and performance.
8mm tempered glass

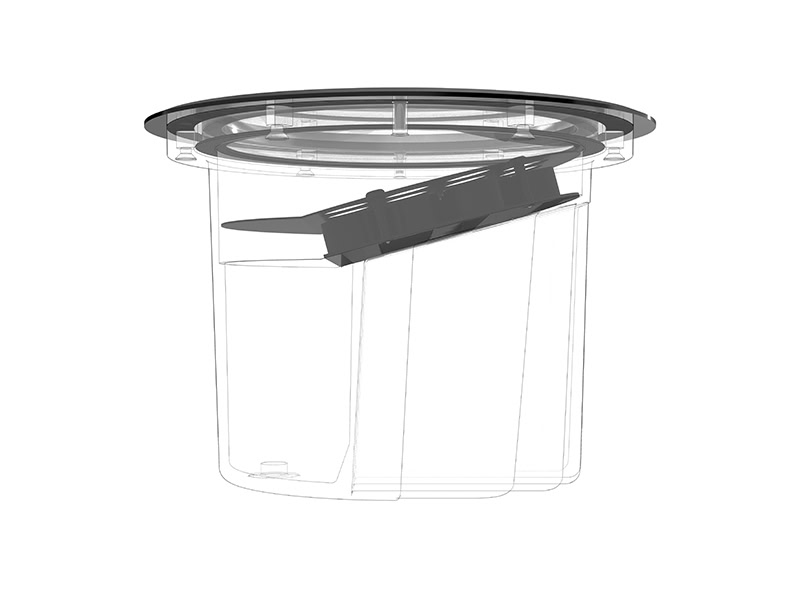

The unique optical structure enables it to produce a light effect of 30 degrees polarization
316 stainless steel face ring

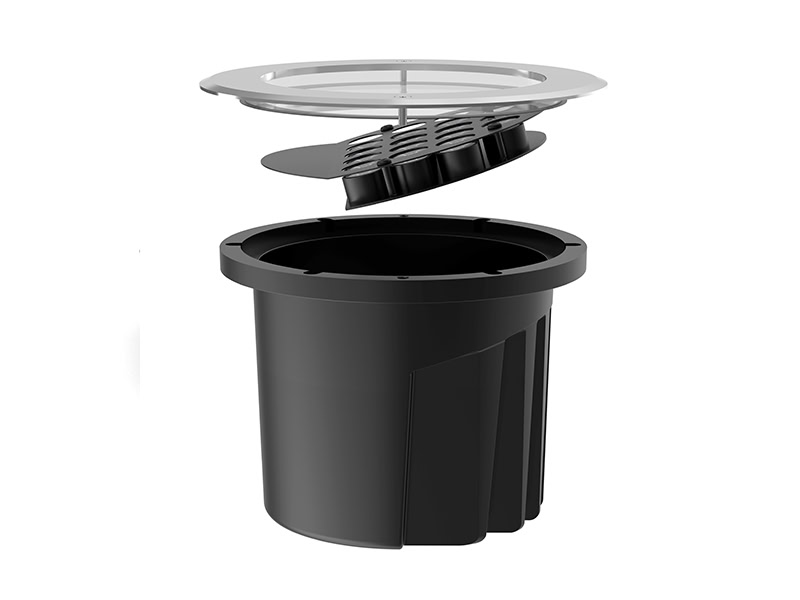

Die-casting Aluminum light body
Equipped with special embedded parts, the installation only needs to be fixed in the ground or wall embedded parts, the construction is simple and fast.
Inground adopts a modular structure, the LED module, the drive power and other components can be replaced separately, so it can reducing the maintenance cost.
With IP67 or higher protection level, it can completely prevent dust from entering, and can work for a short time at a depth of 1m underwater, suitable for a variety of harsh outdoor environments.
Structure is strong, so it can withstand a certain external impact, and it is suitable for installation in the area of pedestrians or vehicles.
“Asymmetrical” design means that the distribution of light is not uniform 360 degrees, but directional lighting according to demand.
So is especially suitable for scenes that require one-sided lighting, such as road, wall or building facade lighting, which can effectively reduce lighting waste.
Equipped with a dedicated power supply of KGP brand, it has IP67-level water resistance and is suitable for outdoor damp environments.
The PF index is greater than 0.95, with a high power factor and stable current without loss.
Ensure the long-term and reliable operation of lamps from the source and reduce the risk of circuit failures.
It offers monochrome /RGB three-in-one/RGBW four-in-one light source options, which can meet the diverse scene requirements such as static monochrome lighting, multi-color mixed light and warm white light.
Color expression suitable for different scenarios such as landscape atmosphere creation and commercial space lighting.

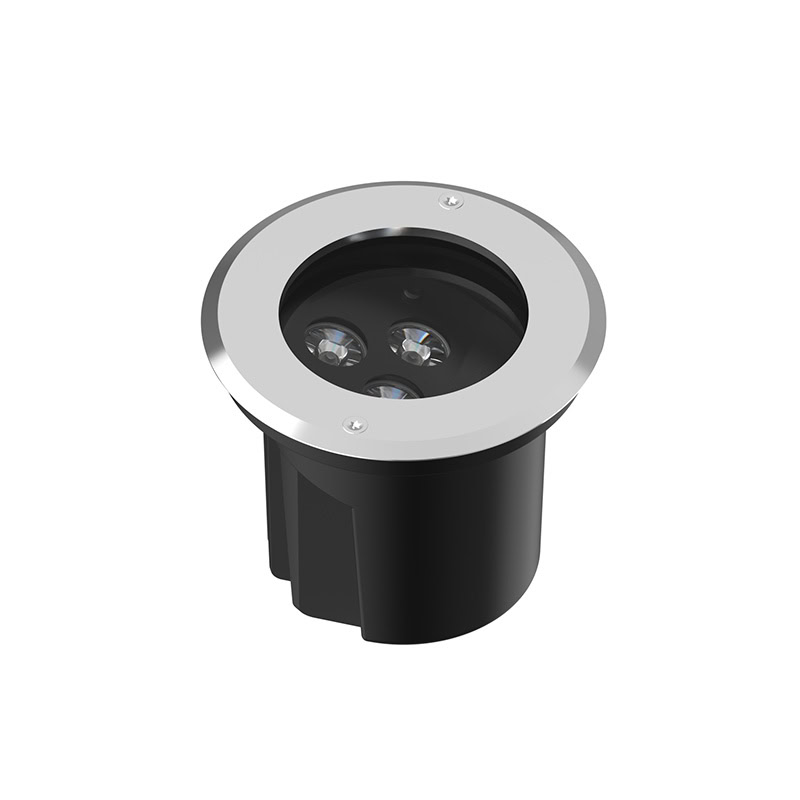

| Model No. | GS-UR120-9W | GS-UR160-18W | GS-UR200-36W | GS-UR250-54W |
|---|---|---|---|---|
|
Power |
9W |
18W |
36W |
54W |
|
Material |
316 Stainless steel+Aluminum |
|||
|
Beam angle |
15°/30°/45°/60°/20*45°/10*60° |
|||
|
Light efficiency |
465lm |
1120lm |
1438lm |
2986lm |
|
Voltage |
DC24V/AC220V |
|||
|
LEDs |
SMD |
|||
|
Light source brand |
CREE |
|||
|
PF |
>0.95 |
|||
|
LED Lifespan |
>50000 Hours |
|||
|
IP |
IP67 |
|||
|
CRI |
>80/90 |
|||
|
CCT |
RGB/RGBW/DMX/2700K/3000K/3500K/4000K |
|||
|

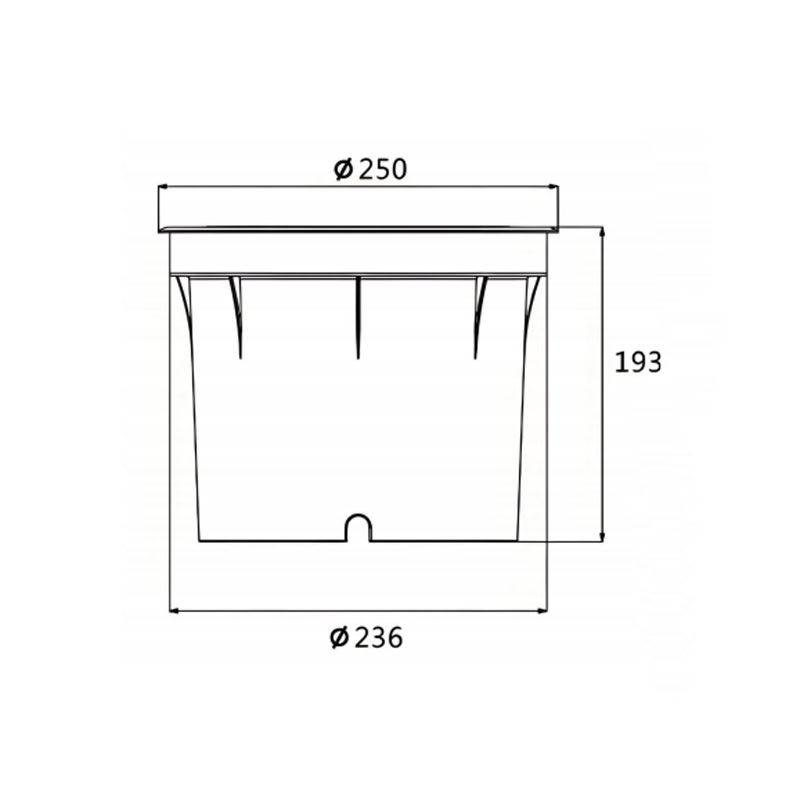

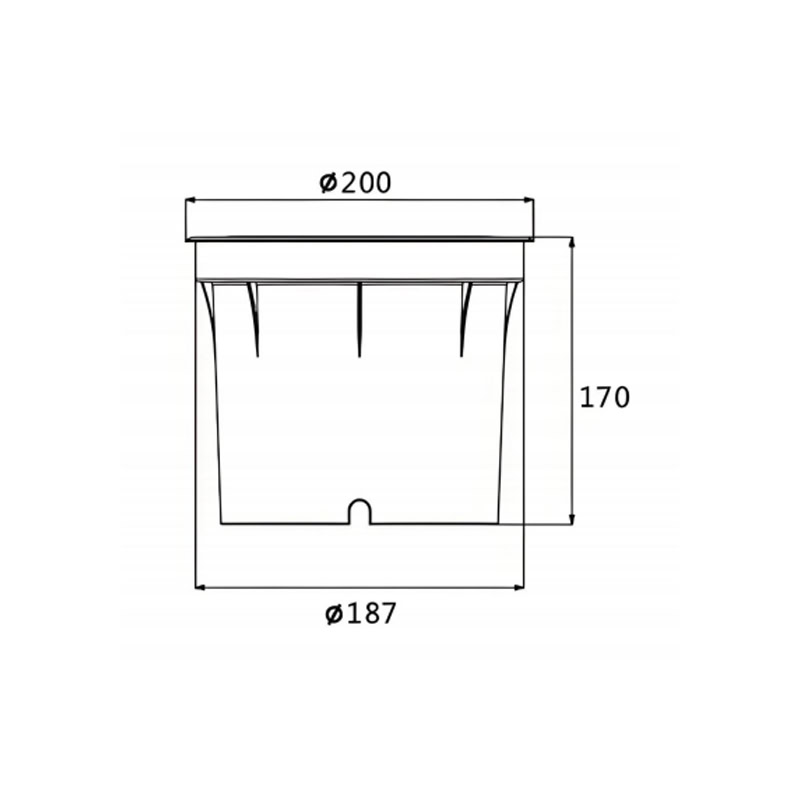

Size |

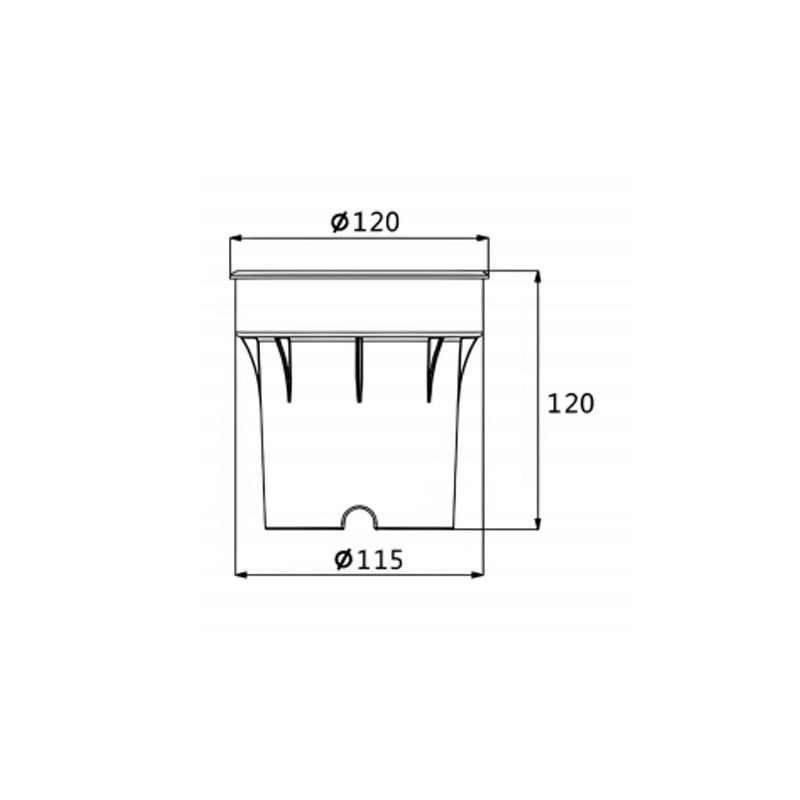

Φ120*H120 |

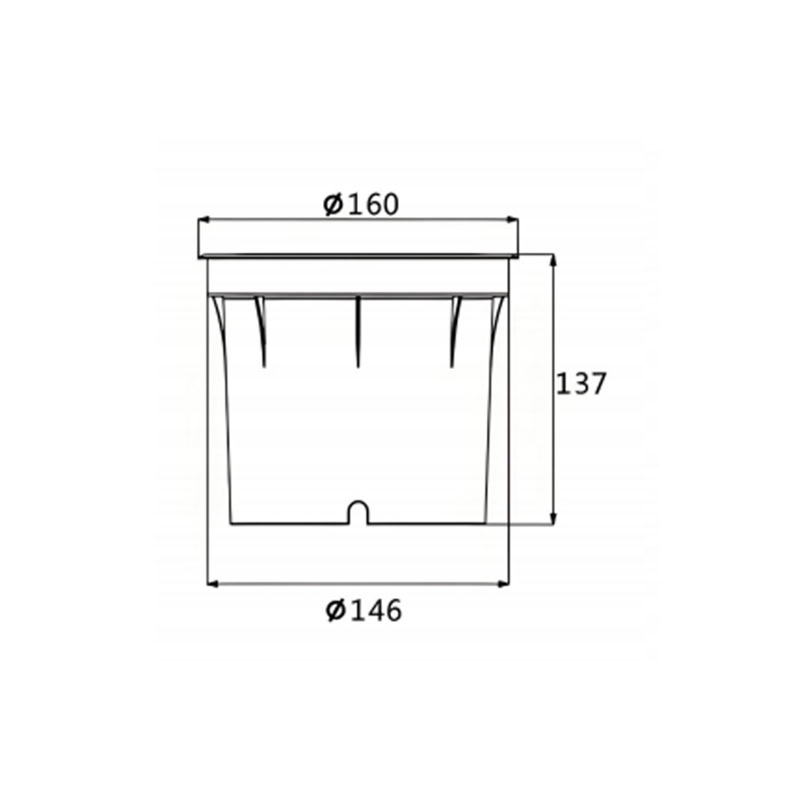

Φ160*H137 |
Φ200*H170 |
Φ250*H194 |
|
Warranty |
5 years |
|||

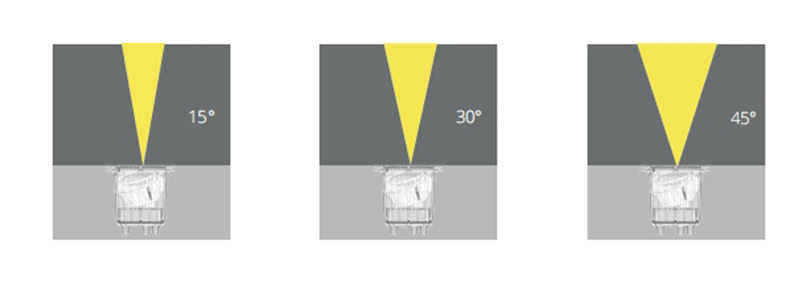

Beam angles can choose from 10°/15°/30°/45°/60°/20*45°/10*60°. It has unique optical design and efficient light control capabilities.
Compact design, easy installation, and usually with embedded parts, so easy to fix in the ground or wall.
The 30-degree polarized inclined plane design can achieve no direct light at close range and is suitable for scenarios that require anti-glare.
For instance, in the lighting of museum exhibits and indoor corridors, strong light should be avoided from irritating the eyes, the direction of the light should be precisely controlled to highlight key areas
5 years warranty for the whole light body.
OSRAM/CREE/CITIZEN brand.
Yes, the inground lights can reach IP67 waterproof grade.
Philips or KGP free flicker drivers for option.
