LED inground side lights series core charm of the series lies in its flexible and diverse selection of light-emitting surfaces.
In addition to the rich Lighting modes, the Side Lighting series also has a variety of styling designs to meet the needs of different architectural styles and spatial layouts.
-Wattage: 2/4/4.5/6.5/10/12W
-IP67, CRI>80
-Light efficiency: 90lm/W
-KGP driver
-Aluminum and Tempered glass and Stainless steel face ring
-Intelligent dimming, remote control
-Beam angle: 1/2/4 ways
-CREE/OSRAM light source
-DALI/ 0-10V dimming for option
-3000K/4000K/5000K/5700K/6000K/6500K
-Higher reliability, long service life, Warranty: 5Years
Lamp body adopts a die-cast aluminum shell, and the surface is treated with powder coating.It is equipped with a titanium-chrome white 316L stainless steel front ring,
Rear cover are made of 6063 aluminum alloy, which is of high strength and good thermal conductivity. The screws are made of stainless steel and have strong corrosion resistance.
Equipped with a dedicated power supply of KGP brand, it has IP67-level water resistance and is suitable for outdoor damp environments.
The PF index is greater than 0.95, with a high power factor and stable current without loss.
Ensure the long-term and reliable operation of lamps from the source and reduce the risk of circuit failures.

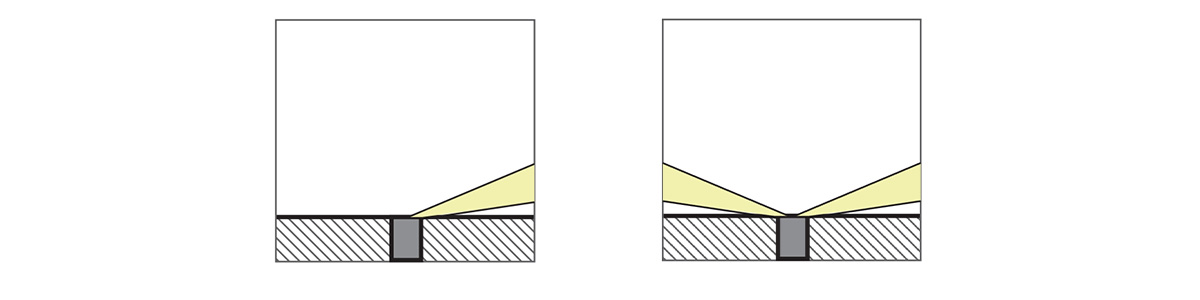

It covers three modes: single-sided lighting, double-sided lighting and four-sided lighting.
Design of a light-emitting lamp on one side can concentrate the light and project it in the designated direction

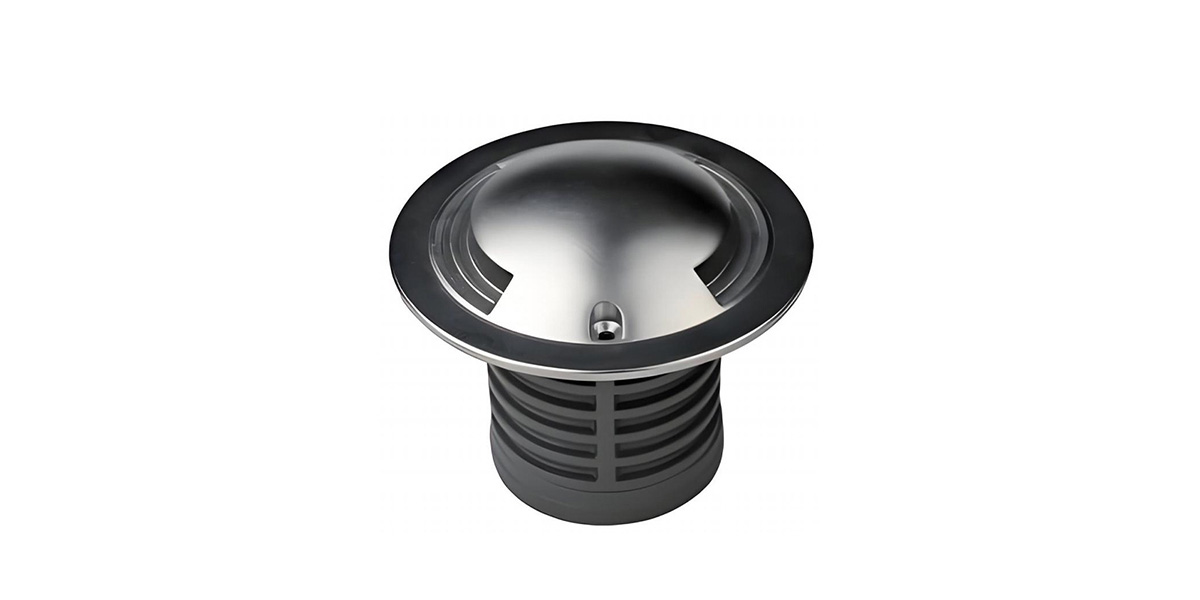

Two-sided illuminated style offers a more balanced lighting effect.
Four-sided light emission achieves 360-degree light coverage without any blind spots.

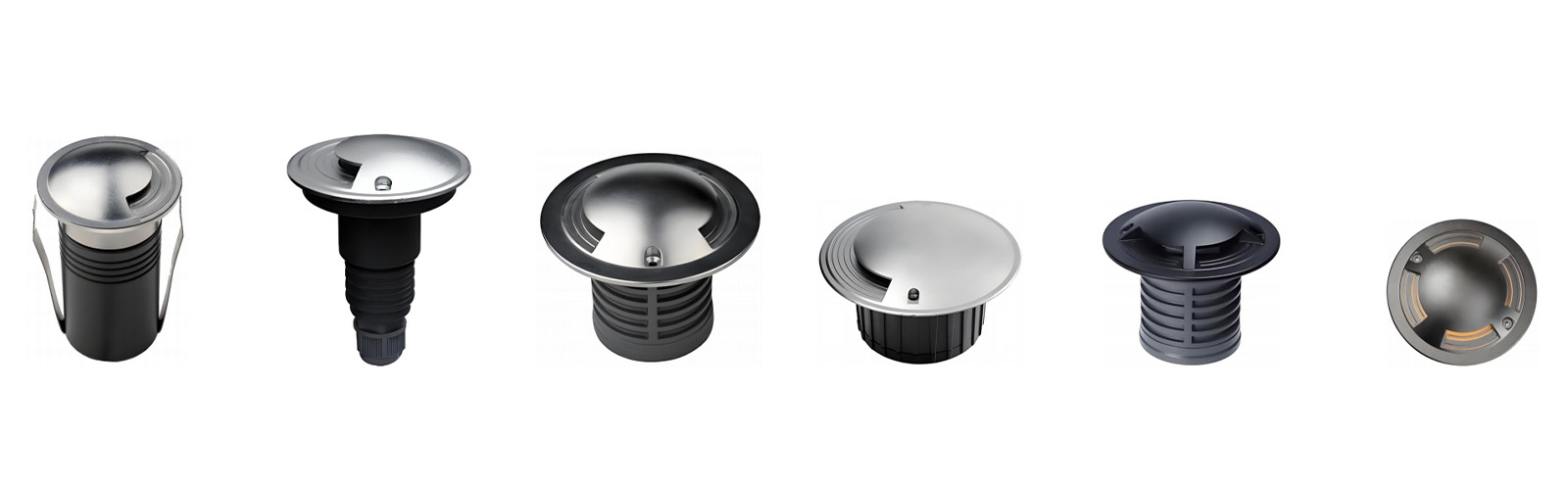

The Side Lighting series features a variety of styling designs to meet the demands of different architectural styles and spatial layouts.
| Model No. | GS-2055 | GS-2077 | GS-2166 | GS-2173 | GS-2117 | |
|---|---|---|---|---|---|---|
|
Power |
2W |
2W |
3-6W/2x2W |
6-12W |
6W/12W |
|
|
Material |
316 Stainless steel+Aluminum |
|||||
|
Beam angle |
1/2/4 Way |
1/2/4 Way, 20/40/60° |
1/2/4 Way |
|||
|
Voltage |
DC24V/AC220V |
|||||
|
LEDs |
COB |
|||||
|
Light source brand |
CREE/OSRAM |
|||||
|
PF |
>0.95 |
|||||
|
LED Lifespan |
>50000 Hours |
|||||
|
IP |
IP67 |
|||||
|
CRI |
>80/90 |
|||||
|
CCT |
3000K/4000K/5000K/6000K |
|||||
|
Warranty |
5 years |
|||||
Surface light
Polarized design
Stretch film of LED light
Honeycomb
The flexible and diverse light-emitting surface selection covers three modes: single-sided light-emitting, double-sided light-emitting and four-sided light-emitting.
Whether you want to precisely illuminate a specific area or create a bright atmosphere in all directions, this series can be perfectly adapted.

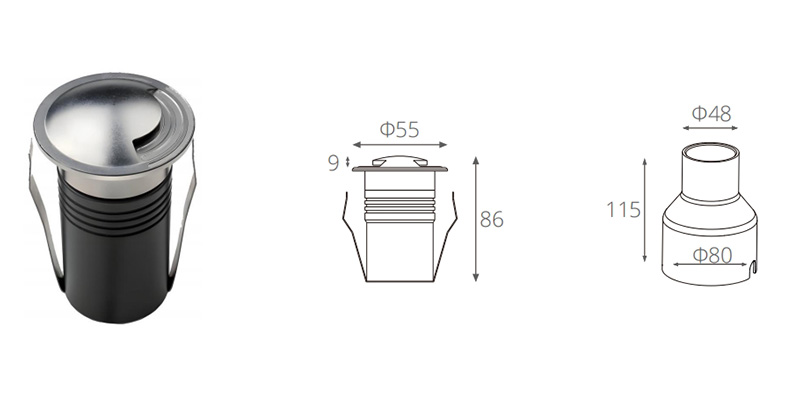

GS-2055

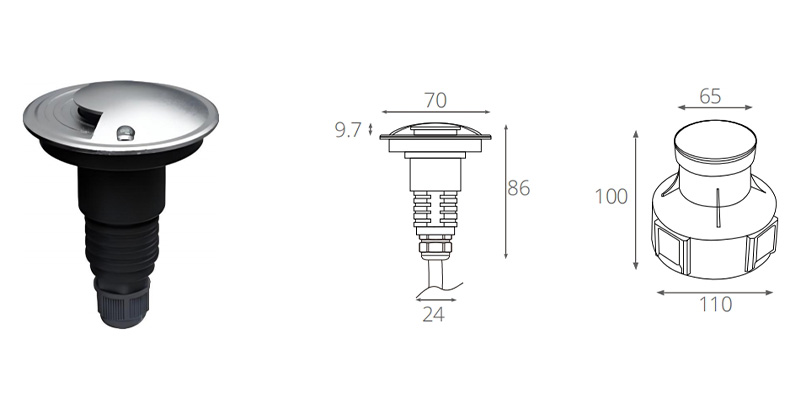

GS-2077

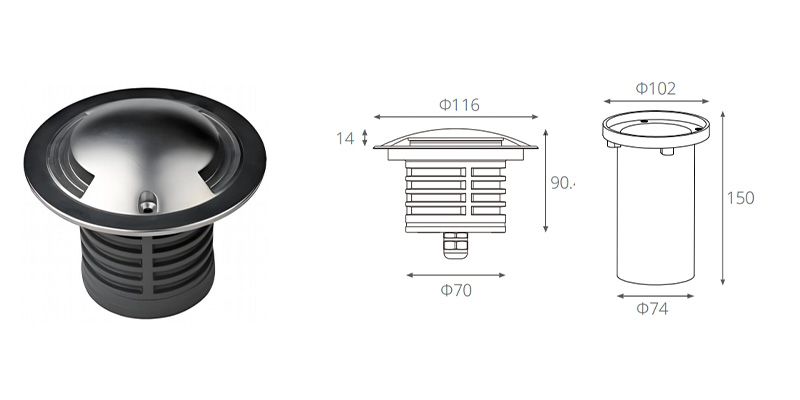

GS-2116

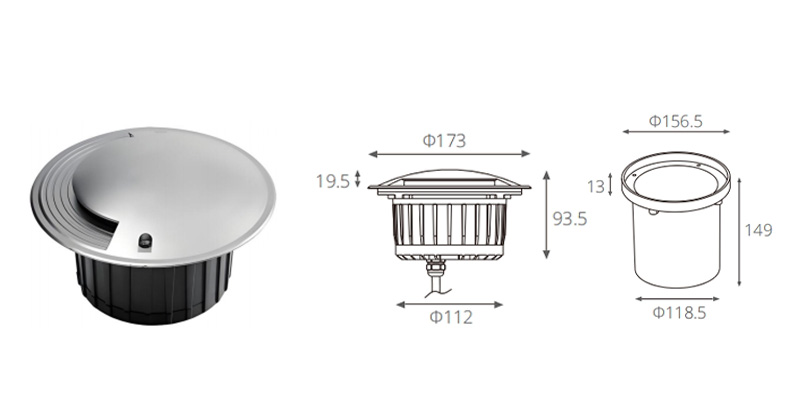

GS-2173

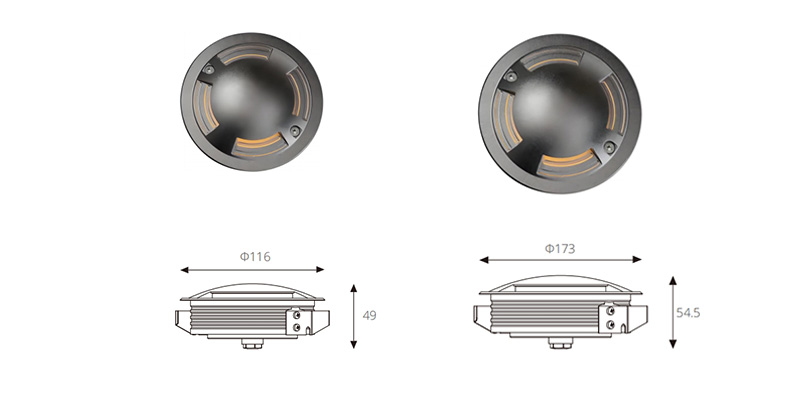

GS-2117
A single lamp can cover the surroundings of the steps, reducing the number of lamps installed. It is especially suitable for independent steps, the center of circular trails or scenarios that require all-round guidance. Such as the park’s circular island walkway and the rotating steps of commercial complexes
We can provide 5 years warranty for the whole light body.

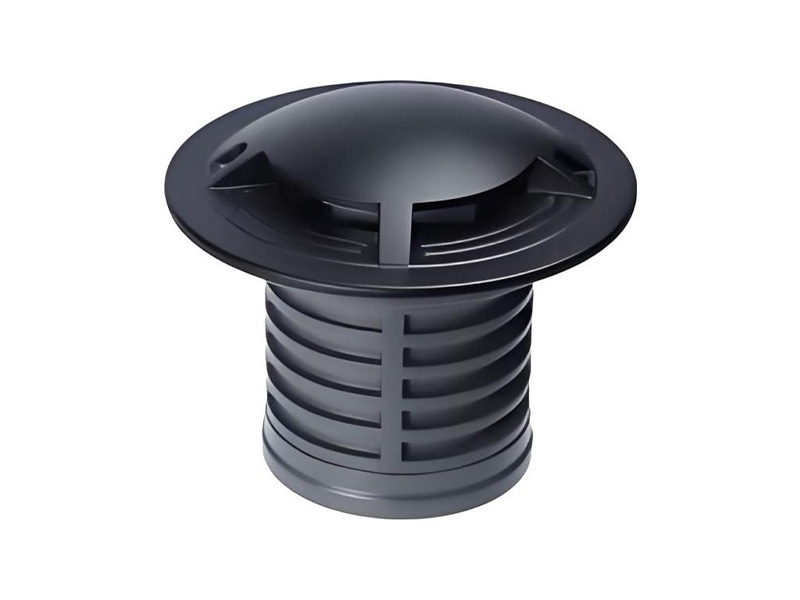

The inground lights use high quality CREE/OSRAM leds.
Yes, the inground lights can reach IP67 waterproof grade.
KGP free flicker drivers for option.
