LED ground lights mini circular series with light source from CREE/OSRAM.
Wattages choose from 2W to 15W, High performance, used 316 stainless steel, high quality aluminum alloy, and super white tempered glass.
-Wattage: 2/4/4.5/6.5/10/15W
-IP67, CRI>80
-Light efficiency: 90lm/W
-KGP driver
-Aluminum and Tempered glass and Stainless steel face ring
-Intelligent dimming, remote control
-Beam angle: 5°/10°/15°/20°/30°/ 40°/60°/10*45°/25* 45°
-CREE/OSRAM light source
-DALI/ 0-10V dimming for option
-3000K/4000K/5000K/5700K/6000K/6500K
-Higher reliability, long service life, Warranty: 5Years

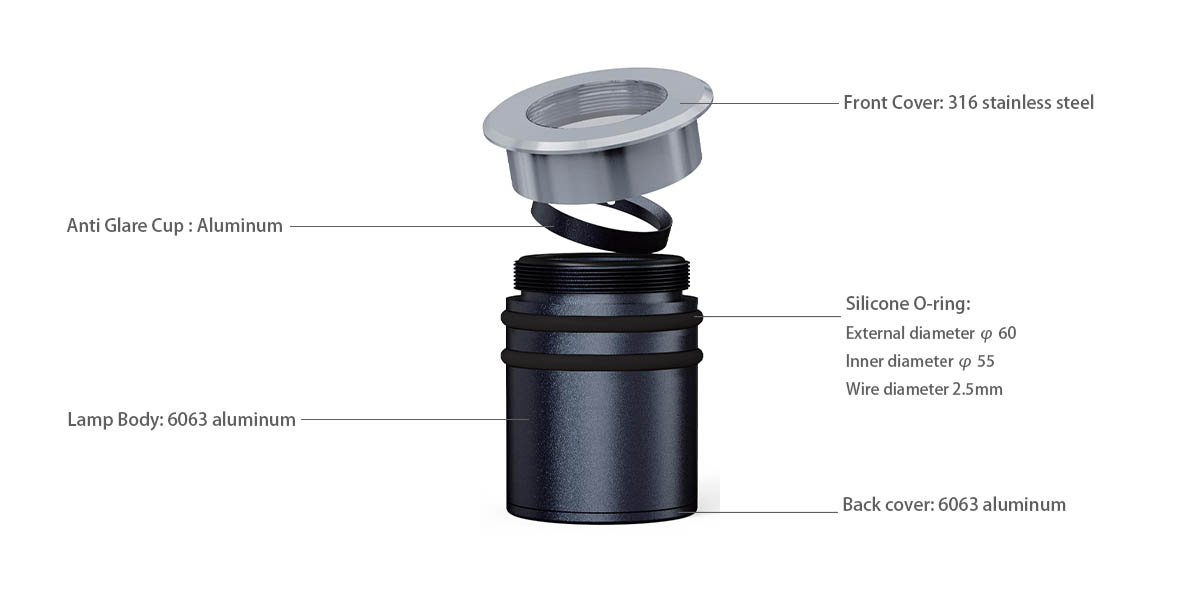

The circular mini underground lamp series has a sturdy and durable structure, reducing the frequency of malfunctions.
Lamp body adopts a die-cast aluminum shell, and the surface is treated with powder coating.It is equipped with a titanium-chrome white 316L stainless steel front ring,
Rear cover are made of 6063 aluminum alloy, which is of high strength and good thermal conductivity. The screws are made of stainless steel and have strong corrosion resistance.
The light-transmitting surface adopts transparent tempered safety glass with a light transmittance of over 95%, featuring both high light transmittance and impact resistance.
Equipped with an anti-glare cup, it optimizes light distribution and enhances visual comfort.
Equipped with a dedicated power supply of KGP brand, it has IP67-level water resistance and is suitable for outdoor damp environments.
The PF index is greater than 0.95, with a high power factor and stable current without loss.
Ensure the long-term and reliable operation of lamps from the source and reduce the risk of circuit failures.
Equipped with CREE COB light source, the power ranges from 4.5W to 15W, adapting to different brightness requirements.
It offers extremely narrow to wide beam Angle options, with a rotationally symmetrical light pattern, making it suitable for key lighting or large-area floodlighting.
High color temperature accuracy and stable color performance.
| Model No. | GS3260R-2W | GS4275R-4W | GS5075R-4.5W | GS6590R-6.5W | GS80100R-10W |
|---|---|---|---|---|---|
|
Power |
2W |
4W |
4.5W |
6.5W |
10W |
|
Material |
316 Stainless steel+Aluminum |
||||
|
Beam angle |
5°/10°/15°/20°/30°/
40°/60°/10*45°/25*
45° |
15°/24°/36°/55° |
12°/24°/36°/55° |
||
|
Light efficiency |
120lm |
340lm |
454lm |
720lm |
900lm |
|
Voltage |
DC24V/AC220V |
||||
|
LEDs |
COB |
||||
|
Light source brand |
CREE |
||||
|
PF |
>0.95 |
||||
|
LED Lifespan |
>50000 Hours |
||||
|
IP |
IP67 |
||||
|
CRI |
>80/90 |
||||
|
CCT |
3000K/4000K/5000K/6000K |
||||
|
Diameter |
32mm |
42mm |
50mm |
65mm |
80mm |
|
Warranty |
5 years |
||||
Surface light
Polarized design
Stretch film of LED light
Honeycomb
Beam angles can choose from 5°/10°/15°/20°/30°/ 40°/60°/10*45°/25*45°. Unique visual effects are created through flexible light angles.
You can adjust the irradiation Angle of the buried lamp according to the actual needs to adapt to different lighting needs.
It can be flexibly arranged according to demand to adapt to different lighting designs.
Outdoor scenarios: hotels, villas, building facades, gardens, residential areas, especially suitable for environments that require landscape lighting or functional underground lighting
Special environments: Seaside, areas with high humidity or high corrosiveness (due to the strong weather resistance of the material)
We can provide 5 years warranty for the whole light body.
The inground lights use high quality CREE/OSRAM leds.
Yes, the inground lights can reach IP67 waterproof grade.
KGP free flicker drivers for option.
