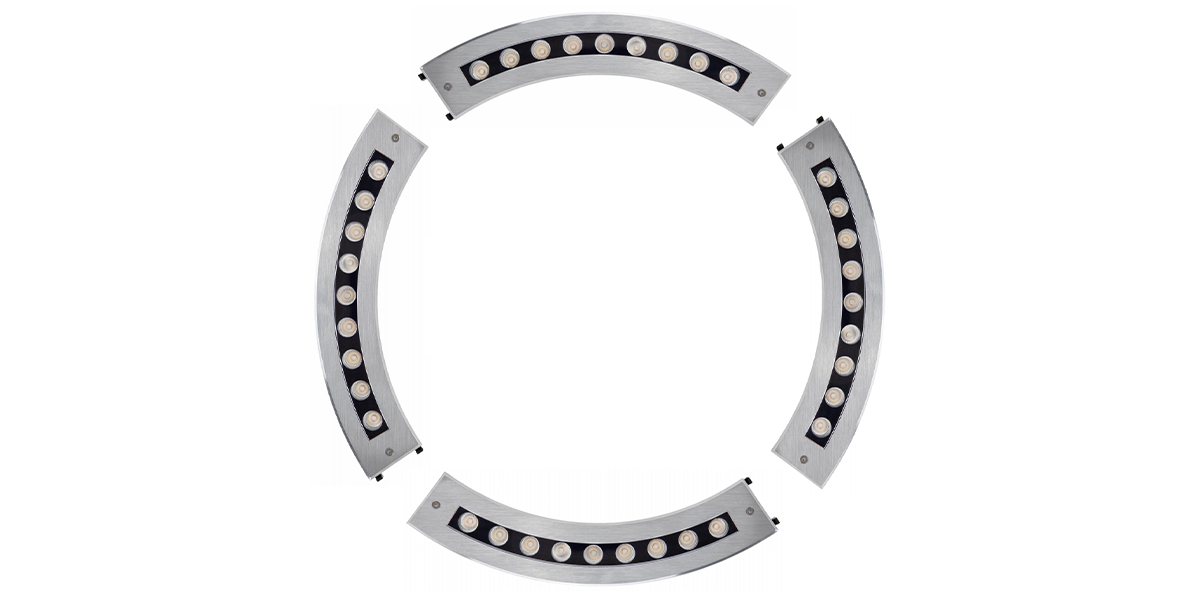

Inground linear light circular underground lamp adopts OSRAM LED light source, which has high brightness and uniform and soft light.
Designed specifically for cylindrical objects, it is easy to install, has an IP67 waterproof rating, is rainproof, corrosion-resistant and impact-resistant.
-6063 aluminum alloy extruded thickened lamp body
-strong 8mm tempered glass
-light efficiency up to 90lm/W
-6W/9W per module for option
-Single color / RGB Three in one / RGBW 4 in in one for options
-High performance with OSRAM/CREE leds
-Electrical: DC24V/ AC200-240V
-Beam angle: 8°, 12°, 20°, 25°, 60°
-IP67 protecting grade
-5 years warranty
Linear underground lamp adopts a thickened 6063 aluminum alloy lamp body and 8mm tempered glass, and a luminous efficacy as high as 90lm/W.
It offers 6W/9W per module and single color /RGB /RGBW light color options. The light source can be selected from OSRAM/CREE.
Designed specifically for cylindrical objects and with flexible installation:
The base can be fixed by screws or installed with an installation box.
Changing colors from 2700K to 4000K, RGB/RGBW/DMX control for option.
According to the changing needs of your scene, choose the right color temperature to create a different atmosphere.
It can support DALI/0-10V Control dimmable.
DALI Dimming: Suitable for scenarios that require precise control and intelligent management.
0-10V dimming: Suitable for simple, low-cost dimming needs.
| Model No. | GS-CL-302 | GS-CL-369 | ||||
|---|---|---|---|---|---|---|
|
Item |
GS-CL302-A |
GS-CL302-B |
GS-CL302-C |
GS-CL369-A |
GS-CL369-B |
GS-CL369-C |
|
Material |
6063 Aluminum alloy+8mm tempered glass+stainless steel face ring |
|||||
|
Beam angle |
8°/12°/25°/40°/60° |
12°/25°/40°/60° |
8°/12°/25°/40°/60° |
12°/25°/40°/60° |
||
|
Light efficiency |
90lm/W |
|||||
|
Voltage |
DC24V/AC220V |
|||||
|
LEDs |
SMD |
|||||
|
Light source brand |
CREE/OSRAM |
|||||
|
PF |
>0.95 |
|||||
|
LED Lifespan |
>50000 Hours |
|||||
|
IP |
IP67 |
|||||
|
CRI |
>80/90 |
|||||
|
CCT |
RGB/RGBW/DMX/2700K/3000K/3500K/4000K |
|||||
|
Warranty |
5 years |
|||||
Surface light
Polarized design
Stretch film of LED light
Honeycomb

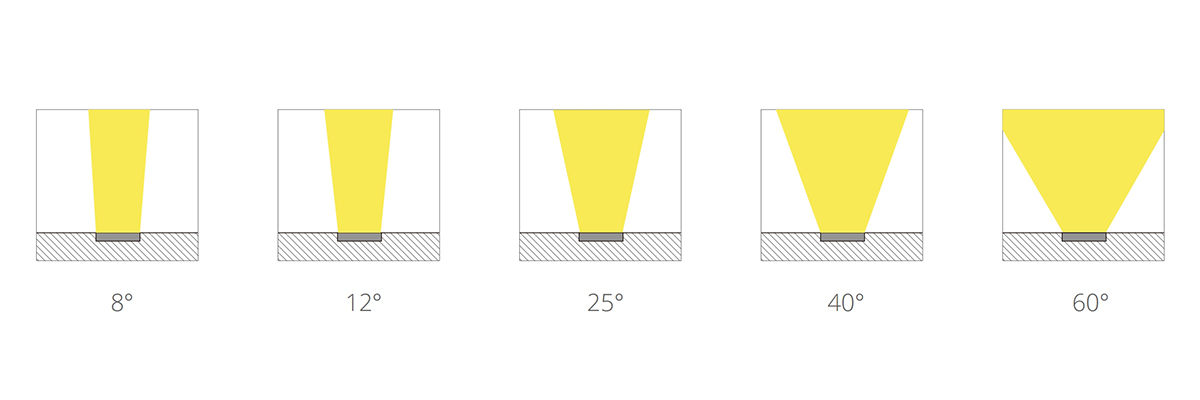

Various beam angles for option, 8°/12°/25°/40°/60°.
With optical lens equipped, the light can change beam angle based on your need.

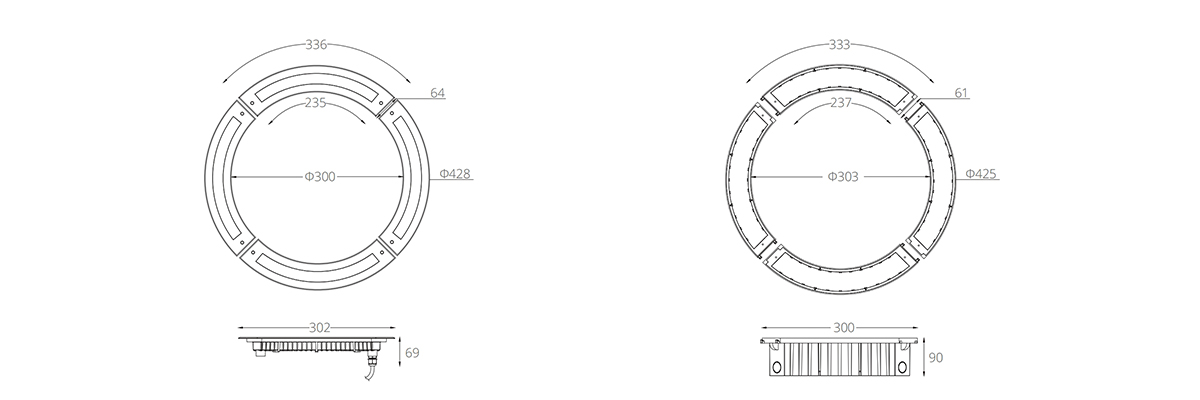

GS-CL302 Seeries

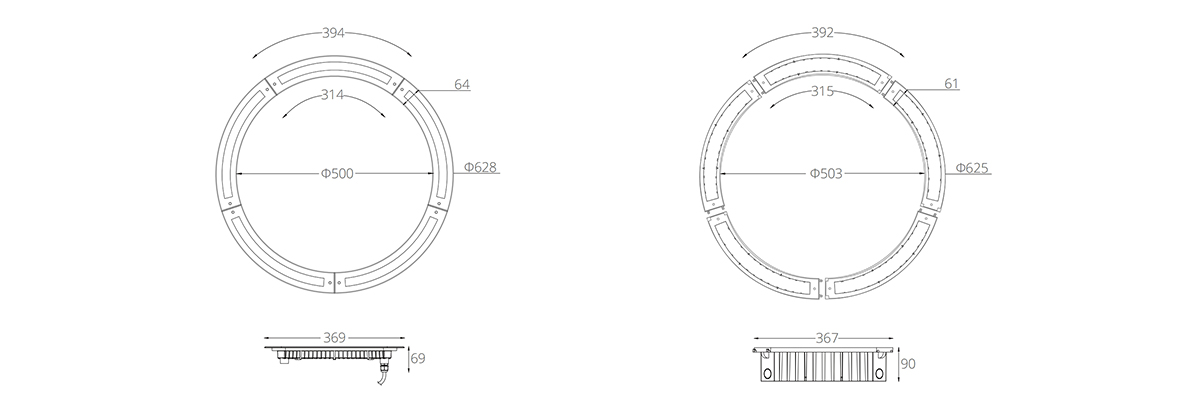

GS-CL369 Seeries

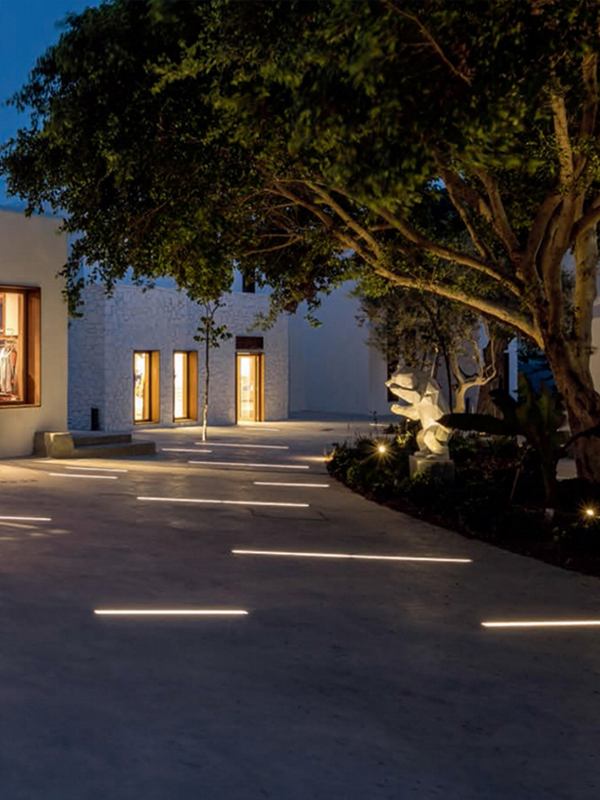

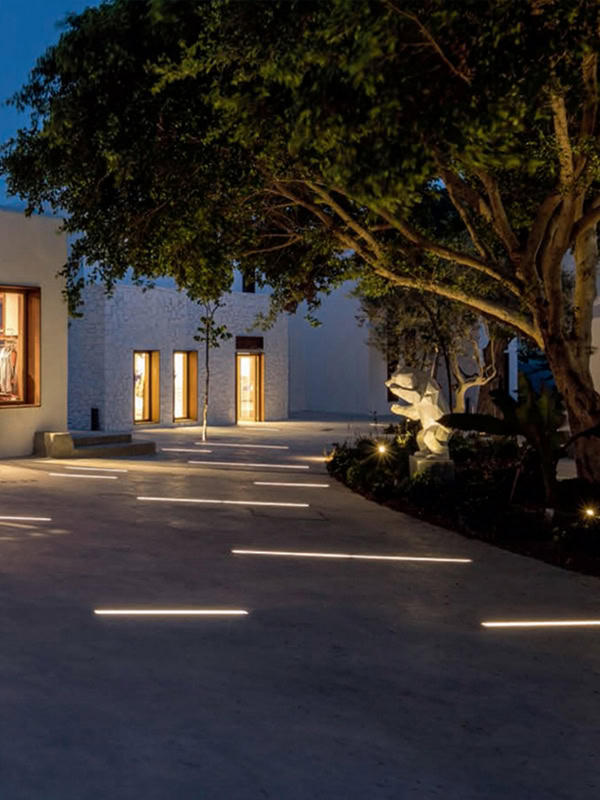

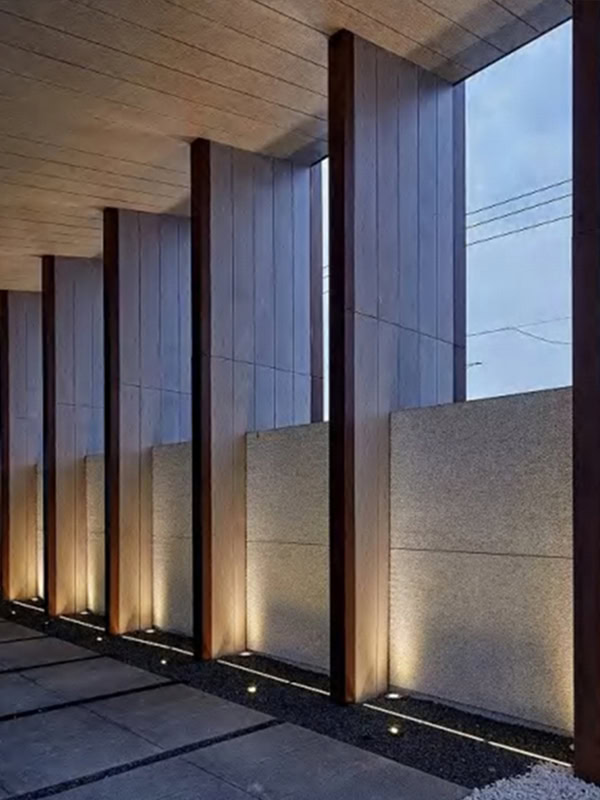

It is widely applicable in various scenarios, such as garden landscapes, commercial plazas, pedestrian streets, and exterior wall lighting of buildings.
From courtyards to landmarks, from commercial areas to art, frameless linear underground lights, with their “invisible power”, make every beam of light the finishing touch of the scene.
We can provide 5 years warranty for the whole light body.
The inground lights use high quality CREE/OSRAM leds.
Yes, the inground lights can reach IP67 waterproof grade.
Meanwell/Inventronics free flicker drivers for option.
