In Ground Pathway Lights Step Series

Home

Inground Lights

In Ground Pathway Lights Step Series

In Ground Pathway Lights Step Series

In ground pathway lights series through the modular optical structure, it supports 1-sided, 2-sided or 4-sided light-emitting modes.
Wattages choose from 2W to 15W, High performance, used 316 stainless steel, high quality aluminum alloy, and super white tempered glass.

Features:

-Wattage: 2/4/4.5/6.5/10/15W

-IP67, CRI>80
-Light efficiency: 90lm/W

-KGP driver

-Aluminum and Tempered glass and Stainless steel face ring

-Intelligent dimming, remote control
-Beam angle: 1/2/4 ways

-CREE/OSRAM light source
-DALI/ 0-10V dimming for option

-3000K/4000K/5000K/5700K/6000K/6500K

-Higher reliability, long service life, Warranty: 5Years

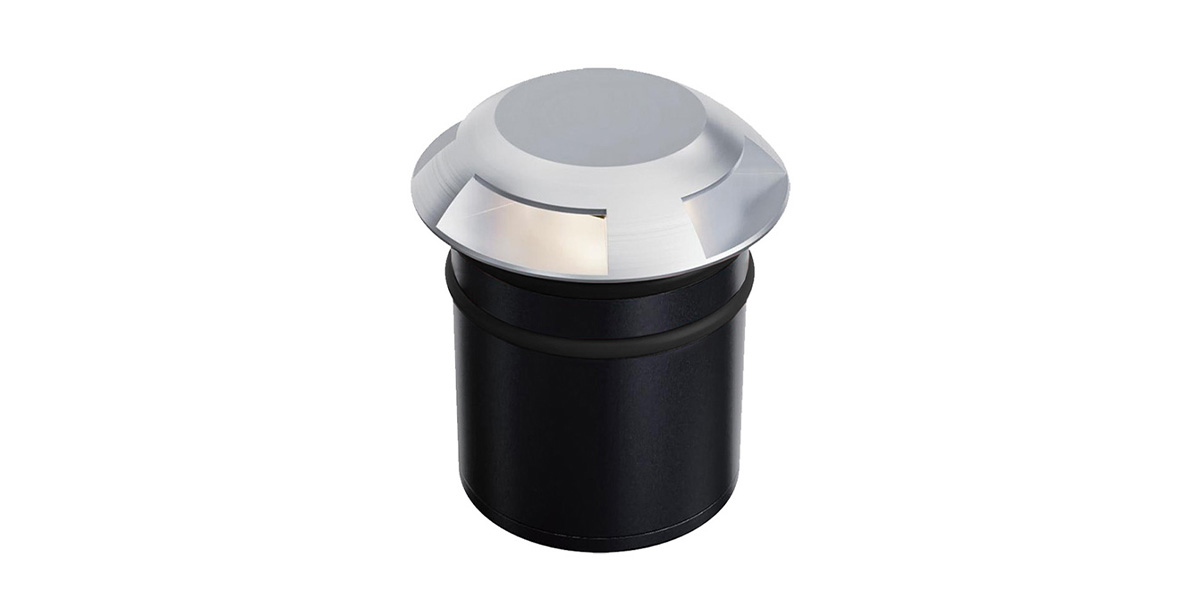

In Ground Pathway Lights

Lamp body adopts a die-cast aluminum shell, and the surface is treated with powder coating.It is equipped with a titanium-chrome white 316L stainless steel front ring,
Rear cover are made of 6063 aluminum alloy, which is of high strength and good thermal conductivity. The screws are made of stainless steel and have strong corrosion resistance.

Drivers Of LED Inground Lights

Equipped with a dedicated power supply of KGP brand, it has IP67-level water resistance and is suitable for outdoor damp environments.
The PF index is greater than 0.95, with a high power factor and stable current without loss.
Ensure the long-term and reliable operation of lamps from the source and reduce the risk of circuit failures.

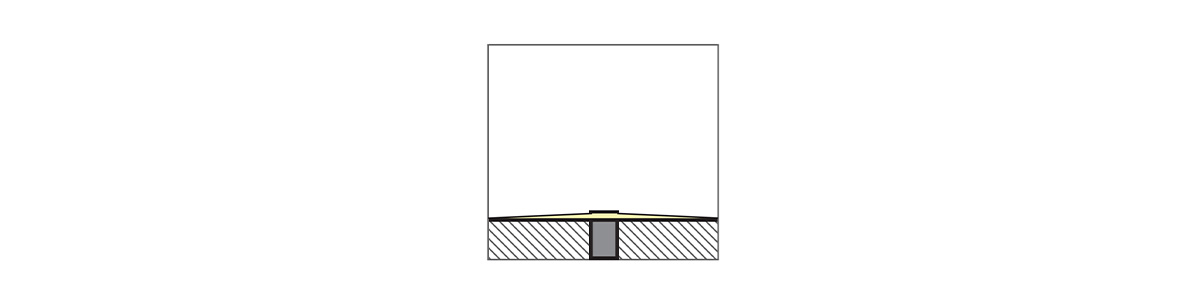

In Ground Pathway Lights Design

One-sided lighting: Vertical lighting on one side, focusing on the step facade, highlighting the contour layers, such as installation against the wall;
Two-sided lighting: Bidirectional symmetrical lighting, taking into account the lighting on both sides of the steps, such as independent steps or the edges of walkways;
Four-sided illumination: Omnidirectional diffused illumination, providing 360° surround lighting, suitable for central locations or intersections of complex trails.

In Ground Pathway Lights 1/2/4 ways lighting

Through the modular optical structure, it supports 1-sided, 2-sided or 4-sided light-emitting modes, and can be freely selected according to the step layout and lighting direction.

Avoid the limitation of the fixed light emission direction of traditional ground lamps, reduce light waste and improve the lighting efficiency of the space.

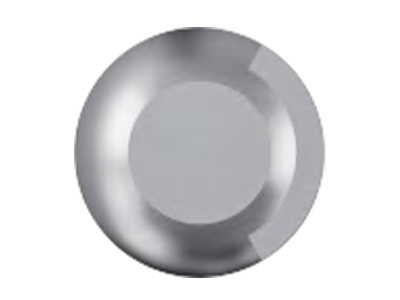

1 Way

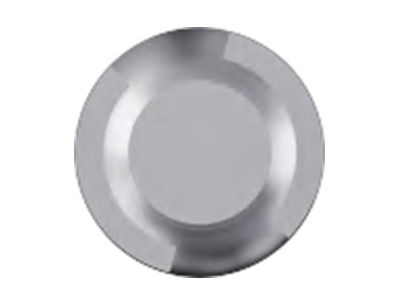

2 Ways

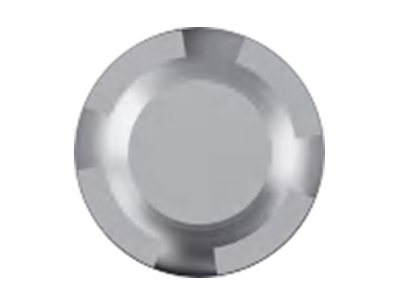

4 Ways

Datasheet Of LED Ground Lights

Model No.	GS3267R-2W	GS4282R-4W	GS5582R-4.5W	GS6599R-6.5W	GS85108R-10W	GS100127R-10W
Power	2W	4W	4.5W	6.5W	10W	15W
Material	316 Stainless steel+Aluminum
Beam angle	1/2/4 ways
Voltage	DC24V/AC220V
LEDs	COB
Light source brand	CREE
PF	>0.95
LED Lifespan	>50000 Hours
IP	IP67
CRI	>80/90
CCT	3000K/4000K/5000K/6000K
Diameter	35mm	45mm	55mm	65mm	85mm	100mm
Warranty	5 years

LED Ground Lights Parts Addition

Surface light

Polarized design

Stretch film of LED light

Honeycomb

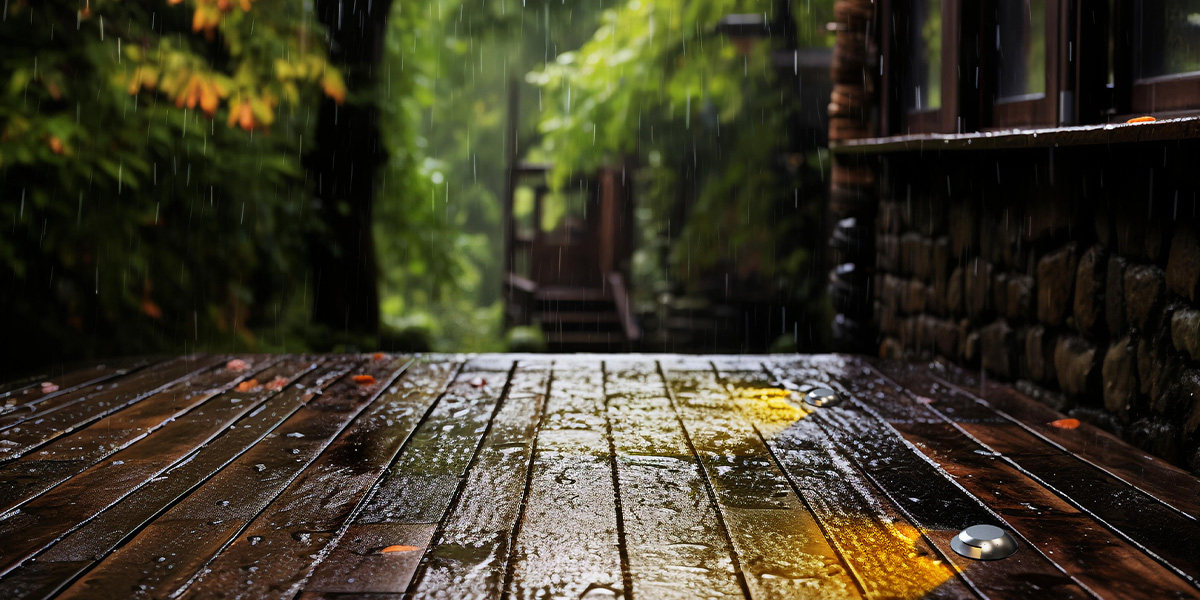

LED Ground Lights Outdoor Lighting Effect

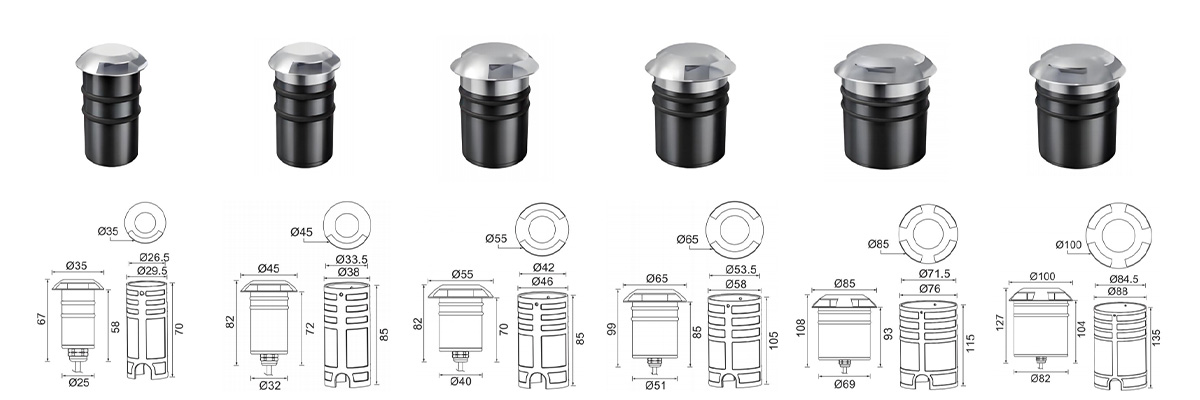

Size Of LED Ground Lights Outdoor

It can be flexibly arranged according to demand to adapt to different lighting designs.

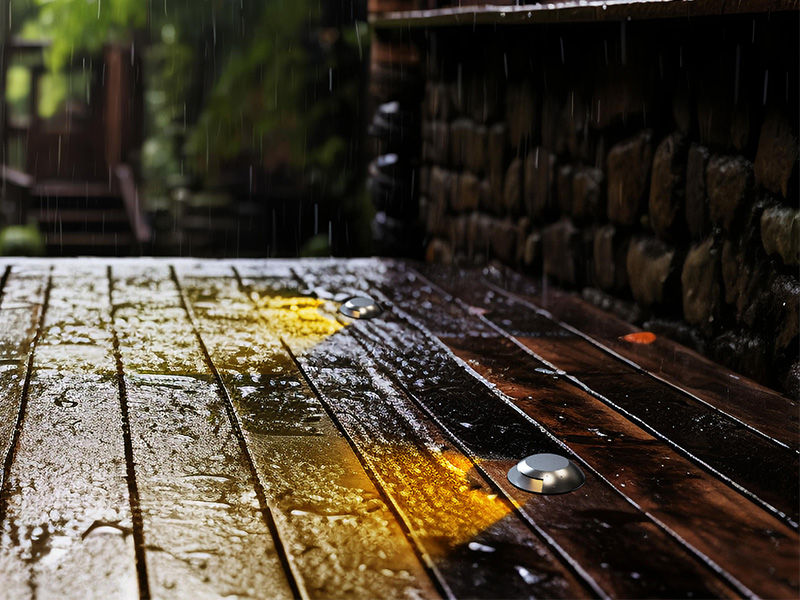

LED Ground Lights Outdoor Applications

Step lamps can be used on the entrance steps and garden walkways. It achieves private lighting by emitting light on half of the side, avoiding light interference.
The steps in the lobbies of shopping malls and hotels are illuminated on four sides, providing sufficient brightness and guidance.

Frequently Asked Questions

Most frequent questions and answers

How many years warranty you provided?

We can provide 5 years warranty for the whole light body.

What the brand of the light source?

The inground lights use high quality CREE/OSRAM leds.

Does the inground light be waterproof?

Yes, the inground lights can reach IP67 waterproof grade.

What power supply the light use?

KGP free flicker drivers for option.
