In Ground LED Lights 360° Step Series

Home

Inground Lights

In Ground LED Lights 360° Step Series

In Ground LED Lights Step 360° Series

In ground LED lights 360° lighting series through 360° uniform light emission is achieved through a ring-shaped optical structure
Wattages choose from 2W to 15W, High performance, used 316 stainless steel, high quality aluminum alloy, and super white tempered glass.

Features:

-Wattage: 2/4/4.5/6.5/10/15W

-IP67, CRI>80
-Light efficiency: 90lm/W

-KGP driver

-Aluminum and Tempered glass and Stainless steel face ring

-Intelligent dimming, remote control
-Beam angle: 1/2/4 ways

-CREE/OSRAM light source
-DALI/ 0-10V dimming for option

-3000K/4000K/5000K/5700K/6000K/6500K

-Higher reliability, long service life, Warranty: 5Years

In Ground LED Lights

Lamp body adopts a die-cast aluminum shell, and the surface is treated with powder coating.It is equipped with a titanium-chrome white 316L stainless steel front ring,
Rear cover are made of 6063 aluminum alloy, which is of high strength and good thermal conductivity. The screws are made of stainless steel and have strong corrosion resistance.

Drivers Of LED Inground Lights

Equipped with a dedicated power supply of KGP brand, it has IP67-level water resistance and is suitable for outdoor damp environments.
The PF index is greater than 0.95, with a high power factor and stable current without loss.
Ensure the long-term and reliable operation of lamps from the source and reduce the risk of circuit failures.

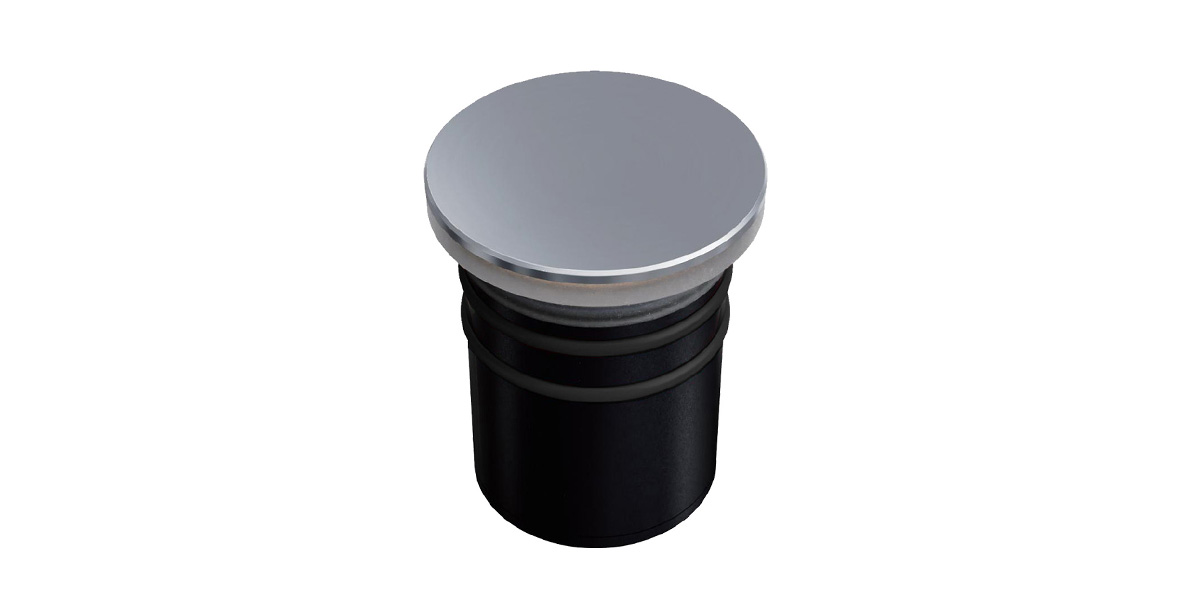

In Ground LED Lights 360° Design

The 360° uniform light emission is achieved through the annular optical structure, and the light diffuses in all directions without blind spots.
Eliminate the lighting blind spots of traditional unidirectional/multi-directional luminescence It provides 360-degree surround lighting. A single lamp can cover all sides of the steps.

Datasheet Of In Ground LED Lights

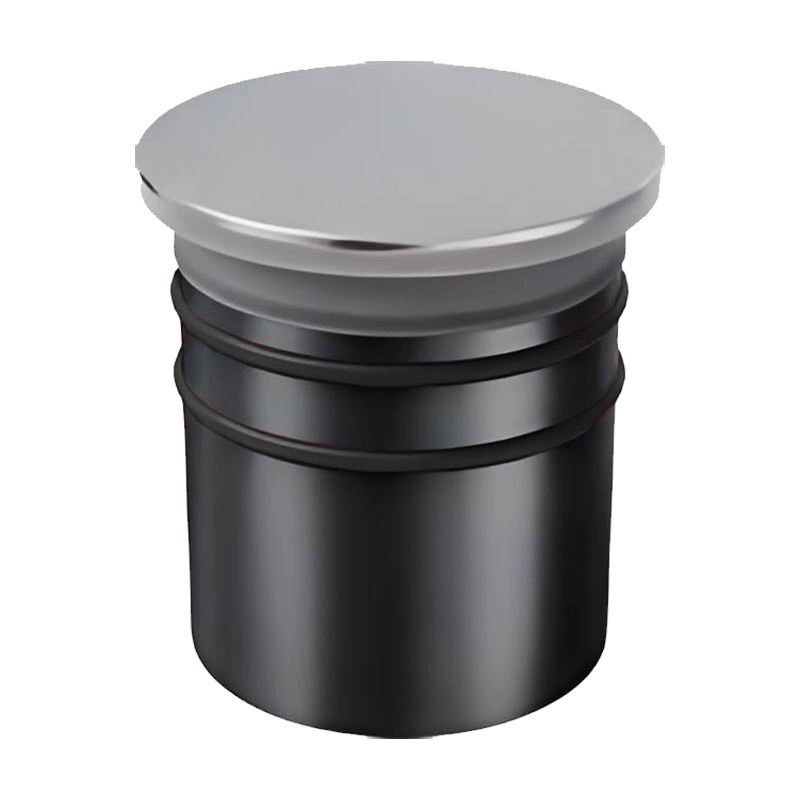

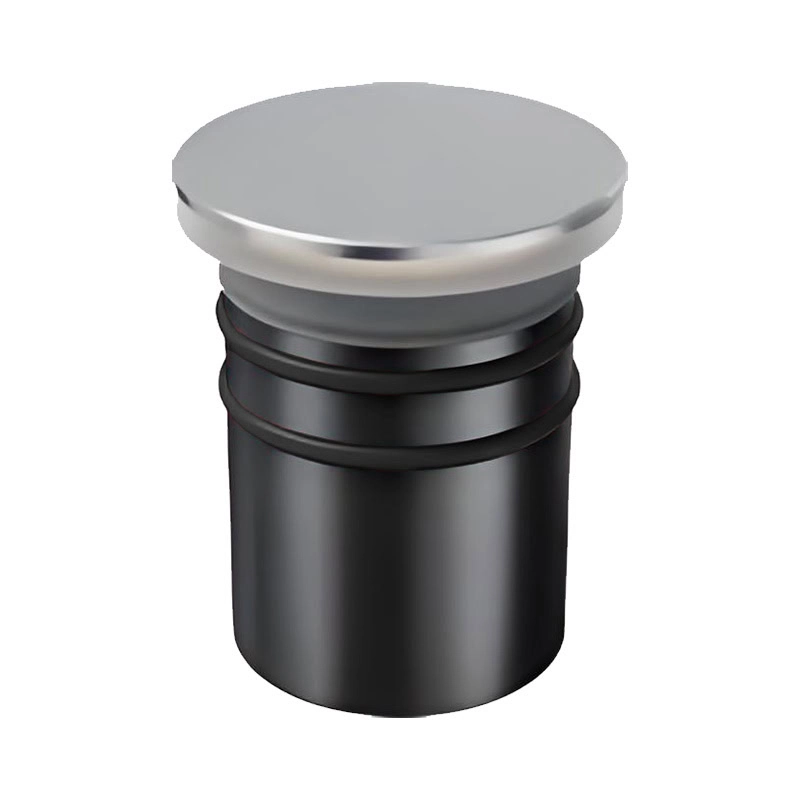

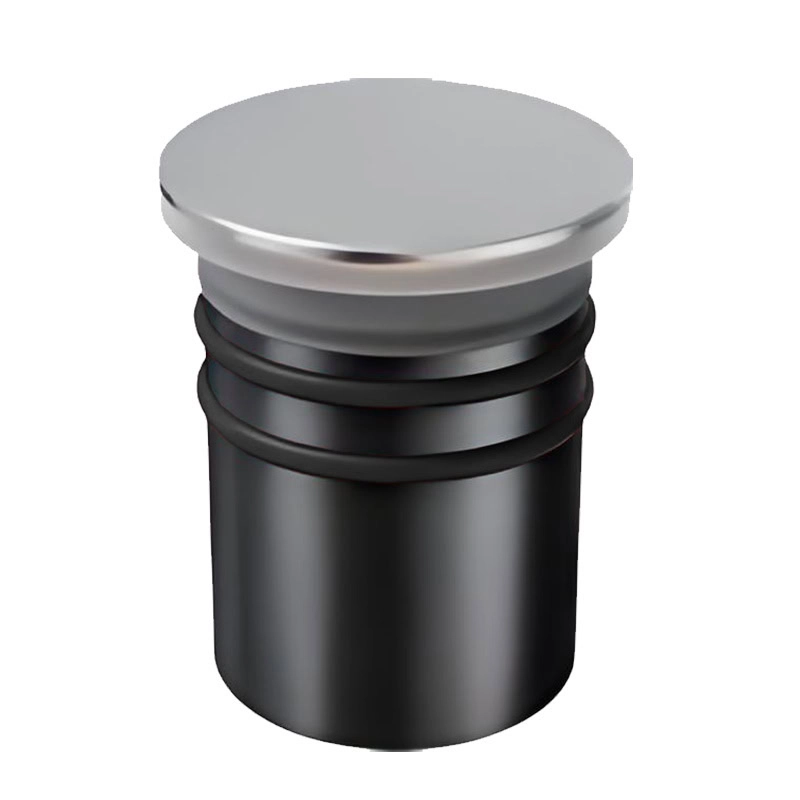

Model No.	GS3264R-2W	GS4275R-4W	GS5073R-4.5W	GS6588R-6.5W	GS8098R-10W	GS100114R-15W
Power	2W	4W	4.5W	6.5W	10W	15W
Material	316 Stainless steel+Aluminum
Beam angle	360°
Voltage	DC24V/AC220V
LEDs	COB
Light source brand	CREE
PF	>0.95
LED Lifespan	>50000 Hours
IP	IP67
CRI	>80/90
CCT	3000K/4000K/5000K/6000K
Diameter	32mm	42mm	50mm	65mm	80mm	100mm
Warranty	5 years

In Ground LED Lights Parts Addition

Surface light

Polarized design

Stretch film of LED light

Honeycomb

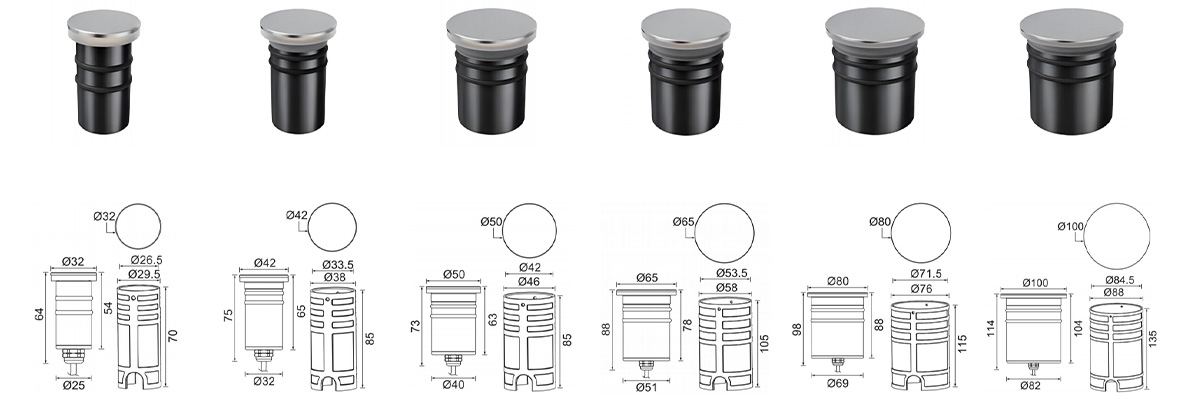

Size Of In Ground LED Lights

It can be flexibly arranged according to demand to adapt to different lighting designs.

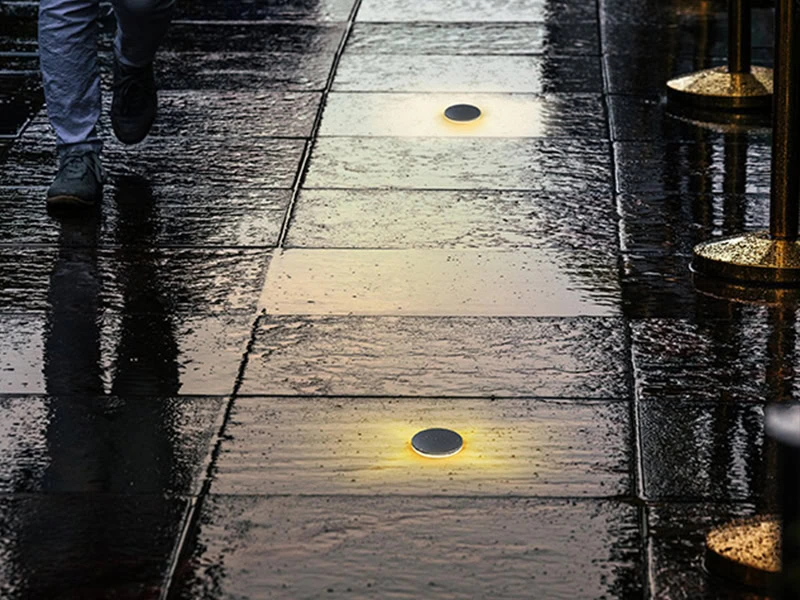

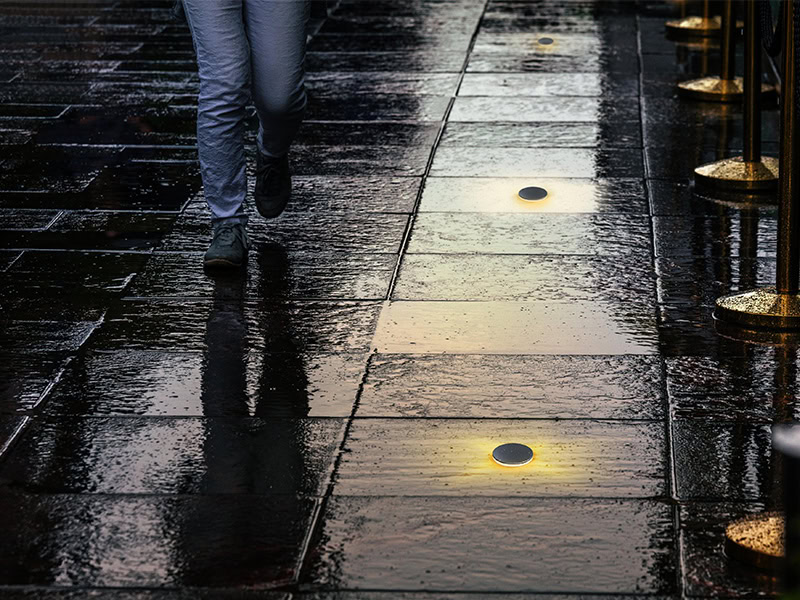

LED Ground Lights Outdoor Applications

A single lamp can cover the surroundings of the steps, reducing the number of lamps installed. It is especially suitable for independent steps, the center of circular trails or scenarios that require all-round guidance. Such as the park’s circular island walkway and the rotating steps of commercial complexes

Frequently Asked Questions

Most frequent questions and answers

How many years warranty you provided?

We can provide 5 years warranty for the whole light body.

What the brand of the light source?

The inground lights use high quality CREE/OSRAM leds.

Does the inground light be waterproof?

Yes, the inground lights can reach IP67 waterproof grade.

What power supply the light use?

KGP free flicker drivers for option.
